User Manual for Radial Engineering Studio Guitar Interface w TX, RX Modules Click to enlarge the picture
Contents of the user manual for the Radial Engineering Studio Guitar Interface w
- Product category: General Guitar Accessories Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering General Guitar Accessories
 |
User manual for the Radial Engineering Studio Guitar Interface w contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

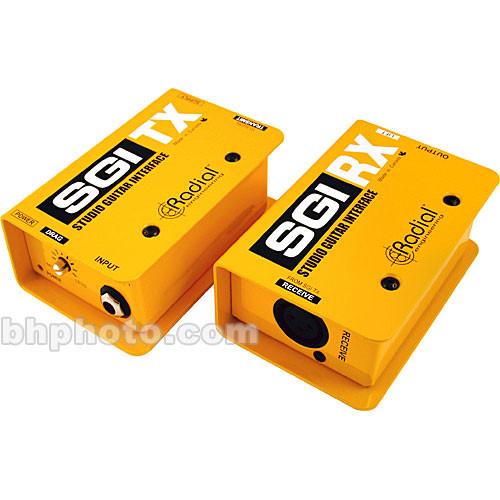

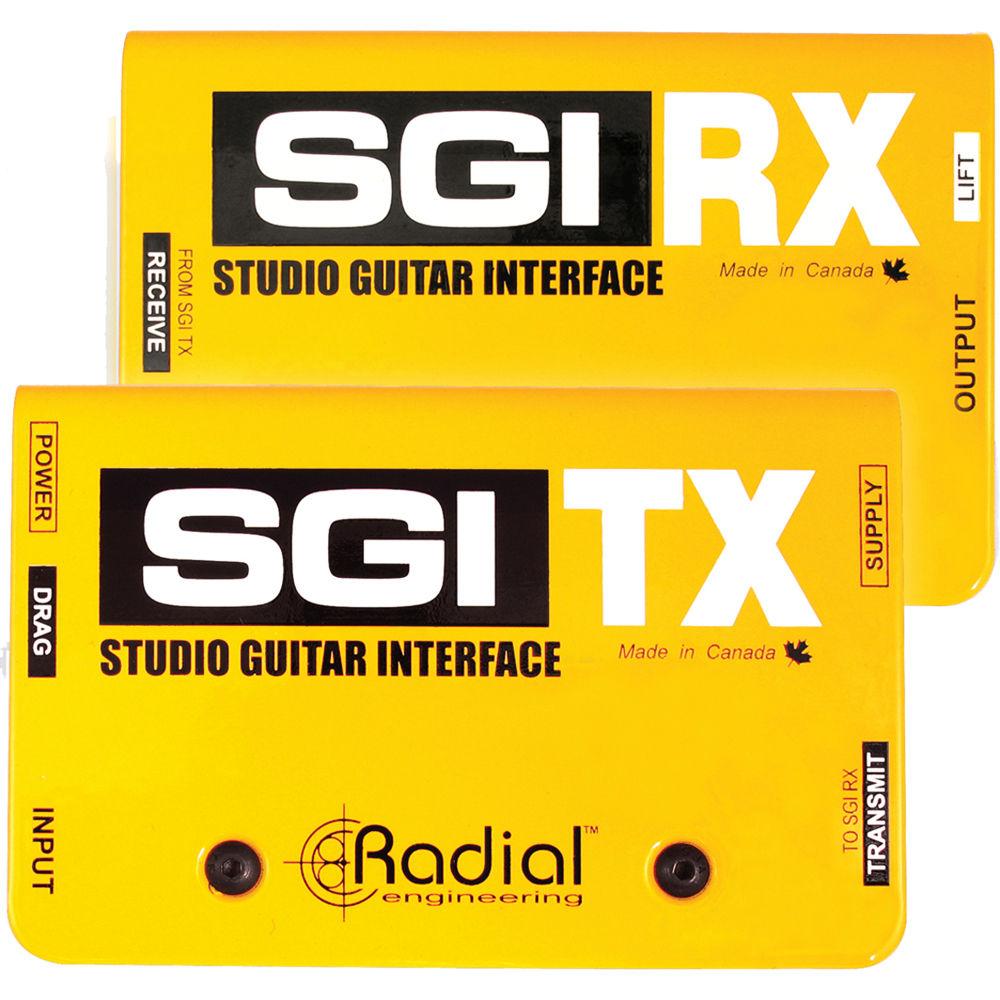

Product description The Radial Engineering Studio Guitar Interface is a small but innovative pair of connectors that allow you to play your instrument up to 300 feet away from your amplifier, without signal drop-off and without cable hum. This is a great advantage both when playing live, where long cable runs can pick up electrical and RF interference, and in the studio, where you can now have your amp in a distant isolation room, while you play from the control room, receiving the signal in real time for monitoring. The SGI is painted bright yellow, for ease of cabling in enclosed spaces.

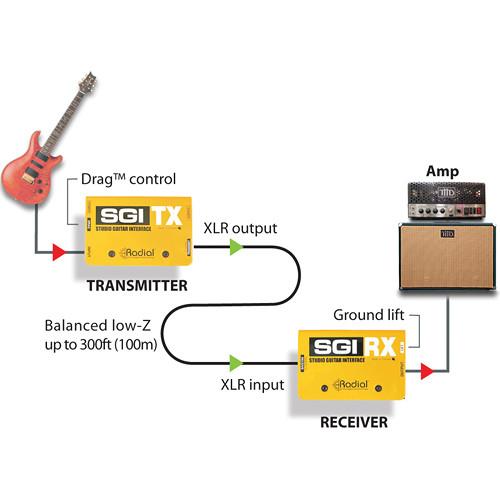

Simply plug your guitar into the transmitter unit, run an XLR cable to your amp's location, and plug in the receiving unit. The Drag control corrects the signal load, eliminating the effect on your tone of extended cable runs. A Ground Lift switch removes any interference hum the cable may pick up along the way.
Built to last from 14-gauge steel and heavy-duty hardware, the SGI lets you use modern recording and performance technology without their attendant pitfalls. - Record From the Control Room
- The SGI keeps your signal strong, clear and true to your original tone, over cable runs of up to 300 feet.
- Drag Feature
- Long cable runs alter the circuit load between your guitar and the amplifier. The Drag control corrects this discrepancy, restoring your intended tone.
- Ground Lift
- Long cable runs can pick up RF and electrical interference. The Ground Lift switch removes the hum, leaving only your music.
UPC: 676101035984 In the Box Radial Engineering Studio Guitar Interface w/TX, RX Modules 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Studio Guitar Interface w TX, RX Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R8001600 Specs | Switches | None | | Controls | Drag trimpot
Ground Lift toggle button | | Connectors | 1 x 1/4" Input jack
1 x XLR male Transmit jack
1 x XLR female Receive jack
1 x 1/4" Output jack | | Power Supply | 15 VDC, 400 mA | | Dimensions | Each unit:
2.75 x 4.25 x 2.38" (107 x 70 x 43mm) | | Weight | Each unit:
1.1 lbs (0.5 kg) | | | | Package Weight | 3.13 lb | | Box Dimensions (LxWxH) | 11.8 x 5.0 x 2.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
