User Manual for Radial Engineering SW4 - 4-Channel Audio Switcher Click to enlarge the picture
Contents of the user manual for the Radial Engineering SW4 - 4-Channel Audio
- Product category: Splitters & Combiners Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Splitters & Combiners
 |
User manual for the Radial Engineering SW4 - 4-Channel Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

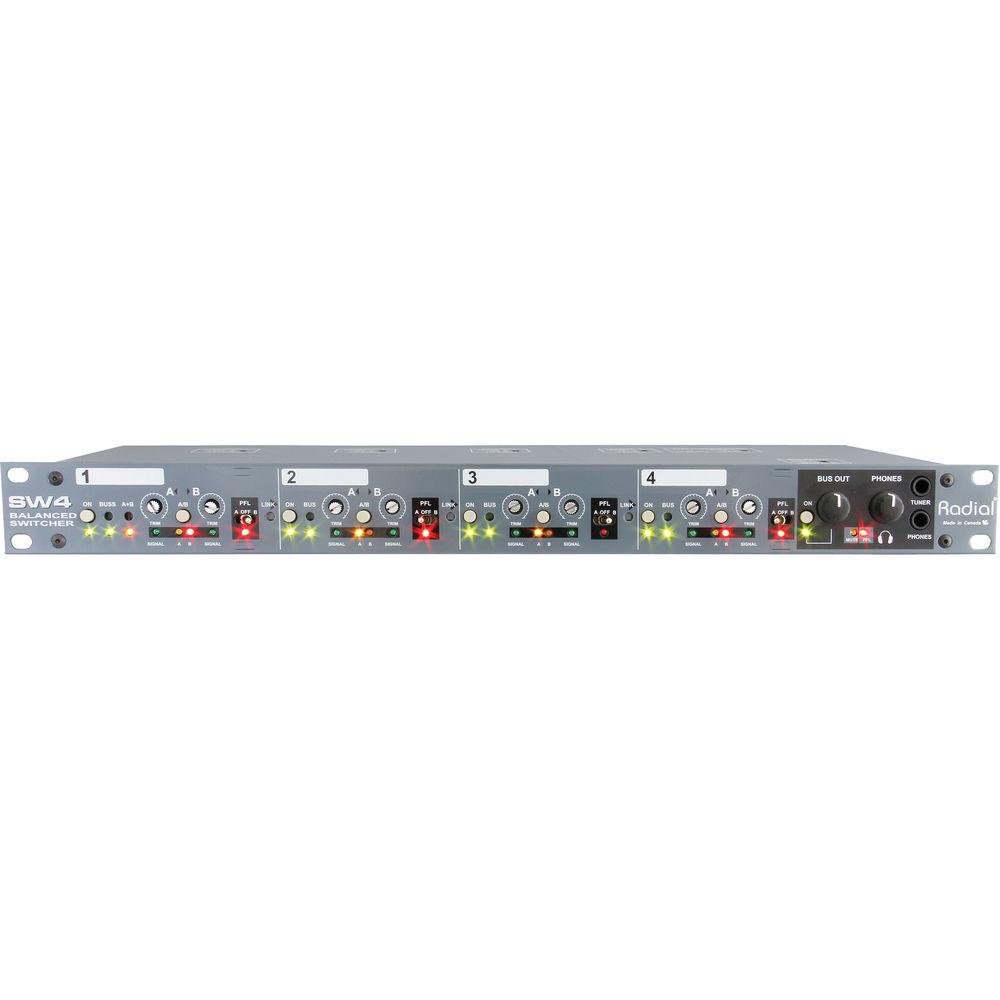

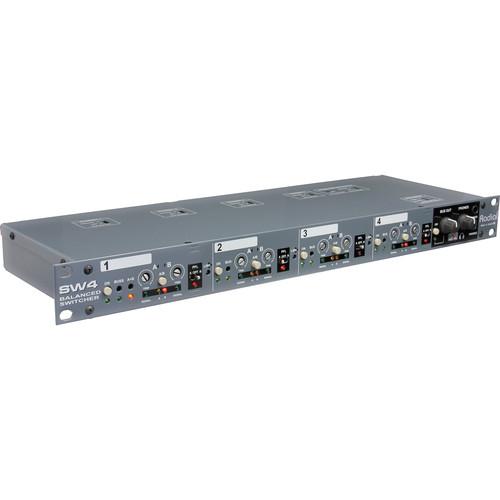

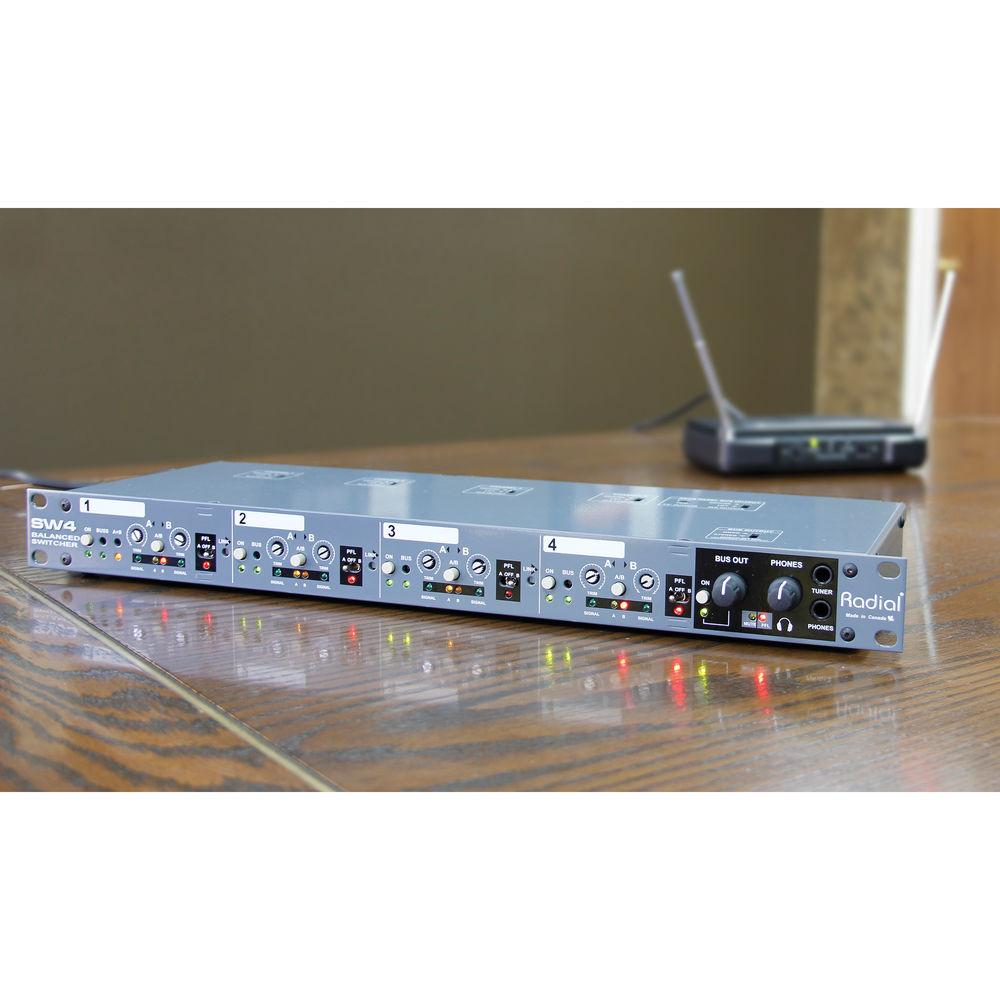

Product description Providing versatile channel switching for a wide variety of live applications, the SW4 - 4-Channel Audio Switcher from Radial Engineering features 4 channels, each with 2 XLR inputs that can be stereo linked. Aside from the XLR inputs, each channel can also be linked, supporting tri- and quad-channel switching. Each channel is also equipped with a 3-position pre-fader listen switch that allows you to monitor source A, source B, or the stereo bus via headphones, which can be summed to mono for use with wireless guitar systems.

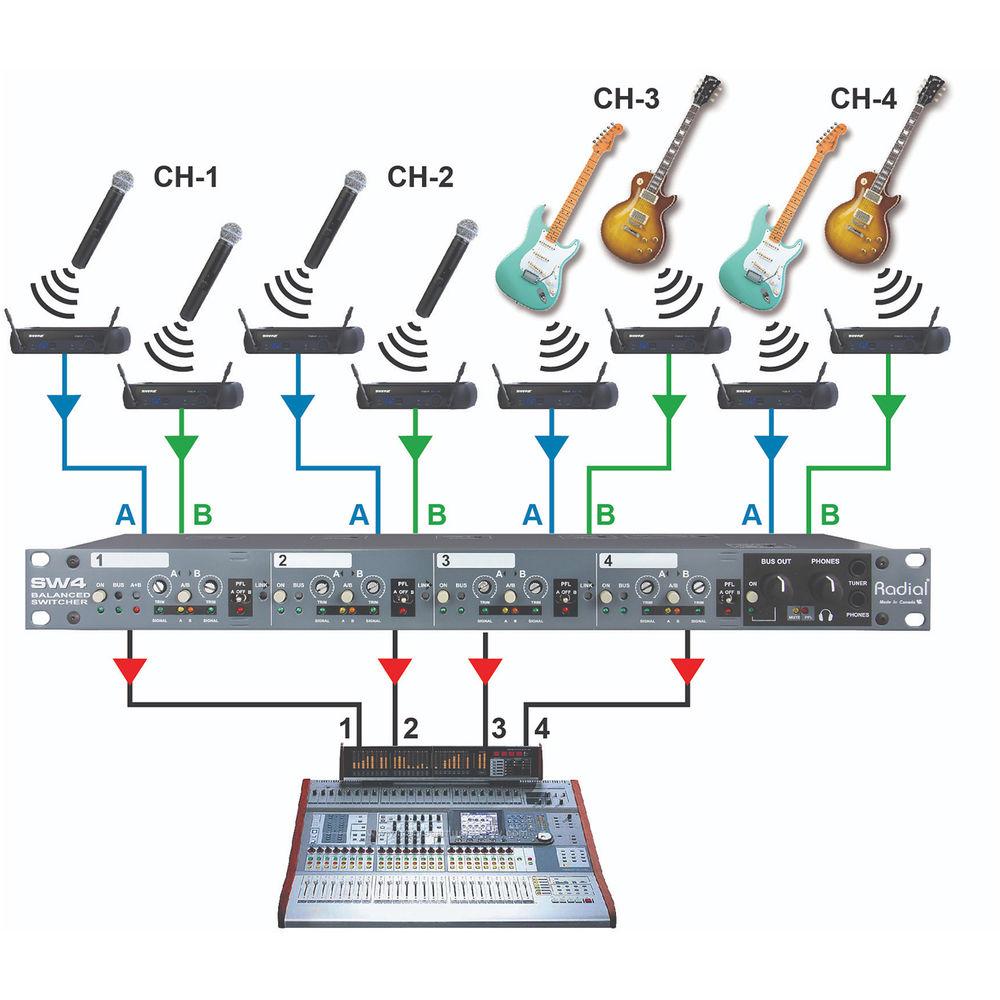

Channel 1 also features a mix function for summing both inputs together for simultaneous use. The unit has a master bus output, which is fed by all channels. Each channel has its own transformer-isolated output that is capable of handling over 20 dB at all frequencies. - Switching Between Wireless Systems
- The SW4 can be used for switching between two or more wireless systems. Use it for backup or to enhance the show without taking up more audio channels. Can also be used on wireless guitars

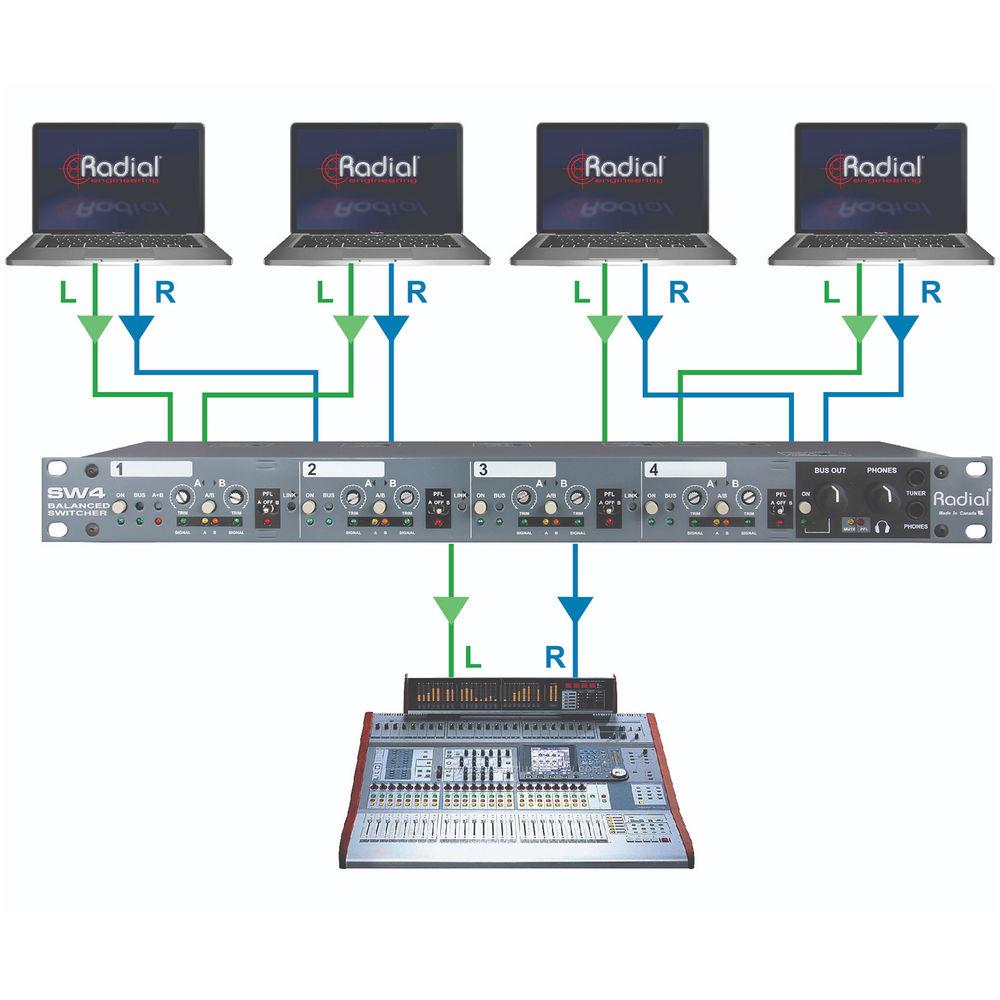

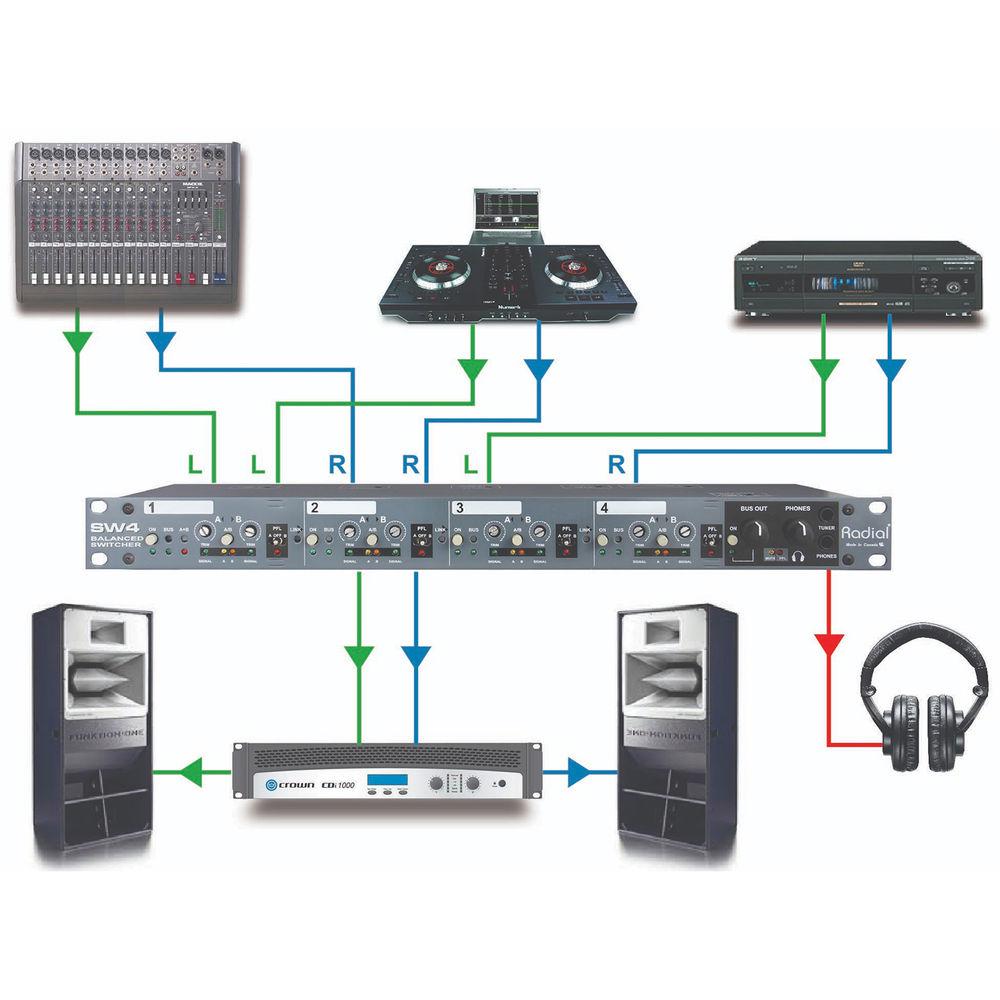

- Switching Between Stereo Sources
- Use the SW4 as a safety backup to switch between two digital playback systems. Connect the left channels to input-1 and the right channels to input-2. Link them together for stereo switching

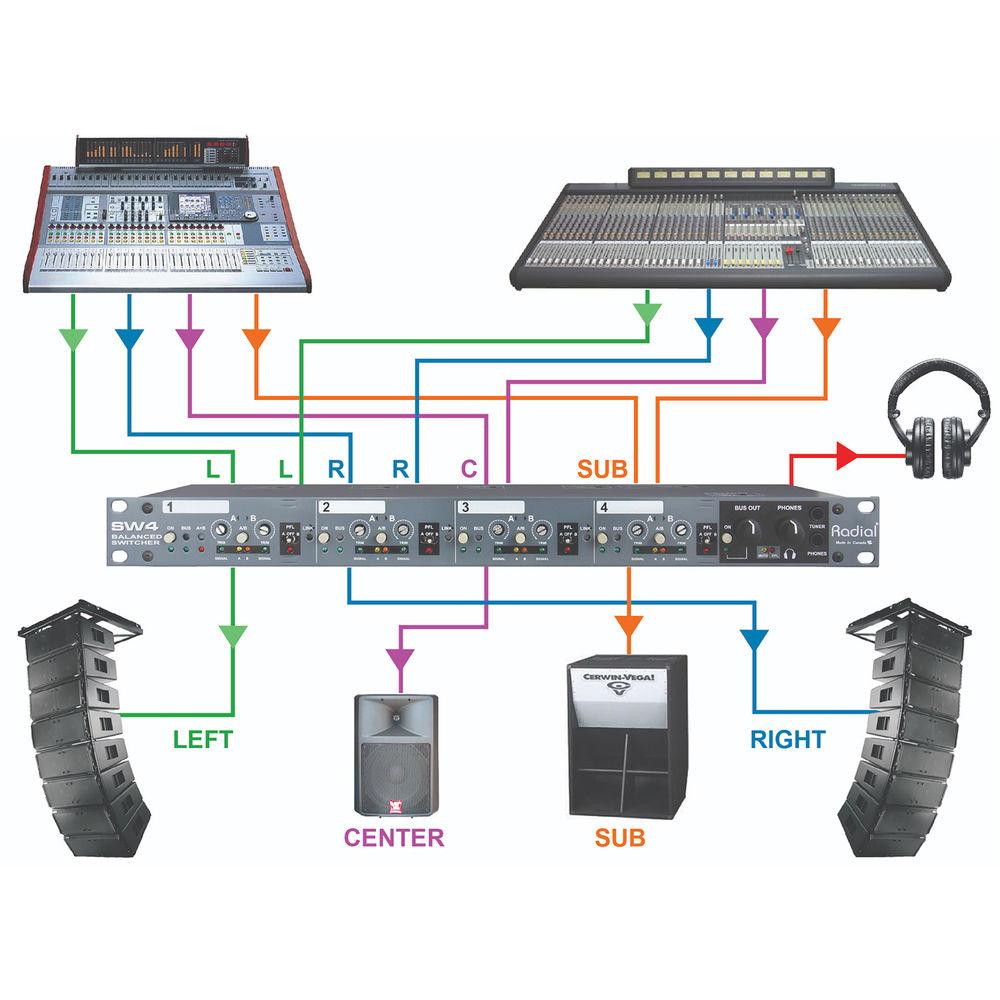

- Toggle Between 2 Consoles
- With 4 channels, you can instantly switch left, right, front down fill and subs with a push button. The SW4 gives you +20dB of signal handling to handle high output systems
- Switch up to 4 sets of wireless systems
- Link channels for stereo or quad switching
- Toggle between two consoles at festivals
- Transformer isolated to eliminate noise
UPC: 676101041299 In the Box Radial Engineering SW4 - 4-Channel Audio Switcher Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering SW4 - 4-Channel Audio Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 8110 Specs | Audio Circuit Type | Passive transformer coupled with relay switching | | Number of Channels | 4x AB select | | Frequency Response | 10 Hz to 40 kHz | | Dynamic Range | 136 dB | | Total Harmonic Distortion | 0.002 % | | Phase Deviation | <3° at all frequencies | | Intermodulation Distortion | 0.01 % | | Input Impedance | Load impedance in parallel with 10 k ohm | | Maximum Input | +26 dBu channel to channel
+17 dBu channel to bus | | Gain | Channel to Channel:
-0.26 dB with 10 k ohm load
-2.3 dB with 600 ohm load
Channel to Bus Gain:
+8 dB with 10 k ohm load | | Output Impedance | Channel Output Impedance: 160 ohms

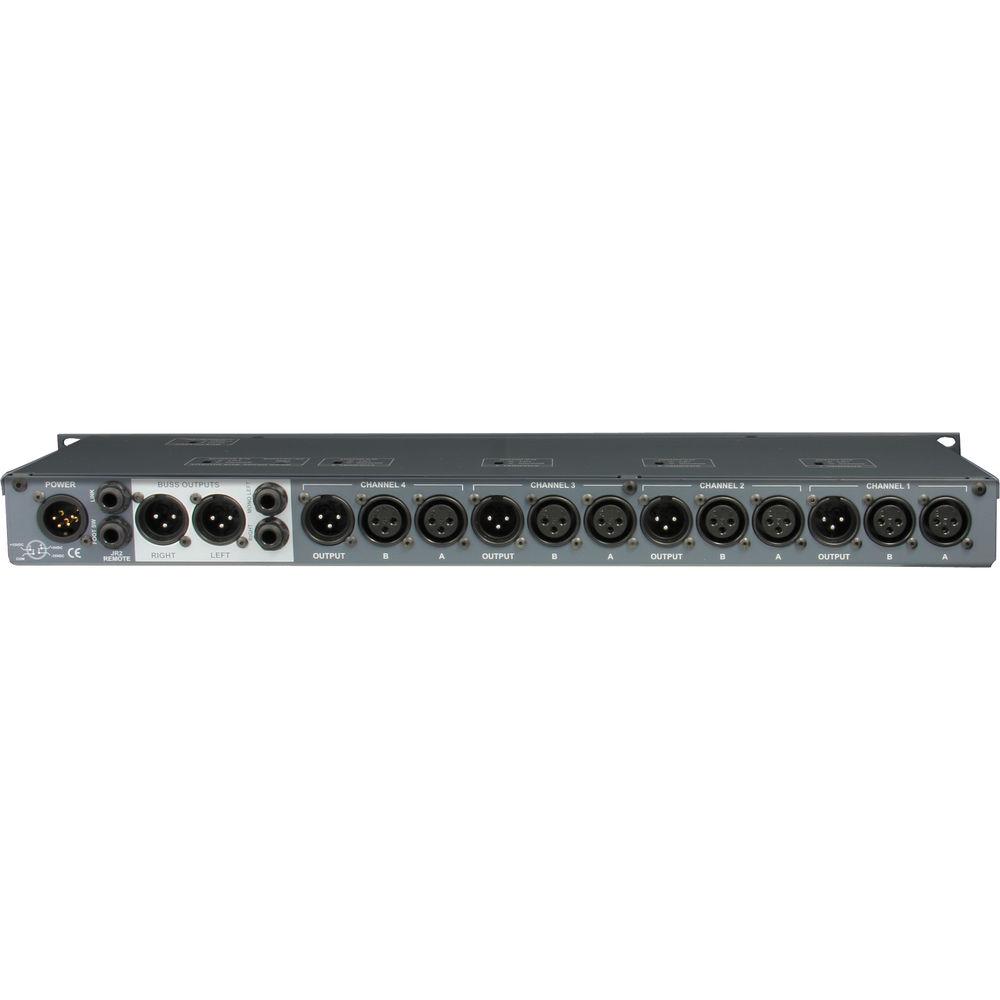

Bus Output Impedance: 500 ohms | | Transformer | Eclipse ET-LD2 line output | | Pad | Input Pad: Variable trim control | | Switches | AB select on each channel | | Pre-Fade Listen | A & B per channel, master bus | | Bus | Master bus out with headphones | | XLR Configuration | AES standard pin-1 ground, pin-2 (+), pin-3 (-) | | Input Connectors | XLR F | | Output Connectors | XLR male
1/4" (6.3 mm) guitar | | Bus Output | Stereo or mono assignable | | Ground Lift | On all channels & guitar amp outputs | | Power | External 100 V - 240V AC with 48 V phantom | | Construction | 14 gauge steel chassis & outer shell | | Operating Conditions | For use in dry locations only between 41 to 104°F (5 and 40°C) | | Dimensions (L x W x D) | 17.5 x 6 x 1.75" (44.5 x 15.25 x 1.75 cm) | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 22.4 x 10.4 x 4.8" |
