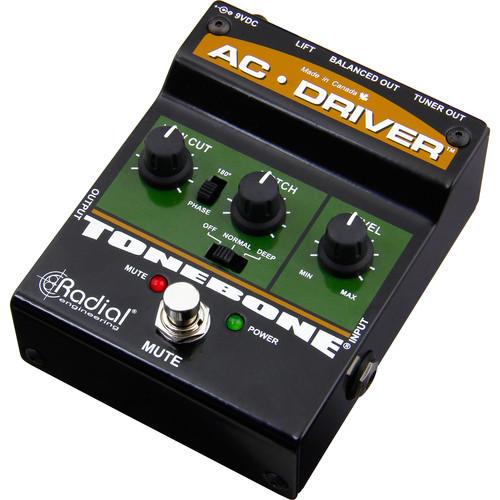

Product description The Radial Engineering Tonebone AC Driver is a studio-quality preamp in a pedal form factor. It's designed to amplify acoustic instruments on the stage, employing a Class-A buffered circuit for pristine audio. To help you achieve the tonal profile you're looking for, a low-cut filter, a notch filter, and a level knob are all supplied, as is a 180° phase switch to bust feedback.
The footswitch mutes the pedal so you can tune quietly on stage, provided you feed your signal to a dedicated tuner by means of the dedicated 1/4" tuner output. In addition to the tuner output, a 1/4" instrument output for acoustic amplifiers is on hand, as is an XLR output with a dedicated ground-lift switch for the house PA. Heavy duty components are used throughout to ensure the pedal's durability. The pedal requires a separately-available 9 VDC power supply. - Controls at a Glance
-

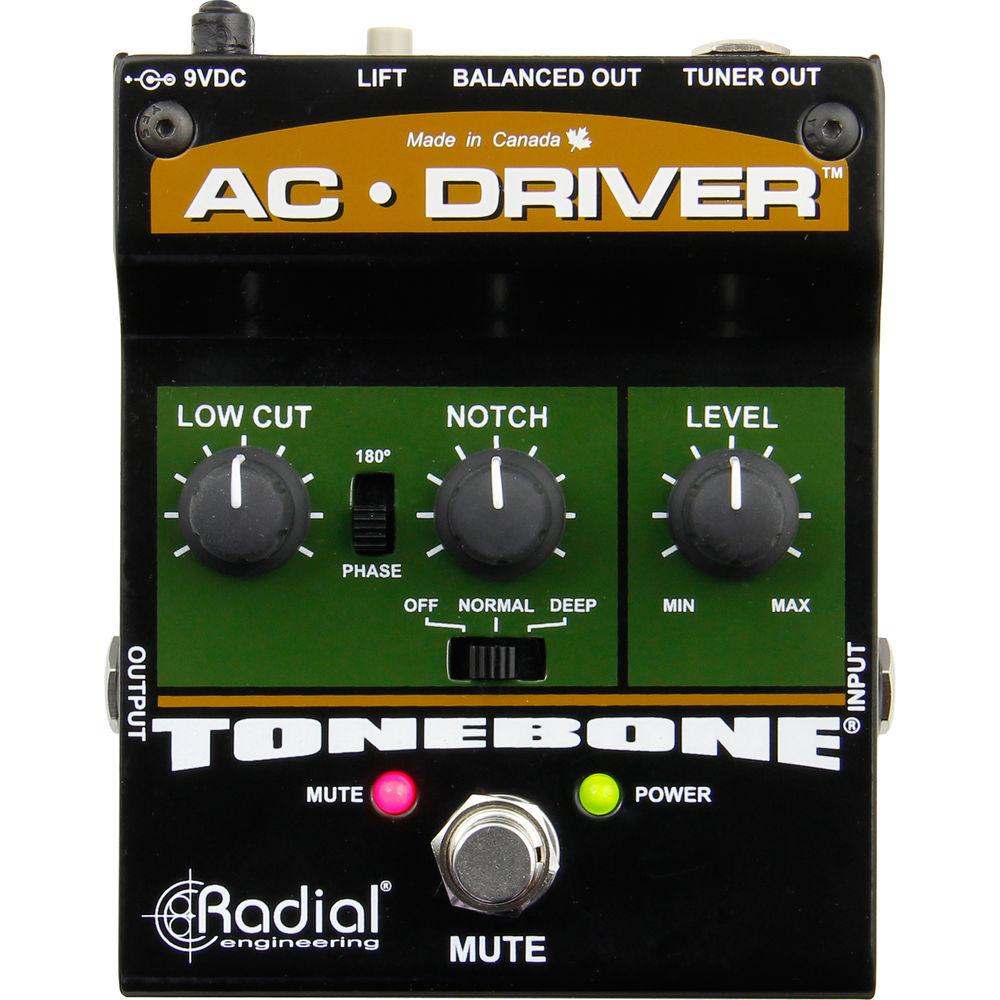

- Notch Knob: Sets the center frequency for the notch filter, which is used to eliminate feedback
- Low Cut Knob: Variable filter that rolls off low frequencies and controls bass resonance
- Level Knob: Controls the output of both the XLR and 1/4" outputs
- Notch Q Switch: 3-position switch bypasses the notch filter or selects between regular or deep notches; this control works in conjunction with the notch-frequency knob

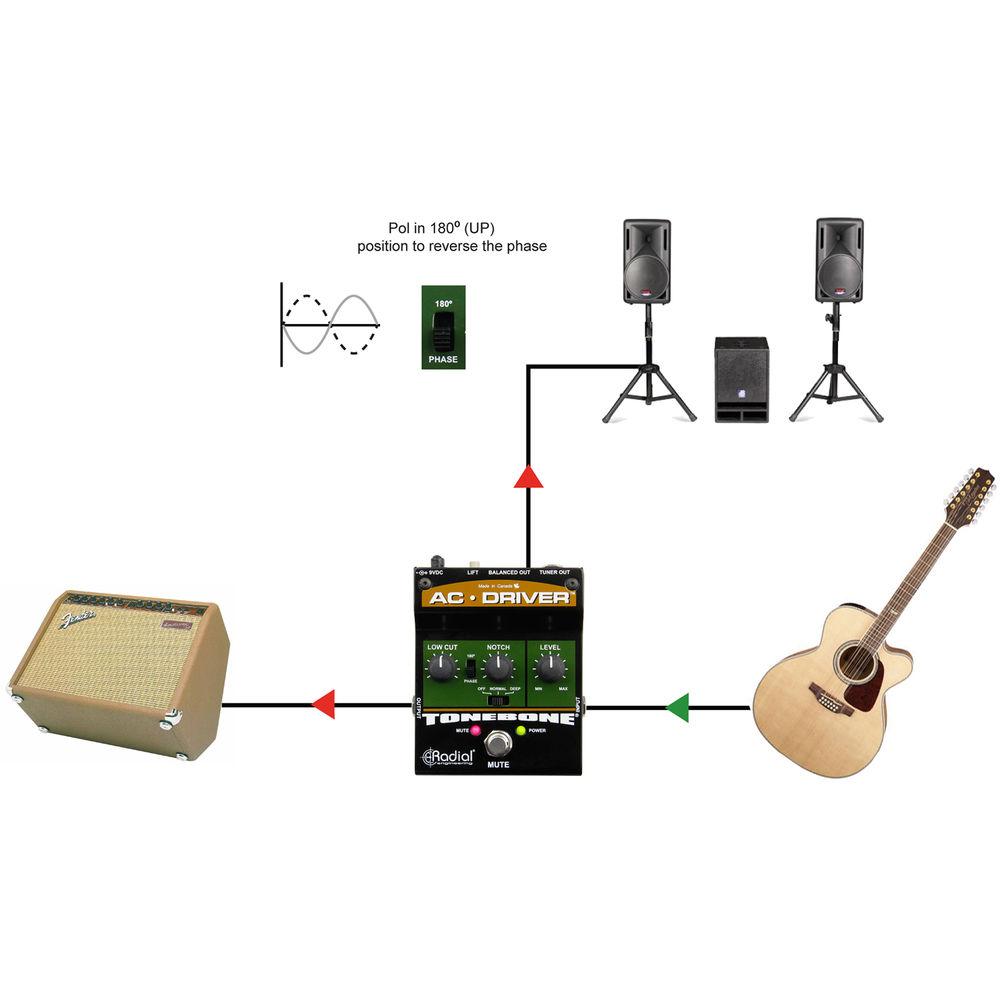

- 180° Phase Reverse Switch: Reduces onstage feedback by reversing the polarity of the XLR output
- Mute Switch and LED: Footswitch turns off all outputs except the tuner output, and can help with silent tuning on stage
- I/O
-

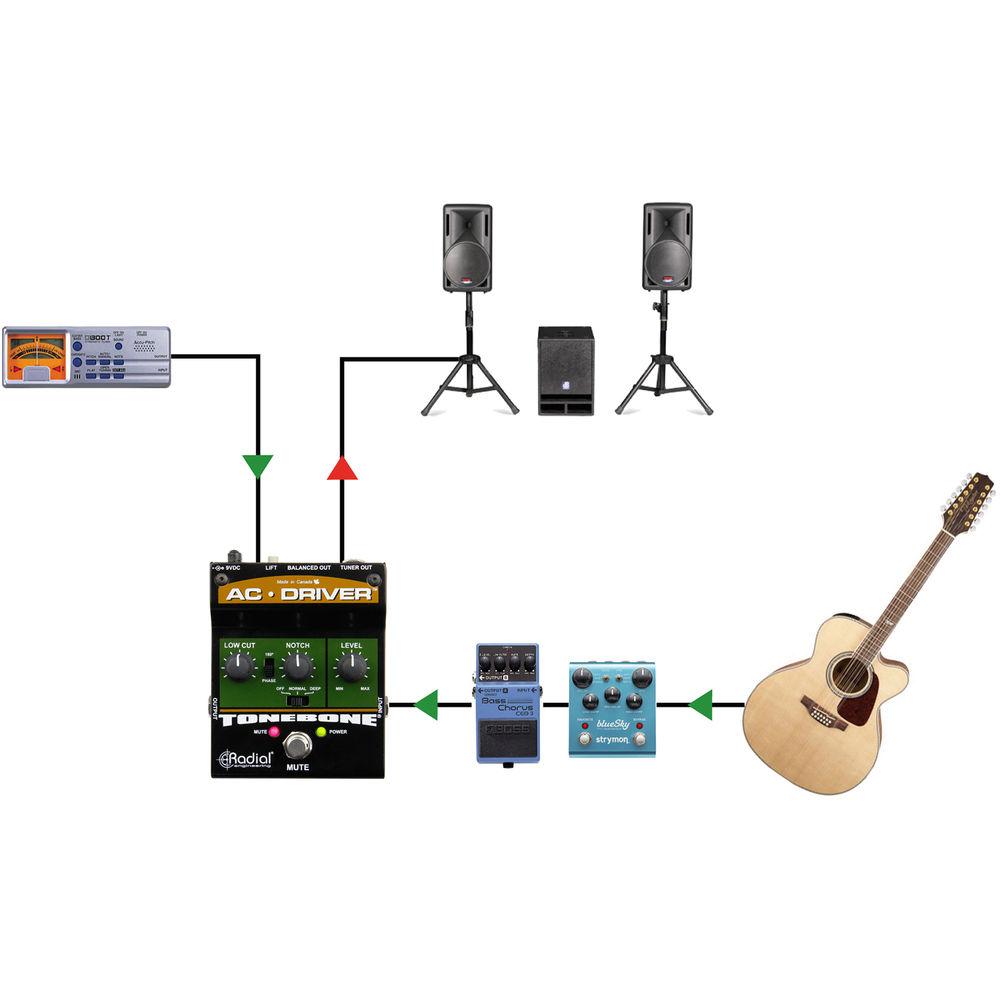

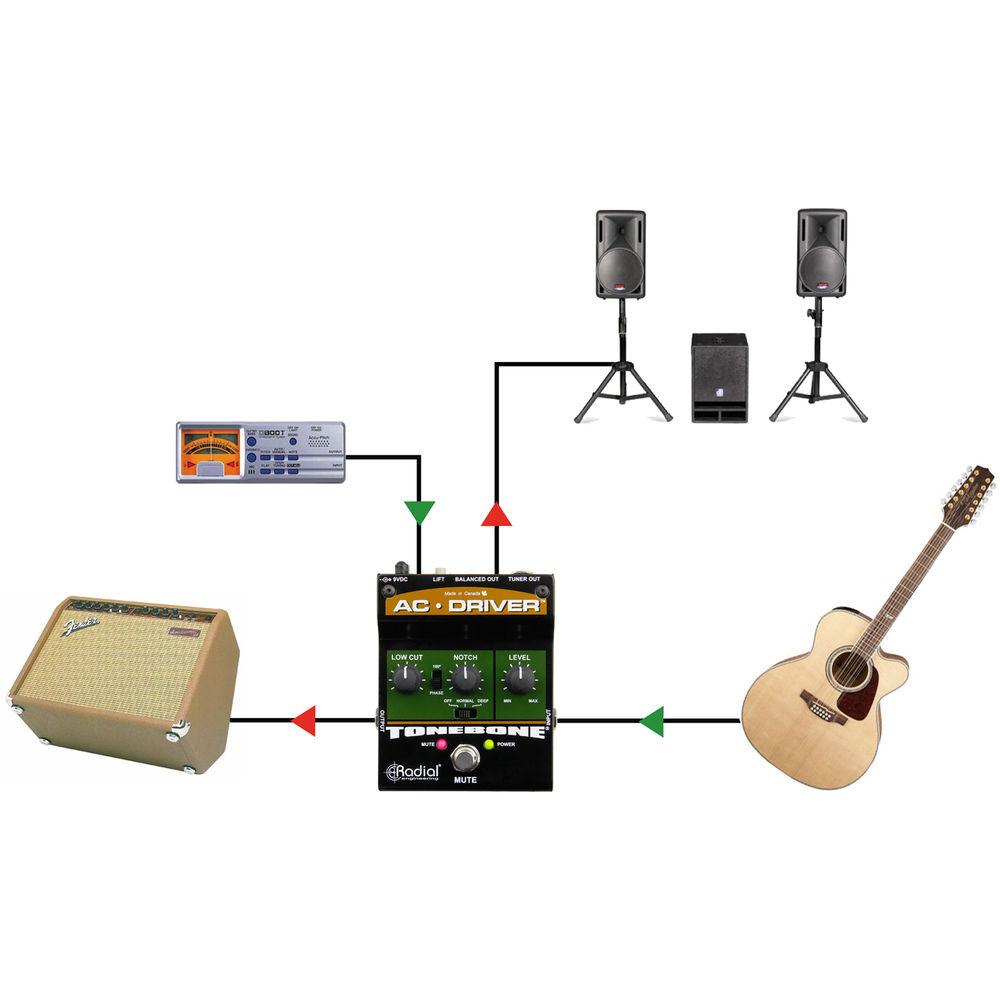

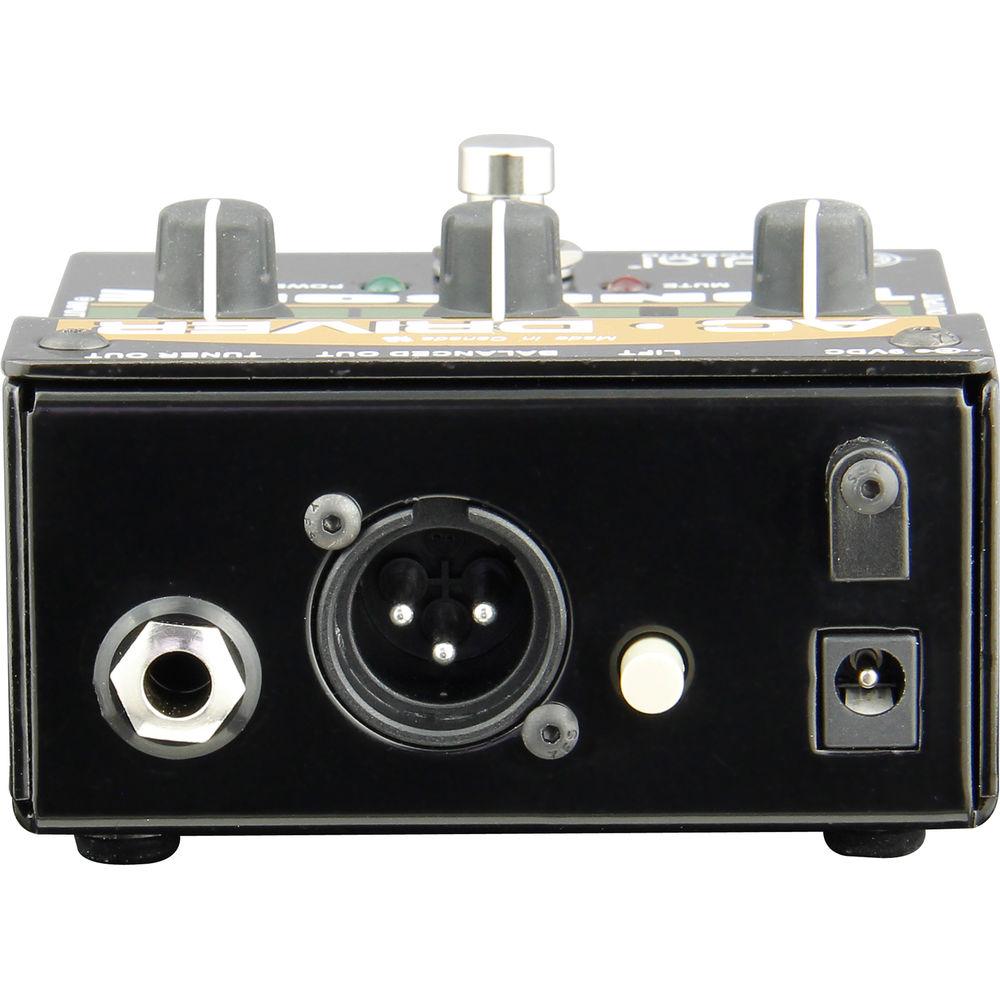

- A 1/4" input accepts your acoustic guitar's signal, and you can route to a 1/4" output and a balanced XLR connection for the house; a 1/4" tuner output transmit dry signal regardless of the footswitch position
- Durability Features
-
- Switches with metal outer casing are rated at over 20,000 cycles for durability
- Glass-filled nylon XLR connector with large nickel-silver pin contacts are tougher than steel
- A double-sided military spec circuit board has been employed to ensure durability, providing a full ground plane to reduce radio frequency interference
- An I-Beam 14-gauge chassis prevents the circuit board from being torqued
UPC: 676101044818 In the Box Radial Engineering Tonebone AC Driver Compact Acoustic Instrument Preamp Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Tonebone AC Driver Compact Acoustic Instrument Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering Tonebone AC Driver Specs | Audio Circuit Type | Class-A FET | | Noise Floor | -97 dBu | | Dynamic Range | +107 dBu | | Maximum Input | +10 dBu | | Input Impedance | 10 MOhms | | Output Impedance | 4.4 kOhms | | Input Connection | 1/4" TS, phone type | | Ground Lift | XLR output | | LED Indicators | Power, mute | | Output Connectors | XLR, 1/4" output, 1/4" tuner output | | Controls | Low-Cut Knob: Range of 10 to 200 Hz
Notch Knob: Range of 60 Hz to 500 Hz
Others: Level knob, mute footwswitch, 180° phase switch, notch filter switch | | Power | 40 mA, 9 VDC (center pin negative) | | Construction | 14-gauge steel chassis | | Finish | Durable powder coat | | Dimensions (L x W x H) | 4.8" x 3.8 x 1.8 / 12.1 x 9.5 x 4.5 cm | | Weight | 1.4 lb / 0.6 kg |
