User Manual for Radial Engineering Tonebone Bassbone V2 Bass Preamp and DI Box Click to enlarge the picture
Contents of the user manual for the Radial Engineering Tonebone Bassbone V2 Bass
- Product category: Direct Boxes Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Direct Boxes
 |
User manual for the Radial Engineering Tonebone Bassbone V2 Bass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

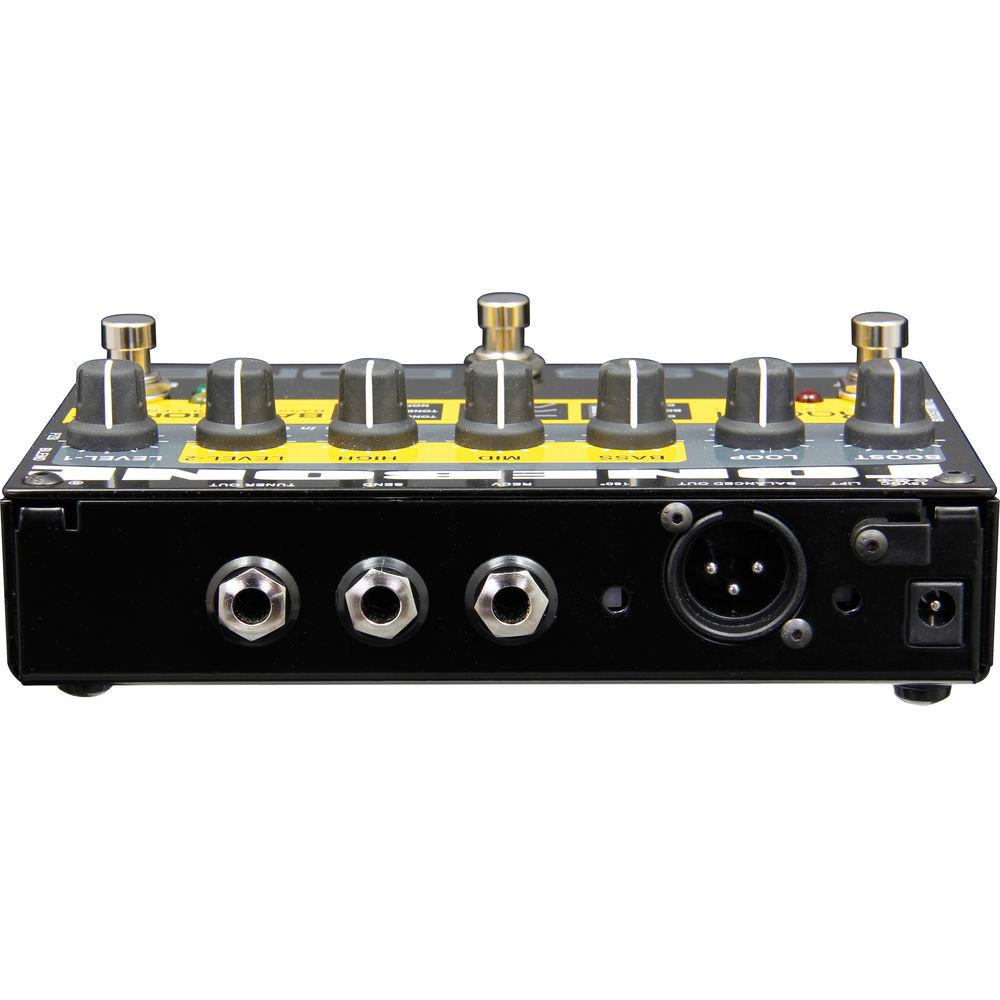

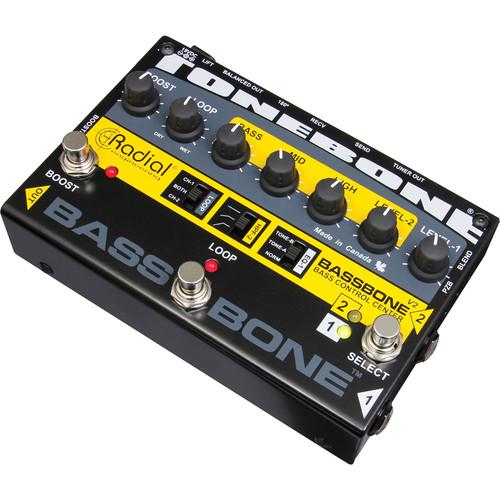

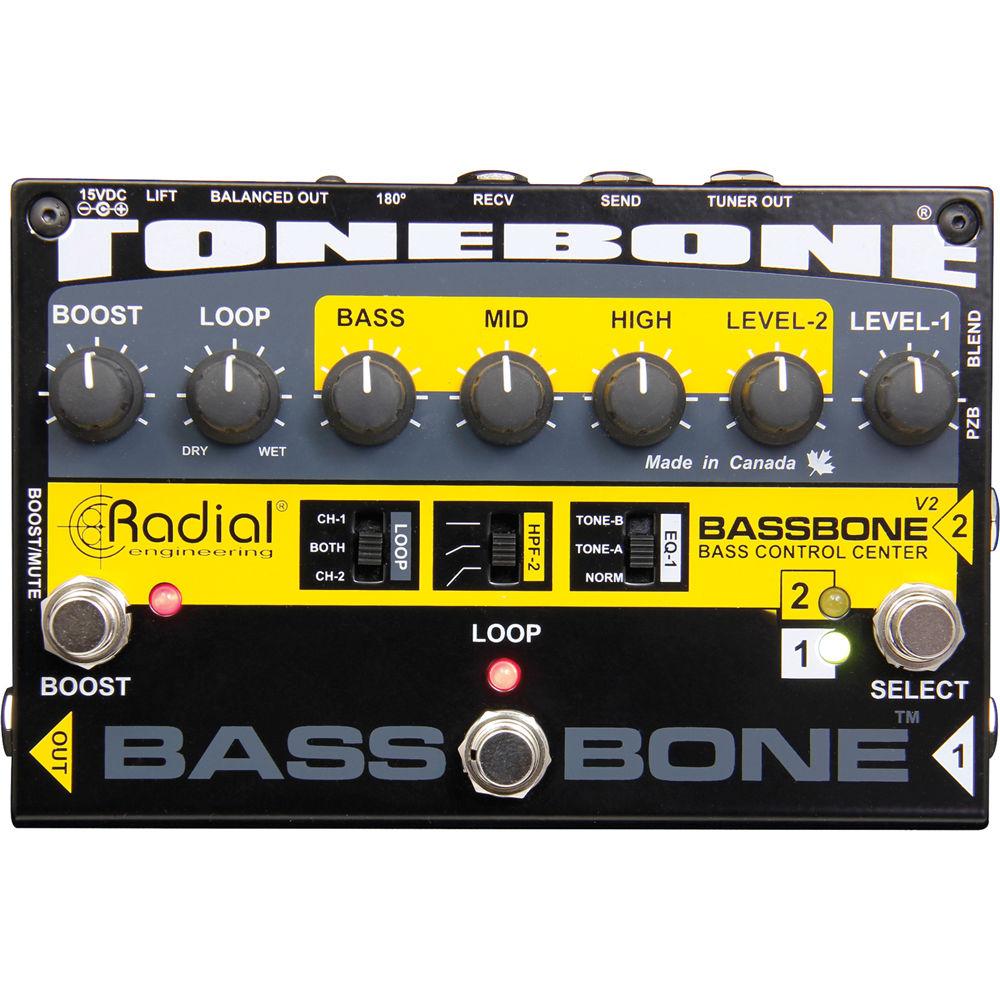

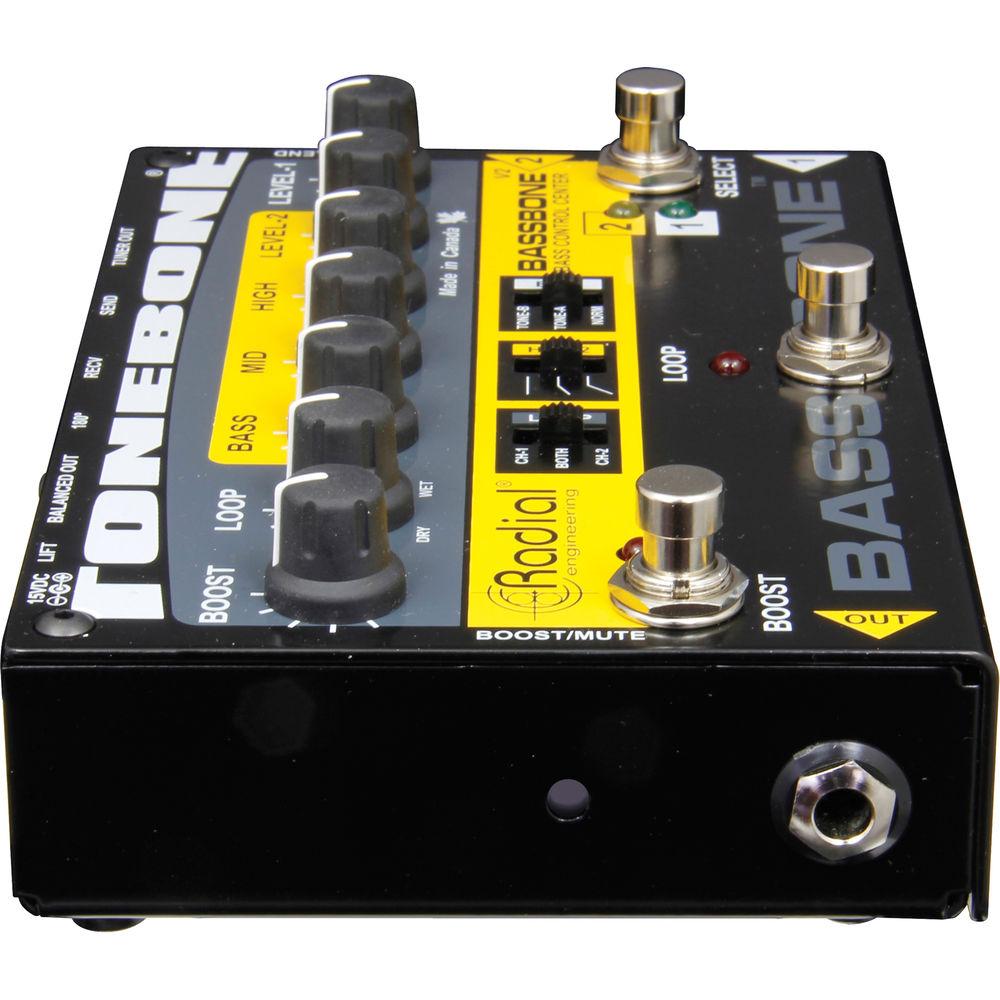

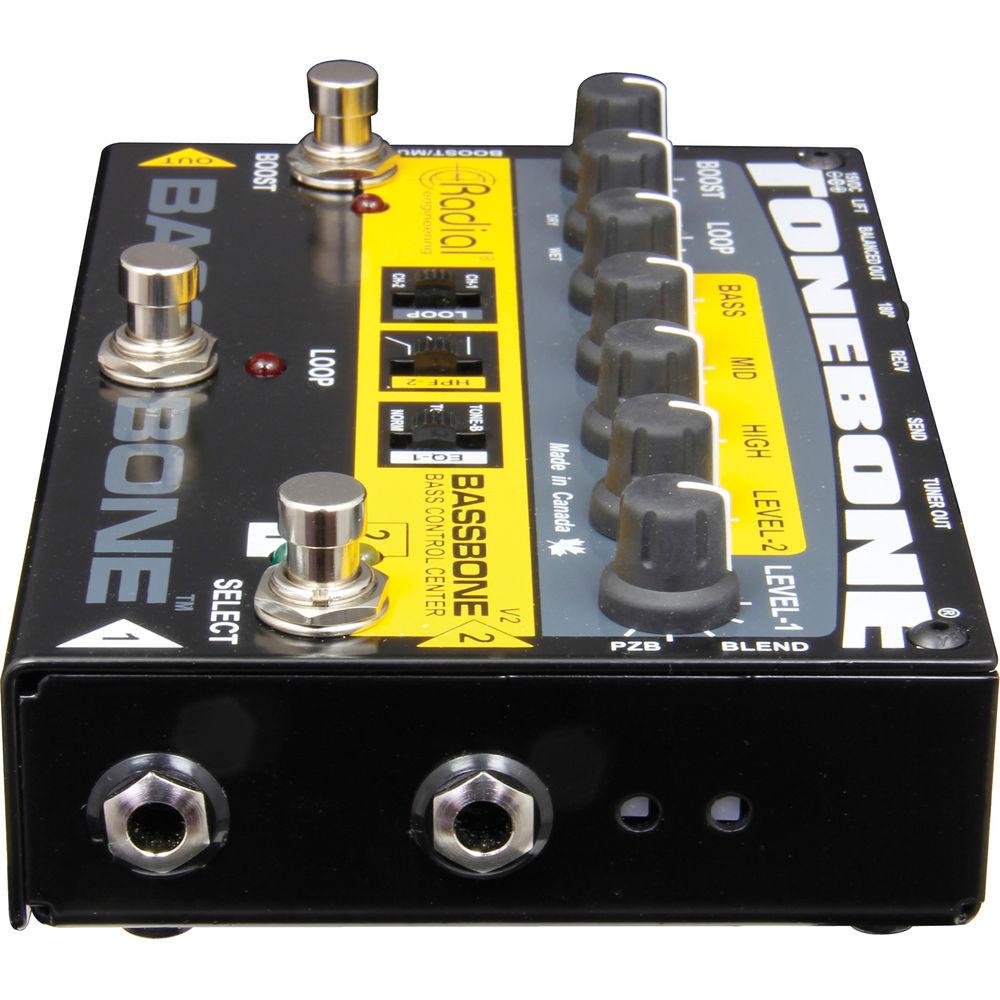

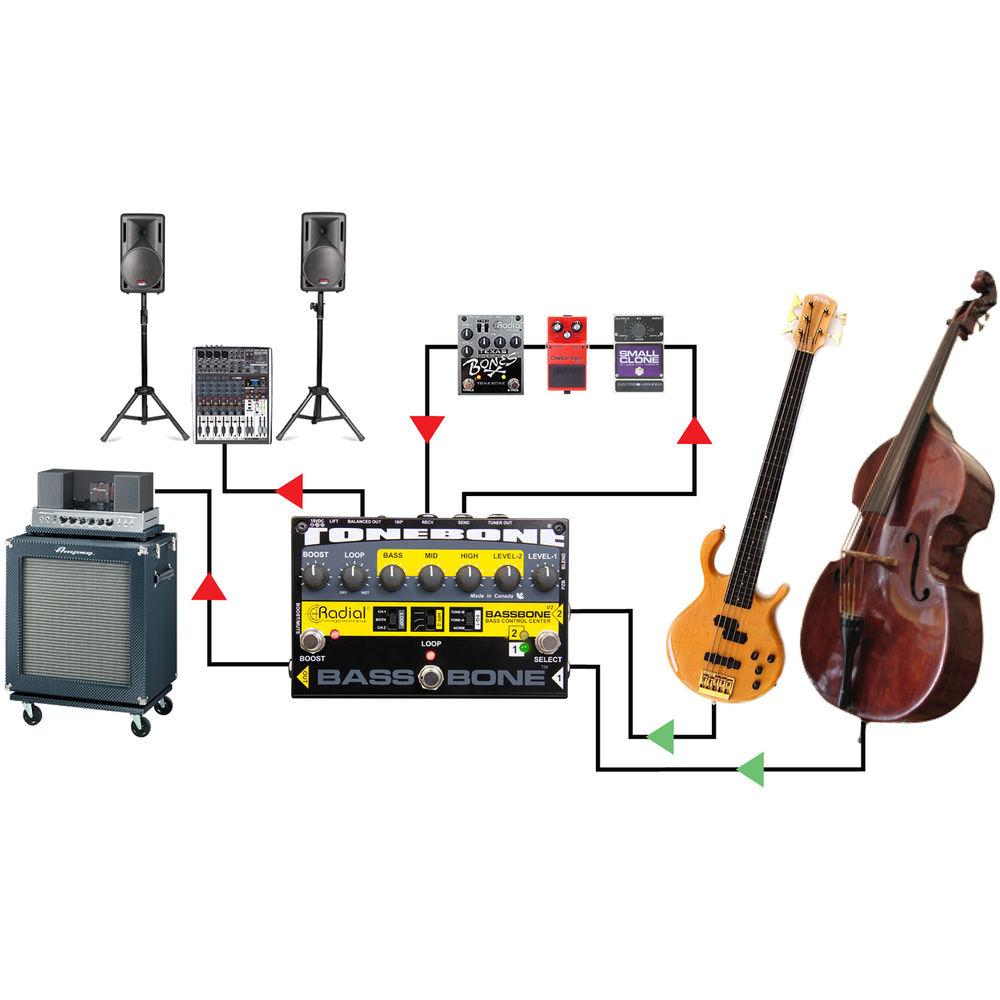

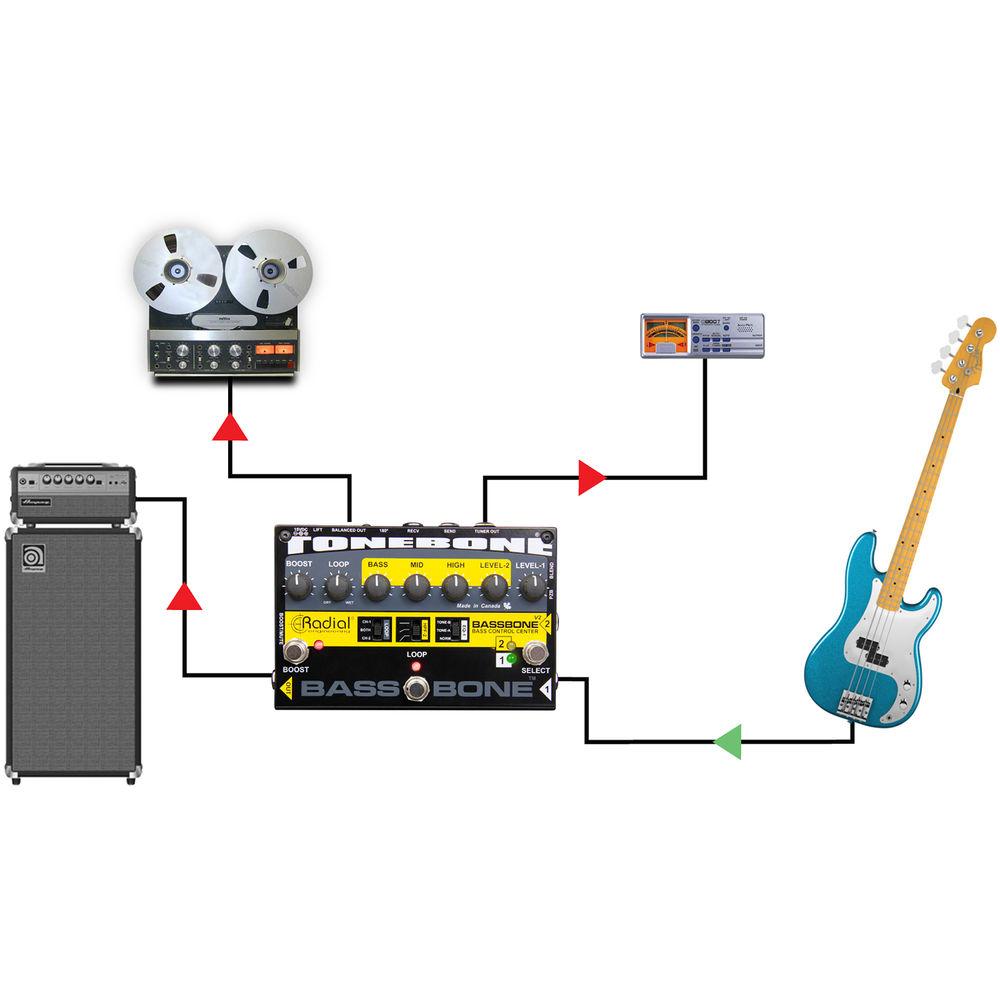

Product description Improving on the design of the original, the Tonebone Bassbone V2 Bass Preamp and DI Box from Radial Engineering is a 2-channel preamp that allows you to connect 1 or 2 basses to a single amplifier, PA, or recording destination, and also includes a boost function and switchable effects loop. Each channel offers independent level control for matching signals, along with independent EQ to suit different basses or styles. A balanced XLR output lets you connect to a PA or recording interface, while the 1/4" amplifier out allows you to hit your amp simultaneously.
A boost/mute switch allows you to either boost your signal, or mute it entirely. The effects send can be switched on and off, and even includes a blend knob that lets you adjust your wet/dry blend, and can be applied to channel 1 or channel 2, or both. A piezo booster allows you to connect a piezo pickup with no signal loss. - Built-in Radial DI with low-Z balanced out for the PA
- Combination power booster, effects loop, and mute
- EQ and level controls for each bass
UPC: 676101043491 In the Box Radial Engineering Tonebone Bassbone V2 Bass Preamp and DI Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Tonebone Bassbone V2 Bass Preamp and DI Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Radial Engineering Tonebone Bassbone V2 Bass Preamp and DI Box can be downloaded in PDF format at the link stated below.
Technical parametersRadial Engineering R800 7071 Specs | Audio Circuit Type | Discrete class-A FET input with low noise ICs | | Frequency Response | 20 Hz to 18 kHz | | Total Harmonic Distortion | 0.05% @ -15 dBu | | Intermodulation Distortion | 0.2% @ -20 dBu | | Dynamic Range | 85 dB | | Input Impedance | Input A: 220 kOhms
Input B: 220 kOhms/10 MOhms | | Output Impedance | 300 ohms @ XLR | | Maximum Input | +7 dBu | | Gain | Unity gain device | | Gain Boost | Gain Boost Drive: 0 to 25 dB | | Noise Floor | -100 dB | | Equivalent Input Noise | -92 dBu at XLR | | High Pass Filter | Flat, 35 Hz and 60 Hz (6 dB/Octave) | | XLR Configuration | Pin 2 +, Pin 3 -, Pin 1 Ground | | Ground Lift | Lifts pin-1 on the XLR | | Power | +15 VDC/400 mA adapter included | | Construction | 14-gauge steel | | Operating Conditions | Use in dry locations only between 41 to 104°F (5 to 40°C) | | Dimensions (L x W x D) | 5.5 x 4.2 x 2" (203 x 107 x 48 mm) | | Weight | 2.6 lb (1157 g) | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 10.8 x 4.9 x 2.7" |
