User Manual for Radial Engineering Twin-Iso - Two Channel Balanced Line Isolator with Jensen Transformers Click to enlarge the picture
Contents of the user manual for the Radial Engineering Twin-Iso - Two Channel
- Product category: Hum Eliminators Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Hum Eliminators
 |
User manual for the Radial Engineering Twin-Iso - Two Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

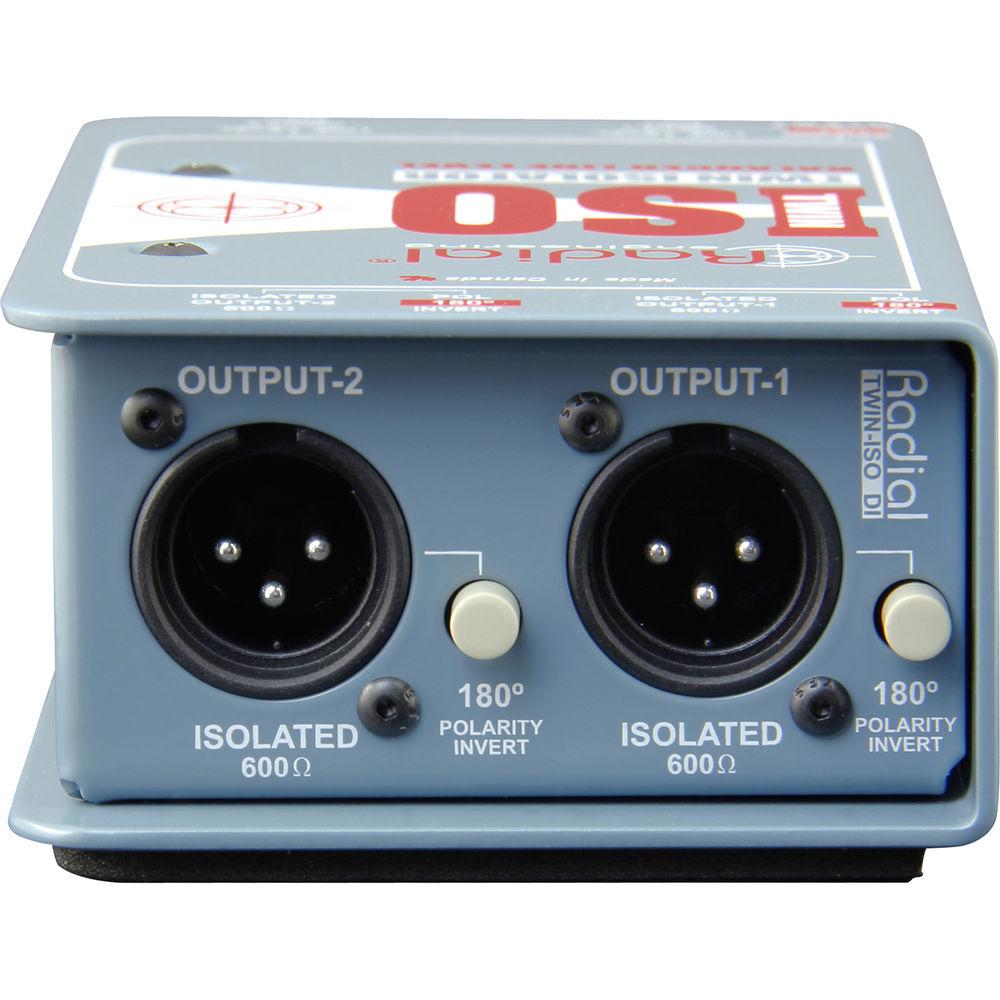

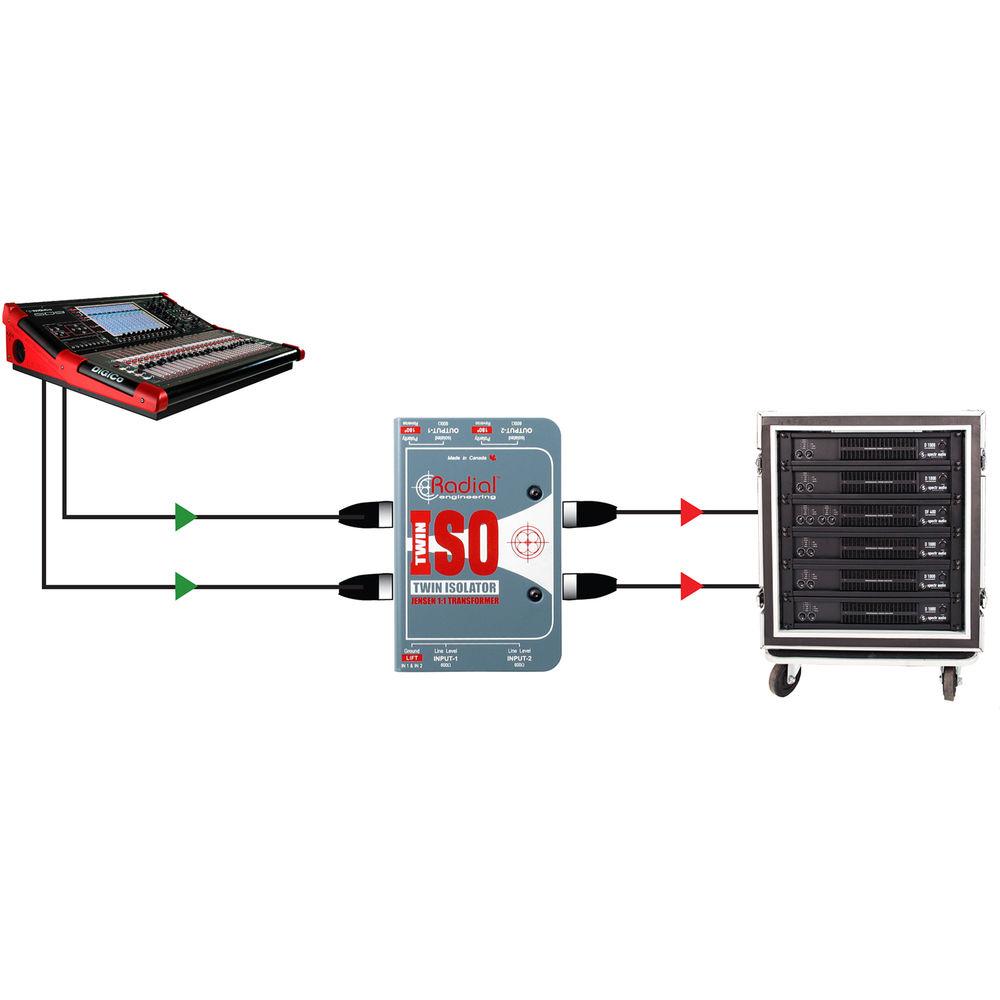

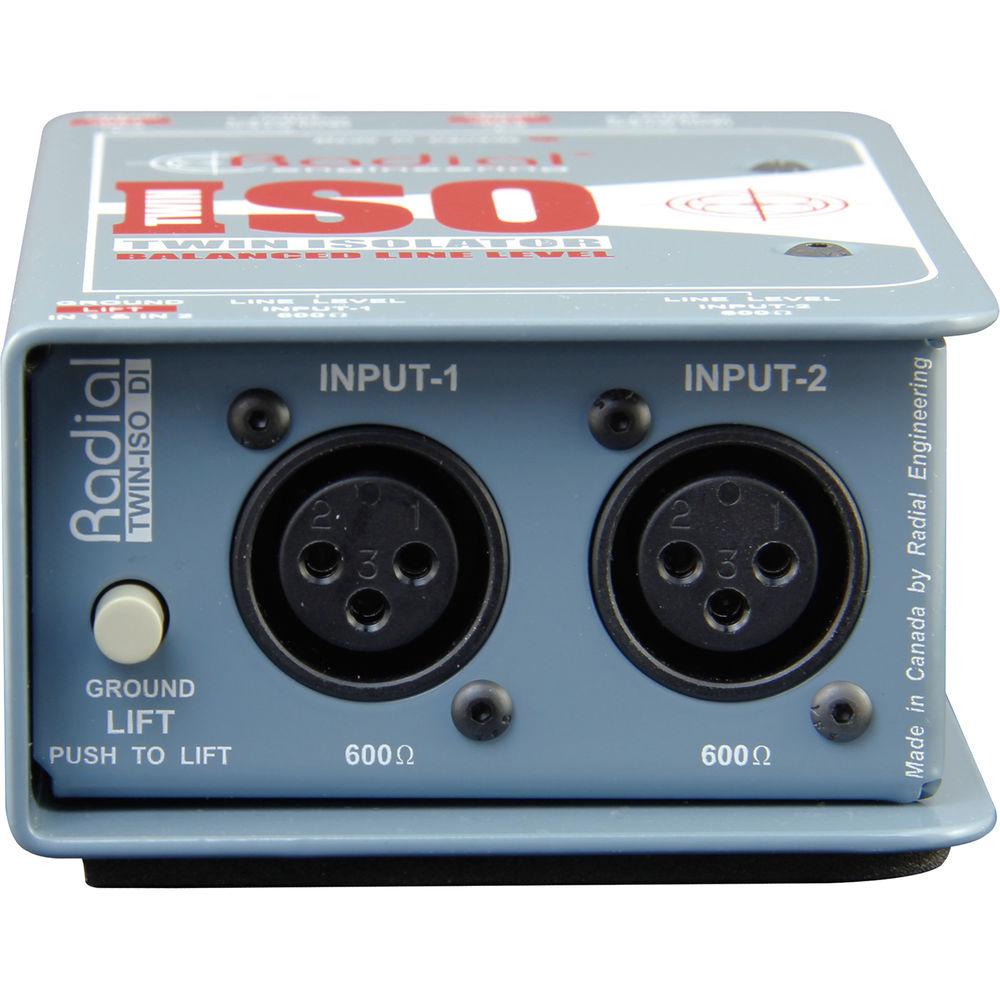

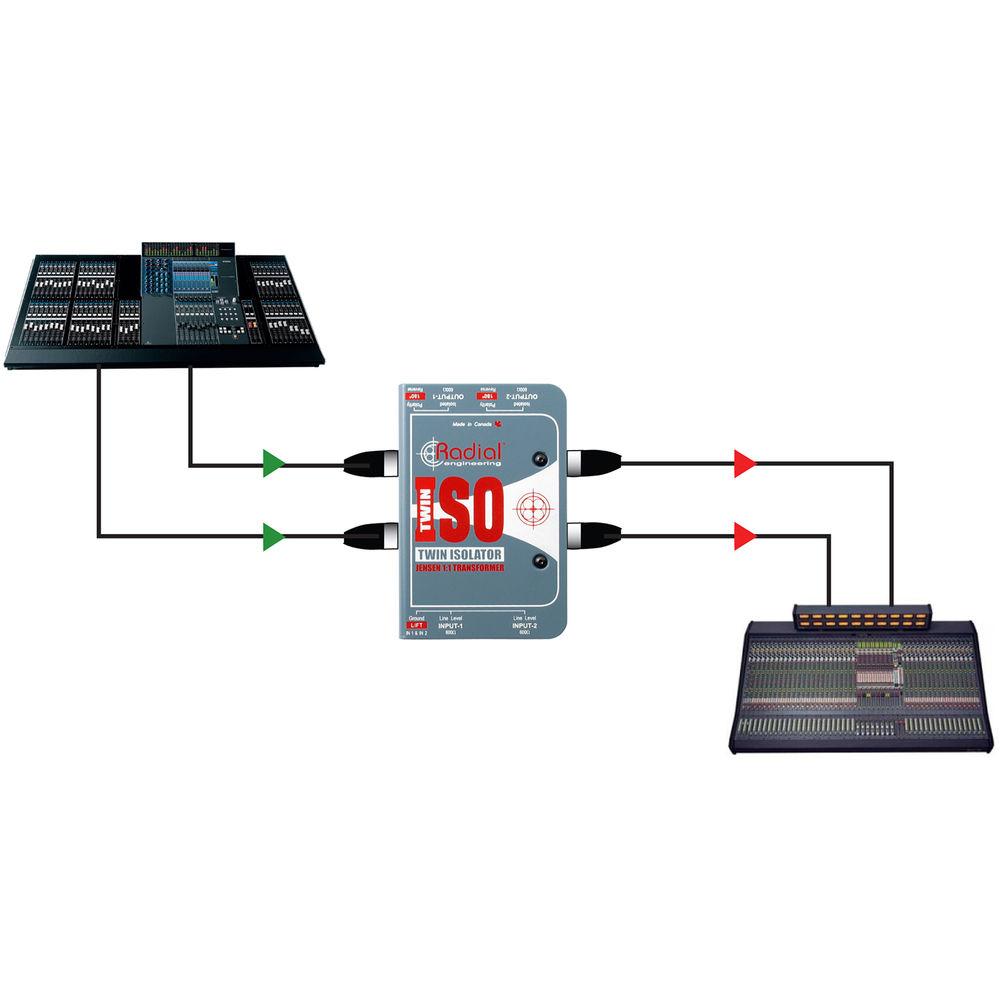

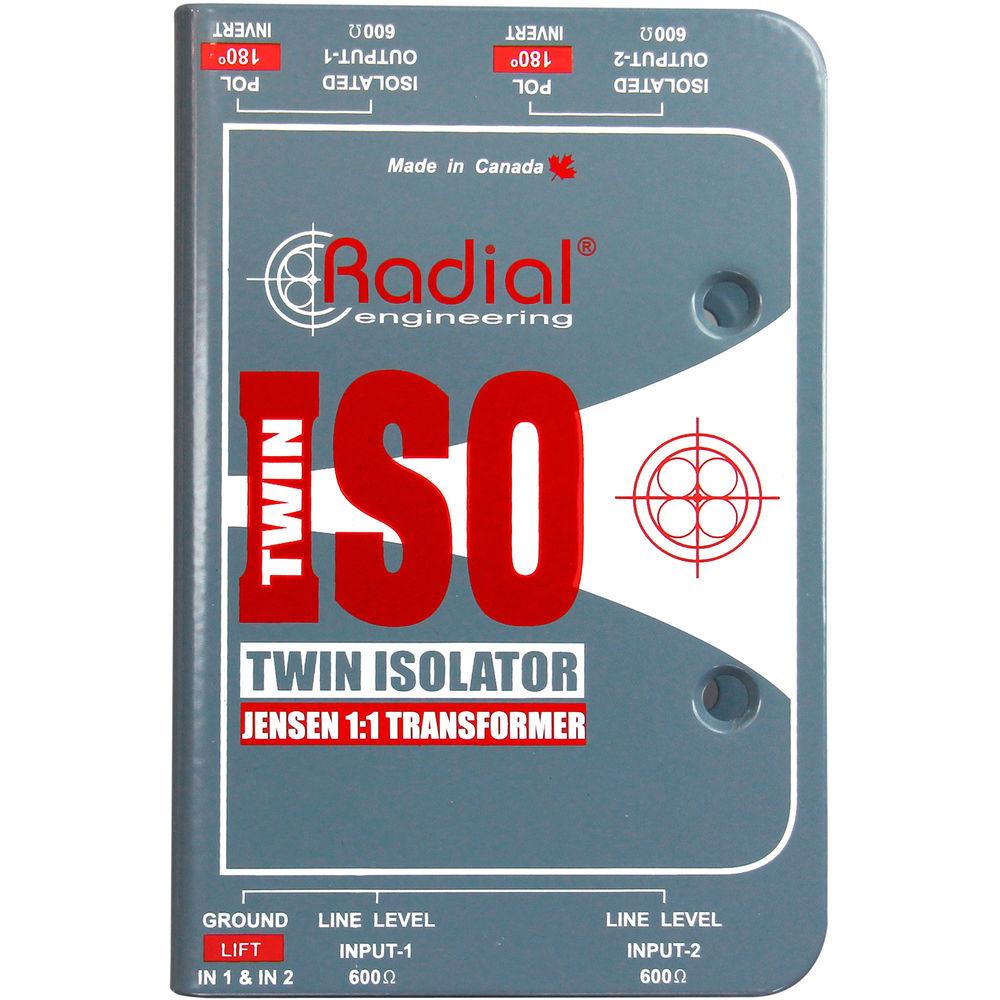

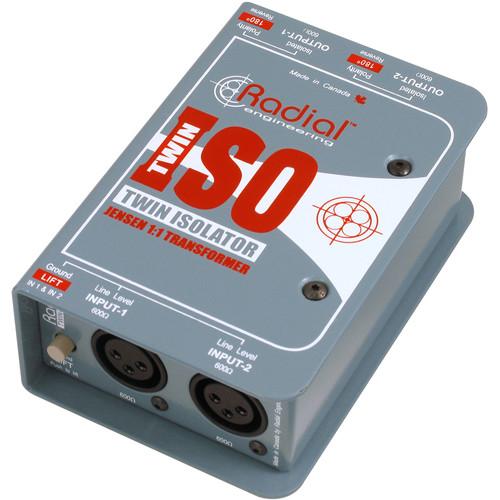

Product description The Radial Twin-Iso is a balanced two-channel, line-level isolator that has been specifically developed for professional touring systems as a means to eliminate hum and buzz caused by ground loops when interfacing various equipment such as two consoles, remote towers and drive racks. The Radial Twin-Iso provides the very best signal transfer without distortion caused by saturation or phase shift. All connections are balanced XLR following the AES standard with pin-1 ground and pin-2 hot. To add versatility, a polarity reverse switch is provided for each channel to ensure absolute phase is maintained throughout the audio signal path. - Isolated XLR connectors eliminate chassis ground potential and high grade switches ensure long life and reliable performance.
- Military spec PC board with full surface ground plane to reduce susceptibility to RF noise.
- Designed to withstand the rigors of high-use professional environments, the innovative "book-end" design provides a protective zone around the switches and connectors that keep these components safe.
- Stress on circuitboards causes broken and intermittent solder joints, a common cause of failure in commercial rental and other high-use environments. The unit's 14-gauge welded I-beam inner chassis and 14-gauge outer shell greatly reduce the possibility of torque stresses being applied to the PC board.
- A full-bottom no-slip rubber pad works double duty by providing protection from electrical shock and assuring that the unit won't slip and slide around.
UPC: 676101035434 In the Box Radial Engineering Twin-Iso - Two Channel Balanced Line Isolator with Jensen Transformers Three (3) Year Warranty on Device Twenty (20) Year Warranty on Jensen Transformers Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Twin-Iso - Two Channel Balanced Line Isolator with Jensen Transformers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 1024 Specs | Function | Balanced line isolator | | Inputs | 2 x XLR, 2-pin hot | | Outputs | 2 x XLR, 2-pin hot | | Frequency Response | 10Hz to 80kHz | | Distortion | <0.001% (1kHz, +4dBu)
<0.025% (20kHz, +4dBu) | | Crosstalk | 94dB (60Hz) | | Dimensions (WxDxH) | 3 1/4 x 5 x 2" | | Weight | 1.95 lbs | | Specialties | Military spec PC board with full surface ground plane to reduce susceptibility to RF noise. | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 6.299 x 4.173 x 2.992" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
