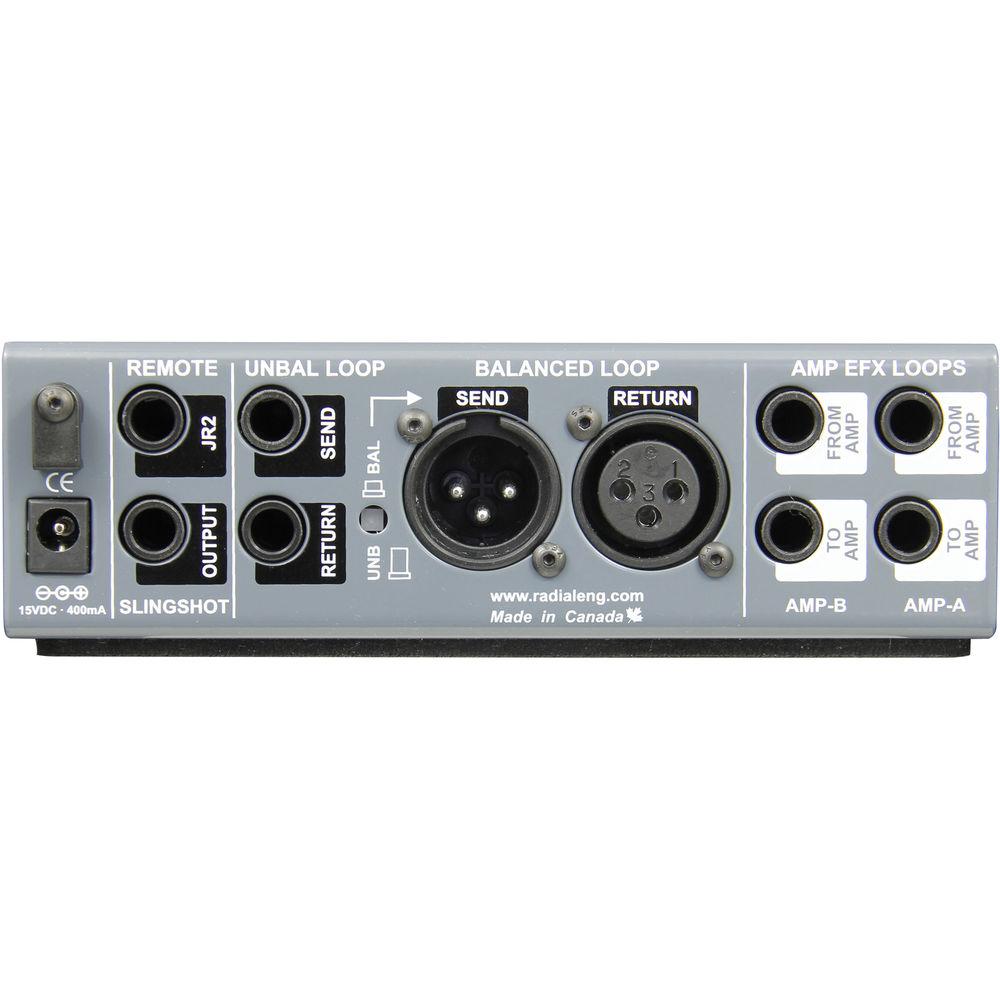

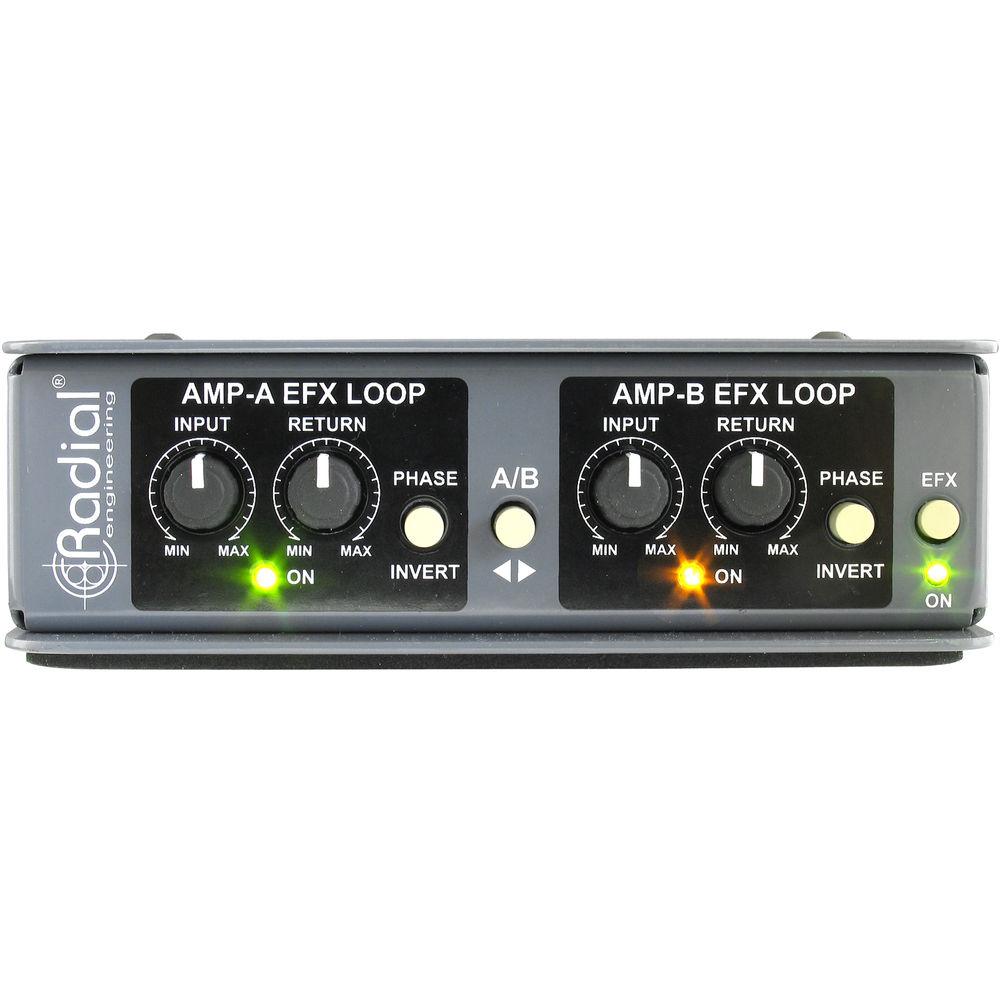

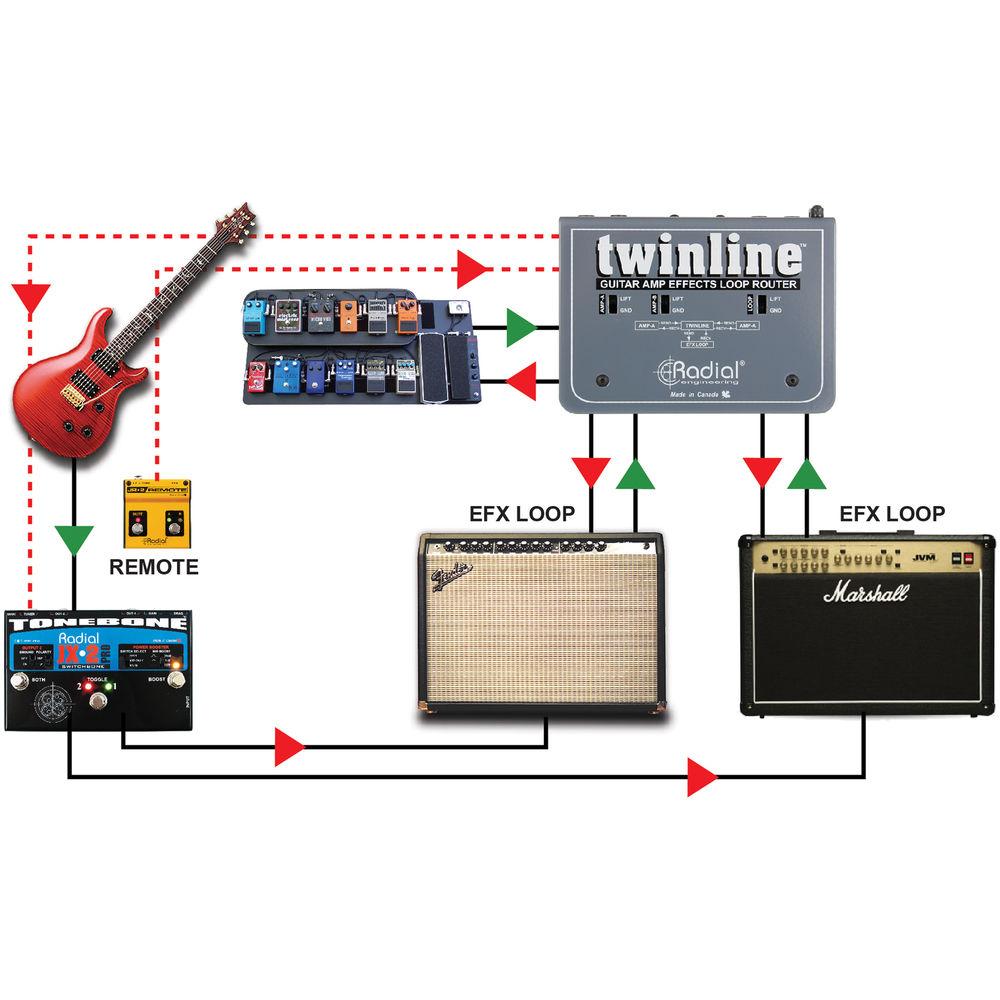

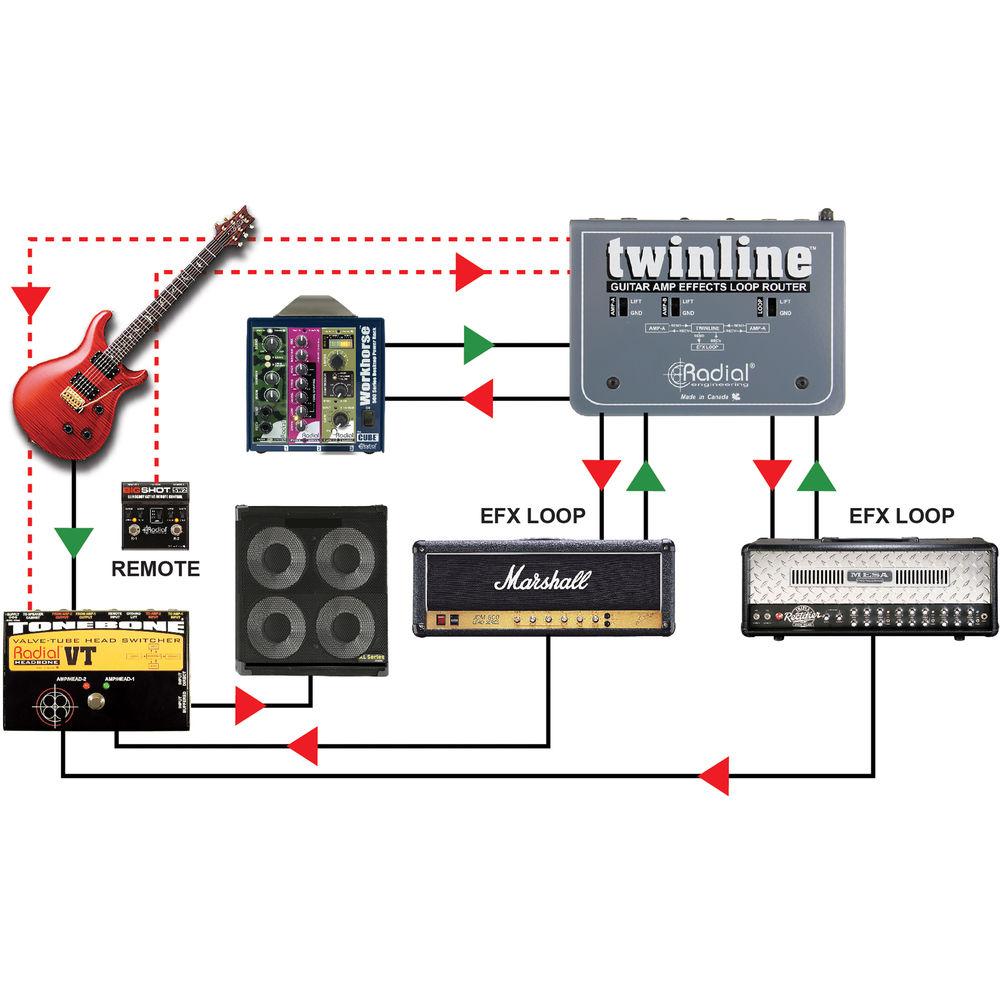

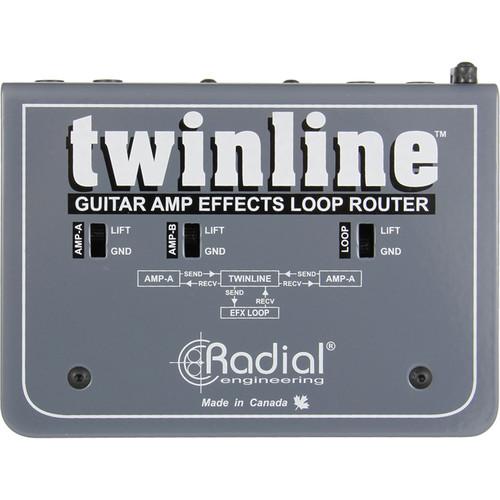

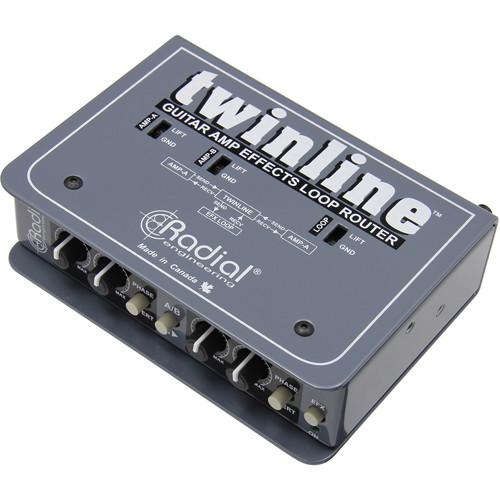

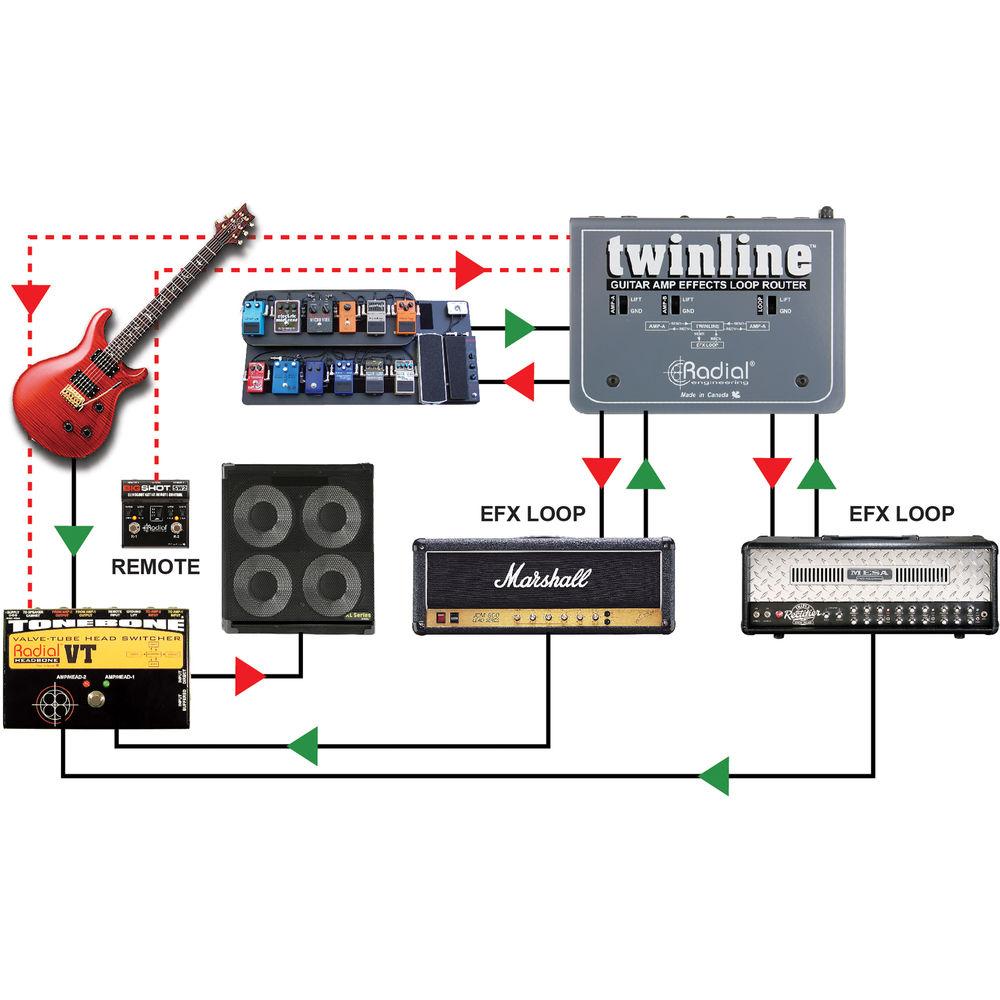

Product description The Twinline FX Router from Radial Engineering allows you to use your entire pedalboard of effects with two different guitar amps at the same time. The Twinline begins with two effects loop connections for the two amps, each of which is equipped with send and return 1/4” jacks along with individual send and return level controls plus a polarity reverse to ensure the amps and pedals are in phase with each other. A third send and receive effects loop is then used to connect to the pedalboard using 1/4” hi-Z jacks or balanced low-Z XLRs for use with studio-grade professional line-level effects. Switching between the loop may be performed using the front panel A/B switch or via the optional JR2 remote control footswitch (available separately). In the Box Radial Engineering Twinline FX Router for Two Guitar Amplifiers Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Twinline FX Router for Two Guitar Amplifiers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 1430 Specs | Audio Circuit Type | Class A FET with transformer isolation | | Dynamic Range | 105 dB | | Gain | From amp jack to EFX send: Variable from -2.7 to +3.6 dB | | Equivalent Input Noise | 103 dB | | Noise Floor | -92 dBu | | Intermodulation Distortion | 0.01% | | Common Mode Rejection Ratio | 91 dB @ 55 Hz | | Maximum Input | From amp jack: +25 dBu
FX input: +8dBu | | Total Harmonic Distortion | 0.005% @ 1 kHz | | Input Impedance | From amp: 10 kOhms
FX return: 1 MOhm | | Output Impedance | To amp: 2200 Ohms
FX send: 1 kOhm | | Power | 15 V 100 mA unregulated / Center pin positive | | Controls | Send & return gain for amps A & B | | Switches | 180° polarity reverse on each effect loop | | Input/Output Connections | Balanced 1/4" TRS or unbalanced 1/4" | | Ground Lift | Both inputs and on the FX loop | | Remote Control | Slingshot contact closure in/out | | Construction | 14-gauge steel chassis & outer shell | | Finish | Durable powder coat | | Dimensions (W x H x L) | 4.3 x 1.9 x 5.8" (109 x 48 x 147 mm) | | Weight | 2.4 lb (1.1 kg) |
