User Manual for Radial Engineering Voco-Loco Effects Switcher for Voice or Instrument Click to enlarge the picture
Contents of the user manual for the Radial Engineering Voco-Loco Effects Switcher for
- Product category: Effects Pedals Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Effects Pedals
 |
User manual for the Radial Engineering Voco-Loco Effects Switcher for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

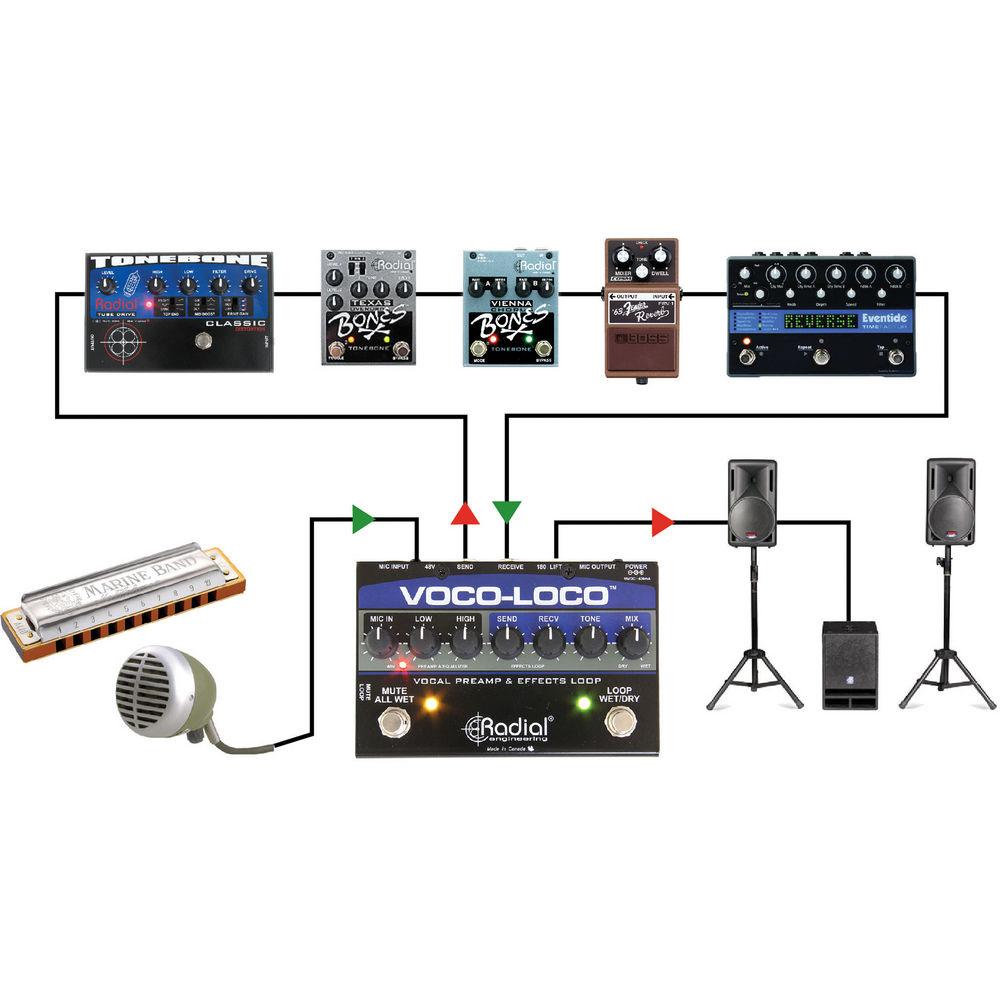

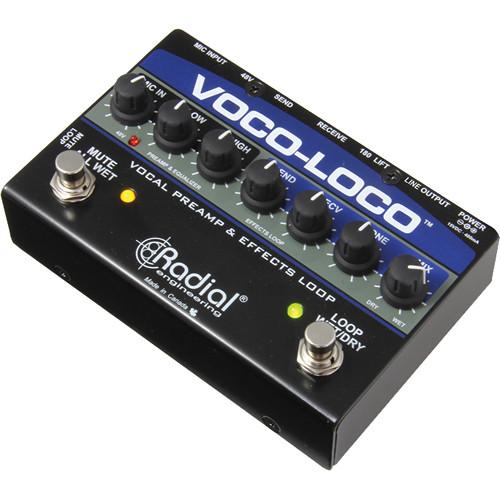

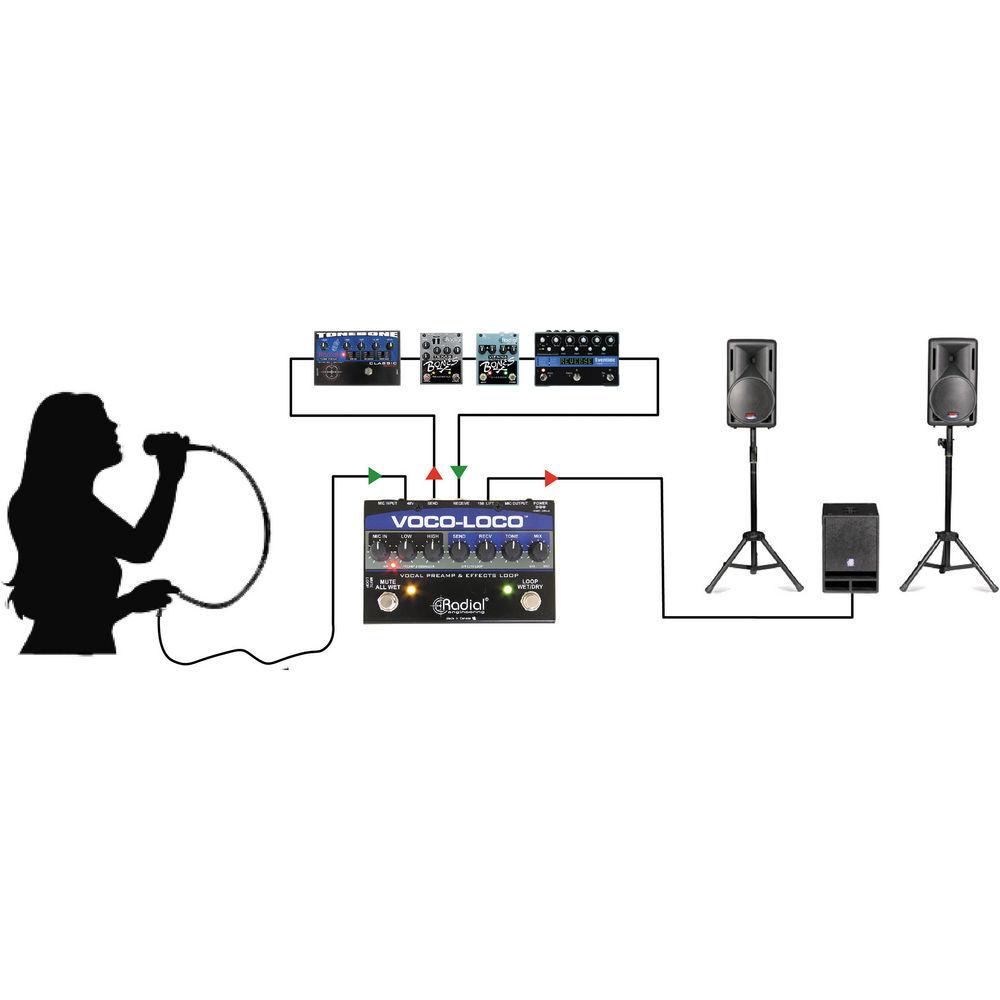

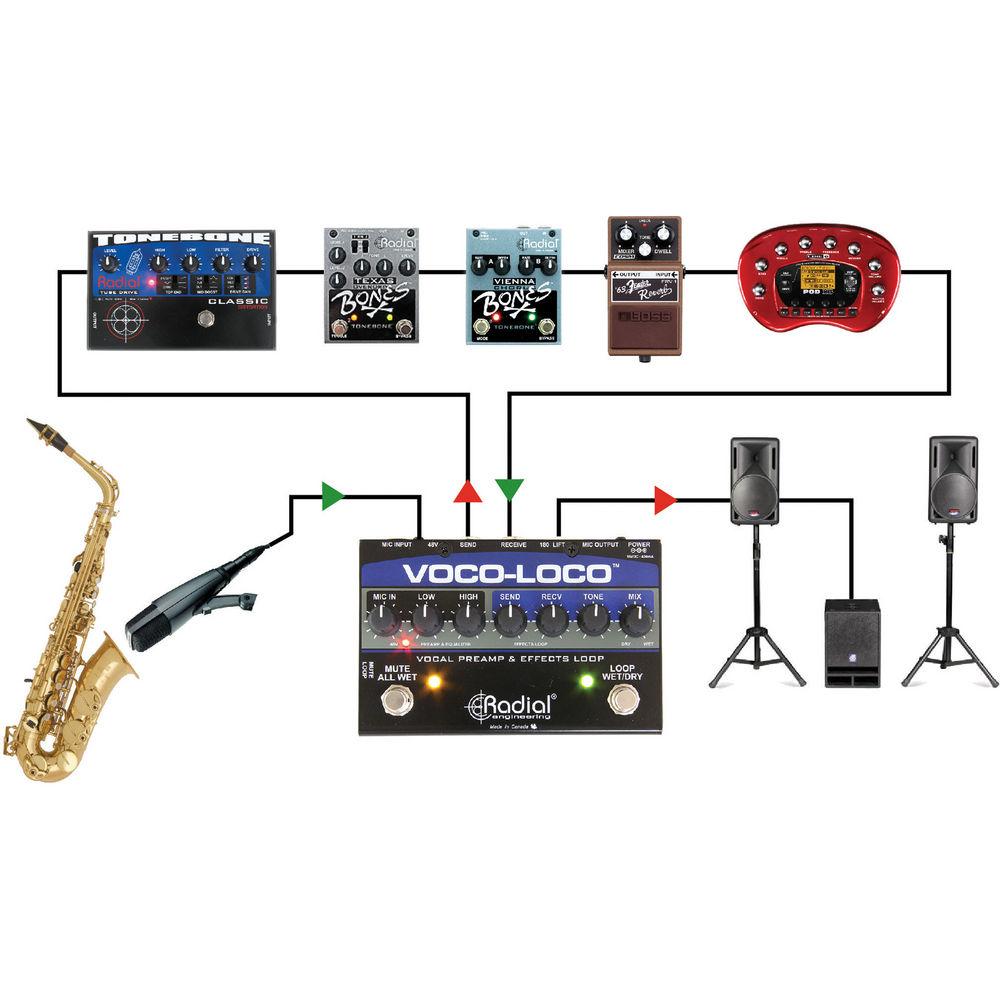

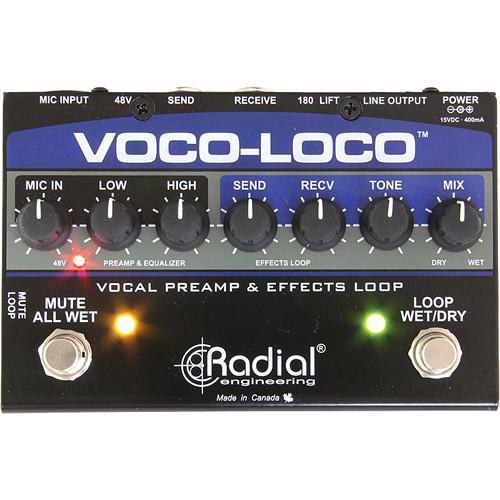

Product description The Voco-Loco Effects Switcher for Voice or Instrument from Radial Engineering is a foot-controlled effects loop that enables the lead vocalist, sax or trumpet player to incorporate guitar effects pedals into the signal path, just like an electric guitarist adds effects for soloing.It features a mic preamp that is designed to accept a standard dynamic microphone or a condenser by activating the built-in phantom power supply. A quality sounding 2-band EQ with low and high frequency shelving makes it easy to add warmth and shimmer. The signal is then sent to the guitar pedals via a transformer isolated hi-Z effects loop circuit that is equipped with individual send and receive controls to optimize signal-to-noise ratio and reduce distortion. A tone control on the return path lets you smooth the sound of pedals that may be overly bright while the blend control lets you mix the original dry signal with the wet effect to set the perfect mix.Simply plug your mic into the Voco-Loco unit via the XLR input, connect your effects pedals using standard 1/4" guitar cables, and then send the output from the Voco-Loco to the input on your mixer. Before the song begins, choose which effects you want and when you are ready activate the loop using the right hand footswitch. A second footswitch on the left of the Switcher serves double-duty as either a mute switch to turn off the mic between sets or as a 100% wet effects loop for special situations where you may not want any of the clean signal to pass through. With the Voco-Loco in your signal chain, you can add delay or reverb, a touch of distortion or perhaps a special effect like a wah-wah to enhance your solo performance. - Add guitar effects pedals to vocals or instruments
- Create unique effects as you perform
- Turn on multiple effects using one footswitch
- Works with either dynamic or condenser microphones
UPC: 676101040889 In the Box Radial Engineering Voco-Loco Effects Switcher for Voice or Instrument Limited 3-Year Transferable Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Voco-Loco Effects Switcher for Voice or Instrument in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

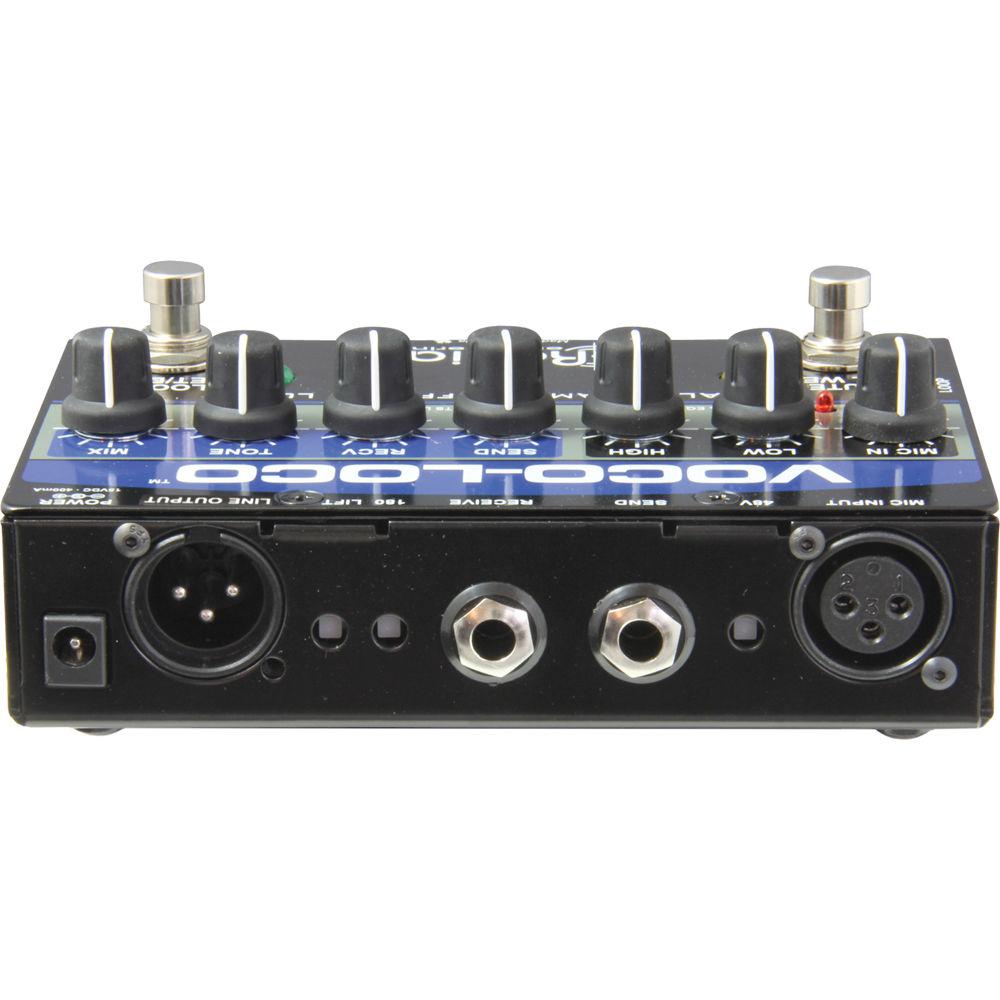

Technical parametersRadial Engineering Voco-Loco Specs | Circuit Type | Integrated Op-Amp with Class-A FET input | | Frequency Response | 20 Hz to 20 kHz | | Total Harmonic Distortion | <0.005% | | Dynamic Range | 100 dB | | Input & Output | 1 x XLR Input
1 x XLR Output
1 x 1/4" Send
1 x 1/4" Receive | | Input Impedance | 10 kΩ | | Maximum Input | 10 dB | | Gain | 52 dB | | Clipping Level | Output: 15 dBu | | Output Impedance | 300 Ω | | Equivalent Input Noise | -120 dBu | | Noise Floor | -85 dBu | | Distortion | <0.005% | | Phase Shift | 8° @ 50 Hz | | Common Mode Rejection | -73 dB @ 55 Hz | | Input Impedance | FX Loop: 100 K | | Output Impedance | FX Loop: 3,000 Ω | | Output | Pin 1 ground, Pin 2 (+), Pin 3 (-) | | Power | 1x DC Input
15 VDC / 400 mA | | Configuration | XLR:
Follows AES spec: pin-1 ground, pin-2 (+), pin-3 (-) | | Dimension L x W x H | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 11.7 x 4.9 x 2.7" |
