User Manual for Radial Engineering WM8 Workhorse 8-Channel Mixer Section Click to enlarge the picture
Contents of the user manual for the Radial Engineering WM8 Workhorse 8-Channel Mixer
- Product category: Preamp Accessories Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Preamp Accessories
|
User manual for the Radial Engineering WM8 Workhorse 8-Channel Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

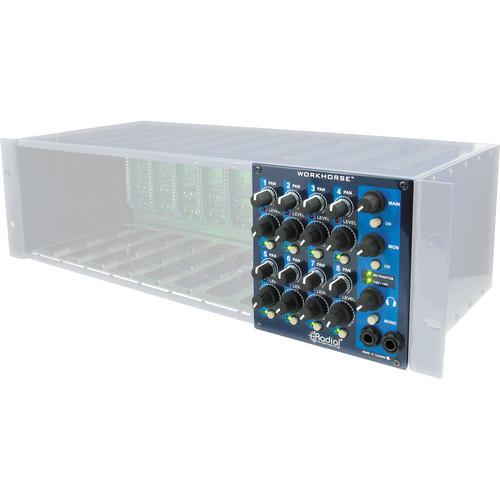

Product description The Radial Engineering WM8 Workhorse Mixer Section is an 8-channel mixer designed specifically for the WR8 Radial Workhorse. This enables the WR8 Radial Workhorse to be upgraded to full Workhorse functionality and is user-installed following a simple online video.The WM8 Workhorse Mixer Section employs a virtual earth mix buss for low noise. This feeds the 8 module slots to the control surface where individual on-off switches, channel level controls, left-right pan, and overload LED indicators are found. The master section features Jensen transformer outputs for extra warmth and isolation plus a separate monitor out.A super loud dual-output headphone amplifier lets you share the mix with the producer even in the noisiest of venues. An expansion slot lets you combine multiple Workhorses together to create larger systems. The built-in mixer has a separate D-sub input for analog summing.The Radial WM8 mixer assembly comes with everything you need to plug it into a Workhorse WR8 power rack. Once mounted, the WR8 Radial Workhorse’s 1,600mA power supply will automatically allocate 400mA of current to the WM8 mixer and preserve 1,200mA of current for the 8 modules. This shared pool will give you plenty of power, on an average of 160mA per module. - 8-Channel Mixer: Each channel features individual on-off switch, level control, L-R pan, and peak indicator
- Main Out: Jensen transformer isolated with separate level control to feed recording system or PA
- Monitor Out: Balanced output used to feed reference monitors or tape machine when recording
- Power LEDs: Separate LED indicators for ± 16V rails and 48V phantom power
- Headphones: High gain headphone amplifier with dual outputs for sharing the mix with producer
- Modular Format: Dual channel rails like large format mixers for easy servicing
- Jensen Transformers: Add warmth and character to the signal path while eliminating ground loops
- Ribbon Connectors: Used to plug the WM8 mixer section into the WR8 rack enclosure
- MIL-SPEC PCB: Double sided through-hole PCB assembly with full surface ground plane for low noise
- Main Output: Jensen transformer isolated balanced output with effects insert loop
- Monitor Output: Separate monitor output lets you split the mix to 2 locations
- Expansion Buss: Used to gang several Workhorses together to create larger systems
- Ground Lugs: Separate earth ground and audio ground connections for advanced studio wiring
- Applications: Combine the sound of various modules, lets you monitor and record in analog, simultaneously record and perform live, bring analog into the digital realm
In the Box Radial Engineering WM8 Workhorse 8-Channel Mixer Section Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering WM8 Workhorse 8-Channel Mixer Section in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
