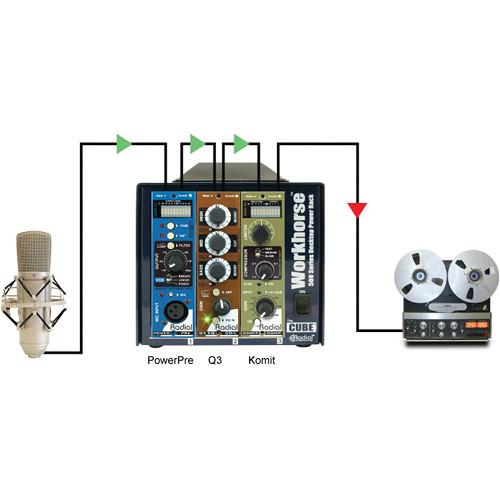

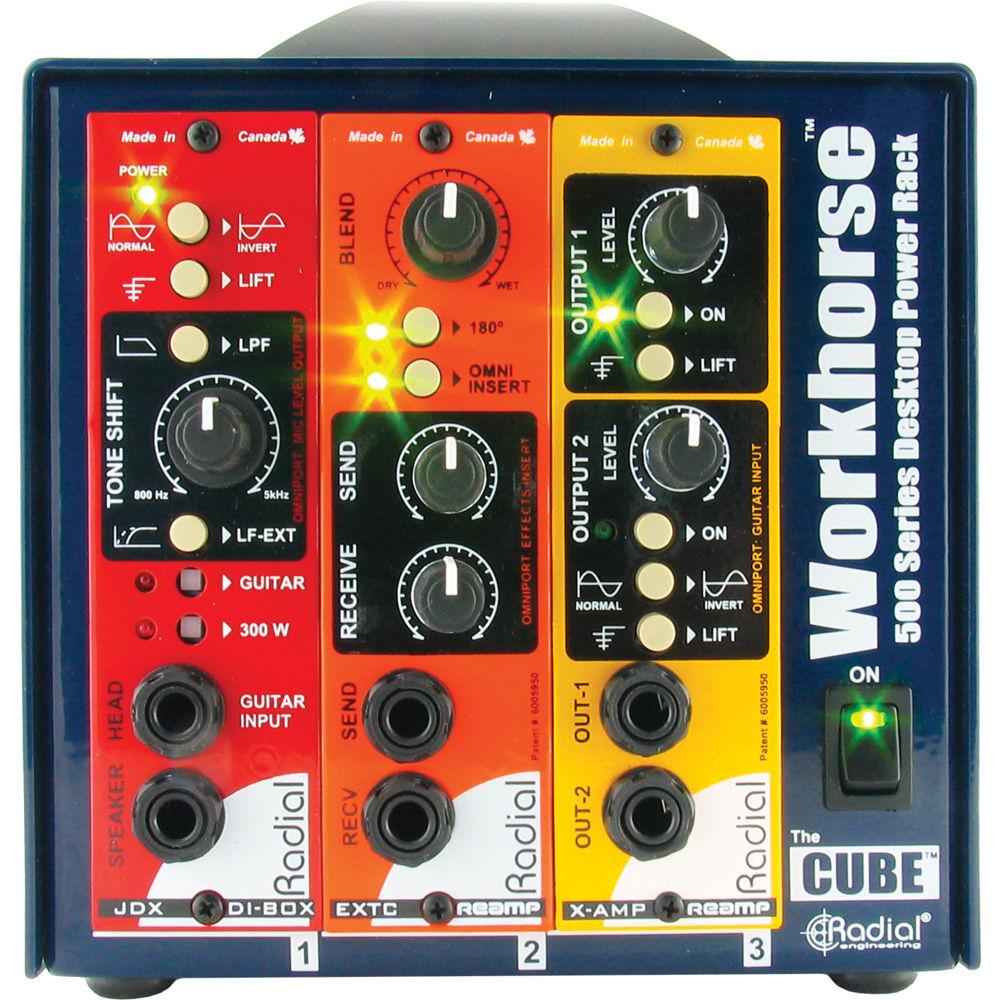

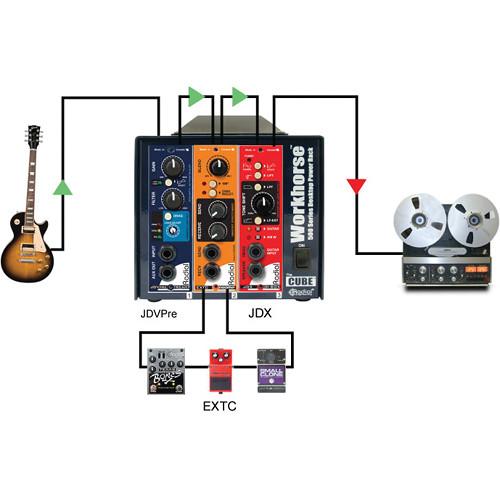

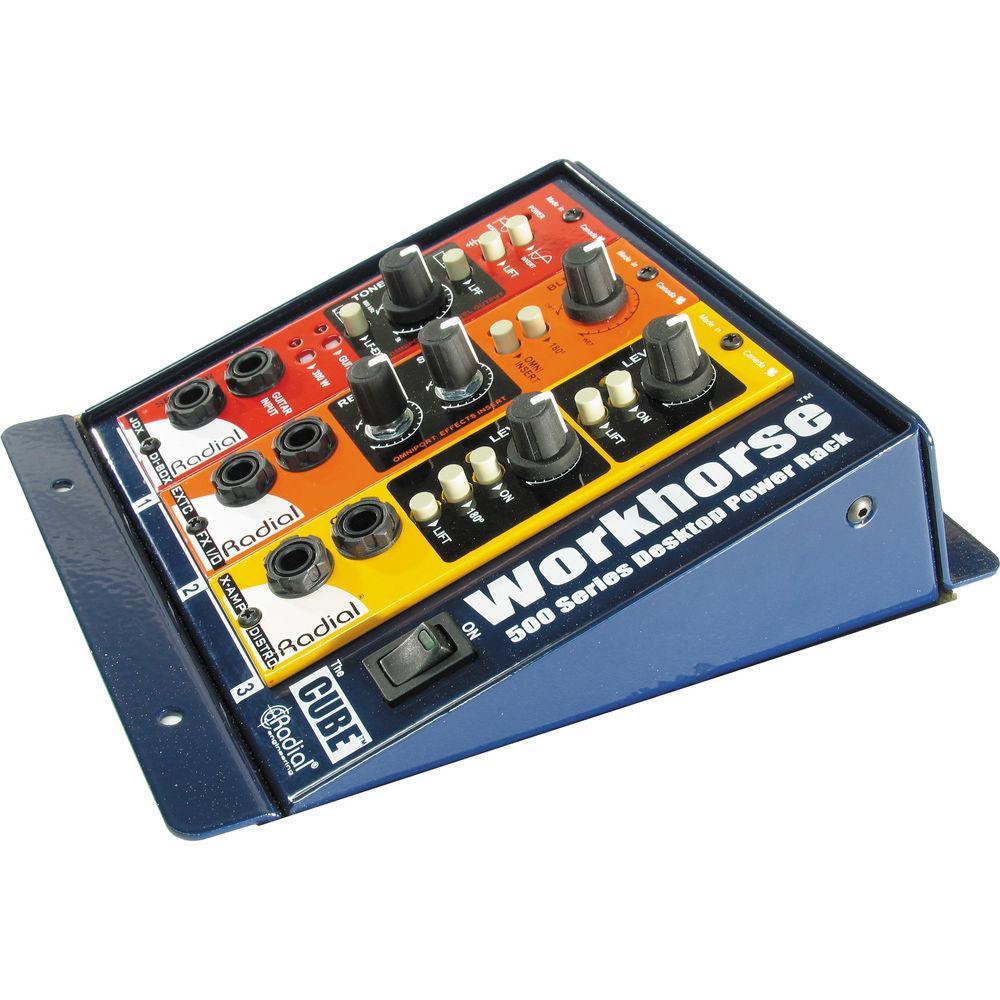

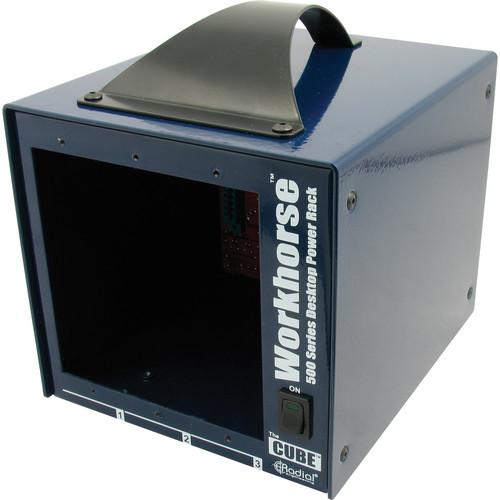

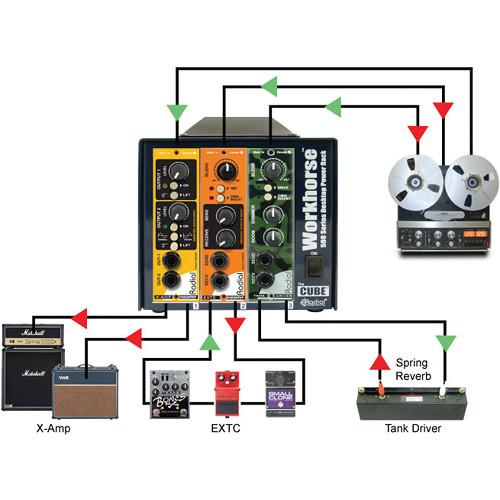

Product description The 500 Series: Portable Racks, Enclosures, Lunchboxes Read More The Workhorse Cube from Radial Engineering is a power rack designed to house three 500 Series modules. It can be used to create a channel strip by combining a preamp, EQ, and compressor (available separately), in a convenient package which can sit on the desktop or be carried around the studio. The Cube does not have any circuitry other than its connectors, so it does not impart color, distortion or artifact to the audio signal. Compliant with the guidelines set out in the Workhorse open-source document (Whos-Doc), it accommodates the very latest 500 Series modules while being backward-compatible with older formats, including API. Rear-panel connectivity includes XLRs and 1/4" TRS connectors on each slot for cross patching and parallel processing multiple modules. Powerful routing options abound. Feed Switches let you send the output from one module into the next without requiring a cable, while Link Switches enable you to set up links between stereo-ready modules. The unit is also equipped with Omniport for each slot, allowing the module manufacturers to implement unique functions such as key or side-chain input. The unit's external power supply generates 500mA of shared current and 48V phantom power for microphones. The heavy-duty steel chassis provides extra shielding against electromagnetic noise and, with the handle removed, can be recessed into a desktop using the optional angle- and flush-mount hardware kits (available separately). - Desktop power rack designed to hold three 500 series modules
- Three-module design enables user to create a channel strip by combining a preamp, EQ, and compressor (available separately), in a convenient package
- No audio circuitry other than connectors – the Cube will not impart any color, distortion or artifact
- External supply provides up to 500mA of current, shared by all three modules
- Fully compatible with API module standard – backward-compatible with older API models

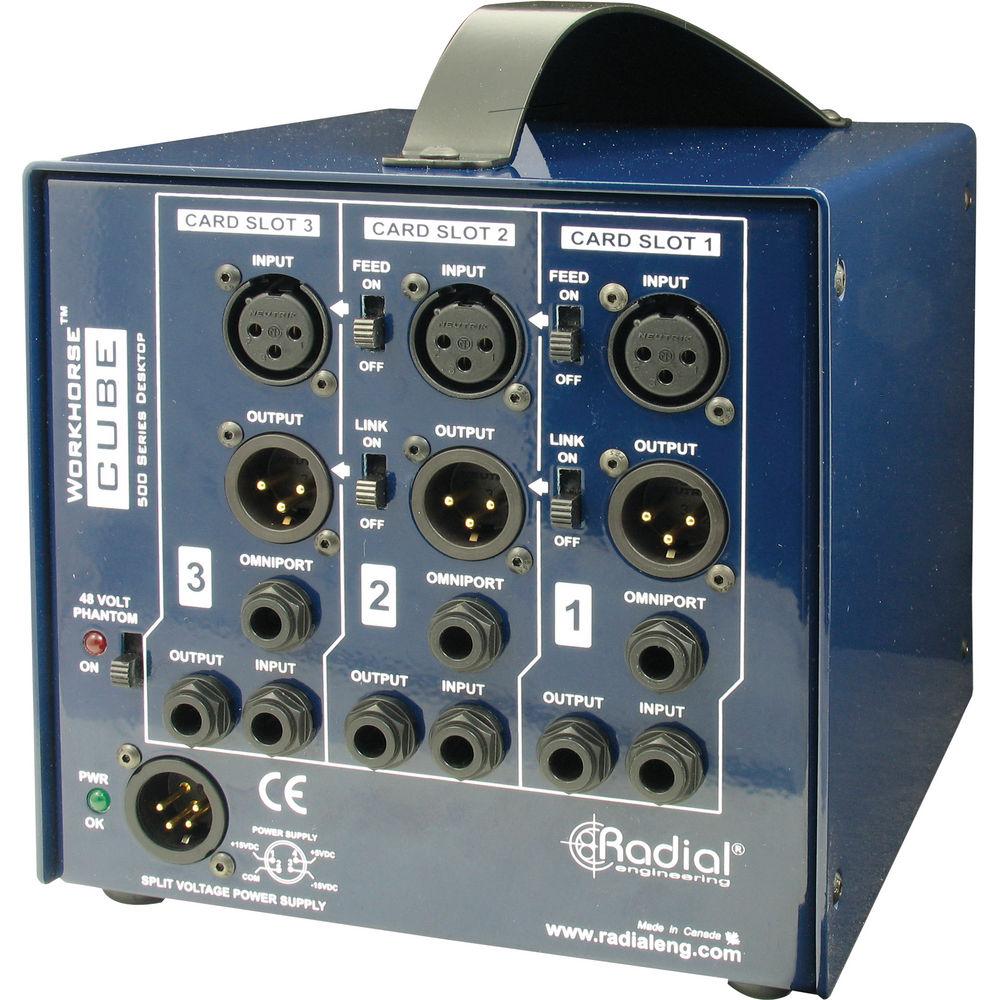

- Balanced XLR I/Os are paralleled to 1/4" TRS connectors – allows for series and parallel signal processing
- Feed Switch sends the output from one module into the next without requiring a cable
- Link Switch sets up link between stereo-ready modules by sliding the switch upwards
- Omniport adds functionality to enhance each module's capability as set by the manufacturer
- Switchable on/off 48V phantom power – LED illuminates when On

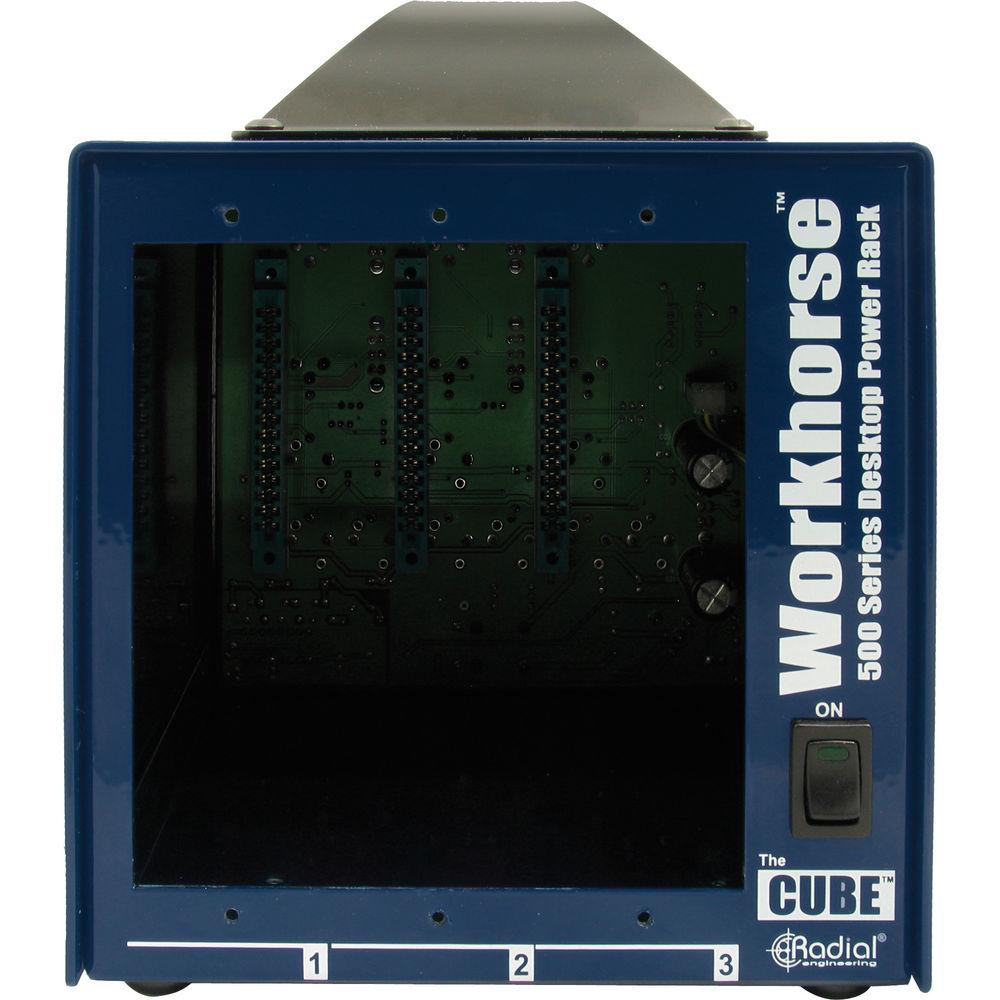

- 15-Pin card edge EDAC connector with double-sided, gold-plated contacts for optimal connectivity
- Each slot is equipped with an auto-resetting fuse to protect the system should a faulty module be employed
- Slide-in tray makes it easy to align modules when swapping in and out
- Heavy-duty steel chassis provides a rigid platform for your modules and extra shielding against electromagnetic noise
- Attach carry handle to turn the Cube into a portable channel strip
- Handle may be removed to recess the Cube into desktop – use optional angle- and flush-mount hardware kits (available separately)
UPC: 676101040445 In the Box Radial Engineering Workhorse Cube 3-Space Desktop Power Rack for 500 Series Modules Top Carry Handle Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Workhorse Cube 3-Space Desktop Power Rack for 500 Series Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R700 0107 Specs | Circuit Type | Connection buss from modules to connectors | | Number of Slots | 3 | | Input Connectors | 3 x balanced XLR female
3 x balanced 1/4" TRS | | Output Connectors | 3 x balanced XLR male
3 x balanced 1/4" TRS | | Wiring | XLR Pin Wiring: AES standard, pin-1 ground, pin-2 (+), pin-3 (-) | | Impedance | Card Slot Impedance: Module-dependent | | Current | Available: 500 mA
Average: 166 mA per slot | | Phantom Power | 48 V on all three channels | | Power Supply | 100-240 VAC (external)
Connection: Locking 4-pin XLR female on cable | | Operating Conditions | 41 to 104°F /5 to 40°C (for indoor use) | | Compatibility | Adheres to Whos-Doc and VPR alliance | | Dimensions (W x H x L) | 7.50 x 6.25 x 7.25" / 19.05 x 15.87 x 18.41 cm | | Weight | 5.4 lb / 2.5 kg | | | | Package Weight | 8.1 lb | | Box Dimensions (LxWxH) | 12.3 x 9.4 x 9.1" |
