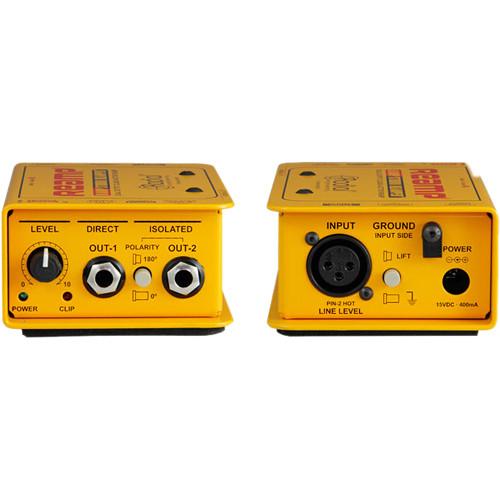

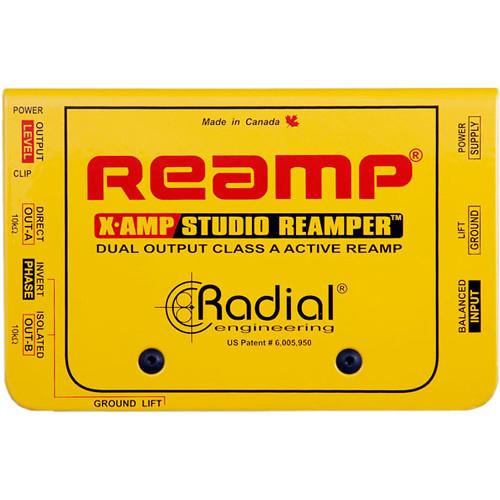

User Manual for Radial Engineering X-Amp - Active Re-Amplifying Device Click to enlarge the picture
Contents of the user manual for the Radial Engineering X-Amp - Active Re-Amplifying
- Product category: Effects Pedal Accessories Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Effects Pedal Accessories
 |
User manual for the Radial Engineering X-Amp - Active Re-Amplifying contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|
Product description The X-Amp from Radial Engineering is an active re-amping device that allows an engineer or producer to take a pre-recorded guitar track that would be typically at line level, and output a guitar level signal that can then be sent back to an amplifier/speaker or an effects box. This opens the door to explore new musical sounds and spur on the creative process since the unit will drive a guitar amplifier as if the player was still plugged into it. Using the X-Amp is easy. One would, for instance, record a dry track using a high quality direct box, then send this track from the recorder to the X-Amp and then to either guitar amps, effect pedals or combinations thereof. This has many benefits. Once the basic track has been recorded, replacing or adding tracks can be done well after the session player has gone home. This eliminates tiresome repetition and assures a fresh vibrant performance on the final recording. Furthermore, by driving two amps at the same time, new sounds and textures can be created allowing the engineer or producer to make artistic decisions as the recording progresses. The X-Amp employs a Class-A circuit design that has been optimized for use with guitars. Features include balanced line level input with LED peak indicator and level control, direct and isolated guitar amplifier outputs, 180° polarity reverse to bring both amps into phase and dual ground lift options for noise-free operation. A welded I-beam internal skeleton provides a separate housing for maximum protection against external forces, which may cause stress on the PC board assembly while the outside bookend cover provides a protective zone for the switches, potentiometer and connectors. - Active re-amping device with 100% Class-A signal path
- Two outputs can drive two separate amplifiers
- Input level overload LED indicator
- Variable output level control
- Isolated output eliminates ground loops
- Full-bottom no-slip pad provides electrical insulation and mechanical isolation
UPC: 676101034901 In the Box Radial Engineering X-Amp - Active Re-Amplifying Device External Power Supply Three (3) Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering X-Amp - Active Re-Amplifying Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering X-Amp Specs | Input Connections | 1 x XLR | | Output Connectors | 2 x 1/4" TS phone | | Input Level | +4dB balanced line level | | Output Level | Continuously variable | | Controls | Level control
Ground lift switch
Polarity reverse switch | | Frequency Response | Not specified by manufacturer | | Noise | Not specified by manufacturer | | Power | 15VDC 400mA - center positive | | Dimensions (WxDxH) | 3 5/16" x 5" x 1 7/8" | | Weight | 2.6 lbs | | Specialties | Polarity reverse on output 2 for correction of the phase with an amp or device connected on output 1 | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 10.8 x 5.1 x 2.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
