RadioPopper Jr2 Sekonic Combo Studio Set

Search your instruction manual in PDF to download

User Manual for RadioPopper Jr2 Sekonic Combo Studio Set for Canon

Click to enlarge the picture
RadioPopper Jr2 Sekonic Combo Studio Set for Canon Contents of the user manual for the RadioPopper Jr2 Sekonic Combo Studio Set
  • Product category: Radio & Infrared Transmitters RadioPopper
  • Brand: RadioPopper
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for RadioPopper Radio & Infrared Transmitters

RadioPopper Jr2 Sekonic Combo Studio Set for Canon RadioPopper Jr2 Sekonic Combo Studio Set for Canon
User manual for the RadioPopper Jr2 Sekonic Combo Studio Set contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any RadioPopper product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official RadioPopper user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a RadioPopper product will considerably shorten its lifespan!



Product description

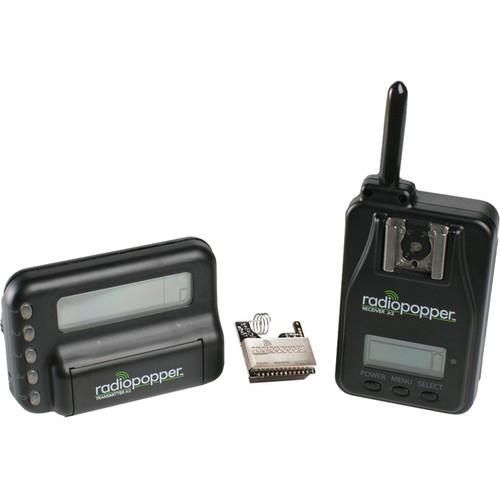

Get set up to remotely trigger and control your flashes as well as more easily metering your lighting with this Jr2 Sekonic Combo Studio Set from RadioPopper. Bundling together a Jr2 Transmitter, Jr2 Receiver for Canon flashes, and a Sekonic Module, you will be able to equip your camera, flash, and meter with the appropriate technology for remote triggering. The transmitter and receiver are an easy-to-use set that provide remote power control over Canon E-TTL / E-TTL II flashes as well as Alien Bees, White Lightning, and Zeus strobes. Also, the set uses a frequency of 902-928 MHz, has a range of 1500', and has access to four groups. Additionally, the Sekonic Module is installed into select meters and can wirelessly trigger your Jr2-equipped flashes.

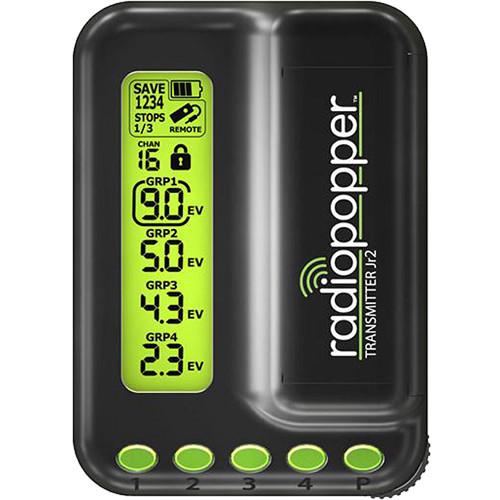

  • Jr2 Transmitter The RadioPopper Jr2 Transmitter is a 16 channel, four group radio transmitter that operates on the 902-928 MHz, ISM band and is capable of adjusting the output of the flash using a separately purchased Jr2 receiver for Nikon i-TTL or Canon E-TTL/II flash units. Triggering and power control from distances of 300-1750' depending on conditions and environment is possible. The transmitter's simplified, intuitive backlit display works on an easy to use button and dial design that indicates power levels, group selection, radio channel selection local or remote control and remaining battery power. The transmitter gets 20 hours of run time on two AAA batteries and weighs 1.7 oz. Triggering at sync speeds up to 1/500 sec is possible with cameras that have leaf shutters. The Jr2 Transmitter will also trigger a wide variety of RadioPopper receivers without power control. Please see the features section for a complete list.
      Dial Operation - Selecting groups
    • Power levels are adjusted by simply rotating the adjustment dial. The adjustment is made to the highlighted group (or groups) with the frame around it. You can highlight all enabled groups at the same time. Adjustments are applied to all enabled groups and settings can be locked in
      Toggle Groups On and Off
    • Enabling and disabling groups is easy. Just click the button for the desired group and it will toggle on and off. When toggling on, the power level will remain where it was when toggled off
      Simple 9 Stop Max and Min Power Control
    • Power levels are set between 9.0 at maximum to 0.0 at minimum. The increments are based on an EV f/stop scale. One full increment change on the display of your Jr2 Transmitter is equal to one f/stop change on your camera.
      Save Settings
    • The Jr2 Transmitter provides four memory locations for saving lighting setups. Each memory location can save a snapshot of the present settings, including which groups are enabled, which groups are highlighted for editing, and the power levels of each group
      Recalling Saved Settings
    • This allows you to quickly restore previously saved settings and immediately resume shooting with your creative process uninterrupted. You may exit the recall mode at any time without altering the present settings by tapping the P button. The unit will resume normal shooting mode
      Setting 1/3 Stop or 1/10 Stop Increments
    • Select between either 1/3 stop or 1/10 stop adjustments. When in 1/3 stop mode, each step of rotation of the dial will adjust the power level by 1/3 stop, and similarly in 1/10 stop increments when set to 1/10 setting
      Setting EV vs % Mode
    • Each group many be independently set to a stop accurate EV scale, or a more approximated percentage % scale
      Compatibility
    • The Jr2 Transmitter will trigger the following RadioPopper devices: RP Nano Receiver, PX Receiver (when used on Canon compatible speedlights), JrX Receiver (the group used for controlling JrX Receivers must be changed from EV mode to % mode. You will not have stop-accurate control of legacy JrX Receivers, though you will be able to approximate power level control from the % scale which approximates the dial position of legacy JrX Transmitter units. Remote power control of Nikon or Canon I-TTL/E-TTL/II flashes is possible with purchase of a dedicated receiver
    UPC: 616913276441

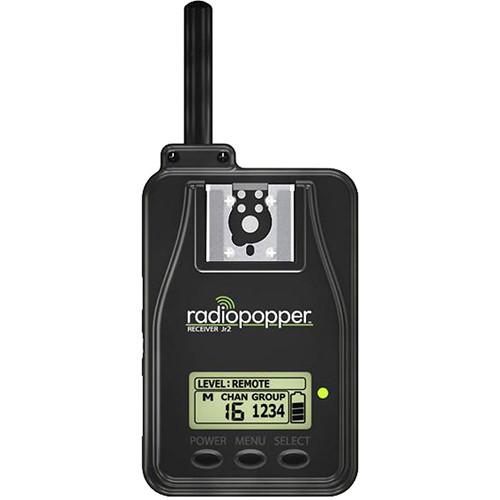

  • Jr2 Receiver for Canon The RadioPopper Jr2 Receiver for Canon is a 16 channel, four group radio receiver that operates on the 902-928 MHz ISM band and is capable of adjusting the output of the flash using the separately purchased Jr2 Transmitter. Triggering and control range with both methods is from 300-1750' depending on conditions and environment. The Jr2 receiver's simplified, intuitive backlit display works on an easy two-button - Menu/Select principle that indicates power level, local, or remote control and remaining battery power. The receiver gets 8-10 hours of run time on two AAA batteries and weighs 1.9 oz. A 3.5mm sync cable, phono plug adapter, and 2.5mm adapter are included.
      16 Radio Channels
    • The Jr2 Receiver can be set to one of 16 different radio channels
      Groups
    • The Jr2 receiver can be set to one of four groups, allowing for maximum flexibility of your lighting setup. By setting different lights to different groups, they may be adjusted separately. All lights on a given group will be adjusted together.
      Remote Control of Power Level
    • In Remote mode, the power level of your attached lighting device is controlled remotely from your transmitter (purchased separately). The Jr2 Receiver will control the attached light, setting it to the power level commanded by your transmitter
      Local Control of Power Level
    • In Local mode, the power level of your attached lighting device is controlled directly on the device, for example, the display on the back of your flash or the slider on your studio light
    UPC: 616913276458
  • Sekonic Module The RadioPopper Sekonic Module allows you to outfit your Sekonic light meter to wirelessly trigger the Nano and JrX receivers. This is useful for metering your flash lighting system. Additionally, this module features a range of up to 200' and working frequency of 902-928 MHz on the ISM band.
      Compatible Light Meters
    • Sekonic L-358, L758D, L758DR, L758Cine, and C-500R
      Compatible Receivers
    • RadioPopper Nano and JrX
    UPC: 748252397232
In the Box Bundle Items Jr2 Transmitter bbczvvzararcvydyucsyuabz
  • 2 x AAA Batteries
  • Limited 1-Year Warranty
Jr2 Receiver for Canon
  • 2 x AAA Batteries
  • RJ11 Phone Jack Sync Cord
  • 12", 3.5mm to 3.5mm Sync Cable
  • 3.5mm to 1/4" Sync Port Adaptor
  • Limited 1-Year Warranty
Sekonic Module
  • Limited 1-Year Warranty
Table of Contents




Upload User Manual

Have you got an user manual for the RadioPopper Jr2 Sekonic Combo Studio Set for Canon in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Jr2 Transmitter
    Channels 16
    Wireless Range 300 to 1750' / 91.4 to 533.4 m
    Radio Frequency 902 to 928 MHz
    Control Modes TTL
    Sync Speed 1/500 Sec (Leaf)
    Battery Type 2 x AAA
    Dimensions 4 x 1.75 x 1.2" / 100 x 45 x 30 mm (Transmitter)
    Weight 1.7 oz / 49 g
    Box Dimensions (LxWxH) 4.7 x 3.6 x 1.6"
  • Jr2 Receiver for Canon
    Channels 16
    Wireless Range 300 to 1750' / 91.4 to 533.4 m
    Radio Frequency 902 to 928 MHz
    Control Modes TTL
    Battery Type 2 x AAA
    Dimensions 4 x 1.75 x 1.2" / 100 x 45 x 30 mm (Receiver)
    Weight 1.9 oz / 53.9 g
    Box Dimensions (LxWxH) 5.35 x 4.55 x 1.3"
  • Sekonic Module
    Range 200' (61 m)
    Radio Frequency 902-928 MHz, ISM band
    Supply Voltage 3.3 VDC
    Box Dimensions (LxWxH) 4.0 x 3.5 x 0.01"
