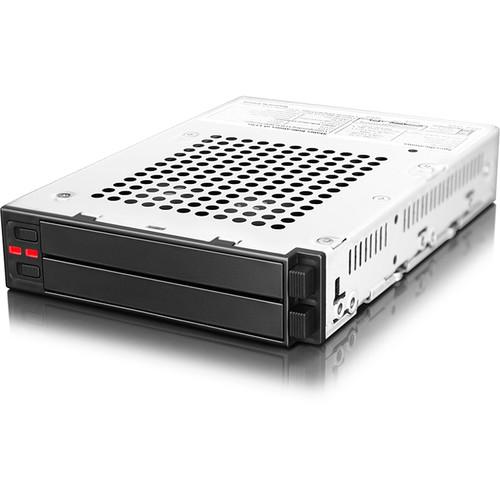

Product description The InTANK IR2770 2-Bay 2.5" RAID Enclosure from Raidon accommodates two 2.5" HDD/SSD within a 3.5" drive bay. With the built-in RAID mode switch, you can easily switch between RAID 0 (striping) or RAID 1 (mirroring) configurations. It connects to the host via a SATA interface, and drives are swappable using the easy-eject feature. Additionally, the LED indicators provide easy monitoring of operating status, drive health, and activity. -
- SATA III interface
- Supports up to two 2.5" SATA III HDD/SSD

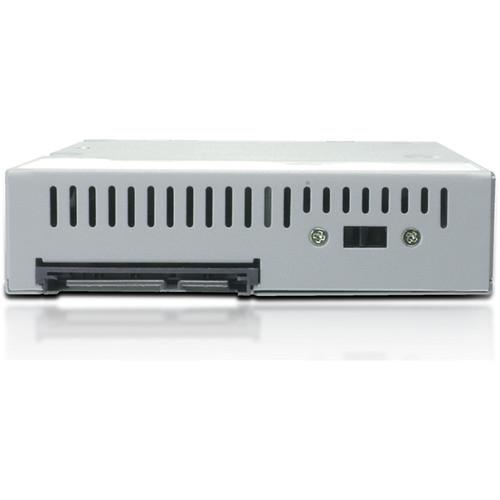

- Configure RAID modes easily using built-in switches
- RAID options: RAID 0 (striping) and RAID 1 (mirroring)

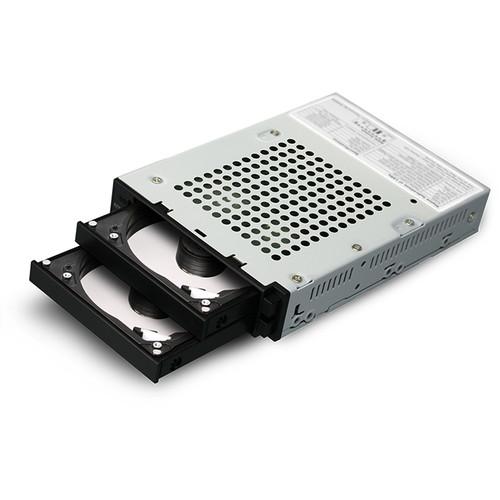

- Easy-eject drive removal

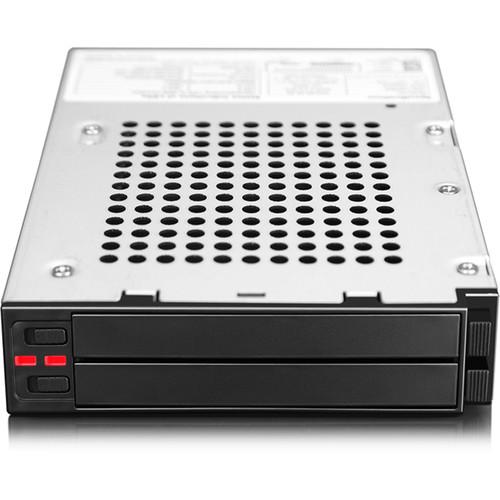

- Monitor system status via LED indicators
- Aluminum housing with holes dissipates heat
In the Box Raidon InTANK IR2770 2-Bay 2.5" RAID Enclosure Accessory Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raidon InTANK IR2770 2-Bay 2.5" RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaidon IR2770 Specs | RAID Chipset | N/A | | ASIC Core | WM6182A Chip | | Host Interface | SATA III | | RAID Level | RAID 0/1 | | Supported Hard Drives | 2 x 2.5" SATA III HDD/SSD (Height: 9.5 mm)
Single HDD Capacity: Tested up to 2TB
Two HDD Capacity: Tested up to 4TB | | Hot Swap Support | Yes | | Auto Rebuilding | Yes | | LED Indicator | Yes | | Buzzer | N/A | | Control Interface | N/A | | Environmental Protection | N/A | | Power Supply | SATA Connector | | Operating System Support | Windows / Mac / Linux | | Certification | CE / FCC | | Operating Temperature | 50 to 95° F / 10 to 35° C | | Storage Temperature | -4 to 116° F / -20 to 47° C | | Relative Humidity | 5 to 95% noncondensing | | Dimensions (W x L x H) | 4.0 x 5.8 x 1.0" / 102 x 147 x 26 mm | | Weight | .9 lb / .4 kg |
