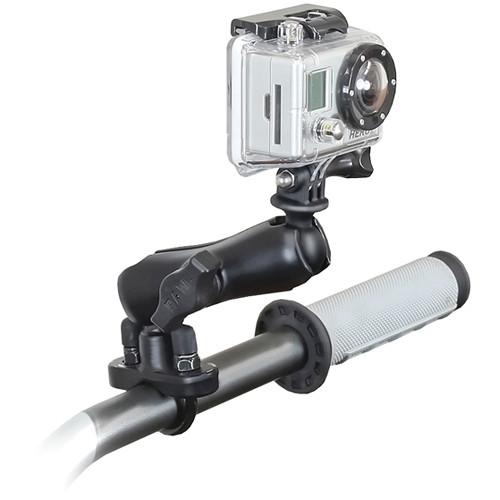

User Manual for RAM MOUNTS Handlebar Rail Mount with U-Bolt & 1" Ball with GoPro Hero Adapter Click to enlarge the picture
Contents of the user manual for the RAM MOUNTS Handlebar Rail Mount with
- Product category: Handlebar / Pole Mounts RAM MOUNTS
- Brand: RAM MOUNTS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RAM MOUNTS Handlebar / Pole Mounts
|
User manual for the RAM MOUNTS Handlebar Rail Mount with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RAM MOUNTS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RAM MOUNTS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RAM MOUNTS product will considerably shorten its lifespan!
|
Product description The Handlebar Rail Mount with U-Bolt & 1" Ball with GoPro Adapter from RAM MOUNTS is an adjustable mount that allows you to attach your GoPro HERO housing or frame to handlebars ranging from 0.5" to 1.25" in diameter. It consists of a zinc coated u-bolt rail base, a standard size double socket arm, and a 1" diameter ball with a custom GoPro 3-prong adapter. The mount is designed with a RAM 1" diameter rubber ball and socket system that has adjustment points at both ends of the double socket arm, letting you adjust the arm to the desired viewing angle. Included in this package is mounting hardware for attaching to rails, black cover caps are that can be placed over the exposed ends of the bolts, and a composite rail adapter for attachment to narrower rails with a minimum width of 0.5". - Medium Double Socket Arm for 1" Ball Bases The Medium Double Socket Arm for 1" Ball Bases from RAM Mounts has a socket at both ends that accommodates 1" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and viewing angles.
- Socket at both ends accommodates 1" ball bases
- Allows for almost infinite adjustment and viewing angles
UPC: 793442002106 - Rail Base with Zinc Coated U-Bolt and 1" Ball The Rail Base with Zinc Coated U-Bolt and 1" Ball from RAM MOUNTS contains a 1" rubber ball designed to sit at right angles to the mounting rail. It is designed specifically for rails that range from 0.5" to 1.25" in diameter. UPC: 793442002755
- 1" Diameter Ball with Custom GoPro Hero Adapter The 1" Diameter Ball with Custom GoPro Hero Adapter from RAM MOUNTS attaches directly to a GoPro housing or frame, allowing you to mount your camera on any RAM double socket arm or mounting accessory that accepts a 1" diameter rubber ball.
- Rubber ball design to dampen shock and vibration
- Mountable to many RAM double socket arms and mounts
UPC: 793442936999 In the Box Bundle Items Medium Double Socket Arm for 1" Ball Bases wtsrtyyawwzadwdarxt - Limited Lifetime Warranty
Rail Base with Zinc Coated U-Bolt and 1" Ball 1" Diameter Ball with Custom GoPro Hero Adapter - Limited Lifetime Warranty
Also Includes - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the RAM MOUNTS Handlebar Rail Mount with U-Bolt & 1" Ball with GoPro Hero Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Medium Double Socket Arm for 1" Ball Bases
| Dimension | Overall Length 3.69" / 9.40 cm
Socket to Socket Length 3" / 7.6 cm | | Material | Powder coated marine grade aluminum | | Ball Size | 1" / 2.54 cm Rubber Ball "B" Size | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 3.5 x 3.1 x 0.9" | - Rail Base with Zinc Coated U-Bolt and 1" Ball
| Material | Powder coated marine grade aluminum | | Ball | 1" (2.5 cm) rubber ball "B" size | | Dimensions | U-Bolt Dimensions: Accommodates rails from 0.5-1.25" (1.3-3.2 cm) in diameter | | | | Box Dimensions (LxWxH) | 4.0 x 3.0 x 1.0" | - 1" Diameter Ball with Custom GoPro Hero Adapter
| Camera Mount | Three-prong GoPro mounting interface | | Material | High strength composite | | Ball Size | 1" (2.5 cm) rubber ball "B" size | | Weight | 6.24 oz (176.9 g) | | | | Box Dimensions (LxWxH) | 3.0 x 2.5 x 1.0" |
