User Manual for RAM MOUNTS Twist Lock Suction Cup Mount with Round Base Adapter Click to enlarge the picture
Contents of the user manual for the RAM MOUNTS Twist Lock Suction Cup
- Product category: Camera & Camcorder Mounts RAM MOUNTS
- Brand: RAM MOUNTS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RAM MOUNTS Camera & Camcorder Mounts
 |
User manual for the RAM MOUNTS Twist Lock Suction Cup contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RAM MOUNTS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RAM MOUNTS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RAM MOUNTS product will considerably shorten its lifespan!
|

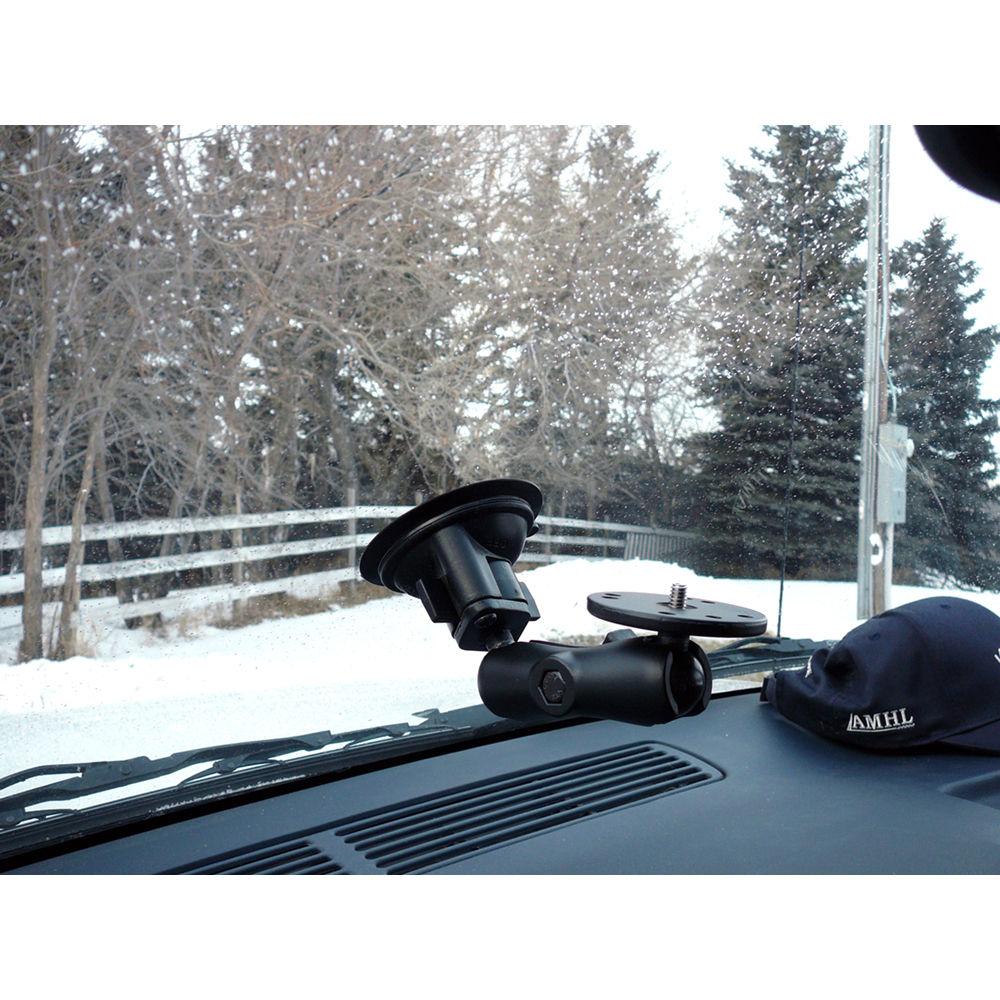

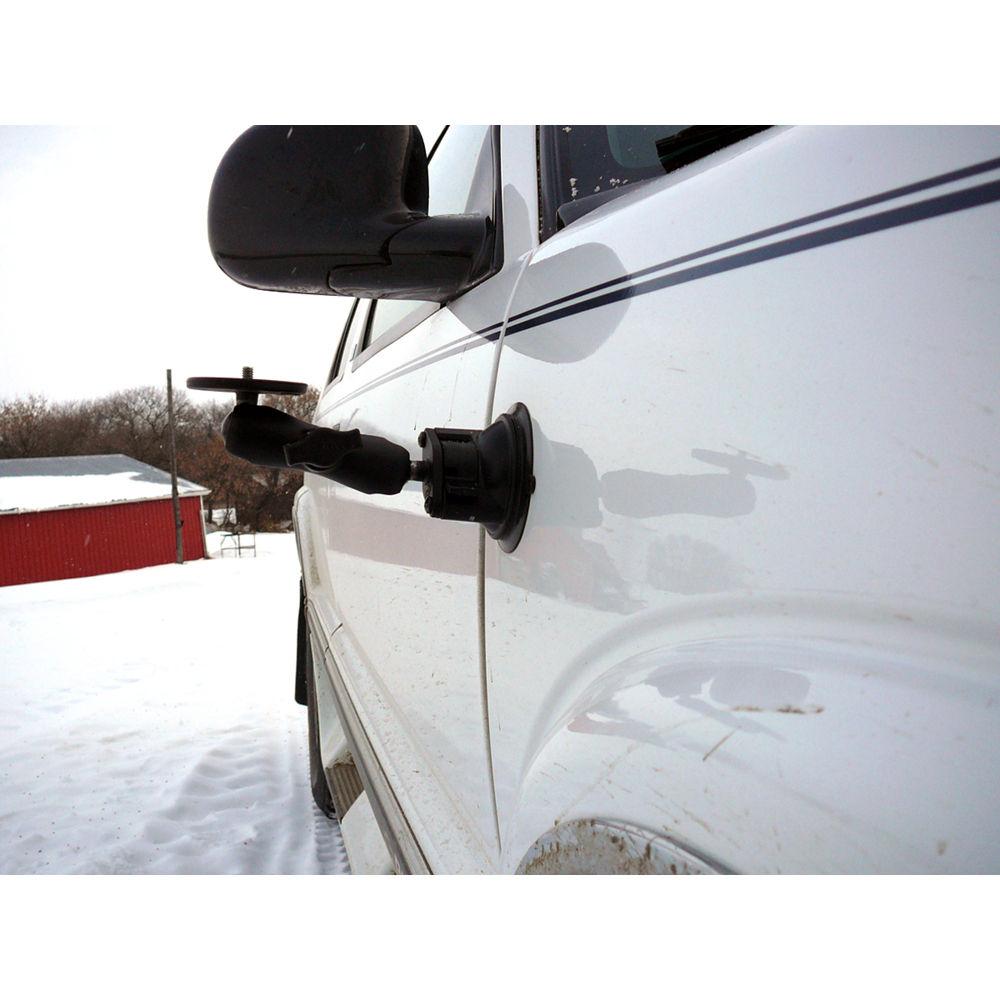

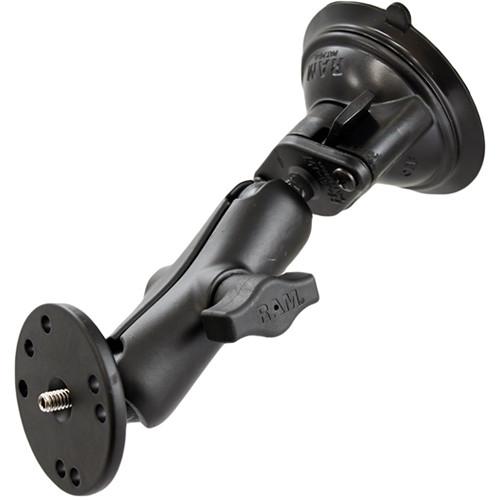

Product description The RAM MOUNTS Twist Lock Suction Cup Mount with Round Base Adapter is constructed of powder coated marine grade aluminum. It features a double socket arm, a 3.25" suction cup twist lock base and a round base adapter that contains a 1/4"-20 male tripod screw. It's compatible with most compact cameras and camcorders that have 1/4"-20 threading. The large suction cup base will securely attach to glass and other non-porous surfaces including boats, cars and most plastics. The mount also attaches to RAM's adhesive disks, which broadens the mount's versatility. RAM designed the mount with a 1" diameter patented rubber ball and a socket system that features adjustment points at each end of the double socket arm. The ball and socket design allows you to set the camera at almost any angle. There is also a unique hole pattern on the round base adapter, which makes the mount compatible with several RAM cradles. For added piece-of-mind, this mount even includes a limited lifetime warranty. - The suction cup base can be secured to glass and non-porous surfaces, including RAM adhesive disks
- This mount is designed to be a universal mounting solution for both still and moving cameras with a standard female camera thread
- The mount consists of a double socket arm, a 3.25" suction cup twist lock base and a round base adapter that contains a 1/4"-20 male tripod screw
- The 1" diameter patented rubber ball and socket system has adjustment points at both ends of the double socket arm. This allows you to almost infinitely adjust the camera viewing angle
- The hole pattern found on the round base adapter will connect to many RAM cradles
UPC: 793442921162 In the Box RAM MOUNTS Twist Lock Suction Cup Mount with Round Base Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RAM MOUNTS Twist Lock Suction Cup Mount with Round Base Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRAM MOUNTS RAM-B-166-202AU Specs | Mount Type | Suction cup | | Mount Material | Powder coated marine grade aluminum | | Mount Thread Size | 1/4"-20 (male) | | Suction Pad Diameter | 3.25" (8.3 cm) | | Socket Type | Rubber ball and socket system | | Ball Diameter | 1" (2.5 cm) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 4.6 x 4.6 x 1.9" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
