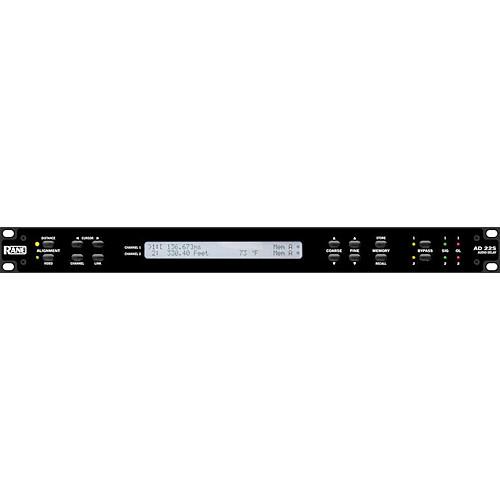

User Manual for Rane Commercial AD 22S Audio Delay Click to enlarge the picture
Contents of the user manual for the Rane Commercial AD 22S Audio Delay
- Product category: Broadcast Processors Rane Commercial
- Brand: Rane Commercial
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rane Commercial Broadcast Processors
|
User manual for the Rane Commercial AD 22S Audio Delay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rane Commercial product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rane Commercial user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rane Commercial product will considerably shorten its lifespan!
|
Product description The AD 22S from Rane is a fully balanced, dual-channel audio delay unit designed for multiple applications, including speaker array synchronization and precision audio-to-video alignment. With two distinct modes, the AD 22S offers the functionality of dedicated devices within a single unit. Featuring a delay range of 2.00 mSec to 999.99 mSec, the unit displays the delay in units of time, distance, or frames. The dedicated Video mode can be used to provide almost a full second of audio delay in 0.5 frame increments for all standard NTSC or PAL/SECAM frame rates. The AD 22S can operate as two independent channels, or as a linked stereo pair. Front panel controls allow for choosing settings for each channel that can be stored into 2 nonvolatile memory locations for quick and easy access at any time. Bypass relays for each channel automatically connect should the device lose power. Rear terminals provide for connecting standard switches to recall settings remotely. LEDs on the front panel indicate signal presence and alert when the signal is nearing the maximum input level. - Audio delay unit designed for multiple applications, including speaker array synchronization and precision audio-to-video alignment
- Two distinct modes of operation:
- Distance Mode
- Display in milliseconds, feet, or meters
- 2.00 mSec to 999.99 mSec delay range per channel
- 0.01 mSec resolution
- Video Mode
- Display in frames per second or milliseconds
- Compatible with NTSC and PAL/SECAM frame rates
- 0.5 frame resolution
- Large backlit LCD display
- 2 nonvolatile memories per channel for each alignment mode
- Remote memory recall port on rear
- Front panel lockout port on rear
- Failsafe bypass relay for each channel
- Internal universal power supply
UPC: 687499175947 In the Box Rane Commercial AD 22S Audio Delay AC Power Cable Two (2) Year Warranty User Manual PDF 342kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Rane Commercial AD 22S Audio Delay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRane Commercial AD 22S Specs | Delay | 2.00 mSec to 999.99 mSec | | Sample Rate | 50kHz | | Inputs | 2 x XLR | | Outputs | 2 x XLR | | Other Connectors | 3 x Euroblock Control Inputs
1 x USB | | Input Impedance | 20kΩ, | | Maximum Input Level | 24dBu | | Output Impedance | 50Ω | | Maximum Output Level | 24dBu | | Phantom Power | Not applicable | | Frequency Response | 20Hz to 22kHz | | Dynamic Range | 108dB (+24dBu, 20Hz to 20kHz, A-weighted) | | Crosstalk | -90dB (+4dBu, 20Hz to 20kHz) | | THD + N | 0.006% (+4dBu, 20Hz to 20kHz, 30kHz bandwidth) | | Power Requirements | 100~240 VAC, 50/60Hz | | Dimensions (WxDxH) | 19 x 5.25 x 1.75" (483 x 133 x 44mm) | | Weight | 4 lbs (1.8kg) | | Specialties | Distance Increment: 0.01 and 1.00 mSec (each channel independent)
Video Increment: 0.5 frames (each channel independent) | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 20.2 x 13.5 x 4.4" |
