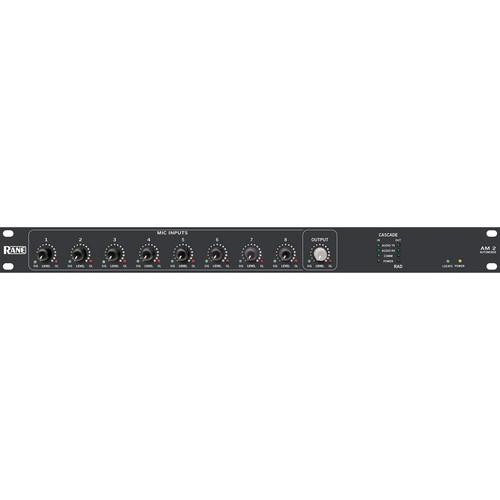

User Manual for Rane Commercial AM 2 Automixer Click to enlarge the picture
Contents of the user manual for the Rane Commercial AM 2 Automixer
- Product category: Install Sound Mixers Rane Commercial
- Brand: Rane Commercial
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rane Commercial Install Sound Mixers
|
User manual for the Rane Commercial AM 2 Automixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rane Commercial product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rane Commercial user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rane Commercial product will considerably shorten its lifespan!
|
Product description The Rane AM 2 Automixer is a versatile, feature packed single-space rack mount mixer with 8 line / microphone switchable XLR inputs, USB I/O and Ethernet connections for RAD and cascading.The AM 2 is capable of automatically mixing incoming channel levels, making it an ideal solution for commercial audio installations, podcast recording applications and more. Manual mixing is also available, and its USB connections make it a plug-n-play device for both Windows and Mac OS. In addition to all this, the AM 1 features an RAD output for CobraNet support, and a cascade connection for linking additional AM 2 mixers (sold separately). - Gain sharing and automatic mic mixing
- 8 XLR mic inputs with level controls & signal/OL indicators
- Manually or automatically mix levels
- USB audio input (16-Bit. 48kHz)
- Power, Locate, USB, Fault and RAD status indicators
UPC: 687499176289 In the Box Rane Commercial AM 2 Automixer 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rane Commercial AM 2 Automixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRane Commercial AM 2 Specs | Total # Of Inputs | 8 | | Mic/Line Inputs | 8 - Balanced Mic/Line Switchable 3-pin XLR | | In-Line Inputs/Returns | No | | AUX Sends | No | | AUX Returns | No | | Inserts | No | | 2 Trk Master I/O | Mic / Line Switchabe XLR
USB | | ALT I/O | USB Audio
Cascade In and RAD Ethernet Conections | | Channel Level Control | Sealed Rotary Potentiometers (POTS) | | Trim/Gain Control | Same as Channel Level | | Phantom Power | Switchable +48V | | Metering | Signal and Overload LEDs | | Frequency Response | XLR Inputs 100Hz to 7kHz, +0/-3dB, -20dBFS, Extended vocal range | | Dynamic Range | 101dB re +20dBu, 20kHz BW, A-weighted, 0dB gain | | Total Harmonic Distortion (THD) | Mic in < 0.01%, 22Hz to 20kHz, A-weighted, +4dBu, 0dB gain | | Power Supply | Universal Line Voltage 100 to 240VAC, 50/60Hz, 13W | | Dimensions | 11.75 x 19 x 8.5" (4.4 x 48.3 x 21.6cm) | | Weight | 5 lb 4 oz (2.4 kg) | | | | Package Weight | 7.65 lb | | Box Dimensions (LxWxH) | 20.4 x 13.8 x 4.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
