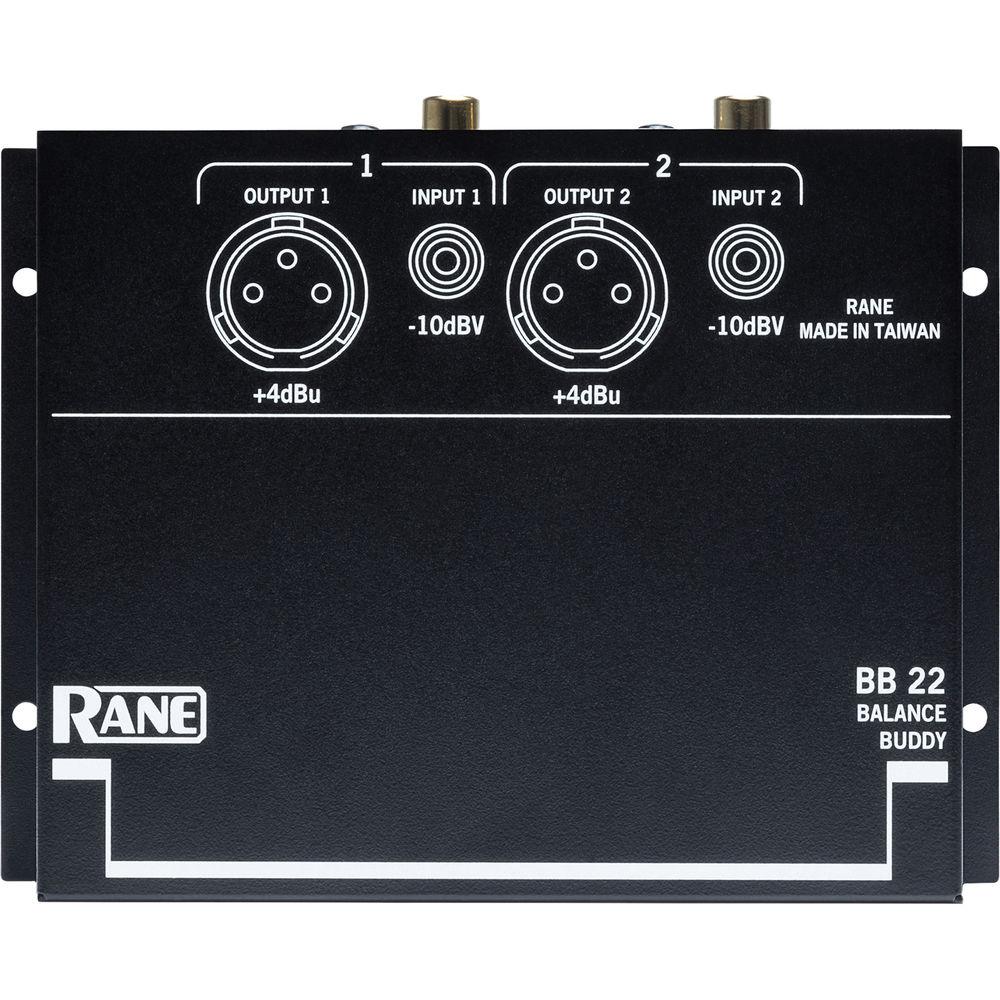

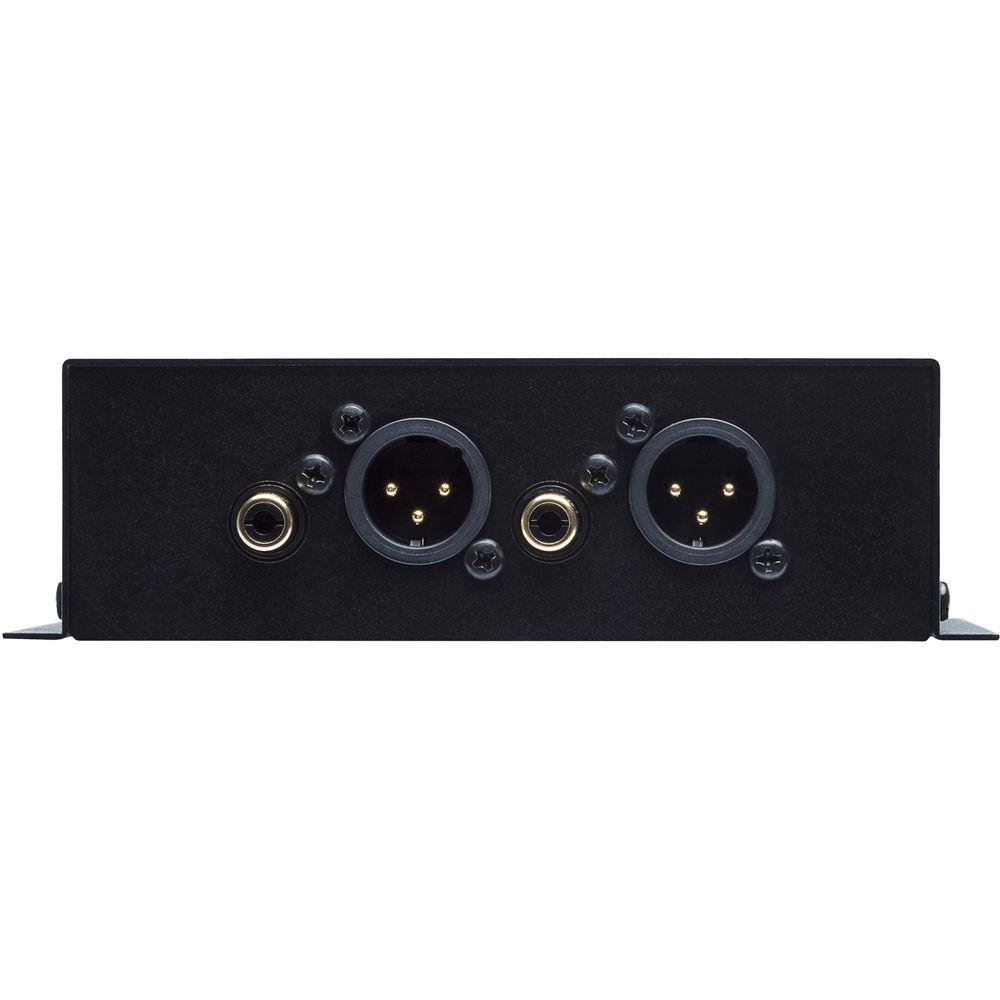

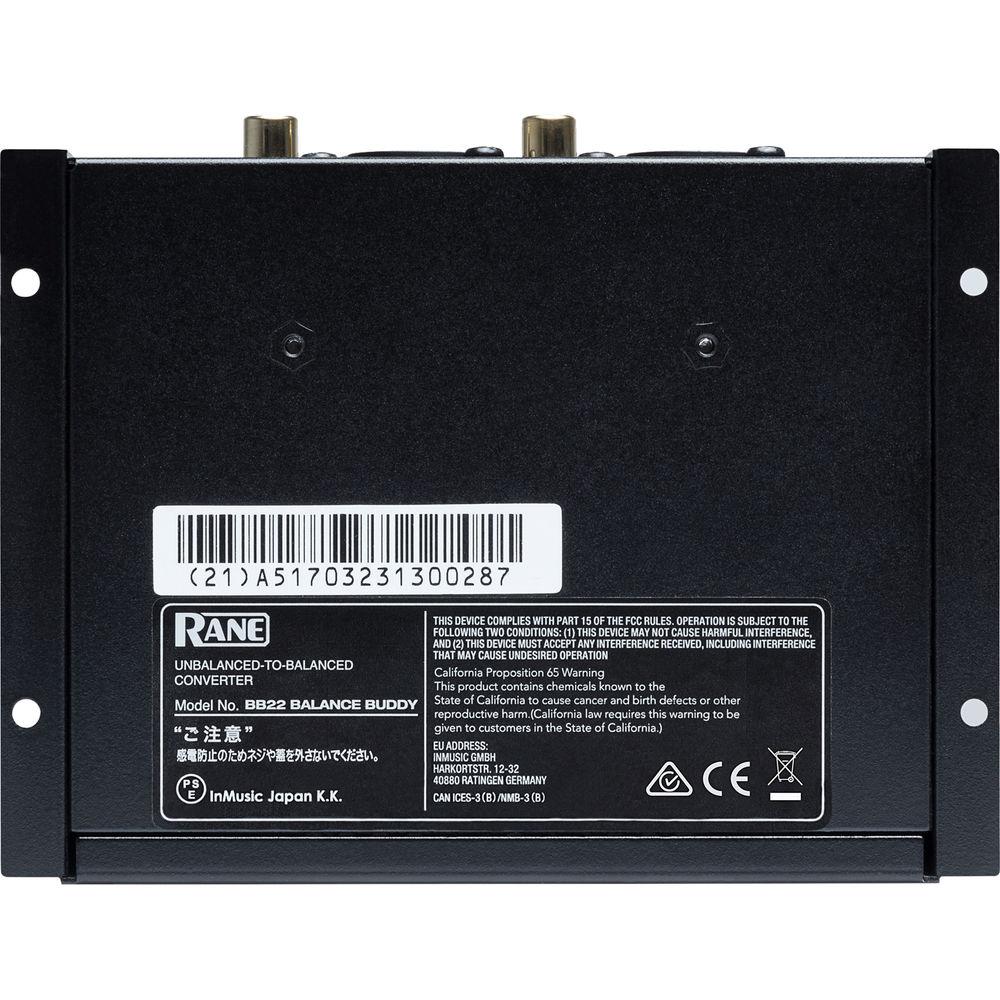

User Manual for Rane Commercial BB 22 Balance Buddy 2-Channel Conversion RCA XLR Click to enlarge the picture
Contents of the user manual for the Rane Commercial BB 22 Balance Buddy
- Product category: In-Line Mic Accessories Rane Commercial
- Brand: Rane Commercial
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rane Commercial In-Line Mic Accessories
 |
User manual for the Rane Commercial BB 22 Balance Buddy contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rane Commercial product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rane Commercial user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rane Commercial product will considerably shorten its lifespan!
|
Product description The Rane BB 22 Balance Buddy is a professional-grade tool used to convert two-channels of -10 dBV consumer level unbalanced (RCA) outputs to balanced +4 dBu professional XLR inputs, as well as providing isolation from hum and noise thanks to the nickel-core transformers.
Signal-to-noise performance is perfectly preserved using the BB 22, since it uses only passive transformers to convert signal levels. It adds no additional noise whatsoever. The BB 22’s isolation transformers provide a quick and affordable answer to most jobs requiring signal level conversion and output balancing. -
- Convert unbalanced to balanced.
- Isolate lines to stop ground loops.
- Enables the use of long balanced cables for a hum-free signal.
- Two channels of -10 dBV (RCA) to +4 dBu (XLR) conversion
- +24 dBu maximum levels
- Nickel core “80” Ni transformers provide wide bandwidth and low distortion
UPC: 694318023136 In the Box Rane Commercial BB 22 Balance Buddy 2-Channel Conversion RCA/XLR Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rane Commercial BB 22 Balance Buddy 2-Channel Conversion RCA XLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRane Commercial BB 22 Balance Buddy 2 Specs | Transformer | Nickel-core bobbin-wound (grade "80" Ni) | | Turns Ratio | 1:3.89 at -10 dBV (316 mV): +4 dBu (1.23 V) | | Maximum Level | 10 dBV In: +10 (40 Hz to 20 kHz), +4.5 (20 Hz); 0.5 dB limit, 1% THD point
+4 dBu Out: +24 (40 Hz to 20 kHz), +18.5 (20 Hz); 0.5 dB limit, 1% THD point | | Input Impedance | -10 dBV: 1 kOhm, 5% limit | | Load Impedance | 15 kOhms | | Insertion Loss | 0.5 dB, 0.1 limit (with recommended load impedance) | | DC Resistance | 47.5 Ohms / 200 Ohms (10% limit) | | Frequency Response | 20 Hz to 20 kHz, ±2 dB | | THD & Noise | +4 dBu out: < 0.05% (40 Hz to 20 kHz) | | Conformance | CE, FCC | | Construction | All steel | | Dimensions (W x D x H) | 5.1 x 4.3 x 1.7" / 129.5 x 108.0 x 41.9 mm | | Weight | 1.0 lb / 0.45 kg | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 10.0 x 6.0 x 3.0" |
