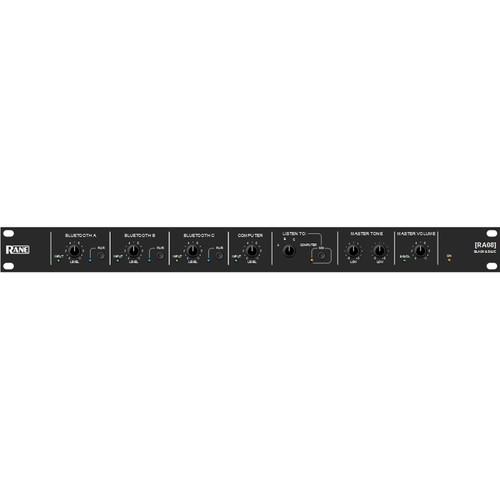

User Manual for Rane Commercial Black & Blue Rackmount Bluetooth Mixer and Amplifier Click to enlarge the picture
Contents of the user manual for the Rane Commercial Black & Blue Rackmount
- Product category: Install Sound Mixers Rane Commercial
- Brand: Rane Commercial
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rane Commercial Install Sound Mixers
|
User manual for the Rane Commercial Black & Blue Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rane Commercial product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rane Commercial user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rane Commercial product will considerably shorten its lifespan!
|
Product description The Rane Commercial Black & Blue is a 1 RU Bluetooth mixer and amplifier designed to provide multisource mixing for system designers, installers, and technicians in restaurants, clubs, educational facilities, houses of worship, and conference rooms. Its 20W mono Class-D amplifier supports 70V, 100V, and 4-Ohm modes via a Euroblock output. Wirelessly stream audio from mobile devices and microphones via three Bluetooth antenna inputs, then choose to mix them together or monitor a single source. A non-Bluetooth device can be connected to the 3.5mm input jack. A rear-panel USB Type-B port allows connection of a computer for recording and playback. Additionally, an XLR 3-pin line output can be routed to a subwoofer, audio recorder, or another amplifier. The built-in mixer offers multiple level controls and 2-band EQ for quick mix balancing. Front-panel LEDs deliver clear visual indication of signal presence and Bluetooth status. The Black & Blue ships with an IEC power cable, a USB cable, a Euroblock plug, and three Bluetooth antennas. - 20W mono Class-D amplifier supports 70V, 100V, and 4-Ohm configuration
- Wirelessly stream music and program content via three Bluetooth inputs with individual antennas, volume controls, pair buttons, and status LEDs
- Connect a non-Bluetooth source via 3.5mm line input (disconnects USB audio input)
- Class-compliant USB functionality includes support for record and play operations
- Balanced XLR 3-pin male line output
- Built-in mixer with per-source level controls, master volume, and 2-band EQ
- Choose a single source to monitor via the 4-position source selector or select Mix mode to blend them together
- Essential metering via pre-fader LED signal indicators
In the Box Rane Commercial Black & Blue Rackmount Bluetooth Mixer and Amplifier IEC Power Cable USB Cable Euroblock Plug 3 x Bluetooth Antennas Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rane Commercial Black & Blue Rackmount Bluetooth Mixer and Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRane Commercial BLACK BLUE Specs | Rack Height | 1 RU | | Inputs | 1 x 1/8" / 3.5 mm line input
3 x Bluetooth antenna jacks | | Outputs | 1 x XLR 3-pin (+20 dBu balanced)
1 x 4-position Euroblock output (3.81 mm) | | USB | 1 x USB Type-B
24-bit/44.1 kHz | | Bluetooth Version | 4.2 | | Bluetooth Profiles | A2DP, AVRCP, HFP, and HSP | | Bluetooth Range | Up to 88' / 26.8 m | | Bluetooth Frequency | 2.402 to 2.480 GHz | | Transmission Power | Up to 8 dBm | | Amplifier | Mono
20 W at 4 Ohms, 70 V, or 100 V | | Frequency Response | 20 Hz to 20 kHz | | THD + N | <0.05% | | Power Requirement | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 40 W | | Dimensions (W x D x H) | 19.0 x 11.3 x 1.7" / 483 x 286 x 44 mm | | Weight | 8.6 lb / 3.9 kg |
