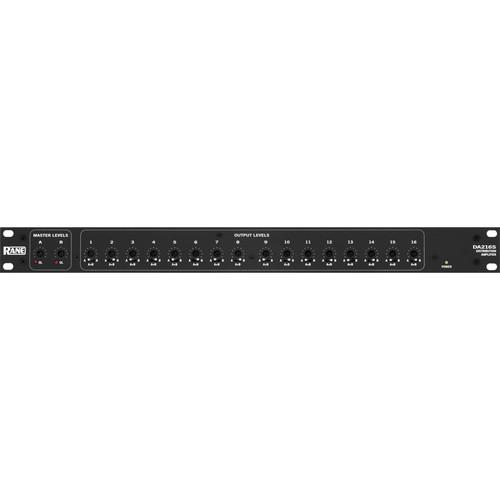

User Manual for Rane Commercial DA216S Distribution Amplifier with 2 Inputs and 16 Outputs Click to enlarge the picture
Contents of the user manual for the Rane Commercial DA216S Distribution Amplifier with
- Product category: Distribution Amplifiers Rane Commercial
- Brand: Rane Commercial
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rane Commercial Distribution Amplifiers
|
User manual for the Rane Commercial DA216S Distribution Amplifier with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rane Commercial product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rane Commercial user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rane Commercial product will considerably shorten its lifespan!
|
Product description The Rane Commercial DA216S Distribution Amplifier is a two-input, sixteen-output splitter/distribution amplifier, well suited for retail, restaurants, clubs, malls, schools, houses of worship, and more. Inputs can either be mic or line sources allowing for background music and/or announcements. Each of the sixteen outputs can reference inputs A, B or A&B via front panel switches. Input and output levels are individually adjusted via the front panel screwdriver controls. The rear panel allows for a variety of gain setting for both mic and line inputs. The phantom-power switch provides +15 VDC of power for condenser microphones. Each output stage incorporates a high-current balanced output line driver for driving long lines with optimal performance. Euroblock wire range is #14 to #26 stranded or solid. The Rane DA216S ships with a power cord and incorporates a 100-240 VAC internal universal voltage power supply, operable nearly anywhere in the world. - Inputs
-
- Two low-noise balanced inputs with overload indicators
- Mic/Line Input and Gain Switches: 40/60 dB mic, 0/20 dB line
- Mic Phantom Power switch
- Master Input Level controls
- Outputs
-
- A, B, A&B output assign switches
- Sixteen balanced (terminal) outputs, individually assignable
- Individual output level controls
- Stable high-current line drivers capable of driving 600 Ohms loads
UPC: 694318023082 In the Box Rane Commercial DA216S Distribution Amplifier with 2 Inputs and 16 Outputs Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rane Commercial DA216S Distribution Amplifier with 2 Inputs and 16 Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRane Commercial DA216S Specs | Connectors | 2 x Euroblock zone inputs (+, -, ground)
16 x Euroblock zone outputs (+, -, ground)
1 x IEC power inlet | | Input Impedances | Mic Input Impedance: 1.82 kOhms (1% 909 Ohms + 909 Ohms)
Line Input Impedance: 17.9 kOhms (1% Balanced 8.97 kOhms + 8.97 kOhms) | | Gain Control Range | Mic Gain Control: +40 and +60 dB (±2 dB / 2-position switch)
Line Gain Range: 0 and +20 dB (±2 dB / 2-position switch)
Overall Mic Gain: +56 and +76 dB (±4 dB / all controls maximum)
Overall Line Gain: +16 and +36 dB (±4 dB / all controls maximum) | | Pad Control | Mic Pad: 20 dB (±2 dB / 2-position switch) | | Input Level | Max Mic Input Level: -20 dBu typical (gain at 40 dB)
Max Line Input Level: +21 dBu typical (gain at 0 dB) | | Overload Indicator | Overload LED: 3 dB below clip typical (clip defined as 1% THD+N) | | Phantom Power | Phantom Power: +15 VDC (+0.5 VDC / switch active) | | Output Impedance | 200 Ohms (1% / balanced 100 Ohms + 100 Ohms) | | Output Level | Output Drive Level: +24 dBu typical (600 Ohms load) | | Output Cable Length | 1500' / 457.2 m maximum (Belden 8451 or equivalent) | | Equivalent Input Noise | Mic Equivalent Input Noise: -128 dBu typical (Rs=150, gain=60 dB) | | Signal-to-Noise Ratio (SNR) | Line Signal-to-Noise Ratio: 100 dBV min (Gain=0 dB, re +4 dBu, 22 kHz BW) | | THD + N | THD+Noise (Line Input): 0.005% typical (Gain=0 dB, +4 dBu @ 1 kHz, 80 kHz BW) | | Frequency Response | Frequency Response, Line: 15 Hz to 50 kHz (+0, -3 dB / 0 dB gain, 0 dBu output)
Frequency Response, Mic: 15 Hz to 50 kHz (+0, -3 dB / 40 dB gain, 0 dBu output)
Frequency Response, Line: 30 Hz to 50 kHz (+0, -3 dB / 60 dB gain, 0 dBu output) | | Crosstalk | 80 dB typical (+4 dBu output, 1 kHz) | | Power | Power Supply Requirement: 100 to 240 VAC, 10%, 50/60 Hz, 7 W | | Dimensions (W x D x H) | 19.0 x 5.3 x 1.8" / 482.6 x 134.6 x 44.5 mm | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 20.3 x 13.75 x 4.25" |
