User Manual for Rane Commercial HA6S 6-Channel Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the Rane Commercial HA6S 6-Channel Headphone Amplifier
- Product category: Headphone Amplifiers Rane Commercial
- Brand: Rane Commercial
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rane Commercial Headphone Amplifiers
 |
User manual for the Rane Commercial HA6S 6-Channel Headphone Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rane Commercial product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rane Commercial user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rane Commercial product will considerably shorten its lifespan!
|

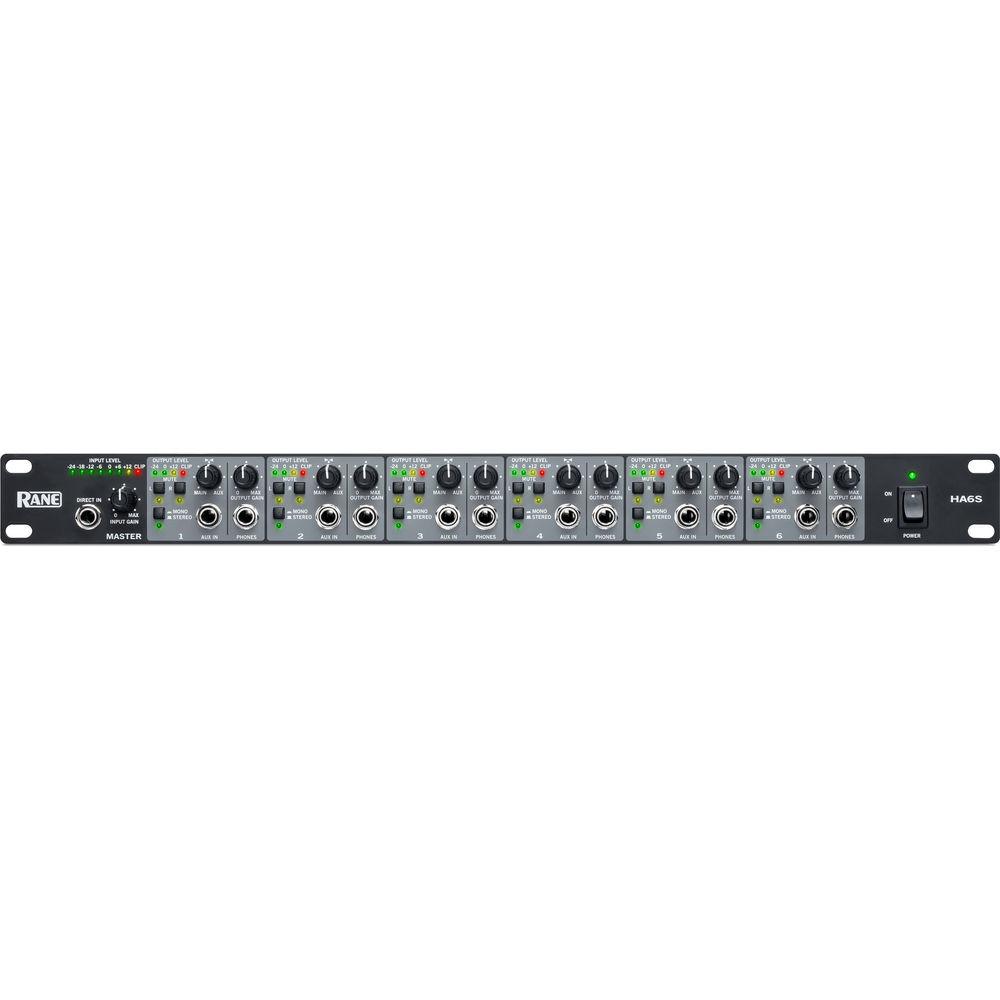

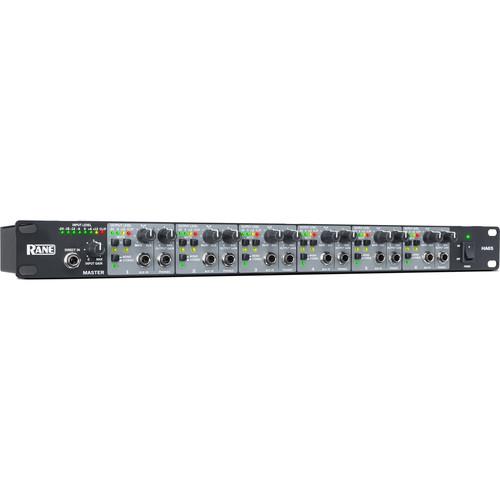

Product description The Rane Commercial HA6S is a 1 RU 6-channel headphone amplifier designed to provide six independent mixes for up to 18 musicians, performers, or vocalists in recording facilities, personal studios, live stage, and rehearsal spaces. It features stereo main and per-channel inputs, 18 headphone outputs, and on-board mix controls.The rear-panel stereo XLR and 1/4" main inputs and the front-panel 1/4" direct input feed all channels. Connect separate sources to each channel via stereo 1/4" auxiliary inputs. Set the desired mix on each channel via individual controls for balance (Main/Aux mix), mono/stereo mode, left/right mute, and output level. The Input Gain knob adjusts the level of the main inputs. Multi-segment LED meters are provided for input and output levels.The HA6S is rackmountable, and uses a standard IEC power cable (included). - Six individual headphone channels supply mixes for up to 18 pairs of headphones

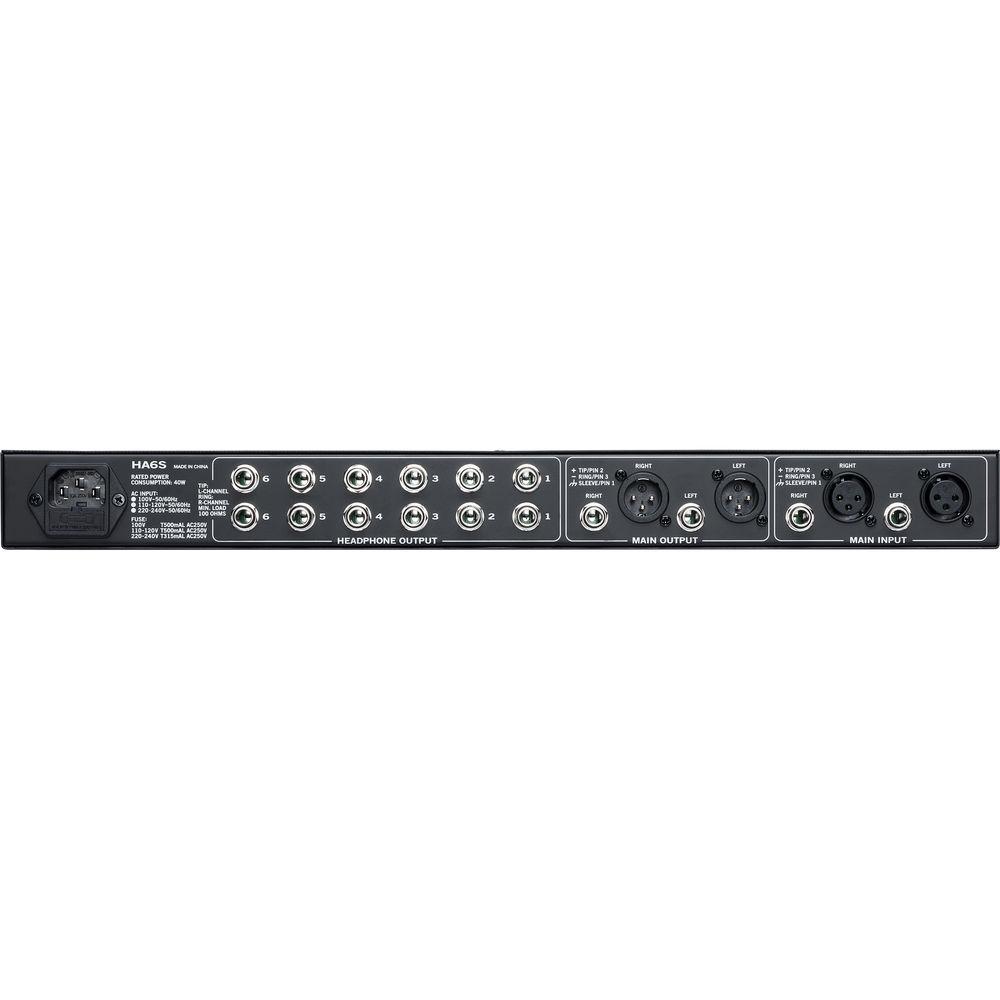

- Six front-panel 1/4" headphone outputs and 12 rear-panel 1/4" headphone outputs
- Balanced stereo XLR and 1/4" main inputs
- Front-panel 1/4" stereo direct input feeds all channels
- 1/4" stereo auxiliary input per channel
- Per-channel balance knob controls mix of Main and Aux signals
- Mono/Stereo mode switch on each channel
- Front-panel gain control for rear-panel inputs
- Per-channel output level control
- 8-segment LED input meter
- 4-segment LED output meter on each channel
- Per-channel left and right mute switches
UPC: 694318023211 In the Box Rane Commercial HA6S 6-Channel Headphone Amplifier (1 RU) Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rane Commercial HA6S 6-Channel Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRane Commercial HA6S Specs | Rack Size | 1 RU | | Number of Channels | 6 | | Input Connections | 2 x XLR 3-pin main inputs (balanced)
2 x 1/4" TRS main inputs (balanced)
1 x 1/4" TRS direct input (unbalanced, stereo)
6 x 1/4" TRS Aux inputs (unbalanced, stereo) | | Output Connectors | 2 x XLR 3-pin main outputs (balanced)
2 x 1/4" TRS main outputs (balanced)
18 x 1/4" TRS headphone outputs | | Maximum Output Level | +21 dBu (balanced and unbalanced) | | Impedance | 50 kOhms (balanced inputs)
25 kOhms (unbalanced inputs) | | CMRR | 40 dB (typically), >55 dB at 1 kHz | | Frequency Response | 10 Hz to 50 kHz
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
