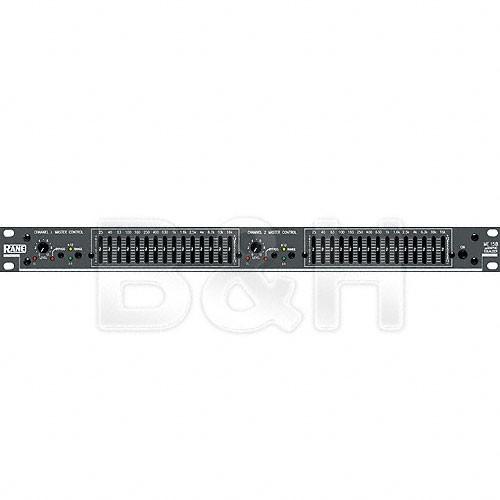

User Manual for Rane Commercial ME-15S Dual Channel 15-Band MicroGraphic Equalizer Click to enlarge the picture
Contents of the user manual for the Rane Commercial ME-15S Dual Channel 15-Band
- Product category: Equalizers Rane Commercial
- Brand: Rane Commercial
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rane Commercial Equalizers
|
User manual for the Rane Commercial ME-15S Dual Channel 15-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rane Commercial product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rane Commercial user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rane Commercial product will considerably shorten its lifespan!
|
Product description The ME 15S is a dual channel, 15 band, 2/3 octave graphic equalizer, featuring constant Q circuitry and housed in a single space 19" rackmount unit. The sliders are 20mm center detented, with a boost/cut range of either +/-6dB or +/-12dB. The unit provides balanced input and output connections, clip level indicators, individual bypass switches for both channels, and an internal power supply. The individual filters of the ME 15B are a constant-Q (constant bandwidth) design. This means the bandwidth of each individual filter is guaranteed to be narrow enough to prevent unwarranted interaction between filters, yet wide enough to produce exactly the type of correction curve demanded by even the most unusual acoustic surroundings. The rear of the unit provides both XLR and 1/4" TRS connectors for fully active balanced and unbalanced input and output. The ME 15B may be used in a variety of applications such as live sound, recording studios, instrument racks, as well as any conventional fixed installation environment. - Dual channel 15 band 2/3 octave graphic equalizer
- 20mm center detent sliders
- Variable input level controls
- Infrasonic, Ultrasonic, and RFI Filters
- Balanced input and output connections
UPC: 687499100635 In the Box Rane Commercial ME-15S Dual Channel 15-Band MicroGraphic Equalizer Power Cable Two Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rane Commercial ME-15S Dual Channel 15-Band MicroGraphic Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRane Commercial ME 15S Specs | Filter Type | Graphic, constant Q | | Number of Channels | 2 | | Inputs | 2 x XLR, 2 x 1/4" TRS phone | | Output | 2 x XLR, 2 x 1/4" TRS phone | | Maximum Input Level | +20dBu | | Frequency Bands | 15 x 2, ISO spacing | | Bandwidth | 2/3 octave | | Range (Boost/Cut) | +/-6dB or +/-12dB | | Maximum Output Level | +20dBu | | Frequency Response | 20Hz to 100kHz | | Dynamic Range | Not specified by manufacturer | | Noise | -91dB, sliders centered, unity gain, balanced | | Dimensions | 1U rack, 5 1/4" deep | | Specialties | Dual cut/boost ranges, front panel selectable | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 20.5 x 13.6 x 4.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
