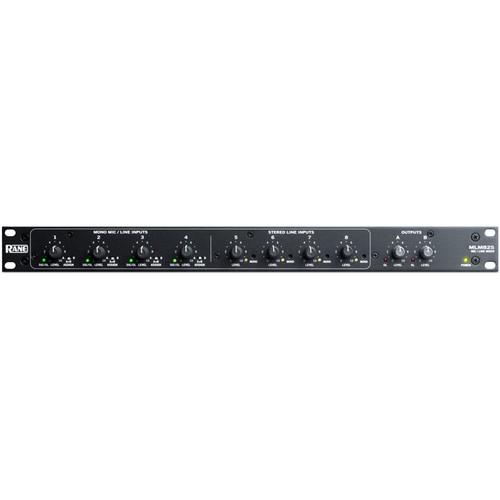

Product description The Rane Commercial MLM82S is a versatile mixer that offers a variety of mic/line input and assignable output options, ideal for installations requiring ease of use and compact size, in hotels, conference rooms, schools, and more.The mixer features four balanced, mono mic-/line-level inputs with XLR connectors and up to 60 dB of gain. Four stereo line-level inputs with up to 12 dB of gain are fed via the eight 1/4" inputs. A single button on the back engages 15 VDC phantom power on the mic inputs to allow the use of compatible condenser microphones.The mic/line inputs can be assigned to the A, A+B, or B main outputs, the two XLR outputs are equipped with an internal switch for padding the output signal to mic level.With a 1-RU, all-steel design, the rugged MLM82S easily fits in a standard effects rack for mobile applications. - Mono Mic/Line Inputs
-
- 4 x female XLR balanced, mono mic-/line-level inputs with switchable 15 VDC phantom power
- Mic/line inputs may be individually assigned to the A, the A+B, or the B outputs
- Independent level/gain trim controls
- Signal/overload indicators for each input
- Phantom power is automatically removed from any input set for line operation
- Stereo Line Inputs
-
- 4 x pairs of female 1/4" TRS balanced, stereo line-level inputs with 12 dB of line gain
- Each stereo line input features a recessed mono switch with indicator, for four mono A inputs and four mono B inputs configuration
- Independent level controls
- A and B Mic/Line Outputs
-
- 2 x male XLR balanced, mono mic-/line-level outputs (A and B)
- A and B mix outputs each have an internal switch for padding the output signal to mic level
- Output-level knobs set the master mix level independently for A and B outputs
- Mix amplifiers feature independent overload indicators
- Compact Design
-
- 1-RU design makes the MLM82S convenient to transport in a standard effects rack
UPC: 687499101502 In the Box Rane Commercial MLM82S Mic & Line Mixer IEC Power Cable Limited 2-Year Warranty User Manual PDF 837.5kbewbaybwuwwdsuf Table of Contents
|
Upload User Manual
Have you got an user manual for the Rane Commercial MLM82S Mic & Line Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRane Commercial MLM 82S Specs | Inputs | Type: Active, balanced
Mic/Line Connectors: 4 x XLR female, pin 2 = (+)
Stereo Line Connectors (4 x Pairs): 8 x 1/4" / 6.3 mm TRS phone female, tip = (+), ring = (-), sleeve = GND | | Mic/Line Inputs | Mic/Line Impedance: 1 kOhm/96 kOhms, 1% (balanced 500 + 500 Ohms / 48 k + 48 kOhms)
Mic Gain Range: Off to +60 dB ±1.5
Line Gain Range: Off to +20 dB ±1.5
Equivalent Input Noise: -128 dBu, typ, 20 kHz bandwidth, 150 Ohms termination
THD & Noise: 0.02% max, gain = 40 dB, +4 dBu at 1 kHz, 80 Hz BW
Frequency Response: 30 Hz to 35 kHz -3 dB
Maximum Input: 11.9 dBu, typ minimum gain (3 Vrms)
Maximum Input at Mic Level: 38.6 dBu, typ, maximum gain (9.1 mVrms) | | Stereo Line Inputs | Impedance: 20 kOhms, min
Gain Range: Off to +12 dB, ±1
Signal-To-Noise Ratio: 90 dB, typ, unity gain, output at +4 dBu, 22 kHz BW
Frequency Response: 10 Hz to 35 kHz, -3dB
THD & Noise: 0.007%, max, +4 dBu at 1 kHz, 80 kHz BW | | Mic/Line Outputs | Type: Active, balanced
Connectors: 2 x XLR, male
Impedance: 200 Ohms / 100 Ohms, 1%, line level out / mic level out
Gain Range: Off to +6 dB ±2
Drive Level: +24 dBu, 600 Ohms, load-balanced | | Crosstalk | -75 dB at 1 kHz, max, re + 4 dBu any channel to any channel | | Phantom Power | +15 VDC, 4% | | Output Cable Length | 1500' / 457 m, typ, line-level, <50 pF per foot | | Power Requirements | 100 to 240 VAC, 10%
50/60 Hz
7 W | | Construction | All-steel | | Certifications | CE, FCC, cULus | | Dimensions (HxWxD) | 1.75 x 19 x 5.3" / 4.4 x 48.3 x 13.3 cm (1 RU) | | Weight | 4 lb / 1.81 kg | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 20.0 x 13.6 x 4.2" | Note: 0 dBu = 0.775 Vrms
