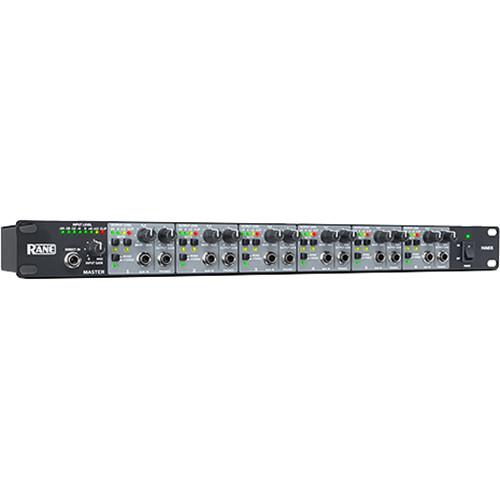

User Manual for Rane Commercial MX6S 6-Channel Mixer 8-Output Splitter Click to enlarge the picture
Contents of the user manual for the Rane Commercial MX6S 6-Channel Mixer 8-Output
- Product category: Install Sound Mixers Rane Commercial
- Brand: Rane Commercial
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rane Commercial Install Sound Mixers
|
User manual for the Rane Commercial MX6S 6-Channel Mixer 8-Output contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rane Commercial product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rane Commercial user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rane Commercial product will considerably shorten its lifespan!
|
Product description The Rane Commercial MX6S is a 1 RU mixer and splitter designed to provide multi-source mixing or distribution of stereo material to multiple zones for system installers and sound technicians configuring systems in stores, hotels, hospitals, and schools. It features the ability to mix six inputs to a stereo output or split a stereo input to eight outputs.The main stereo inputs and outputs are balanced and utilize XLR 3-pin connectors. Channels 1-4 offer balanced mono XLR inputs and outputs and channels 5-6 offer unbalanced stereo 1/4" TRS inputs and outputs. Each channel features a button to either split the signal to the channel output or mix the input to the main outputs. Per-channel Balance/Pan knobs allow quick and easy placement in the stereo field. 6-segment meters and level controls are present for all channels and the main input and output.The MX6s is rackmountable and uses a standard IEC power cable. - Use as a 6-to-2 mixer or 2-to-8 signal splitter
- Stereo XLR 3-pin main inputs and outputs
- Four mono XLR 3-pin channel inputs
- Two stereo 1/4" TRS channel inputs
- Four mono XLR 3-pin channel outputs
- Two stereo 1/4" TRS channel outputs
- Balance/Pan control per channel
- Splitter/Mixer switches (per channel) for sending signal to the main outputs or channel outputs
- Built-in mixer with input and output level controls
- 6-segment LED meters for main input and output and all channels
UPC: 694318023037 In the Box Rane Commercial MX6S 6-Channel Mixer / 8-Output Splitter (1 RU) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rane Commercial MX6S 6-Channel Mixer 8-Output Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRane Commercial MX6S Specs | Rack Size | 1 RU | | Number of Channels | 6 | | Input Connections | 2 x XLR 3-pin main inputs (balanced)
4 x XLR 3-pin channel inputs (balanced)
2 x 1/4" TRS stereo channel inputs (unbalanced) | | Output Connectors | 2 x XLR 3-pin main outputs (balanced)
4 x XLR 3-pin channel outputs(balanced)
2 x 1/4" TRS stereo channel outputs (unbalanced) | | Maximum Input Level | +21 dBu (balanced and unbalanced) | | Maximum Output Level | +22 dBu (balanced and unbalanced) | | Nominal Operating Level | -10 dBV to +4 dBu | | Impedance | 50 kOhms (balanced inputs)
25 kOhms (unbalanced inputs)
60 Ohms (balanced outputs)
30 Ohms (unbalanced outputs) | | CMRR | 40 dB (typically), >55 dB at 1 kHz | | Frequency Response | 5 Hz to 20 kHz
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
