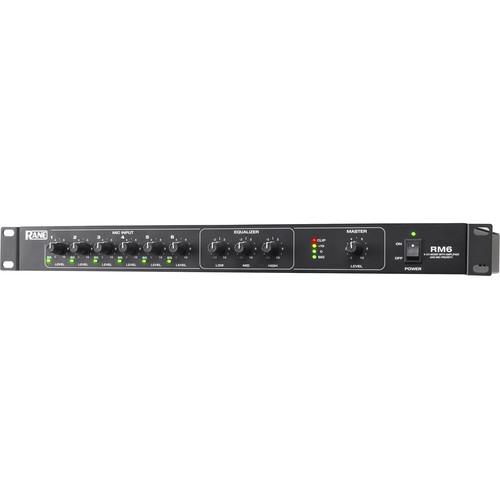

User Manual for Rane Commercial RM6 6-Channel Mixer with 120W Amplifier Click to enlarge the picture
Contents of the user manual for the Rane Commercial RM6 6-Channel Mixer with
- Product category: Install Sound Mixers Rane Commercial
- Brand: Rane Commercial
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rane Commercial Install Sound Mixers
 |
User manual for the Rane Commercial RM6 6-Channel Mixer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rane Commercial product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rane Commercial user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rane Commercial product will considerably shorten its lifespan!
|

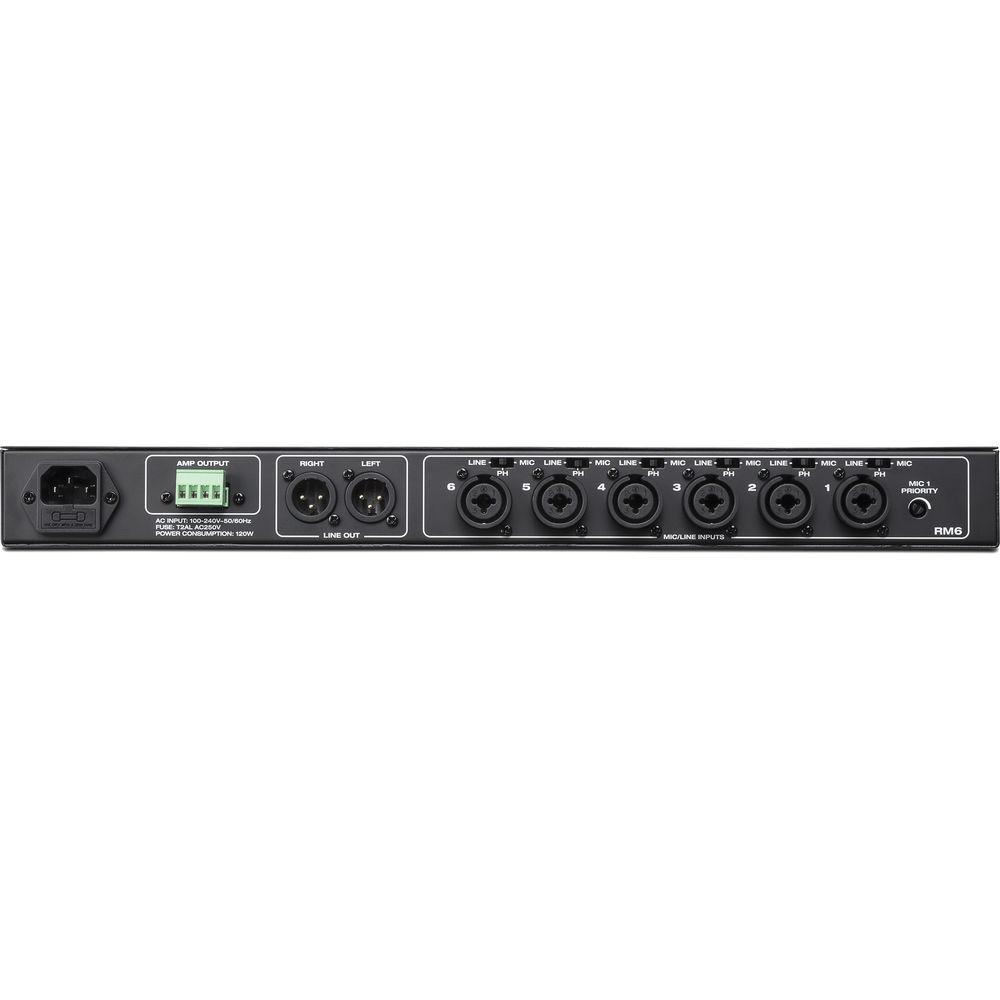

Product description The Rane Commercial RM6 is a 1 RU 6-channel mixer designed to provide mixing and amplification of multiple sources for system integrators and audio technicians installing background music and paging systems in stores, hotels, hospitals, and schools. It features six inputs, stereo line outputs, and a 1-channel 120W Class-D amplifier that feeds a Euroblock output for distribution at 4 Ohms or 70/100V.Six microphone or line-level inputs can be connected to the XLR-1/4" TRS combo jacks. Rear-panel switches offer selectable 48V phantom power for microphones. The adjustable Mic 1 Priority level allows for easy voice-over-music configurations. The built-in mixer provides gain for each input, 3-band EQ, and a master output level. Stereo outputs are available via XLR 3-pin jacks. Metering is straightforward due to the 4-segment output LEDs and per-input signal indicators.The RM6 is rackmountable and uses a standard IEC power cable. - Supplies 48V phantom power (selectable per channel)
- 6 x XLR-1/4" TRS combo inputs
- 1-channel 120W Class-D amplifier feeds a Euroblock output at 4 Ohms or 70/100V
- 3-band equalizer with gain controls at 80 Hz, 2.5 kHz, and 12 kHz
- Rear-panel control for Mic 1 Priority

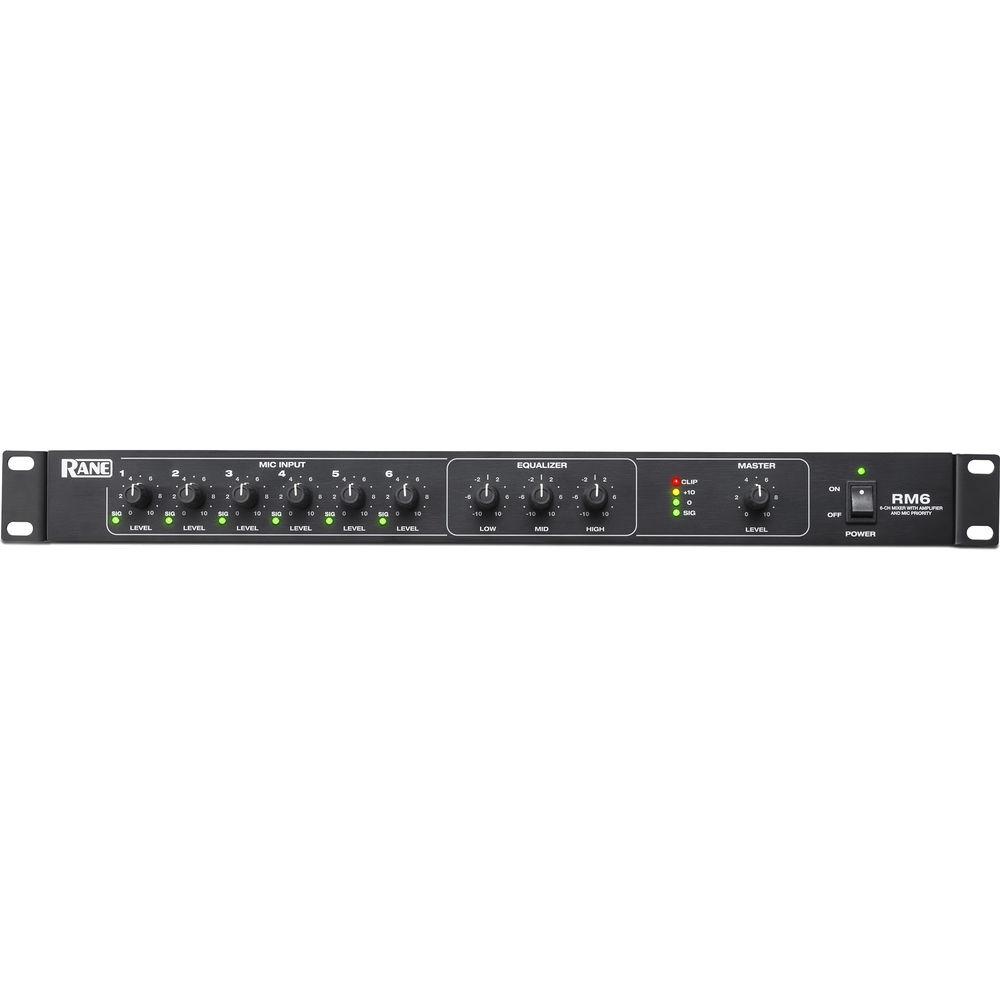

- Front-panel Master Level control
- 4-segment output meter and per-input signal indicators
UPC: 694318023044 In the Box Rane Commercial RM6 6-Channel Mixer with 120W Amplifier (1 RU) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rane Commercial RM6 6-Channel Mixer with 120W Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRane Commercial RM6 Specs | Rack Size | 1 RU | | Number of Channels | 6 | | Input Connections | 6 x XLR-1/4" TRS combo jacks | | Output Connections | 2 x XLR 3-pin
1 x Euroblock | | Maximum Input Level | -20 dBu (mic inputs)
+24 dBu (line inputs) | | Maximum Output Level | +24 dBu (line) | | Maximum Voltage Gain | 60 dB | | Impedance | 1.4 kOhms (mic inputs)
10 kOhms (line inputs) | | Sensitivity | -40 dBu (mic inputs) | | Signal to Noise Ratio | >94 dB | | Amplifier | Class-D
120 W at 4 Ohms or 70/100 V | | Phantom Power | Supplies 48 V | | Equalizer | High:
