Rane Commercial Zonetech 6-Channel, 6-Zone, Bluetooth-Enabled

Search your instruction manual in PDF to download

User Manual for Rane Commercial Zonetech 6-Channel, 6-Zone, Bluetooth-Enabled Commercial Processor

Click to enlarge the picture
Rane Commercial Zonetech 6-Channel, 6-Zone, Bluetooth-Enabled Commercial Processor Contents of the user manual for the Rane Commercial Zonetech 6-Channel, 6-Zone, Bluetooth-Enabled
  • Product category: Install Sound Mixers Rane Commercial
  • Brand: Rane Commercial
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Rane Commercial Install Sound Mixers

Rane Commercial Zonetech 6-Channel, 6-Zone, Bluetooth-Enabled Commercial Processor Rane Commercial Zonetech 6-Channel, 6-Zone, Bluetooth-Enabled Commercial Processor Rane Commercial Zonetech 6-Channel, 6-Zone, Bluetooth-Enabled Commercial Processor Rane Commercial Zonetech 6-Channel, 6-Zone, Bluetooth-Enabled Commercial Processor
User manual for the Rane Commercial Zonetech 6-Channel, 6-Zone, Bluetooth-Enabled contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Rane Commercial product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Rane Commercial user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Rane Commercial product will considerably shorten its lifespan!



Product description

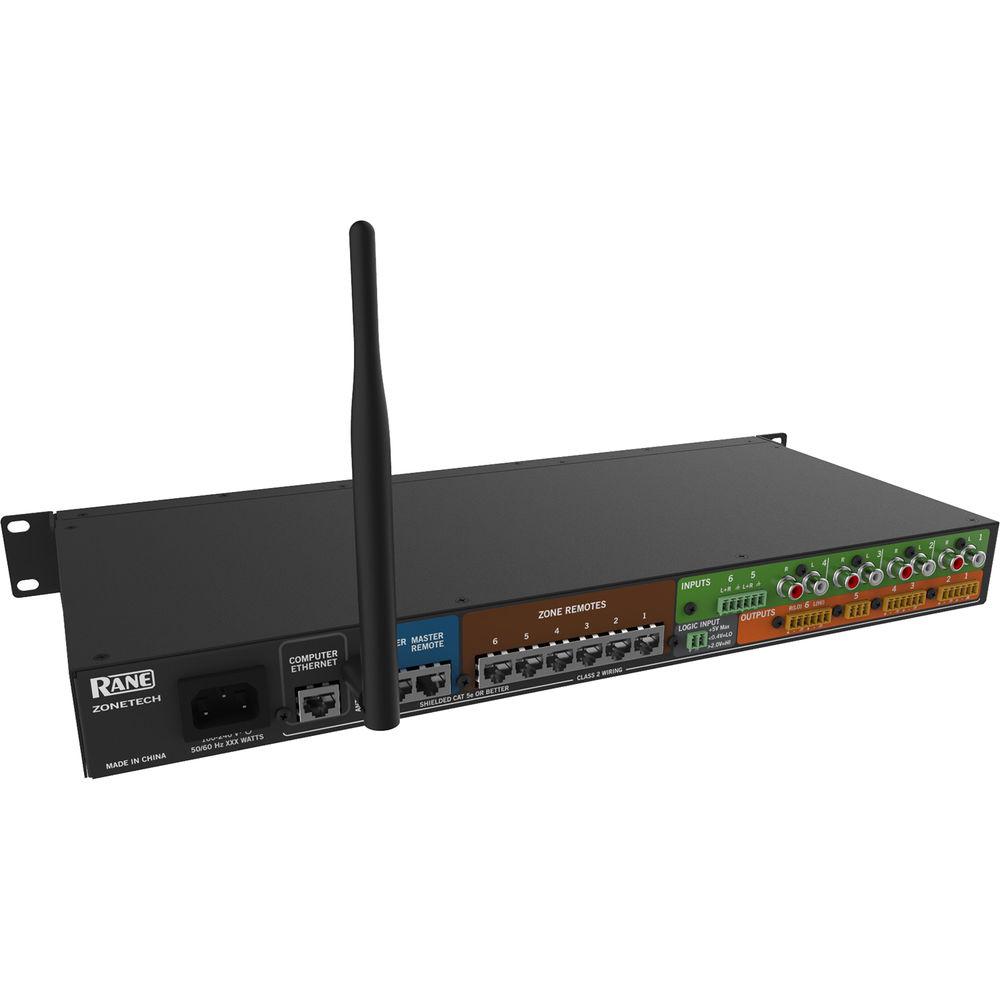

The Rane Commercial Zonetech is a 1 RU 6-channel, 6-zone, Bluetooth-enabled commercial processor designed to provide multi-source, multi-zone routing and convenient remote control options for system designers, installers, and technicians in restaurants, clubs, educational facilities, houses of worship, and conference rooms. It supports master and per-zone remotes, multiple users, and the ability to lock out unauthorized users.Connect wired stereo sources such as CD/DVD players or mixers to the four pairs of unbalanced RCA inputs and mic/line sources to the two balanced Euroblock inputs. Stream music wirelessly from a smartphone or tablet via the integrated Bluetooth receiver. Outputs for all six zones are balanced and utilize Euroblock ports; the fifth zone output can be mono or stereo with a high- or low-pass filter.Access metering, zone levels, and EQ controls via front-panel controls and the high-resolution color LCD or Ethernet-connected remotes. The Zonetech also supports control via web browser on a laptop or mobile device.
  • Multi-source, multi-zone distribution in a 1 RU enclosure
  • Embedded Halogen Lite software requires no programming
  • Web server provides configuration and control with secure multi-level access
  • Stream media using Bluetooth, AirPlay, UPnP, and DLNA
  • Four unbalanced stereo RCA inputs for sources such as CD players and mixers
  • Two balanced inputs for mic, line, or line-plus signals
  • Integrated Bluetooth receiver supports wireless connection with Bluetooth-enabled devices
  • Six balanced zone outputs

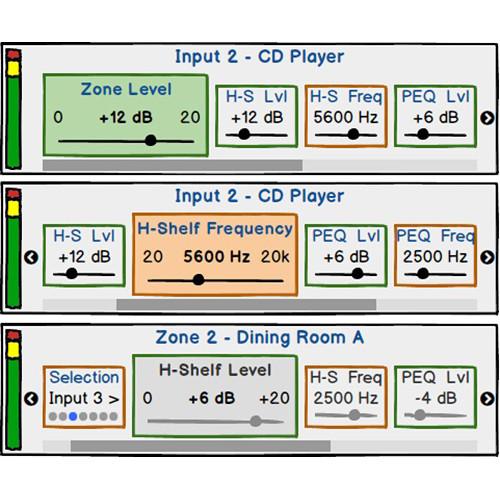

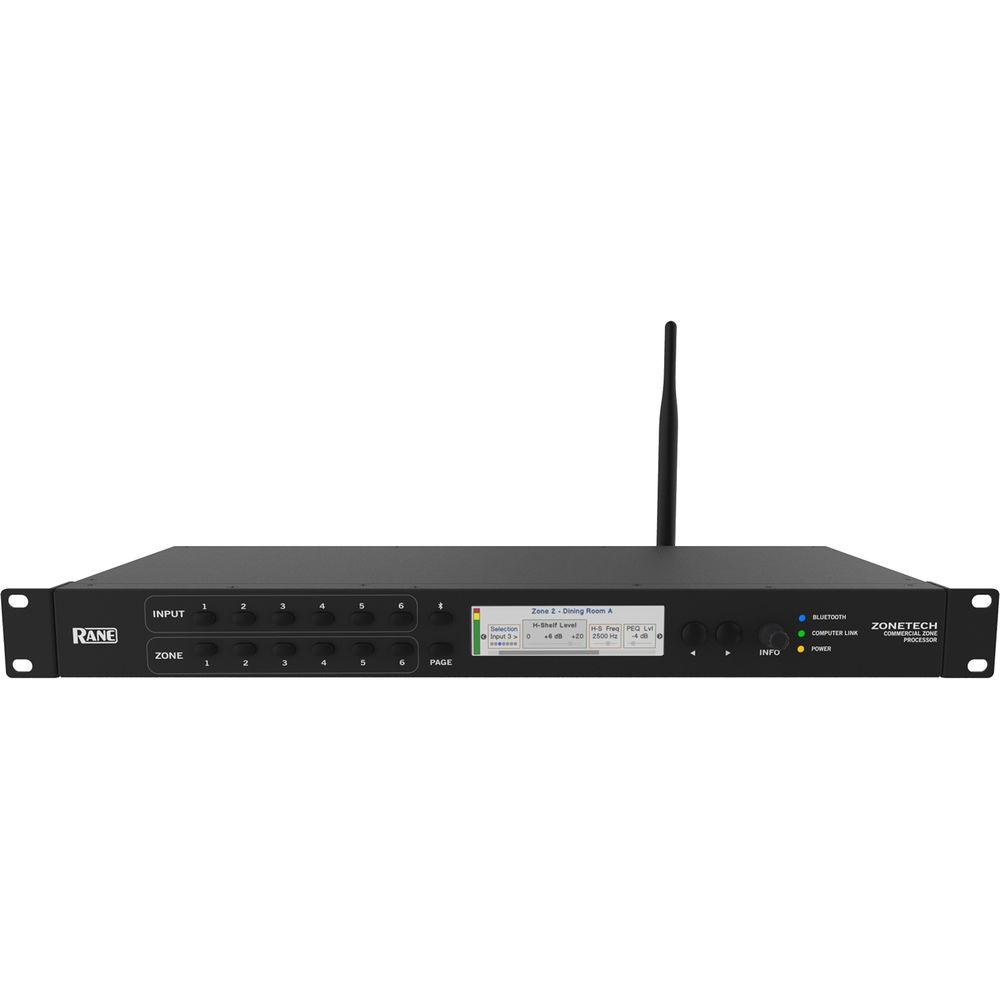

  • High-resolution color LCD and front-panel controls offer access to all parameters
  • Single mono/stereo zone output with high- and low-pass modes
  • Built-in mixer with metering, zone level, and EQ controls
  • Master remote port for complete control using a Rane DR6 touchscreen (available separately)
  • Pager port connects an optional Rane RAD device to provide analog audio and logic inputs
  • Six zone remote ports for source and volume control
  • LAN port for computer or wireless access to web controls
  • Logic input for muting all outputs
  • Multi-user capability with option to lock out unauthorized users
UPC: 694318023587 In the Box Rane Commercial Zonetech 6-Channel, 6-Zone, Bluetooth-Enabled Commercial Processor (1 RU)
  • Bluetooth Antenna
  • Rack Ears
  • IEC Power Cable
  • 6-Pin 3.8mm Euroblock Input
  • 3 x 6-Pin 3.8mm Euroblock Outputs
  • 3-Pin 3.8mm Euroblock Input
  • 3-Pin 3.8mm Euroblock Output
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Rane Commercial Zonetech 6-Channel, 6-Zone, Bluetooth-Enabled Commercial Processor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Rane Commercial Zonetech Specs

    Rack Size 1 RU

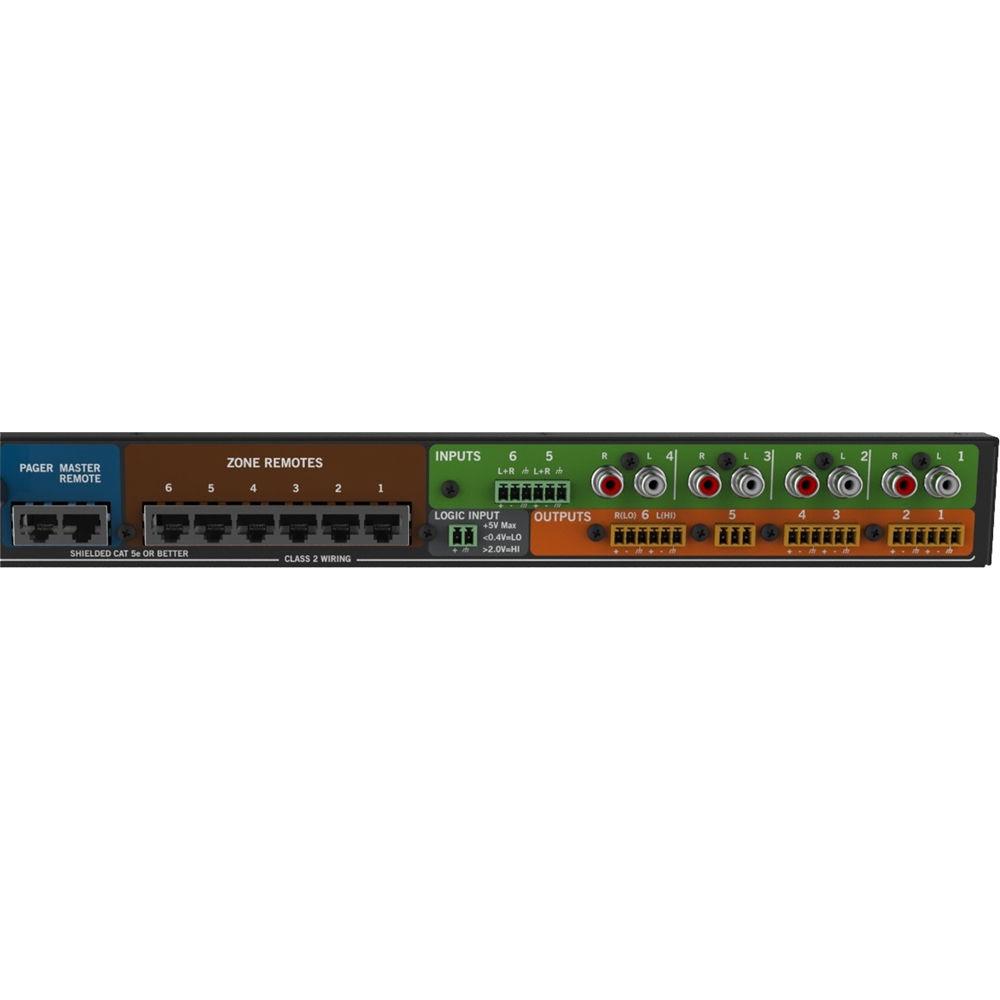

    Inputs 4 x RCA coaxial stereo pairs (unbalanced)
