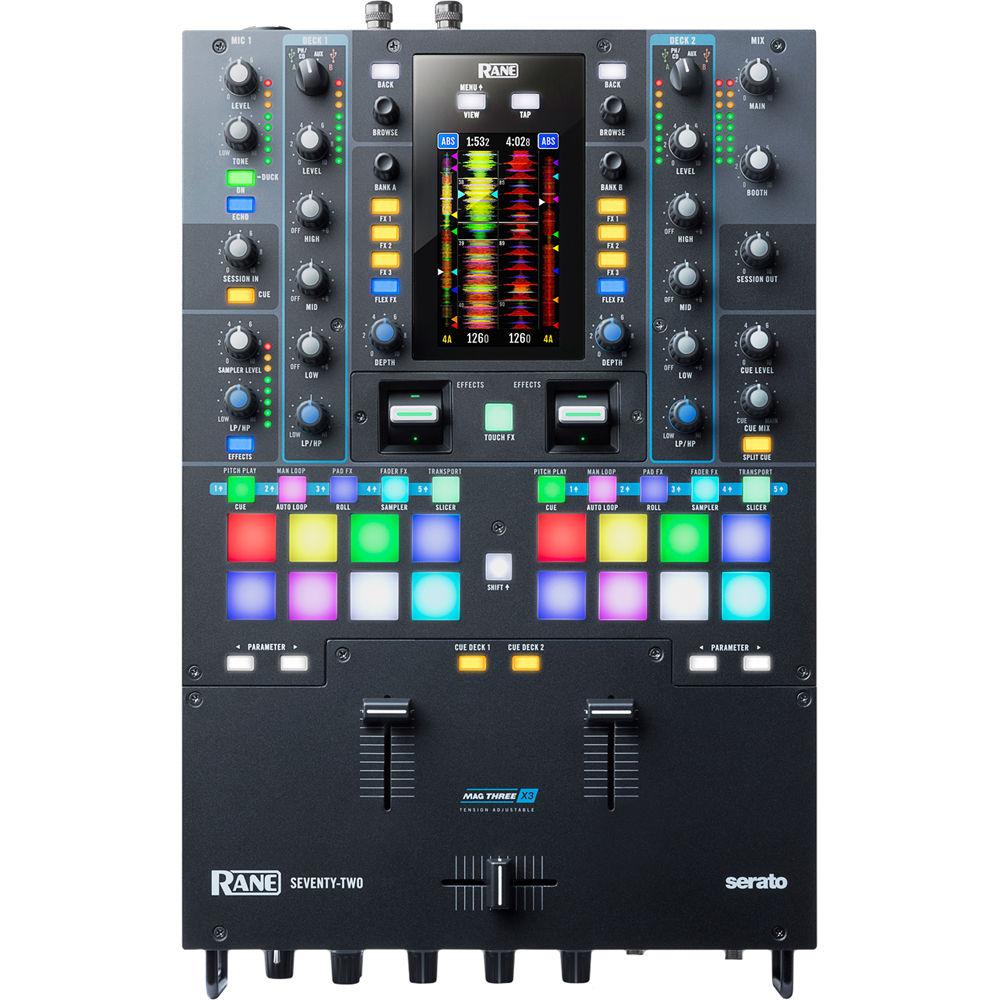

Product description The RANE DJ Seventy-Two is a 2-channel, advanced control and performance mixer designed to harness the creative power of Serato DJ Pro software. Redefining the professional club and scratch DJ/turntablist experience, the mixer offers advanced features including a full-color touchscreen interface, Flex FX, stackable Serato FX, and eight Akai Pro MPC multi-function trigger pads per deck. Two DJ's can perform simultaneously via the unit's dual-USB connections. Turntablists can cut, flare, chirp, crab, orbit, and transform, with the new, tactile and precision based Mag Three faders, then flip between expressive control functions via the 16 MPC-style pads with RGB backlight and multi-performance mode selections. With the latest Serato DJ Pro software, the Seventy-Two's 4.3" color touchscreen interface provides visual feedback of moving waveforms, while enabling navigation, track selection, and extensive performance preference adjustments. Additionally, the unit offers full FX control and sonic manipulation utilizing and stacking the Seventy-Two's dual Flex FX engines with Serato DJ Pro's extensive and expressive effects banks. The solid steel construction provides strength and durability for the most demanding environments and will stand up to the rigors of on-the-road wear and tear. The RANE DJ Seventy-Two ships with a power cord, two Serato NoiseMap control vinyl records, two Serato NoiseMap control CDs, two USB cables, a Serato Pitch 'n Time download card, and a set of Rane stickers. -
- Solid steel construction; built like a tank for non-stop, heavy-duty use
- 3 x Mag contactless tension-adjustable faders for crossfader and channel faders with reverse, contour controls, and cut-in adjustment
- Touchscreen (4.3") for moving-wave display, X/Y FX control, song selection and user customizations
- Dual FLEX FX engines, one for each channel
- Stacked Serato FX with internal post-fader FLEX FX
- Dual die-cast aluminum FX paddles with 180-degree rotation
- Chain-integrated Serato software effect control plus one internal FLEX effect per channel
- 11 Flex FX effects – also XY controllable (Echo, Hold Echo, Duck Echo, Reverb, Filter, Phaser, Auto Gate, Flanger, Delay, Ping Pong Delay, Beat-Breaker)
- Four Pad FX (Echo, Brake, Reverse, Gate)
- Full control over Single and Gang Serato FX
- Mic Echo
- Foot Switch control option
- 14 Pad Modes (Cue, Pitch Play, Auto Loop, Manual Loop, Roll, Pad FX, Sampler, Fader FX, Flip (requires purchase of Serato Flip expansion), Slicer, Transport, Slicer Loop, Flip, 3 Custom Pad Sets)
- Dual USB connections for DJ handoffs
- Legacy Rane US engineered for professional-quality audio (114 dB SNR USB to analog output)
- 16 x Akai Pro MPC performance pads with RGB backlight, adjustable threshold, and aftertouch, plus independent mode controls per deck

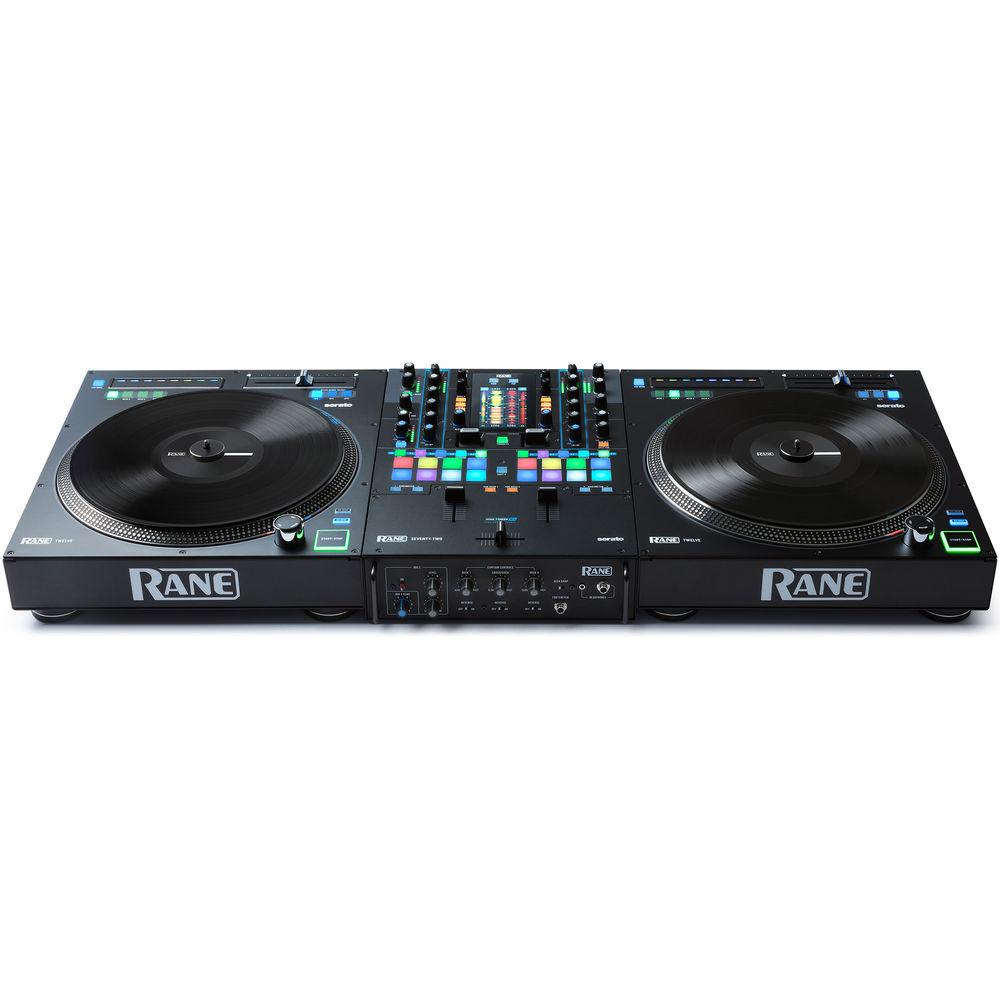

- Assignable USB controller inputs for Rane Twelve motorized battle controller
- Full onboard Serato DJ Pro transport/pad control should traditional turntables fail
- Unlocks Serato DVS, with Serato’s Official Control Vinyl included (also ships with Serato Pitch ‘n Time DJ expansion)
UPC: 694318023556 In the Box RANE DJ Seventy-Two 2-Channel Performance Mixer with Touchscreen for Serato DJ Pro Power Cord 2 x Serato NoiseMap Control Vinyl Records 2 x Serato NoiseMap Control CDs Serato Pitch 'n Time Download Card 2 x USB Cables Set of Rane Stickers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RANE DJ Seventy-Two 2-Channel Performance Mixer with Touchscreen for Serato DJ Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

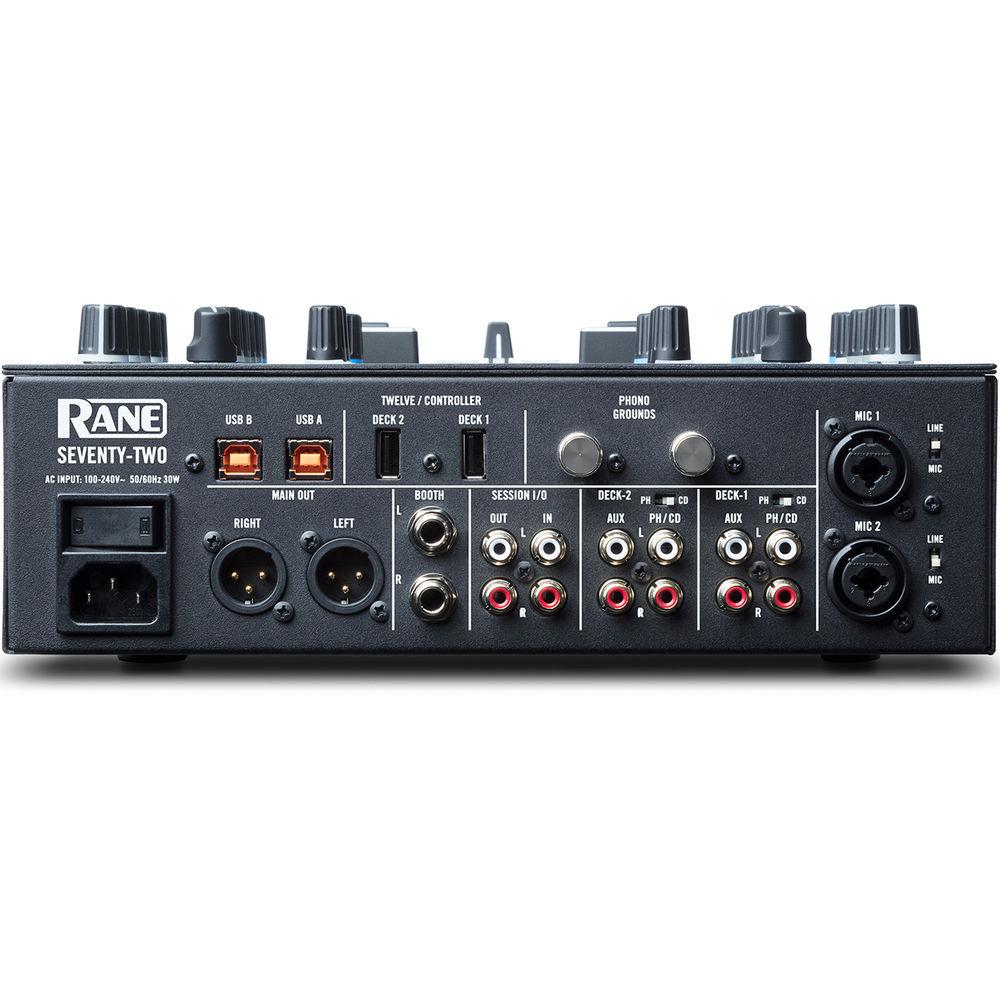

Technical parametersRANE DJ SEVENTY TWO Specs Display | Full-color display with capacitive multi-touch | Pads | 16 x velocity-sensitive multicolor backlit pads (8 per deck, 10 modes each) | Faders | 3 x MAG THREE tension-adjustable faders (2 channel/line faders, 1 crossfader) | Outputs | Main: 2 x XLR Booth: 2 x 1/4” / 6.35 mm TRS Session: 1 x RCA stereo pair Headphone: 1 x 1/4” / 6.35 mm TRS Headphone: 1 x 1/8” / 3.5 mm TRS | Inputs | Deck 1 & 2: 4 x RCA stereo pairs Mic 1 & 2: 2 x Combo XLR-1/4" / 6.35 mm TRS Session: 1 x RCA stereo pair Footswitch: 1 x 1/4” / 6.35 mm TRS | Gain | Analog Gain (Mic): 30 dB Analog Gain (Line): 4.75 dB Gain Trim (Mic): Off to +20 dB (unity at center) Phono Gain: 30 dB (at 1 kHz) | Maximum Input | Mic: 0.126 Vrms Line: 2.3 Vrms Aux 1 & 2: 4 Vrms CD (Line): 4 Vrms Phono: 126 mV Session Input: 4 Vrms | Phono Inputs | Phono: RIAA RIAA Curve: +0.1 / -0.2 dB | Frequency Response | 20 Hz to 20 kHz (±0.2 dB) | Maximum Output | Main: (XLR): 8 Vrms Booth (1/4"): 8 Vrms Session (RCA): 4 Vrms Headphones (1/4" & 1/8"): 4 V (no load) | THD + N | THD+N Main (at 1 kHz, 4 Vrms): 0.002% Booth (at 1 kHz, 4 Vrms): 0.002% Session (at 1 kHz, 2 Vrms): 0.002% Headphones (at 1 kHz, 2 Vrms): 0.003% | Headphone Output | Output Power: 96 mW (50 Ohms) Control: On/off muting | Connections | 2 x USB Type-A ports (Deck 1-2 USB controllers) 2 x USB Type-B ports 1 x IEC power cable input | Converters | AKM High Definition Audio: 24-bit PCM, 48 kHz | DSP | 32-bit, floating point, double precision | Dynamic Range | Dynamic Range (A-weighted, unity gain) ADC: 114 dB DAC: 114 dB CD Input to Analog Output: 111 dB CD Input to USB Output: 114 dB USB Input to Analog Output: 114 dB Aux Input 1 & 2: 114 dB Session Input (@ 1 kHz): 114 dB | Power | Voltage: 100 to 240 VAC, 50/60 Hz Consumption: 30 W | Dimensions (W x D x H) | Mixer: 11.2 x 17.5 x 4.25" / 28.4 x 44.5 x 10.8 cm Display: 2.1 x 3.7" / 54 x 95 mm (W x D), 4.3" / 109 mm (diagonal) | Weight | 12.0 lb / 5.5 kg | | Package Weight | 19.4 lb | Box Dimensions (LxWxH) | 21.5 x 17.75 x 9.25" |
