User Manual for RANE DJ Twelve - 12" Vinyl Motorized DJ Control System

Click to enlarge the picture
RANE DJ Twelve - 12" Vinyl Motorized DJ Control System Contents of the user manual for the RANE DJ Twelve - 12" Vinyl
  • Product category: DJ Controllers RANE DJ
  • Brand: RANE DJ
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for RANE DJ DJ Controllers

RANE DJ Twelve - 12" Vinyl Motorized DJ Control System RANE DJ Twelve - 12" Vinyl Motorized DJ Control System RANE DJ Twelve - 12" Vinyl Motorized DJ Control System RANE DJ Twelve - 12" Vinyl Motorized DJ Control System RANE DJ Twelve - 12" Vinyl Motorized DJ Control System RANE DJ Twelve - 12" Vinyl Motorized DJ Control System
User manual for the RANE DJ Twelve - 12" Vinyl contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any RANE DJ product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official RANE DJ user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a RANE DJ product will considerably shorten its lifespan!



Product description

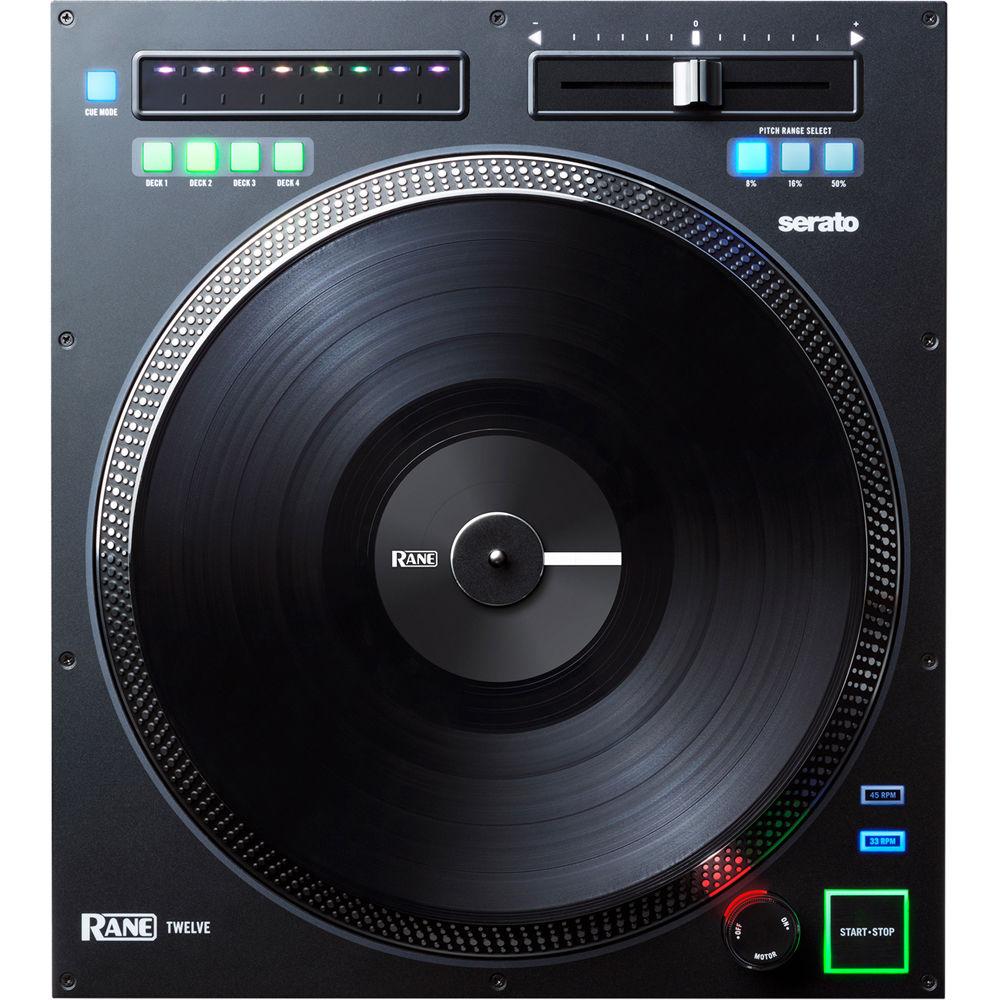

The RANE DJ Twelve is an advanced 12" vinyl motorized control turntable and DJ control system designed to work with Serato DJ Pro software. The deck provides an accurate, true-vinyl performance experience to digital music software, while liberating DJs and turntablists from the burden of damaged needles, tonearms, and the dreaded sub-bass feedback.

The Twelve’s high-torque, 12" motorized platter offers 3600 ticks of resolution per single vinyl revolution, bringing precision music file playback with digital performance accuracy. The Twelve can be customized even further with the DJ's own choice of slipmat/butter-rug. The familiar layout of the all-metal body ensures that any DJ who has used a turntable before will feel completely at home. The simple control elements are easy to use with four deck-select buttons and a multifunction touch strip for track searching and setting/triggering hot cues. The RANE DJ Twelve ships with an aluminum platter, slipmat, vinyl with spindle lock adapter, a spindle screw (attached), an Allen wrench, a power cord, and a USB cable. Note: Twelve was designed in collaboration with Serato, making it an Official Serato Accessory. Twelve requires a supported Serato DJ Pro interface, controller, mixer, or compatible Serato Club Kit solution to control Serato DJ Pro.
    • Full 12" vinyl with motorized platter to control playback
    • Traditional and familiar turntable layout
    • Strip Search with access to 8 hot-cue triggers
    • 5.0 kfcm high-torque motor with high/low torque adjusts for more traditional setups
    • Four Decks of Control: DJs can use one, two, or more (dependent on number of mixer channels available)
    • Extreme precision—3600 ticks of platter resolution for seamless performance
    • MIDI interface via USB that can be connected to the SEVENTY-TWO or your computer
    • 33¹/³ and 45 rpm platter speeds
    • 8/16/50% pitch with precise dual-resolution detented slider
    • Top-panel rotary and traditional Motor Off switch allows classic wind-down effects
    • An Official Serato Accessory: Will work plug-and-play with the Rane Seventy-Two or other Serato DJ Pro supported hardware
UPC: 694318023563 In the Box RANE DJ Twelve - 12" Vinyl Motorized DJ Control System
  • Aluminum Platter
  • Slipmat
  • Vinyl with Spindle Lock Adapter and Spindle Screw
  • Allen Wrench
  • Power Cord
  • USB Cable
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the RANE DJ Twelve - 12" Vinyl Motorized DJ Control System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    RANE DJ Twelve Specs

    Motor Drive: Quartz direct-drive
    Torque:
    High: 5.0 kgf/cm (starting/instant); 3.4 kgf/cm (stable)
    Low: 3.2 kgf/cm (starting/instant); 1.4 kgf/cm (stable)
    Starting Time: <0.4 seconds
    Braking System: Electronic
    Turntable Platter Material: Aluminum die-cast
    Diameter: 13.1" / 332 mm
    Weight: 4.9 lbs. / 2.2 g
    Speed 33 1/3, 45 rpm
    Pitch Adjustment +8%, +16%, +50%
    Connectors 1 x USB Type-B port
    1 x IEC power cable input
    Power Connection: IEC
    Voltage: 100 to 240 VAC, 50/60 Hz
    Consumption: 60 W
    Dimensions (W x D x H) 14.5 x 16.3 x 3.5" / 368.3 x 412.8 x 88.9 mm
    Weight 20.5 lb / 9.3 kg
    Package Weight 27.75 lb
    Box Dimensions (LxWxH) 20.5 x 20.5 x 9.0"
