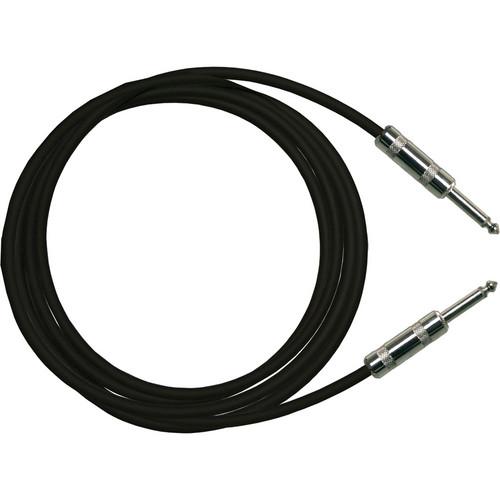

User Manual for RapcoHorizon G1 Series Guitar Cable with 2 1 4" Connectors Click to enlarge the picture
Contents of the user manual for the RapcoHorizon G1 Series Guitar Cable with
- Product category: Guitar Cables RapcoHorizon
- Brand: RapcoHorizon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RapcoHorizon Guitar Cables
|
User manual for the RapcoHorizon G1 Series Guitar Cable with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RapcoHorizon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RapcoHorizon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RapcoHorizon product will considerably shorten its lifespan!
|
Product description The 15' black G1 Series Guitar Cable from RapcoHorizon features 2 right-angle connectors. This cable utilizes an ultra-flexible matte PVC jacket material for durability. It is terminated with high-quality, nickel-plated 1/4" connectors which offer years of good performance and value. Each cable is individually tested for performance and quality. - Hi-Z unbalanced instrument cable for interfacing instrument level gear with amplifiers (guitars, bass guitars, keyboards, and other unbalanced hi-Z signal sources)
- Utilizing a serve shield for quiet operation yielding maximum flexibility
- Low capacitance cable offers an expanded frequency response
- Matte jacket PVC material is very flexible yet durable with very low memory
- Pure copper conductor and shield
UPC: 765811260677 In the Box RapcoHorizon G1 Series Guitar Cable with 2 1/4" Connectors (15', Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RapcoHorizon G1 Series Guitar Cable with 2 1 4" Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRapcoHorizon G1-15 Specs | Cable Type | INST1 | | Connectors | 2 x 1/4" nickel-plated connector | | Conductor Gauge | 24 | | Conductor | AWG Size & Stranding: 24 AWG 19 strands 36 AWG
Material: Bare annealed copper | | Insulation | Material: Polyethylene
Wall Thickness: 0.05" (1.27 mm) nominal
Diameter: 0.12 ±0.002" (3.05 ±0.050 mm) | | Shield | Composite conductive vinyl and copper serve
Inner Layer:
Material: Semi-conductive PVC
Wall Thickness: 0.01" (0.25 mm) nominal
Diameter: 0.14" (3.56 mm) nominal
Outer Layer:
Material: Bare annealed copper serve
Coverage: 70% nominal | | Jacket | Material: Matte PVC
Jacket Colors: Black
Wall Thickness: 0.05" (1.27 mm) nominal
Diameter: 0.24 ±0.005" (6.10 ± 0.127 mm) | | Outer Diameter | 0.24" (6.10 mm) | | Capacitance | 25 pF/ft @ 1 kHz | | Impedance | Characteristic: 60 Ω (nominal) @ 1 MHz | | DC Resistance | 23 Ω/1,000.0' (304.8 m) @ 68°F (20°C) | | Length | 15.00' (4.57 m) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 7.0 x 4.4 x 0.9" |
