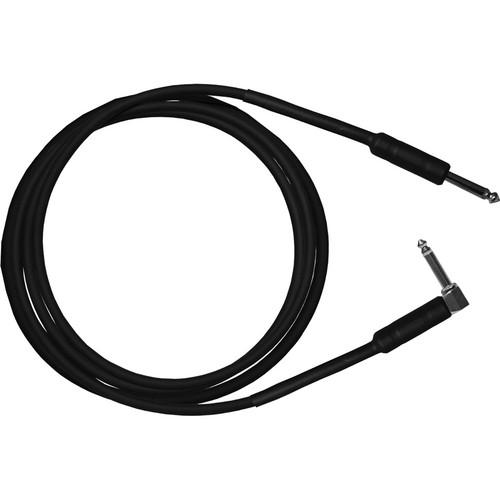

Product description The 10' black G1S Series Guitar Cable from RapcoHorizon features 1/4" to right-angled connectors with an added shrink strain relief that utilizes a heat shrink process over the barrel of each connector. This cable utilizes an ultra-flexible matte PVC jacket material for durability. This cable is terminated with high-quality, nickel-plated 1/4" right-angled connectors, which offer years of good performance and value. This cable is individually tested for performance and quality. - Hi-Z unbalanced instrument cable for interfacing instrument level gear with amplifiers (guitars, bass guitars, keyboards, and other unbalanced hi-Z signal sources)
- Utilizing a serve shield for quiet operation yielding maximum flexibility
- Low capacitance cable offers an expanded frequency response
- Matte jacket PVC material is very flexible yet durable with very low memory
- Pure copper conductor and shield
- Features an added shrink strain relief utilizing a heat shrink process over the barrel of each connector
UPC: 765811271529 In the Box RapcoHorizon G1S Series Guitar Cable with 1/4" to Right-Angled Shrink over Barrel Connectors (10', Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RapcoHorizon G1S Series Guitar Cable with 1 4" to Right-Angled Shrink over Barrel Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRapcoHorizon G1S-10PR Specs | Cable Type | INST1 | | Connectors | 1/4" connector
Right-angled connector | | Conductor Gauge | 24 | | Conductor | AWG Size & Stranding: 24 AWG 19 strands 36 AWG
Material: Bare annealed copper InsulationMaterial: Polyethylene
Wall Thickness: 0.05" (1.27 mm) nominal
Diameter: 0.12 ±0.002" (3.05 ±0.050 mm) | | Insulation | Material: Polyethylene
Wall Thickness: 0.05" (1.27 mm) nominal
Diameter: 0.12 ±0.002" (3.05 ±0.050 mm) | | Shield | Composite conductive vinyl and copper serve
Inner Layer:
Material: Semi-conductive PVC
Wall Thickness: 0.01" (0.25 mm) nominal
Diameter: 0.14" (3.56 mm) nominal
Outer Layer:
Material: Bare annealed copper serve
Coverage: 70% nominal | | Jacket | Material: Matte PVC
Jacket Colors: Black
Wall Thickness: 0.05" (1.27 mm) nominal
Diameter: 0.24 ±0.005" (6.10 ± 0.127 mm) | | Outer Diameter | 0.24" (6.10 mm) | | Capacitance | 25 pF/ft @ 1 kHz | | Impedance | Characteristic: 60 Ω (nominal) @ 1 MHz | | DC Resistance | 23 Ω/1,000.0' (304.8 m) @ 68°F (20°C) | | Length | 10.00' (3.05 m) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 9.0 x 3.9 x 0.6" |
