User Manual for RapcoHorizon H Speaker Cable - 1 4" Male to 1 4" Male Click to enlarge the picture
Contents of the user manual for the RapcoHorizon H Speaker Cable - 1
- Product category: Speaker Cables RapcoHorizon
- Brand: RapcoHorizon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RapcoHorizon Speaker Cables
|
User manual for the RapcoHorizon H Speaker Cable - 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RapcoHorizon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RapcoHorizon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RapcoHorizon product will considerably shorten its lifespan!
|

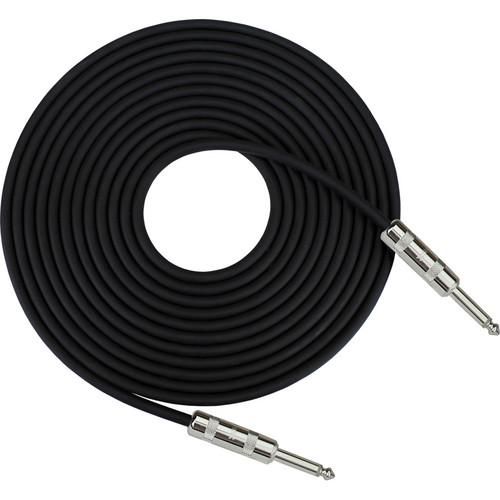

Product description The black, 50' RapcoHorizon H Speaker Cable is equipped with 1/4" male connectors on both ends and is designed for connecting a power amp to a passive speaker. This 18-gauge cable is manufactured with a twisted pair of pure copper conductors, which improve noise rejection and enhance sound reproduction. It also features a flexible, heavy-duty jacket durable enough for concert and touring environments. The H Speaker Cable is made in the USA with hand-soldered connectors and is individually tested for performance and quality. - Durable, 50' speaker cable designed for touring environment
- 18 AWG conductor with 41 strands of 34 AWG
- Heavy-duty, flexible PVC jacket (black)
- Twisted pair construction for noise rejection
- Pure copper strands for enhanced sound reproduction
- Hand-soldered, high-quality metal 1/4" connectors
- Individually tested for performance and quality
UPC: 765811985273 In the Box RapcoHorizon H Speaker Cable - 1/4" Male to 1/4" Male (50', Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RapcoHorizon H Speaker Cable - 1 4" Male to 1 4" Male in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRapcoHorizon H18-50 Specs | Connectors | 2 x 1/4" (6.35 mm) TS male | | Conductor | AWG Size: 18 AWG
Stranding: 41 Strands, 34 AWG
Material: Bare annealed copper | | Insulation | Wall Thickness: 0.016" (0.406 mm), nominal
Diameter: 0.078" (1.981 mm) nominal
Material: Polyvinyl chloride | | Color Code | Black and white | | Assembly | Lay Length: 1.5" +/- 0.5" (38.1 mm +/- 12.7 mm), left hand
Fillers: Jute
Separator: 0.001" (0.025 mm) paper tape applied longitudinally | | Jacket | Wall Thickness: 0.035" (0.889 mm), nominal
Diameter: 0.235" +/- 0.010" (5.969 mm +/- 0.254 mm)
Material: Polyvinyl chloride, matte finish
Color: Black | | Marking | Type: Surface printing in white ink
Legend: VTG AUDIO COMMERCIAL SERIES 18 AWG SPEAKER CABLE MADE IN U.S.A. | | Cable Length | 50.0' (15.2 m) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 8.1 x 6.8 x 1.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
