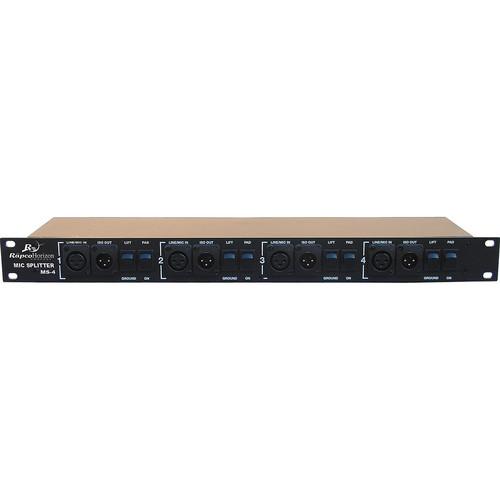

User Manual for RapcoHorizon MS-4 4-Channel Rackmount Mic Signal Splitter Click to enlarge the picture
Contents of the user manual for the RapcoHorizon MS-4 4-Channel Rackmount Mic Signal
- Product category: Splitters & Combiners RapcoHorizon
- Brand: RapcoHorizon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RapcoHorizon Splitters & Combiners
|
User manual for the RapcoHorizon MS-4 4-Channel Rackmount Mic Signal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RapcoHorizon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RapcoHorizon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RapcoHorizon product will considerably shorten its lifespan!
|
Product description The 4-Channel Rackmount Mic Signal Splitter from RapcoHorizon splits each input signal into 2 outputs. It features an XLR female input, isolated XLR male output, a ground lift switch, and a -20 dB pad switch on every channel on the front panel. On the rear panel, every channel has an XLR input along with a non-isolated loop output. Multiple splitting is possible thanks to the isolated transformer, which eliminates harmful effects that occur due to impedance drop or DC voltage leak between consoles or recording units.The single rack space splitter features a rugged cold-rolled steel chassis, and is suitable in both live and studio applications where multiple mixing is required. - Each channel takes one mic level input signal and splits it into 2 mic level outputs
- Every channel on the front panel provides an XLR female input, isolated XLR male output, a ground lift switch, and a -20 dB pad switch
- On the rear panel, every channel has an XLR input together with a non-isolated loop output
- Isolated transformer allows multiple splitting of signal without any unfavorable effects such as impedance drop or DC voltage leak between consoles or recording units
- High-quality connectors and transformers
- For use in both live and studio applications, and when multiple mixing is required
UPC: 799384225856 In the Box RapcoHorizon MS-4 4-Channel Rackmount Mic Signal Splitter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RapcoHorizon MS-4 4-Channel Rackmount Mic Signal Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRapcoHorizon MS-4 Specs | Number of Channels | 4 | | Connectors | 8 x XLR-F female panel mount
8 x XLR-M male panel mount | | Switches | 4 x Ground Lift
4 x -20 dB pad | | Components | 4 x HSIT Transformers | | Attenuation | -20 dB | | Dimensions (W x H x D) | 19.00 x 1.75 x 5.00" (48.26 x 4.44 x 12.70 cm) | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 19.5 x 5.9 x 2.5" |
