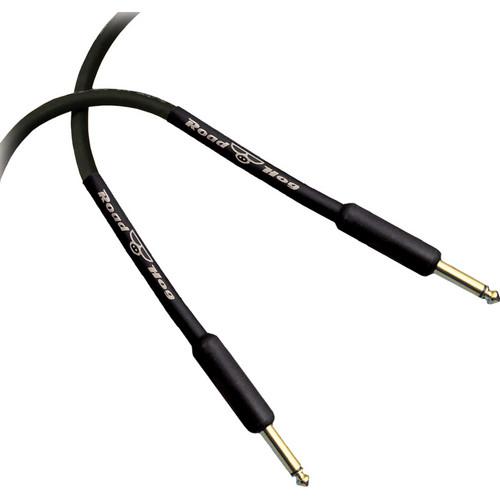

Product description The 2' black Roadhog Guitar Cable from RapcoHorizon features two 1/4" gold-plated connectors. This instrument cable provides lifetime of a performance for musicians who use their gear night after night. It utilizes pure copper conductors and shielding materials for quality sound and encases that sound in an extra-thick, rugged PVC skin for guaranteed durability without sacrificing flexibility. - Road Ready, Tour Tough Hi-Z unbalanced instrument cable for interfacing instrument level gear with amplifiers (guitars, bass guitars, keyboards, and other unbalanced Hi-Z signal sources)
- Utilizing a serve shield process for noise-free flexible operation
- Additional strain relief added by placing heat shrink over the barrel of the connectors
- Low capacitance cable offers an expanded frequency response
- Tough PVC jacket material is flexible and durable
- Pure copper conductors and shield
UPC: 765811324904 In the Box RapcoHorizon Roadhog Guitar Cable with Two 1/4" Gold-Plated Connectors (2', Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RapcoHorizon Roadhog Guitar Cable with Two 1 4" Gold-Plated Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRapcoHorizon HOG-2B Specs | Cable Type | ROADHOG.K | | Connectors | 2 x 1/4" gold-plated connector | | Conductor Gauge | 20 | | Conductor | AWG Size & Stranding: 20 AWG 41 strands 36 AWG
Material: Bare annealed copper | | Insulation | Material: Polyethylene
Wall Thickness: 0.31" (7.87 mm) nominal
Diameter: 0.10 ± 0.002" (2.54 ± 0.05 mm) | | Shield | Composite conductive vinyl and copper serve
Inner Layer:
Material: Semi-conductive PVC
Wall Thickness: 0.01" (0.25 mm) nominal
Diameter: 0.12" (3.05 mm) nominal
Outer Layer:
Material: Bare annealed copper serve
Coverage: 95% nominal | | Jacket | Material: Black matte polyvinyl chloride
Wall Thickness: 0.08" (2.03 mm) nominal
Diameter: 0.30 ± 0.005" (7.62 ± 0.13 mm) | | Outer Diameter | 0.30" (7.62 mm) | | Capacitance | 38 pF/ft @ 1 kHz | | Impedance | Characteristic: 40 Ω (nominal) @ 1 MHz | | DC Resistance | 10.7 Ω/1,000.0' (304.8 m) @ 68°F (20°C) | | Length | 2.00' (0.61 m) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.1 x 1.3 x 0.3" |
