User manual for the RAVPower 20,100mAh Universal Power Bank with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RAVPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RAVPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RAVPower product will considerably shorten its lifespan!
|

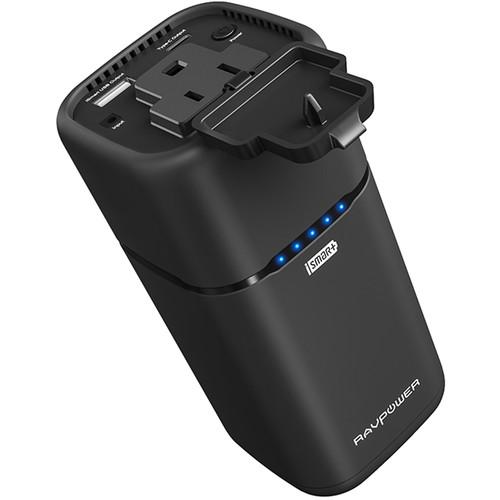

Product description The 20,100mAh Universal Power Bank from RAVPower is a lightweight and portable battery pack that allows you to charge multiple devices at once using its one 3.0A / 5V USB Type-C port, one iSmart 2.4A USB Type-A port, and one 110 VAC / 60 Hz output, which can support a maximum of 70W. With a capacity of 20,100mAh, it can recharge an iPhone 7 up to 6 times, a Galaxy S7 up to 4.5 times, and a 12" MacBook up to 1.3 times. It recharges using a 1.6A / 19 VDC input, contains five LED indicators for monitoring the amount of charge that remains, and integrated air vents help dissipate heat and keep things cool. Included is a power adapter, a long micro-USB cable, a short micro-USB cable, and protection is provided by a limited 12-month warranty. General Features - 65W AC Output

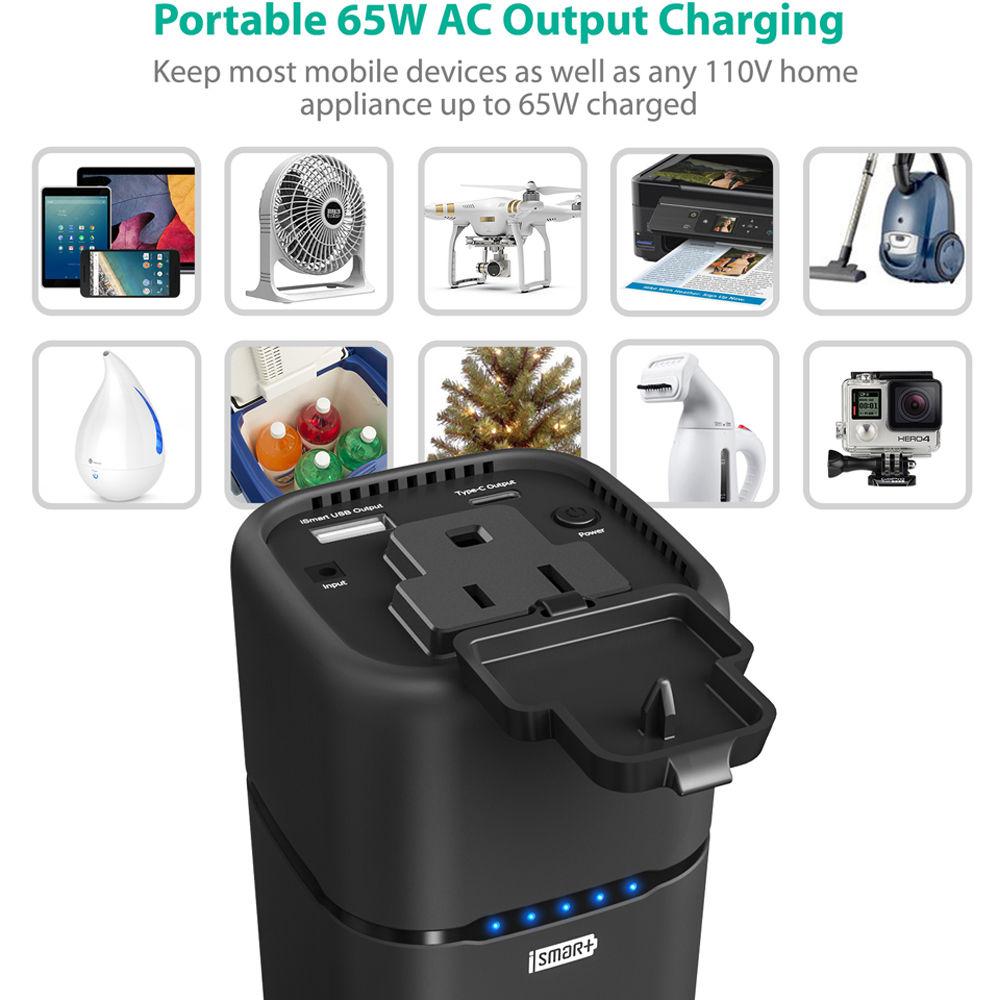

- With a built-in AC output for devices up to 65W (70W max), this portable power outlet allows electronic devices like GoPros, drones, printers, table lamps, vacuum cleaners, and small fans to recharge almost anywhere you please.
- 3A USB Type-C & 2.4A USB Type-A Outputs

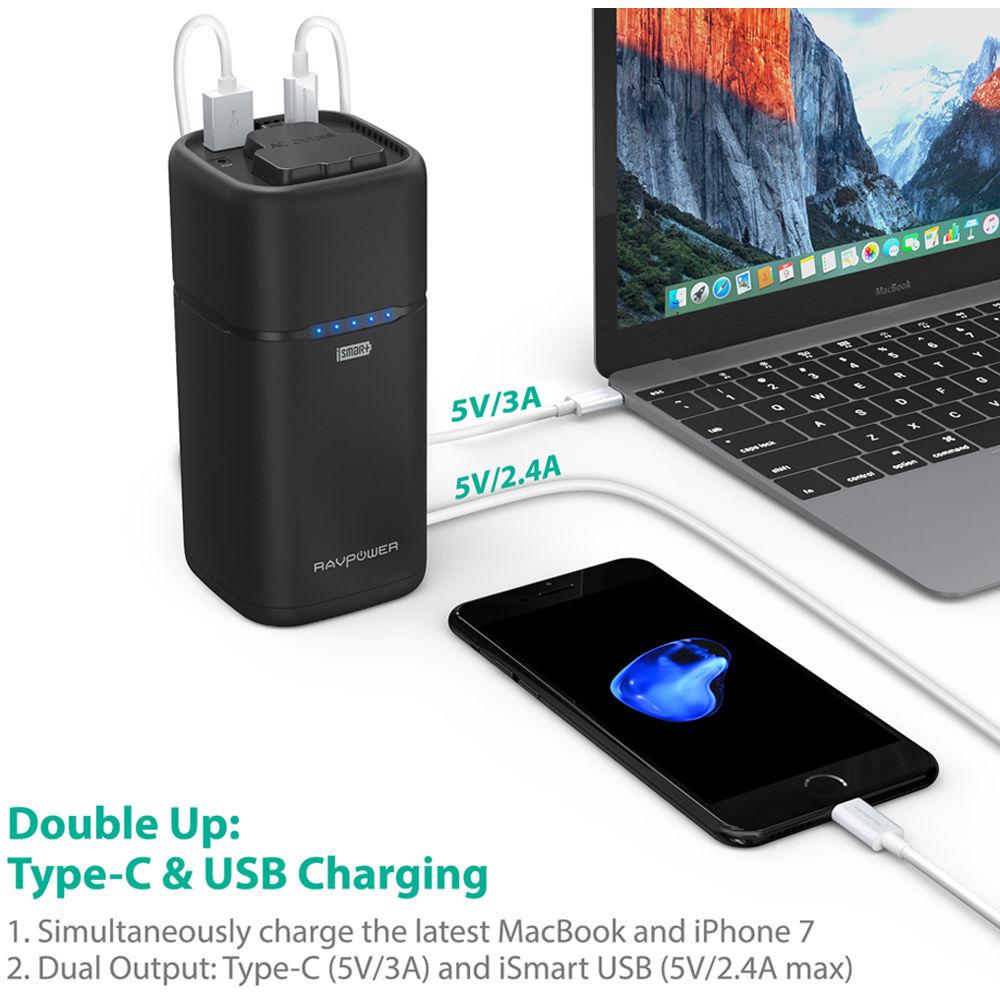

- 3A / 5V USB Type-C and iSmart 2.4A / 5V USB Type-A outputs allow for the fast and simultaneous charging of two devices, including a MacBook and an iPhone 7. This power bank also works as a portable charger for smart devices.
- 20,100mAh Capacity

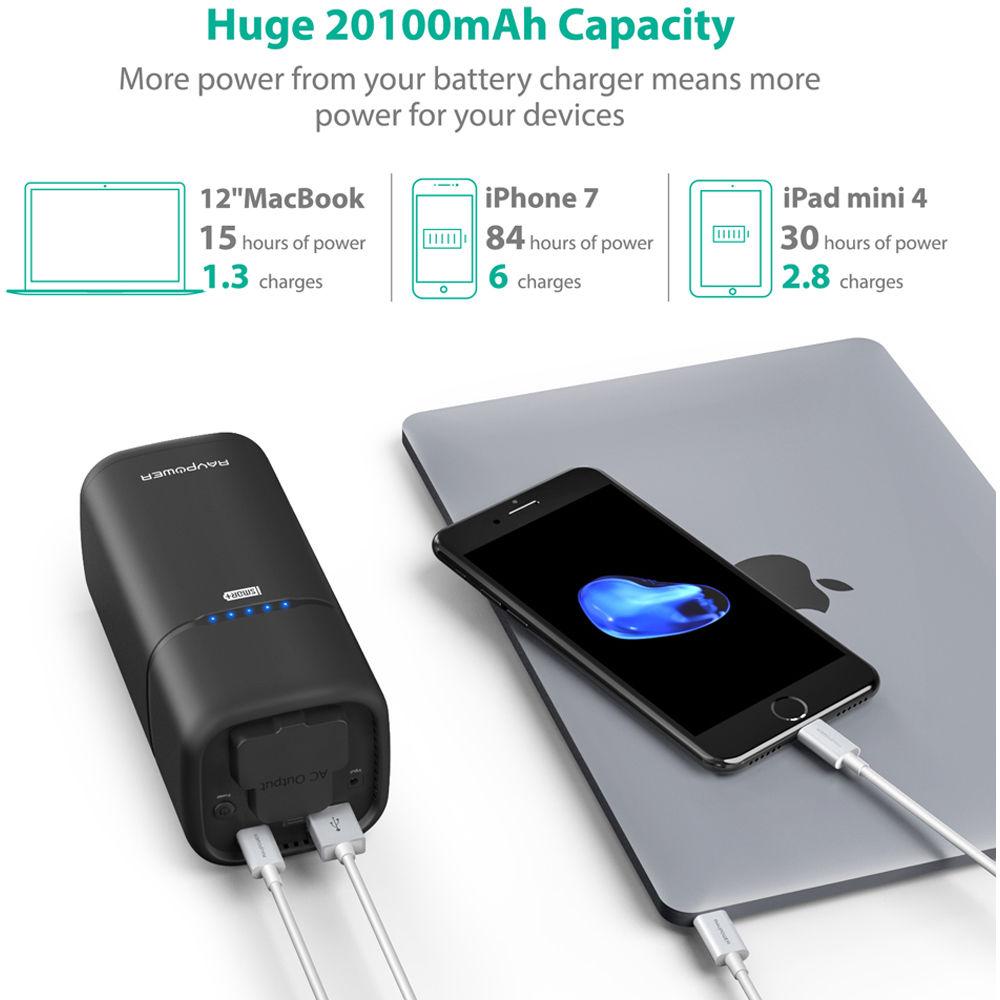

- Charge your iPhone 7 up to 6 times, a Galaxy S7 up to 4.5 times, and the 12" MacBook up to 1.3 times.
- 1.6A / 19 VDC Input

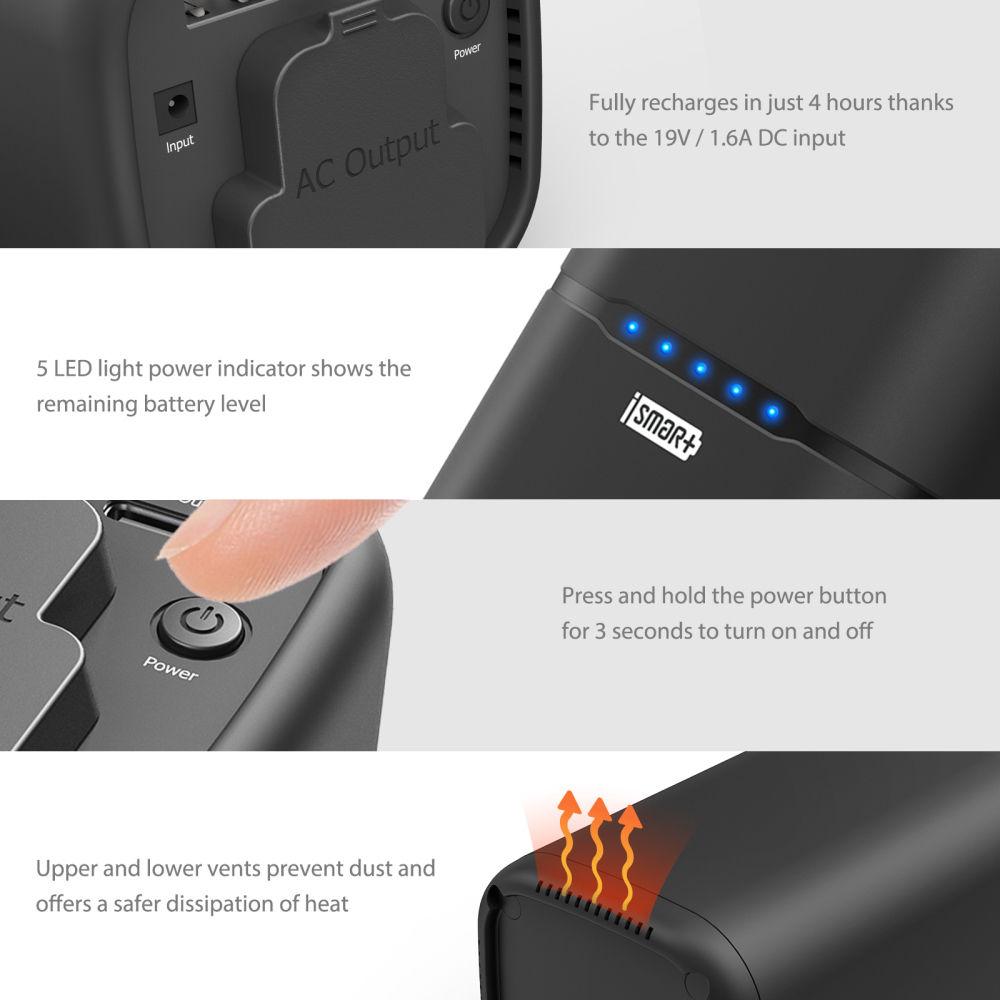

- Through the 1.6A / 19 VDC input, you'll have full power in around 4 hours, compared to the standard 10 hours from a 2.4A charger. Five LED lights indicate remaining battery power, while the on/off switch powers the device down when not in use, helping to save precious juice.
- Integrated Air Vents
- Keep the power bank running smoothly with a set of vents that'll cool it down and won't let the dust in.
- Power Button
- Turn the power bank on/off by holding the power button. When it's not in use, remember to turn it off to save precious juice.
UPC: 191280001501 In the Box RAVPower 20,100mAh Universal Power Bank with AC Outlet Power Adapter Micro-USB Cable (Short) Micro-USB Cable (Long) Limited 1-Year Warranty User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the RAVPower 20,100mAh Universal Power Bank with AC Outlet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRAVPower RP-PB054 Specs | | | Output Ports | 1 x USB Type-A
1 x USB Type-C | | AC Outlet | 1 x 3-Prong | | | | Capacity (Wh) | 74.37 Wh | | Capacity (mAh) | 20,100 mAh | | | | Port Output Power | 5 V, 2.4 A
5 V, 3 A | | AC Power Output | 70 W | | | | Power Rating | 19 VDC, 1.6 A | | | | Dimensions (W x H x D) | 2.7 x 2.7 x 5.8" / 6.9 x 6.9 x 14.7 cm | | Weight | 7.3 oz / 206.9 g | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 7.6 x 6.8 x 3.4" |
