User Manual for RAVPower Xtreme 26,800mAh PD Portable Charger Click to enlarge the picture
Contents of the user manual for the RAVPower Xtreme 26,800mAh PD Portable Charger
- Product category: Portable Battery Packs RAVPower
- Brand: RAVPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RAVPower Portable Battery Packs
 |
User manual for the RAVPower Xtreme 26,800mAh PD Portable Charger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RAVPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RAVPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RAVPower product will considerably shorten its lifespan!
|

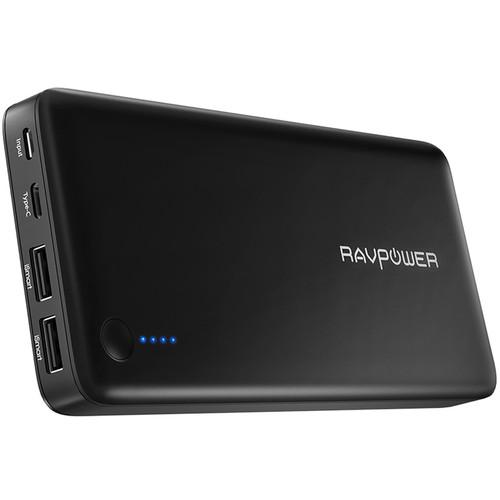

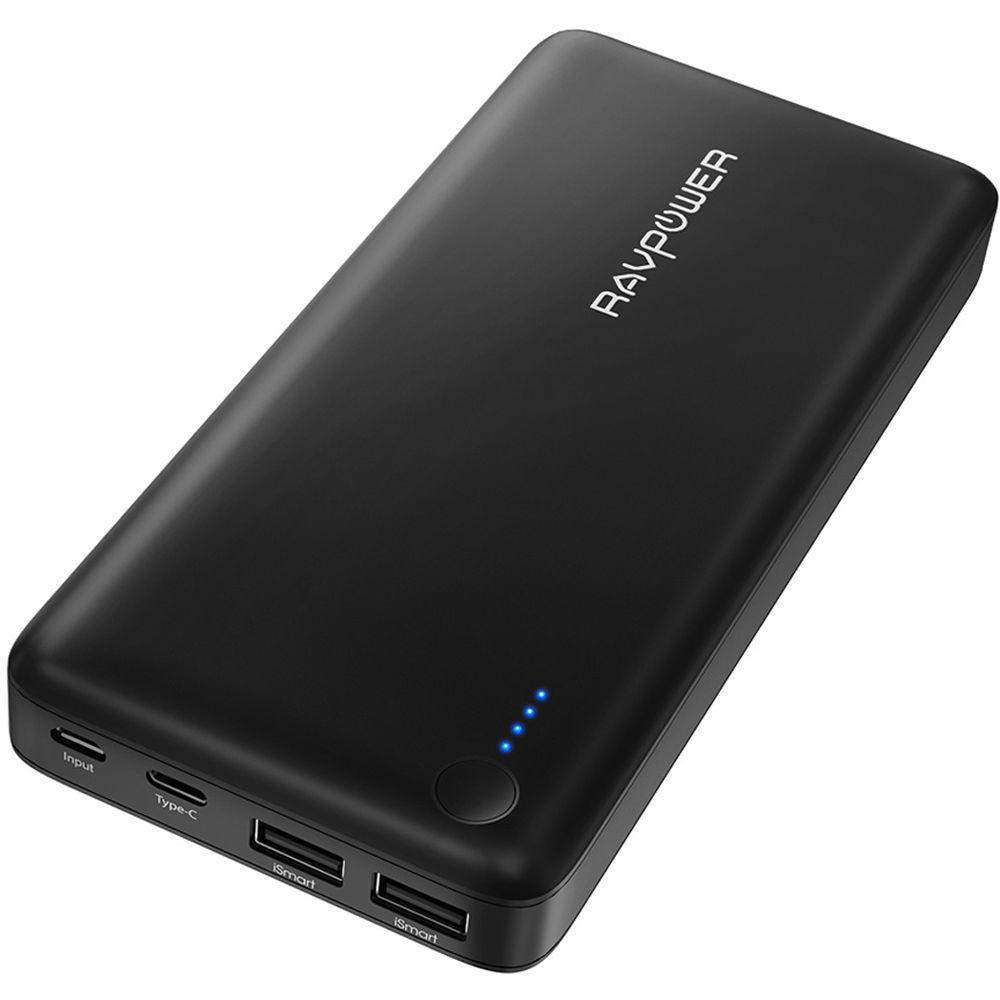

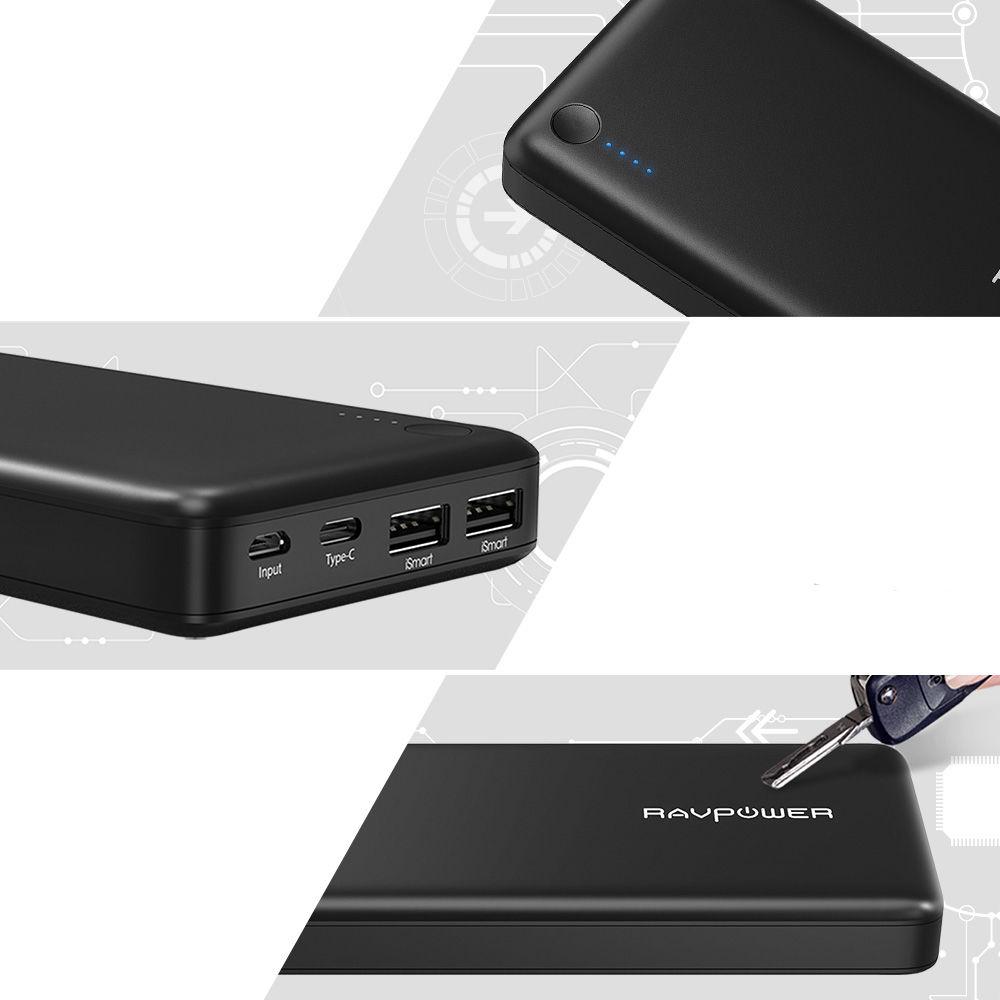

Product description Leaving the DSLR at Home: Ten Smartphone Travel Photography Accessories Read More The Xtreme 26,800 PD Portable Charger from RAVPower is a lightweight and portable battery pack that allows you to charge multiple devices at once using its one 30W USB Type-C port and two iSmart 2.4A USB Type-A ports. When the two USB Type-A ports are used simultaneously, they provide a maximum charge of 3.4A. With a capacity of 26,800mAh, you'll be able to recharge an iPhone 6S up to 10 times, a Samsung S6 up to 6 times, or an iPad Air up to 2 times. As its USB Type-C port has an output of up to 30W, it provides enough power to recharge a MacBook, meaning you won't have to worry about carrying its charger around. When this battery pack is completely drained, it can be recharged in 4-5 hours using its USB Type-C port and a separately sold USB Type-C charger, or you can opt to use the micro-USB input. When paired with a 2.0A charger, the micro-USB input will recharge the battery in 13-14 hours, as compared to 26-28 hours when paired with a 1.0A charger.
Other features include a Battery-Protecting NTC, Smart Protection with MCU, LG/Panasonic battery cells, Silergy Voltage IC, a Cypress USB Type-C PD Controller, a USB Type-C Compatible Cypress CCG2, a four-LED battery indicator, and more. Included is a USB Type-C to Type-C cable, and protection is provided by a limited 1-year warranty. General Features - Recharge Times

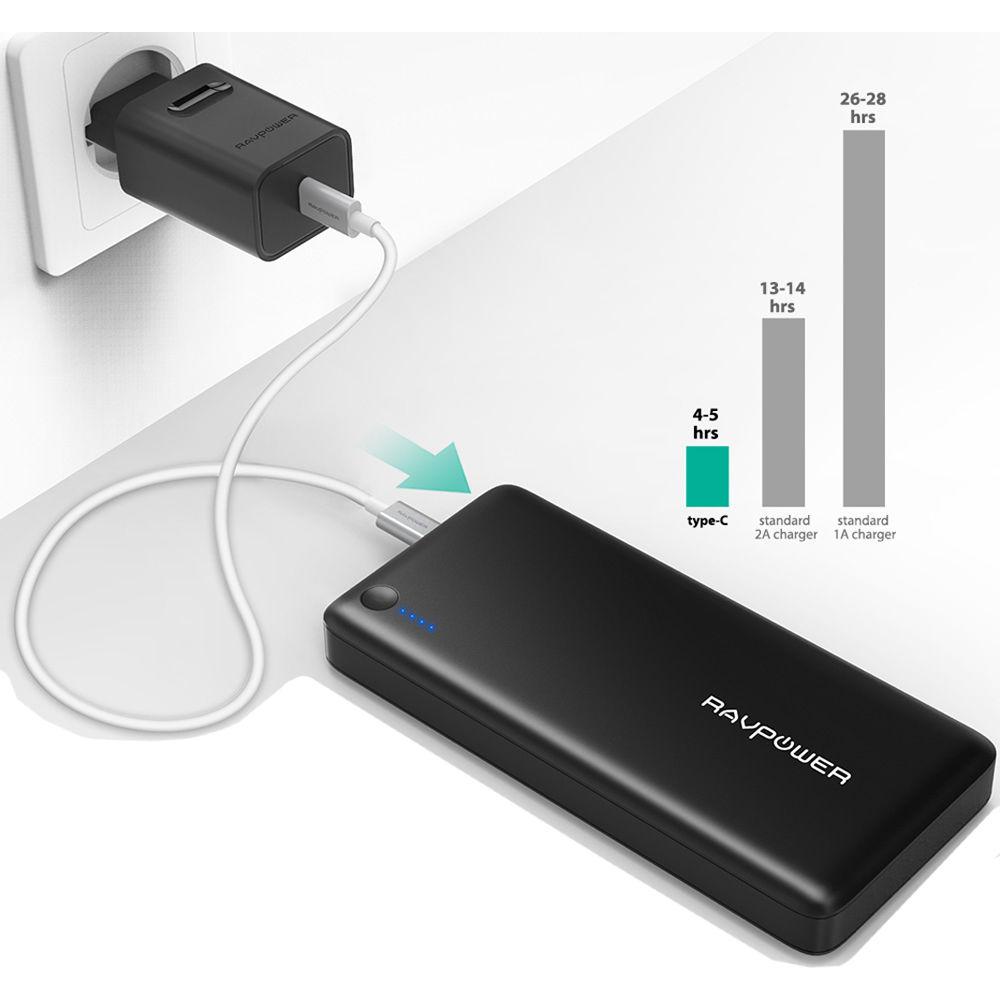

- The 26,800mAh battery can be recharged using the USB Type-C port in 4-5 hours. There is also a micro-USB port that can recharge the battery in 13-14 hours when used with a 2A charger. When the micro-USB port is used with a 1A charger, recharge times are around 26-28 hours.
- 30W USB Type-C Output

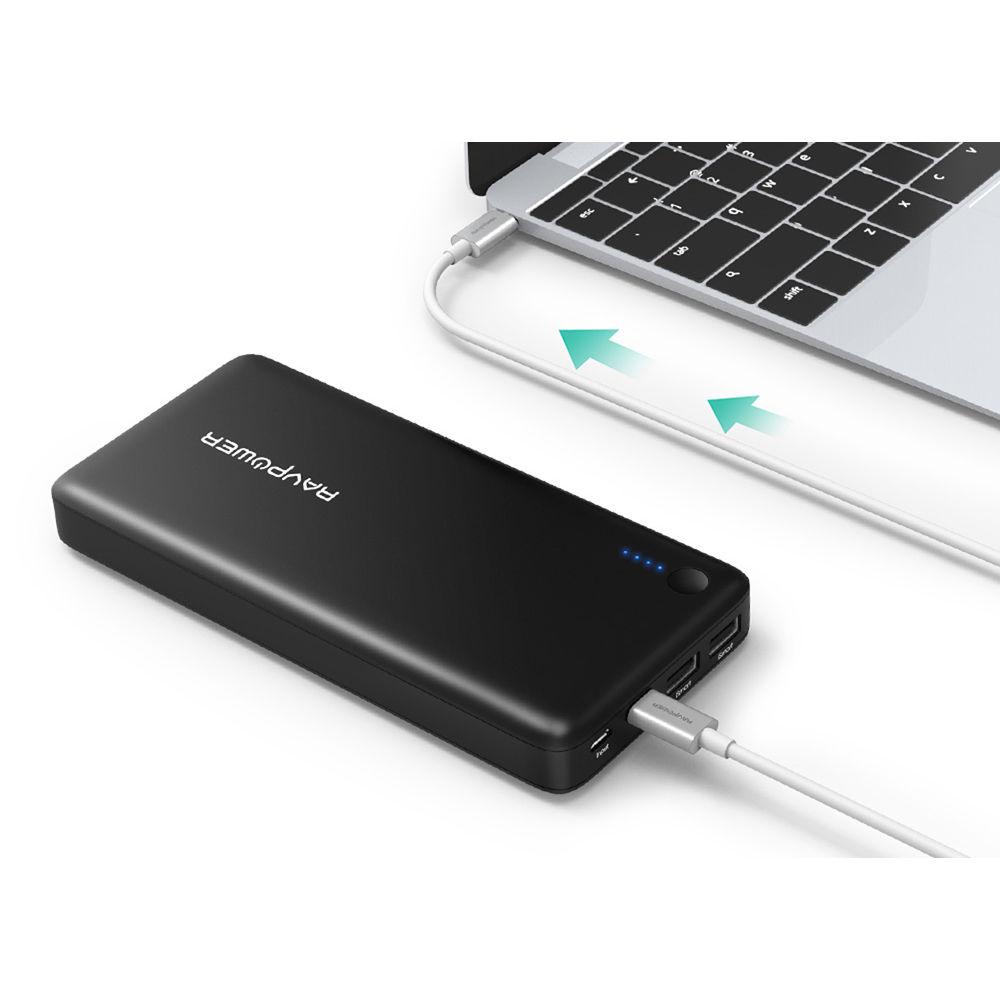

- The USB Type-C output reaches up to 30W, matching the original MacBook charger, so you can charge all devices, including a MacBook. After only one hour of charging via the Type-C input, there is enough power to charge an iPhone 7 two to three times. Please note that the USB Type-C cable is sold separately.
- Large Capacity, Multiple Outputs

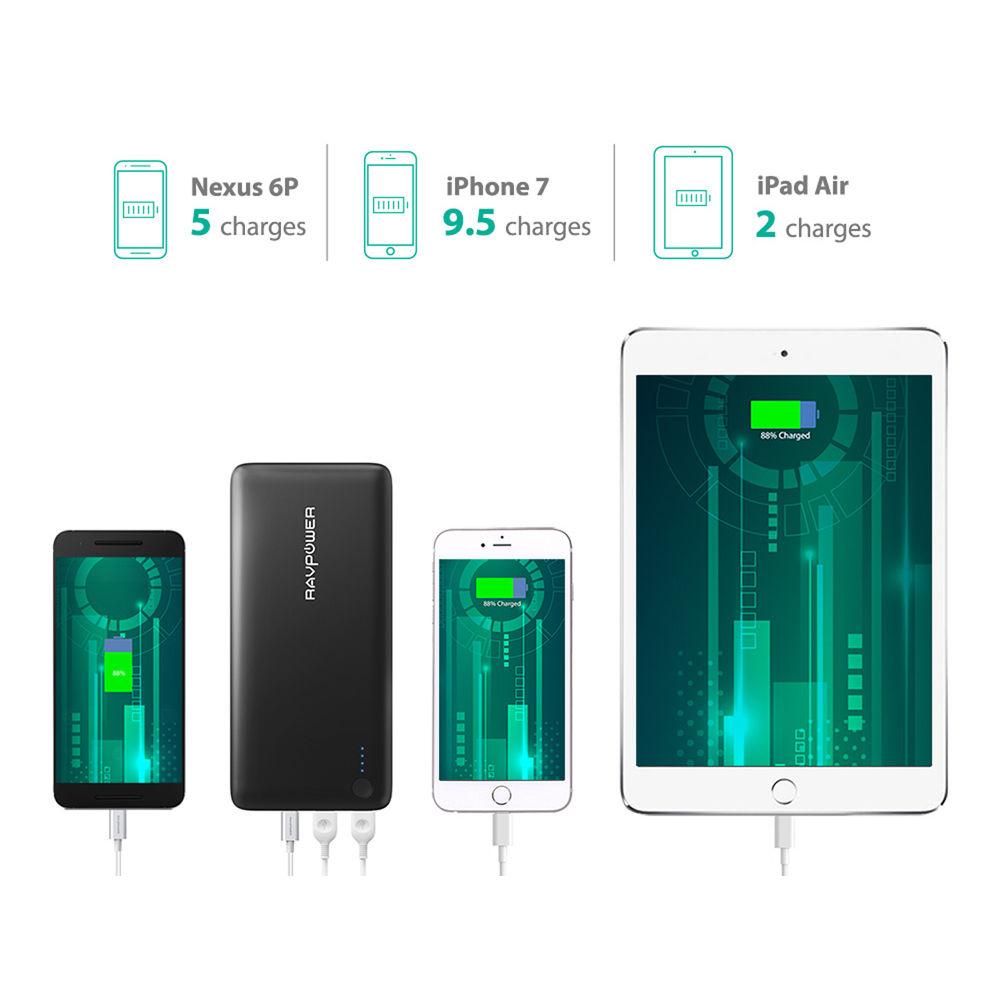

- The 26,800mAh battery capacity charges an iPhone 6S up to 10 times, a Samsung S6 up to 6 times, or an iPad Air up to 2 times. There are also two 2.4A USB Type-A iSmart ports for a combined 3.4A total.
- iSmart 2.0 Technology
- Upgraded iSmart 2.0 automatically detects and adjusts the charging current to obtain the most efficient charging. There is also advanced Panasonic IC for safer and better conductivity.
- Four LED Battery Indicators
- Four bright LED lights show the battery level so you know how much power is left.
- Safety First
- This battery can be charged over 500 times and includes overcharge, short circuit, and current surge protection. Its exterior features a scratch-resistant matte finish to help ensure marks and grazes don't damage the surface.
- Battery-Protecting NTC
- This helps monitor battery temperature and provides self-regulating high-temperature protection.
- Smart Protection with MCU
- Provides overcharge, high-temperature, and short circuit protection, which in turn allows simultaneous charging and discharging.
- iSmart 2.0 Module
- Based on iSmart technology, iSmart 2.0 provides faster, safer, and smarter charging, helping to balance multi-device charging needs to achieve improved efficiency.
- LG/Panasonic Battery Cells
- These high-performance cells have a lifespan of over 500 charging cycles.
- Silergy Voltage IC
- Silergy Voltage IC safely lowers the voltage to the level that is more suited for charging connected devices.
- Cypress USB Type-C PD Controller
- Charging current control IC dedicated to and compatible with USB Type-C charging.
- USB Type-C Compatible Cypress CCG2
- USB Type-C identification and power delivery control IC from Cypress Semiconductor - a registered USB member.

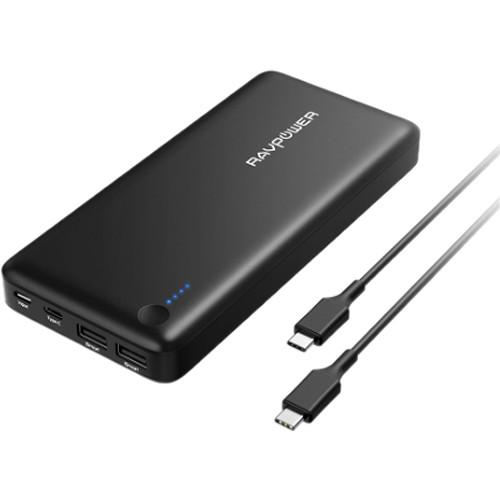

UPC: 191280001525 In the Box RAVPower Xtreme 26,800mAh PD Portable Charger USB Type-C to Type-C Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RAVPower Xtreme 26,800mAh PD Portable Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRAVPower RP-PB058 Specs | | | Input Charging Port | Micro-USB | | Output Ports | 2 x USB Type-A

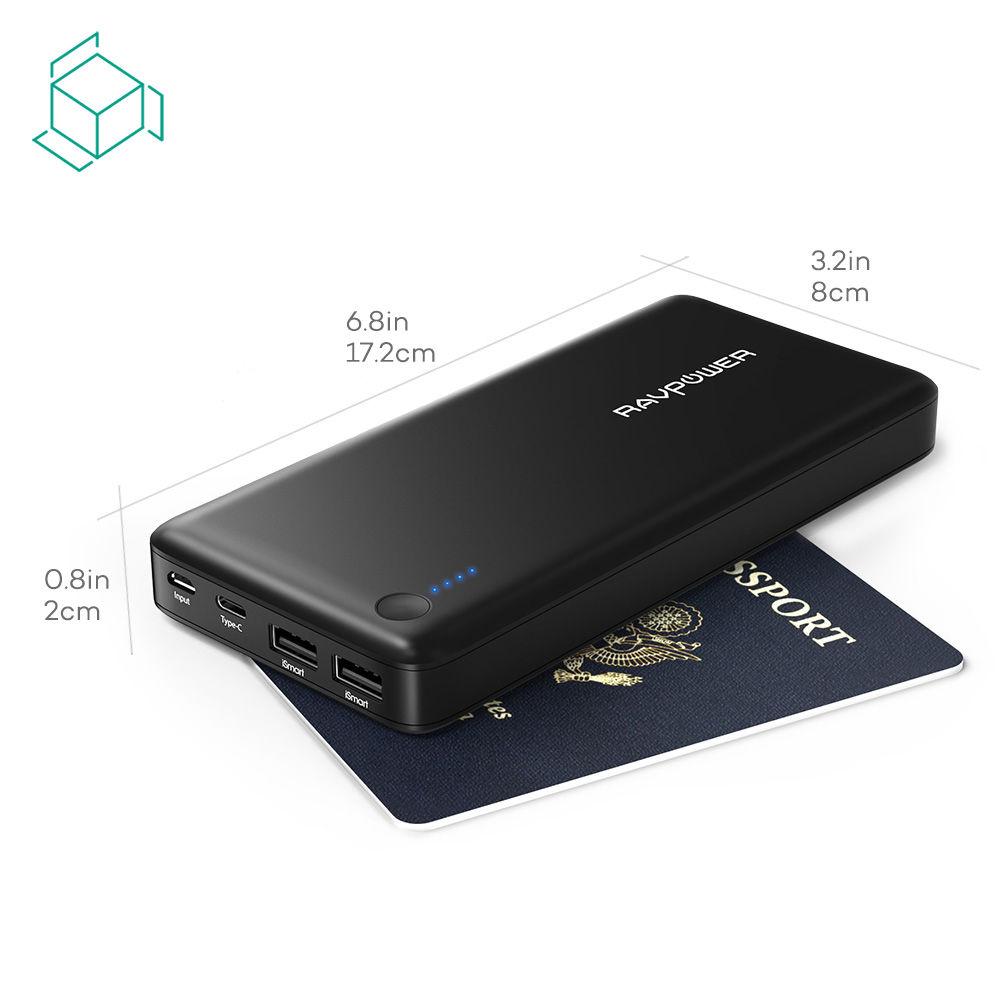

1 x USB Type-C | | | | Capacity (mAh) | 26,800 mAh | | Charging Time | 4 to 28 Hours | | | | DC Input Power | 5 VDC at 2 A | | Port Output Power | 5 V, 2.4 A | | | | Dimensions (W x H x D) | 6.8 x 3.2 x 0.9" / 17.3 x 8.1 x 2.3 cm | | Weight | 16.1 oz / 456.4 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.5 x 5.6 x 1.5" |
