User Manual for Raya Octa Fluorescent 7-Socket Fixture 2-Light Softbox Kit Click to enlarge the picture
Contents of the user manual for the Raya Octa Fluorescent 7-Socket Fixture 2-Light
- Product category: Fluorescent Lights Raya
- Brand: Raya
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raya Fluorescent Lights
 |
User manual for the Raya Octa Fluorescent 7-Socket Fixture 2-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raya product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raya user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raya product will considerably shorten its lifespan!
|

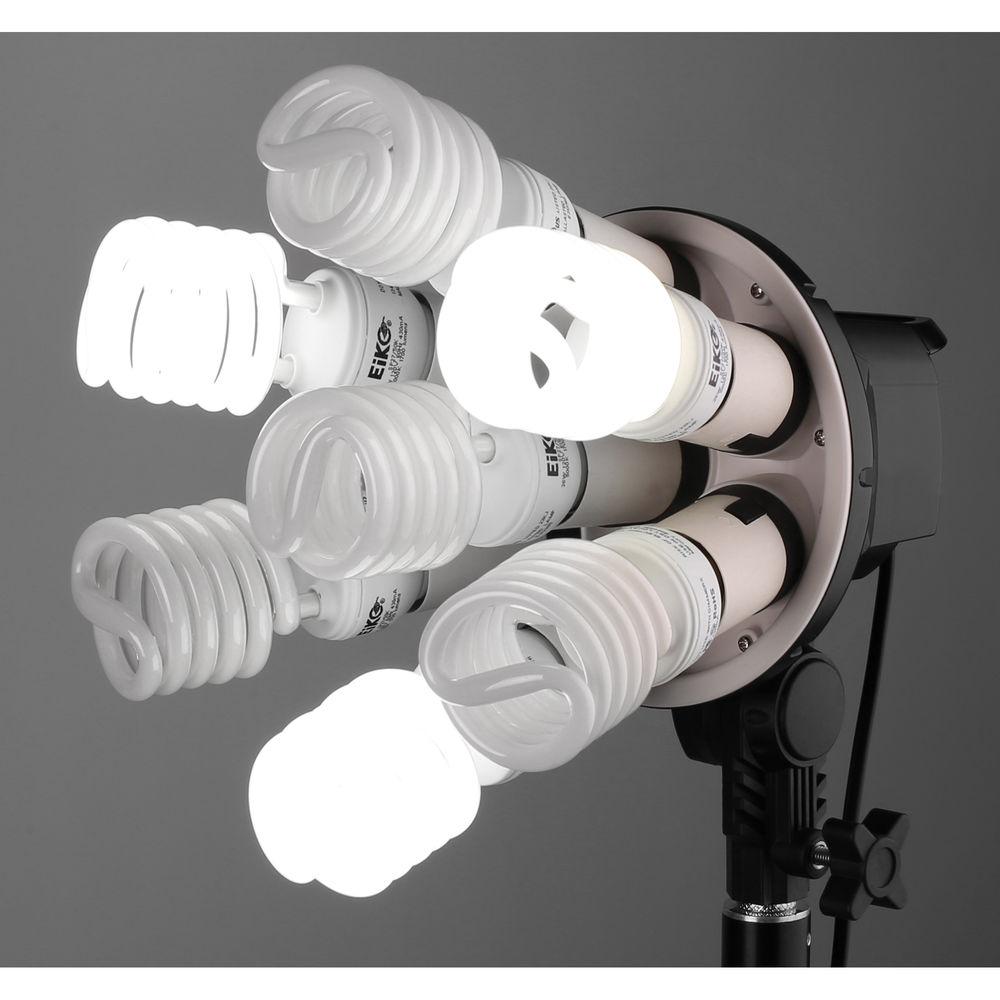

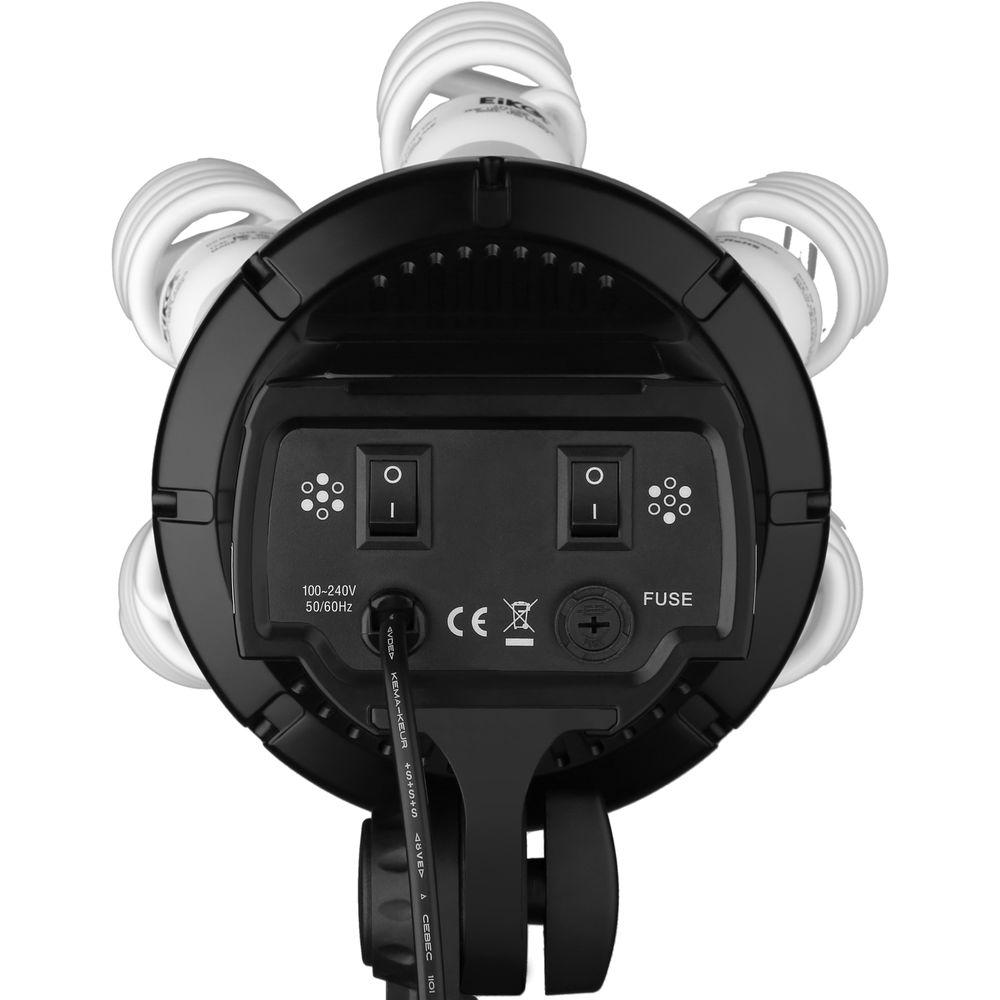

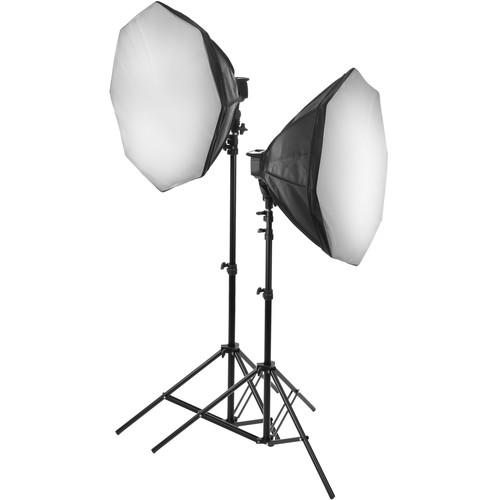

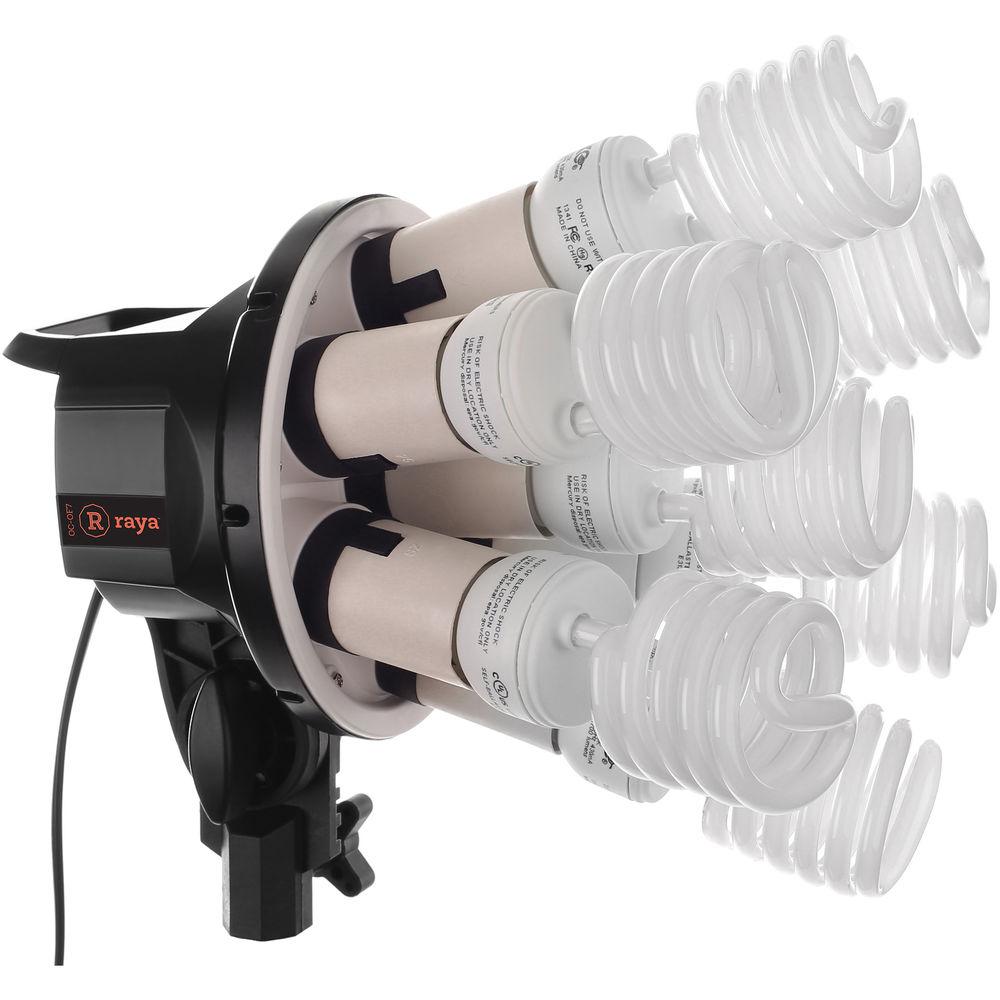

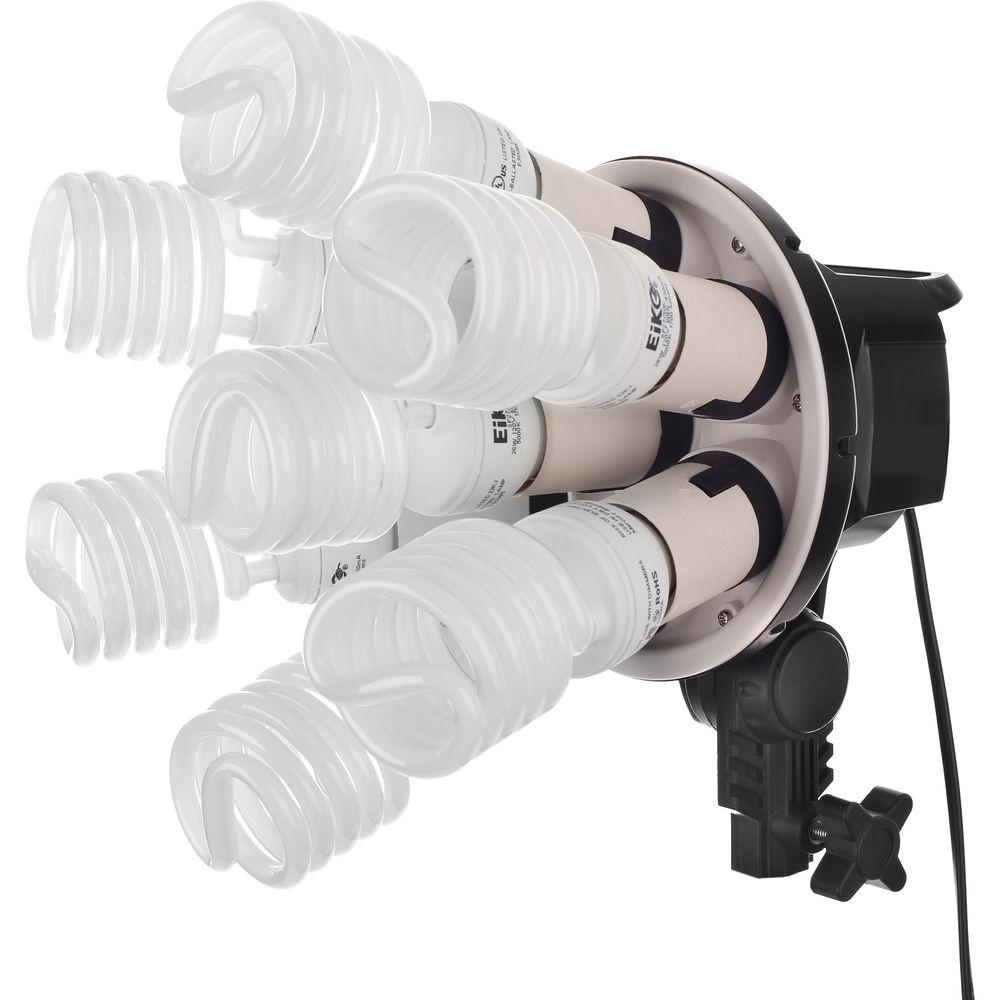

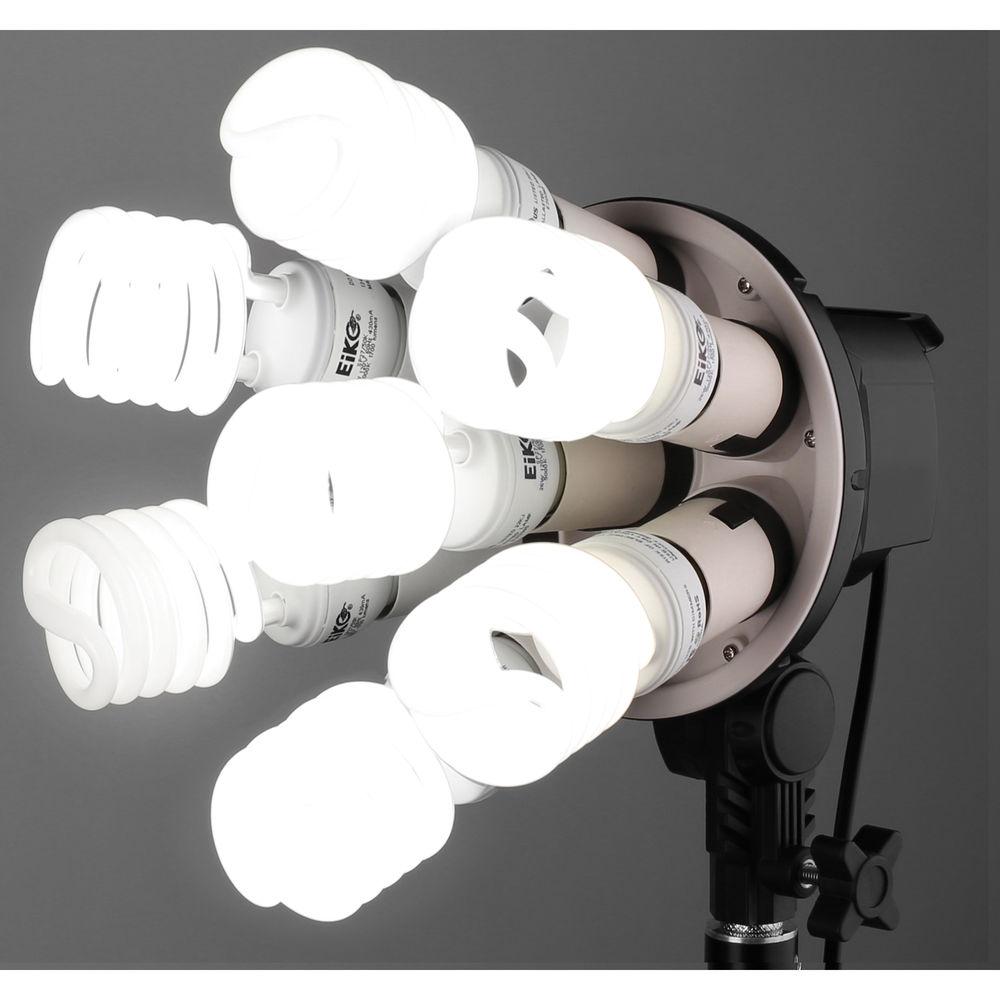

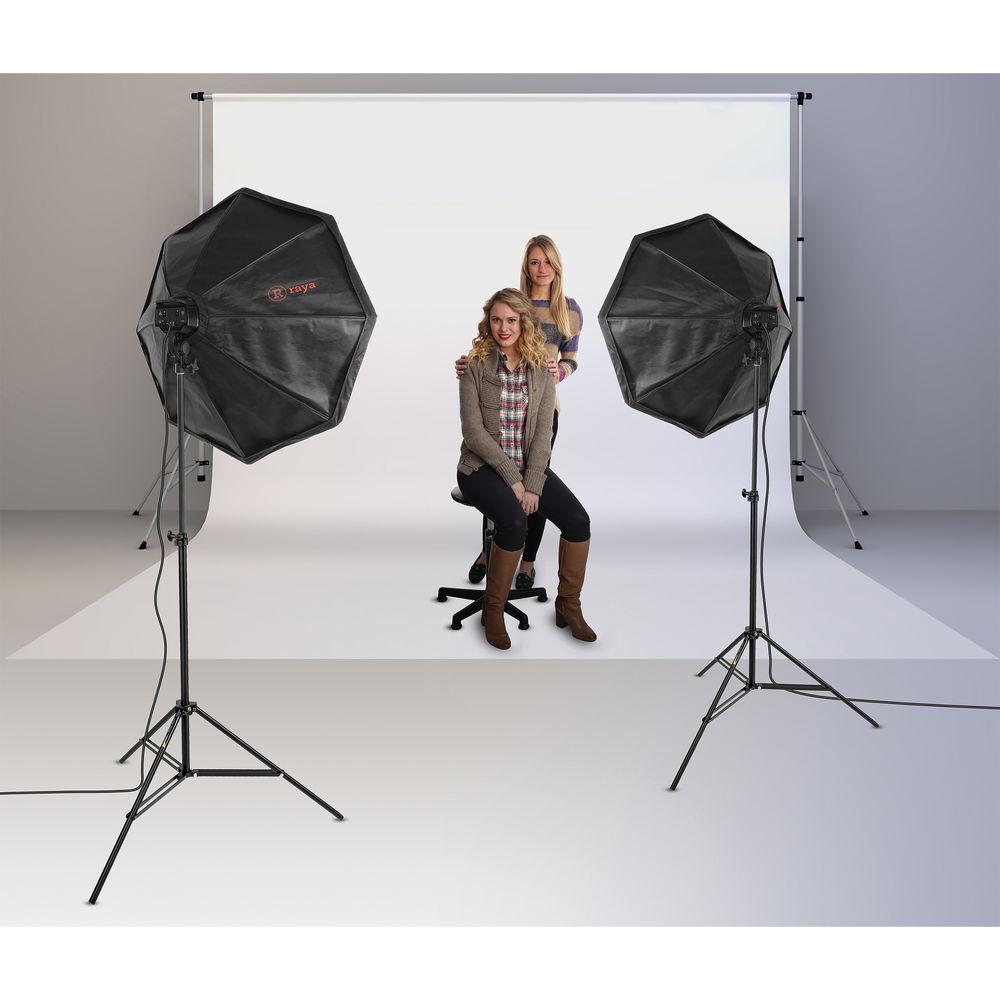

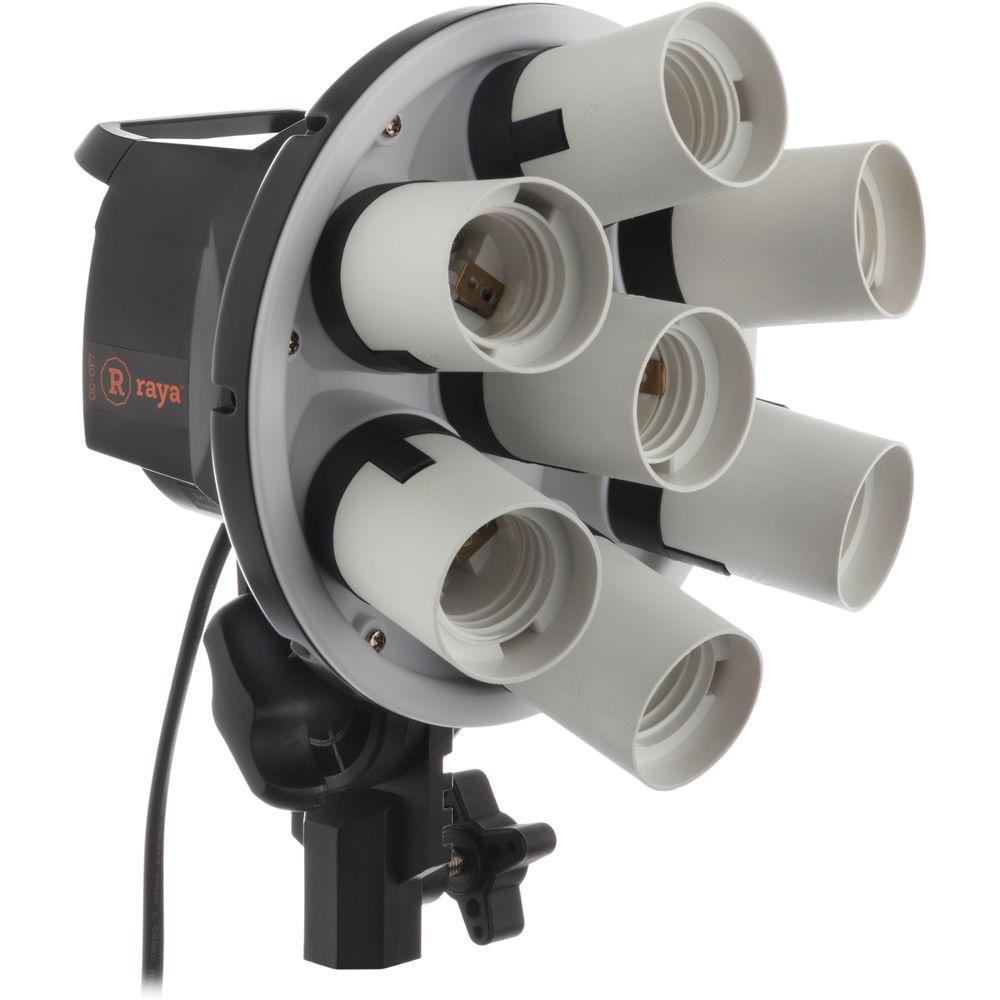

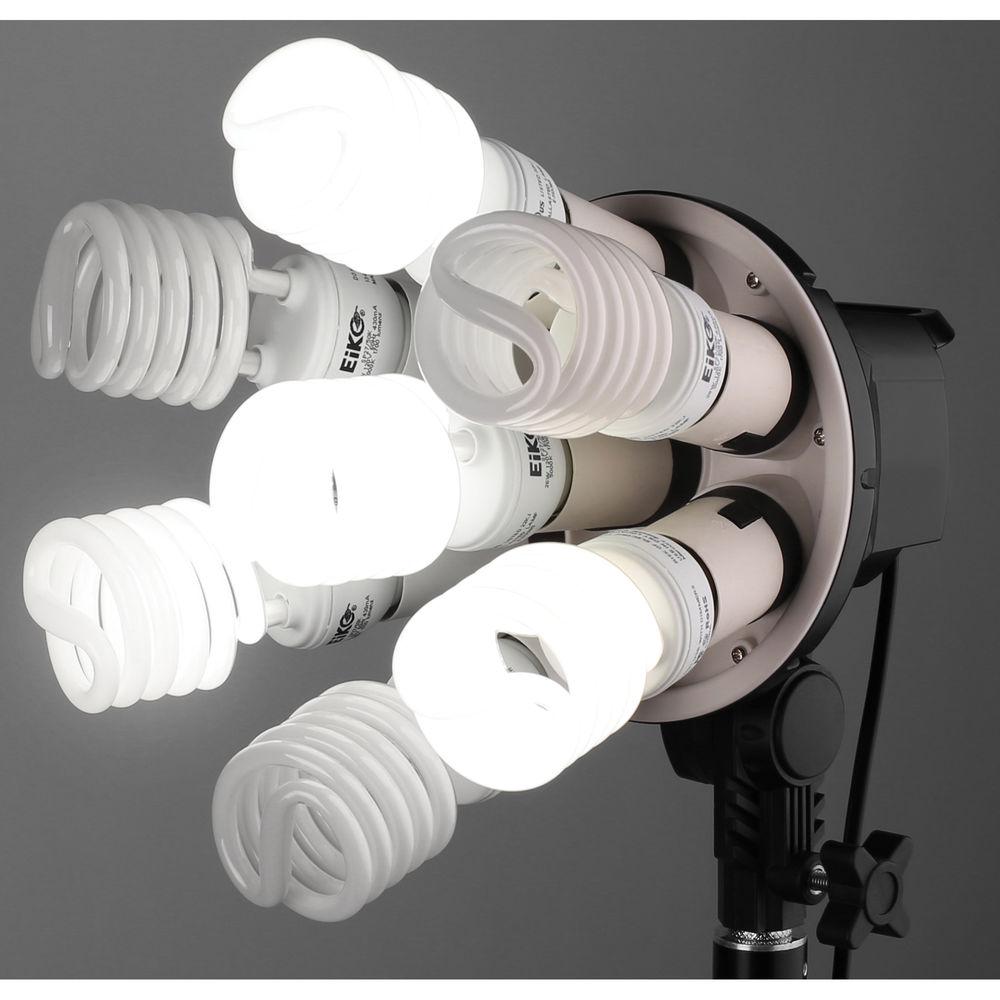

Product description The Raya Octa Fluorescent 7-Socket Fixture 2-Light Softbox Kit was put together by to provide a soft, multi-use, continuous lighting setup with enough power and coverage for single subjects as well as large groups and sets. The kit is comprised of two 7-socket fixtures with 26W spiral fluorescent lamps, two 32" Octa softboxes, and an air-cushioned 9.5" light stand for each light. The two Octa 7-socket units have dual rocker switches on their back panels, each of which control on/off function for 3 or 4 lamps allowing the creation of a light ratio. The Octas have multi-voltage power supplies for worldwide use (with optional adapter plug) and a standard 5/8" receiver for light stands and accessories. The included 32" softboxes feature highly reflective, pebbled interiors and removable front faces that attach with simple touch-fasteners. They also have detachable interior clip-on diffusers for softer light if desired. In use, the Octas render the signature wrap-around look that the modifiers' shape is well known for, as well as natural circular catch-lights in your subject's eyes. The light sources are supported by the included air-cushioned stands that gently lower the lights, preventing damage to the fixture when adjusting their height. - 2 x Raya Octa Fluorescent 7 Socket Fixture The OC-OF7 Octa Fluorescent 7 Socket Fixture from Raya is a 7 Edison socket base that accepts up to seven 50W CFL fluorescents with a combined wattage of 350W. Individual socket rating is 105 watts. The OC-OF7's back panel has dual rocker switches, each of which control on/off function for 3 or 4 lamps allowing the creation of a light ratio. The Octa OC-OF7 has a multi-voltage power supply for worldwide use (with optional adapter plug) and has a standard 5/8" receiver for light stands and accessories. The OC-OF7 can also be combined with the optional Raya OC-OSB80 32" Octa Softbox, which has been custom designed to modify the light output of this fixture. UPC: 847628581166
- 2 x Raya Octa Soft Box for Octa Fluorescent 7 (32") The 32" OC-OSB80 Octa Softbox from Raya is an 8-sided light modifier supported by aluminum flexrods which are attached to the separately purchased Octa Fluorescent 7 fixture.The softbox features a highly reflective pebbled interior and a removable front face that attaches with simple touch-fasteners. It also has a detachable interior clip-on diffuser for additional soft light if desired. In use, it renders the signature wrap-around look that the modifier's shape is well known for, as well as natural circular catch-lights in your subjects eyes. This softbox is made to be used with the OC-OF7 Fluorescent 7 fixture and fluorescent lamps only. UPC: 847628581173
- 2 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5') This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
- Air-Cushioned
- Protects equipment and fingers from damage
- Compact Design
- Will fit easily into most location cases
- Accepts Casters
- For easy positioning of lights
UPC: 847628012004 - 14 x Impact Spiral Fluorescent Lamp (32W/120V) The SF-32-120 Impact Spiral Fluorescent Lamp is a 32W/120V E26 medium screw-base lamp that fits Impact fixtures such as the Octacool and VA902 as well as many other lamp head brands. The lamp is daylight color balanced and has an average lamp life of 10,000 hours. UPC: 847628571297
In the Box - 2 x Octa Fluorescent 7 Socket Fixture bcczbrqfabzfwttfbqyxwwywce
- Limited 1-Year Warranty
- 2 x Octa Soft Box for Octa Fluorescent 7 (32")
- 2 x Impact - Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')
- 14 x Impact - Spiral Fluorescent Lamp (32W/120V)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Raya Octa Fluorescent 7-Socket Fixture 2-Light Softbox Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Raya Octa Fluorescent 7 Socket Fixture

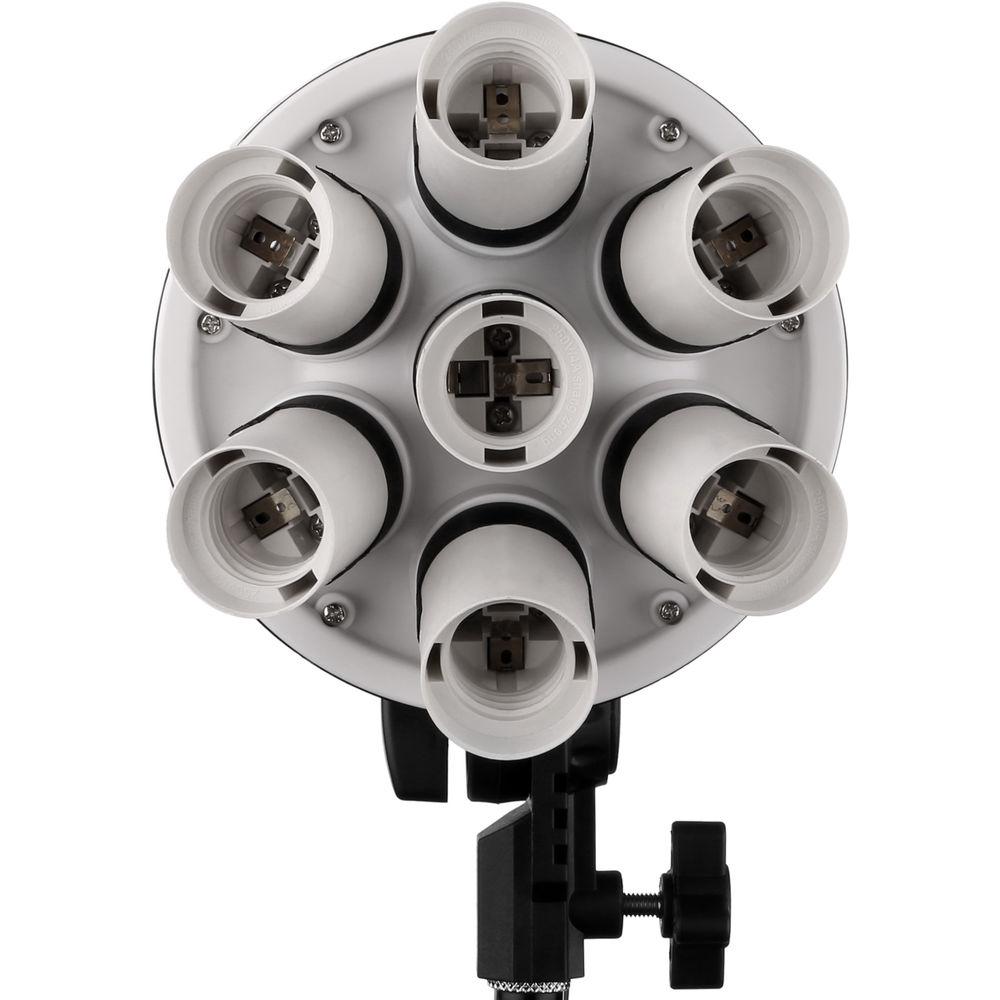

| Input Voltage | 100-240 VAC, 50/60 Hz | | Lamps | Up to 7 Edison-base compact fluorescent lamps | | Maximum Wattage | 350 W (tungsten equiv. 1,400 W) | | Ballast | In lamps | | Mounting | 5/8" (16 mm) | | Cord Length | 11' (3.3 m) | | Plug | U.S. (North American) 2-bladed ground plug | | Dimensions | 5.0 x 6.0 x 8.7" (12.7 x 15.2 x 22 cm) | | Weight | 1.6 lb (0.72 kg) | | | | Box Dimensions (LxWxH) | 8.0 x 8.0 x 7.0" | - 2 x Raya Octa Soft Box for Octa Fluorescent 7 (32")
| Shape | Octagon | | Interior | Silver | | Requires Speed Ring | No | | Accepts Grids | No | | Maximum Wattage | 400 W (Cool Lights) | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Circular Dimensions |
