Raya Octa Fluorescent 7-Socket Fixture with

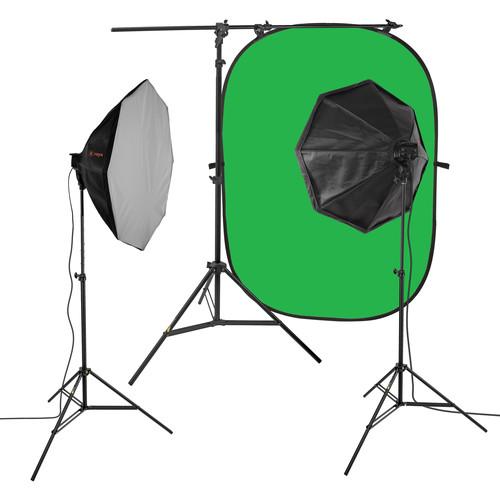

User Manual for Raya Octa Fluorescent 7-Socket Fixture with Portable Background 2-Light Kit

• Product category: Fluorescent Lights Raya
• Brand: Raya
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Raya Fluorescent Lights

Product description

• 2 x Raya Octa Fluorescent 7 Socket Fixture The OC-OF7 Octa Fluorescent 7 Socket Fixture from Raya is a 7 Edison socket base that accepts up to seven 50W CFL fluorescents with a combined wattage of 350W. Individual socket rating is 105 watts. The OC-OF7's back panel has dual rocker switches, each of which control on/off function for 3 or 4 lamps allowing the creation of a light ratio. The Octa OC-OF7 has a multi-voltage power supply for worldwide use (with optional adapter plug) and has a standard 5/8" receiver for light stands and accessories. The OC-OF7 can also be combined with the optional Raya OC-OSB80 32" Octa Softbox, which has been custom designed to modify the light output of this fixture. UPC: 847628581166
• 2 x Raya Octa Soft Box for Octa Fluorescent 7 (32") The 32" OC-OSB80 Octa Softbox from Raya is an 8-sided light modifier supported by aluminum flexrods which are attached to the separately purchased Octa Fluorescent 7 fixture.The softbox features a highly reflective pebbled interior and a removable front face that attaches with simple touch-fasteners. It also has a detachable interior clip-on diffuser for additional soft light if desired. In use, it renders the signature wrap-around look that the modifier's shape is well known for, as well as natural circular catch-lights in your subjects eyes. This softbox is made to be used with the OC-OF7 Fluorescent 7 fixture and fluorescent lamps only. UPC: 847628581173
• 2 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5') This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628012004
• 14 x Eiko SP27/50K Spiral Fluorescent Lamp (26W/120V) The Eiko SP27/50K Spiral Fluorescent lamp (26/120V) is an Edison base (E26) screw-in bulb, for the SP Systems Cool Light, Interfit, Impact, Bowens Tri-Lite, or any other floodlight fixture that can accept a large bulb. The lamp has a color temperature of 5000° and an average life of 10,000 hours. This lamp is not for use with dimmers, electronic timers, photocells, totally enclosed fixtures, motion/occupancy sensors, or where directly exposed to water. UPC: 031293054159
• Impact Collapsible Background - 5 x 7' (Chroma Green) This Impact Collapsible Background is a small, easy to use accessory for shooting small objects or simple headshots. This background sets-up and folds easily and comes in its own see-thru storage bag. Note: Colors depicted may vary slightly, due to differences in computer monitors, printed media, and variances in manufacturer's dyes or paints. In addition, this product may be folded for storage a number of ways. UPC: 847628010697
• Impact Multiboom Light Stand and Reflector Holder - 13' (4m) This is an Impact Convertible Boom Arm/Light Stand. As a light stand, it can support a small or medium light head to a height of 13' (4 m). Raise the second section completely, click, and it is a boom stand.
  As a boom, it can hold a small light head to an extension of almost 3' from the center of the stand.
  It is a reflector holder by means of its two clips, which can support an Impact, Flexfill, or Photoflex light disc as large as 60".
  A hole at the end of the arm allows an optional counterweight to be hung, for greater stability.
  Instructions for Using This Stand as a Boom
  • 1. Loosen the large long handle in the middle of the stand.
    2. Loosen the top-most section of the stand. Pull that section all the way up.
    3. Pull! - swing it horizontally for the boom feature, and lock it for the desired setup.
  UPC: 847628012042

• 2 x Octa Fluorescent 7 Socket Fixture
• Limited 1-Year Warranty

• 2 x Octa Soft Box for Octa Fluorescent 7 (32")

• 2 x Impact - Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

• 14 x Eiko - SP27/50K Spiral Fluorescent Lamp (26W/120V)

• Impact - Collapsible Background - 5 x 7' (Chroma Green)

• Impact - Multiboom Light Stand and Reflector Holder - 13' (4m)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Raya Octa Fluorescent 7 Socket Fixture

  Input Voltage	100-240 VAC, 50/60 Hz
  Lamps	Up to 7 Edison-base compact fluorescent lamps
  Maximum Wattage	350 W (tungsten equiv. 1,400 W)
  Ballast	In lamps
  Mounting	5/8" (16 mm)
  Cord Length	11' (3.3 m)
  Plug	U.S. (North American) 2-bladed ground plug
  Dimensions	5.0 x 6.0 x 8.7" (12.7 x 15.2 x 22 cm)
  Weight	1.6 lb (0.72 kg)

  Box Dimensions (LxWxH)	8.0 x 8.0 x 7.0"

• 2 x Raya Octa Soft Box for Octa Fluorescent 7 (32")

  Shape	Octagon
  Interior	Silver
  Requires Speed Ring	No
  Accepts Grids	No
  Maximum Wattage	400 W (Cool Lights)
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
