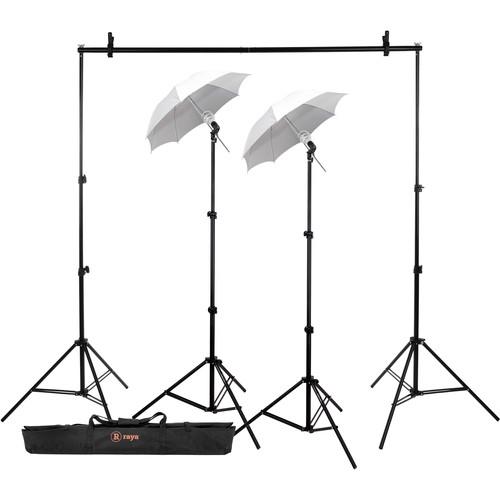

User Manual for Raya Portable Studio Kit Click to enlarge the picture
Contents of the user manual for the Raya Portable Studio Kit
- Product category: LED Lights Raya
- Brand: Raya
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raya LED Lights
|
User manual for the Raya Portable Studio Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raya product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raya user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raya product will considerably shorten its lifespan!
|
Product description The Raya Portable Studio Kit was put together by to give photographers a lightweight core setup for portraits, products, and general photography. The kit includes a background support system with carry case which can handle 53" seamless paper or up to 10' wide muslin backgrounds. Two A-clamps are included to secure the background. Also included are an LED Lamp Holder with an umbrella socket to hold the included 33" translucent umbrella and a 60W Edison-based LED lamp that outputs the tungsten equivalent of 250W. - Raya Background Support Kit (Small) Useful for the studio or when on location, the Small Background Support Kit from Raya handles seamless paper rolls or fabric backgrounds and gives your work a polished look. The kit includes two support stands with a maximum height of 6'. The four-piece crossbar can be snapped together in two different lengths - 4.9' which is suitable for 53" seamless paper rolls or 9.8' which can support 10' wide muslin or fabric backgrounds. The weight capacity is 6.5 lb at the minimum width and 4.4 lb at the 9.8' width.Two A-clamps are included in the kit to ensure that the seamless remains at your chosen length or to secure fabric backgrounds, while the provided carry bag makes taking the lightweight 4.8 lb kit on the road effortless. Optional sandbags, such as those made by Impact, are always recommended to stabilize your set up.
- Benefits
-
- Accommodates seamless paper and fabric backgrounds
- Includes two support stands with a maximum height of 6'
- Four-section crossbar snaps together quickly and easily
- Crossbar is extendable from 4.9' to 9.8' in width
- Lightweight and portable at 4.8 lb - carry bag included
UPC: 847628599413 - 2 x Raya Single LED/Fluorescent Lamp Holder with Umbrella Socket The Single LED/Fluorescent Lamp Holder with Umbrella Socket is a compact and convenient way to power E26/E27 Edison household base LED or fluorescent bulbs. The fixture has a 7.5' power cord and can be used bare-bulb or with an umbrella up to 60" (thanks to the umbrella socket) to soften the output. The Lamp Holder has tilting adjustment, and can be mounted vertically or horizontally on a light stand via its 5/8" receiver.
- Benefits
-
- The socket accepts any LED or fluorescent bulb with an Edison base.
- The fixture's adjustable tilt lets you experiment with light angle.
- If a softer and more diffused light is desired, the FF-SULH is designed with a mounting socket for a photo umbrella up to 60".
- The fixture can be mounted vertically or horizontally for greater control over your light.
UPC: 847628599505 - 2 x Raya 60W LED Daylight Studio Bulb Create a photo quality continuous light source anywhere with a standard E26 Edison socket with this 60W LED Daylight Studio Bulb from Raya. Able to produce daylight-balanced 5400K light, this bulb can find uses in a variety of applications, especially being multi-voltage and switching from 100-240 VAC for worldwide use. Equivalent to a 250W incandescent bulb, it delivers a brightness of 4200 lumens at 3.3'. Also, it has a CRI of 84 for creating accurate colors. LED technology allows the light to run cool, and this is further assisted by a built-in fan. Additionally, it has a frosted finish for a soft output, as well as a rated average lifetime of 30,000 hours. UPC: 847628599475
- 2 x Impact White Translucent Umbrella (33") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 33" White Translucent Umbrella is suggested for use in head-and-shoulders portraits for one or two persons. UPC: 847628013278
- 2 x Impact Light Stand, Black (6') This 6' Impact Black Light Stand is one of the most economical light stands available. It has a 5/8" stud top with a 1/4"-20 thread.
- For small light fixtures or boom arms.
UPC: 847628011953 In the Box - Background Support Kit (Small) waxqbtcsbqsyerazcxyftwcfzbvcvqvqvwyt
- 2 x Support Stands
- 4 x Crossbar Sections
- 2 x A-Clamps
- Carry Case
- User Manual
- Limited 1-Year Warranty
- 2 x Single LED/Fluorescent Lamp Holder with Umbrella Socket
- 2 x 60W LED Daylight Studio Bulb
- 2 x Impact - Umbrella - White Translucent (33")
- 2 x Impact - Light Stand, Black (6')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Raya Portable Studio Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Raya Background Support Kit (Small)
Maximum Height | 6.0' (1.8 m) | Closed Length | Support Stands: 27" (68.6 cm) | Crossbar Width | Minimum: 4.9' (1.5 m) Maximum: 9.8' (3.0 m) | Weight Capacity | With 4.9' (1.5 m) Crossbar: 6.5 lb. (2.9 kg) with 9.8' (3.0 m) Crossbar: 4.4 lb. (2 kg) | Weight | 4.8 lb (2.2 kg) | | Box Dimensions (LxWxH) | 33.0 x 6.5 x 4.5" | - 2 x Raya Single LED/Fluorescent Lamp Holder with Umbrella Socket
Operating Voltage | 100 to 240 VAC, 50/60 Hz with appropriate plug adapter for regions other than USA and Canada | Base | E26 / E27 Edison | Dimming | No | Cable | 7.5' (2.3 m) | Mount | 5/8" (16 mm) receiver | Dimensions | 6.0 x 2.25 x 1.5" (15.2 x 5.7 x 3.8 cm) | Weight | 0.45 lb (204.1 g) | | Box Dimensions (LxWxH) | 5.65 x 3.4 x 3.1" | - 2 x Raya 60W LED Daylight Studio Bulb
Type | LED | Wattage | 60 W | CRI | 84 | Base | E26 Edison | Color Temperature | 5400K | Brightness | 4200 lumens at 3.3' / 1 m | Dimming | No | Finish | Frosted | Cooling | Fan | Average Life Hours | 30,000 hours | Power Requirements | 100-250 VAC, 50/60 Hz | Dimensions (Diam. x L) | 3.7 x 5.9" / 9.4 x 14.6 cm | Weight | 8.4 oz / 238 g | | Box Dimensions (LxWxH) | 11.8 x 6.25 x 3.8" | - 2 x Impact White Translucent Umbrella (33")
Size | 33.0" / 83.8 cm | Interior | White (Translucent) | Shaft Diameter | 8 mm | Folded Size | L: 23.0" / L: 58.4 cm | | Box Dimensions (LxWxH) | 21.55 x 3.7 x 1.6" | - 2 x Impact Light Stand, Black (6')
Load Capacity | 4 lb / 1.8 kg | Mounting Options | 1/4"-20 Male Thread 5/8" Stud | Maximum Working Height | 6' / 1.8 m | Minimum Working Height | 26.3" / 66.8 cm | Collapsed Height | 26.3" / 66.8 cm | Footprint Diameter | 30" / 76.20 cm | Leg Shape | Round | Accepts Wheels | Yes | Air Cushioned | No | Detachable Base | No | Leveling Leg | No | Reverse Legs | No | Finish | Black | Weight | 1.8 lb / 0.8 kg | | Box Dimensions (LxWxH) | 26.4 x 3.5 x 3.5" |
