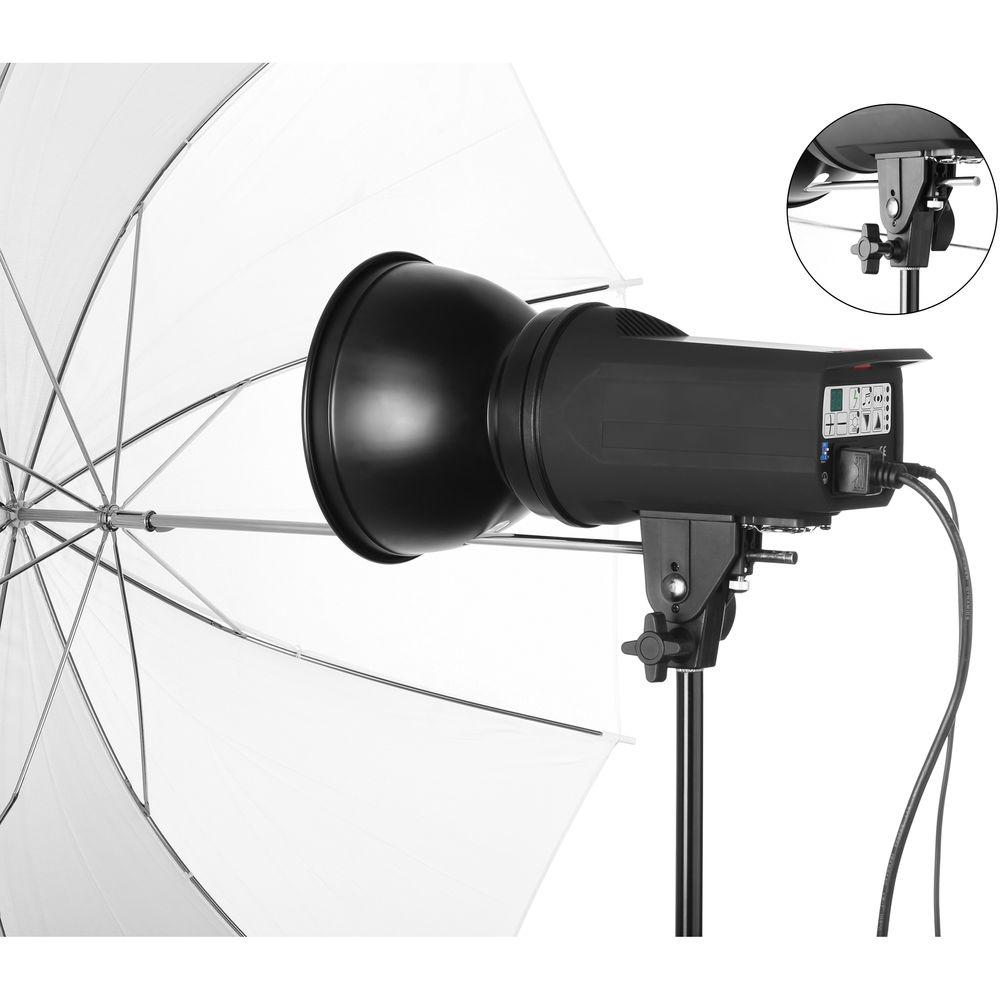

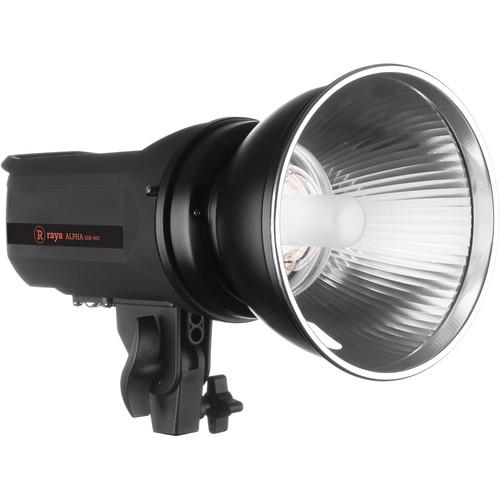

User Manual for Raya SDR-400 Alpha Monolight Click to enlarge the picture
Contents of the user manual for the Raya SDR-400 Alpha Monolight
- Product category: Monolights Raya
- Brand: Raya
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raya Monolights
 |
User manual for the Raya SDR-400 Alpha Monolight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raya product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raya user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raya product will considerably shorten its lifespan!
|

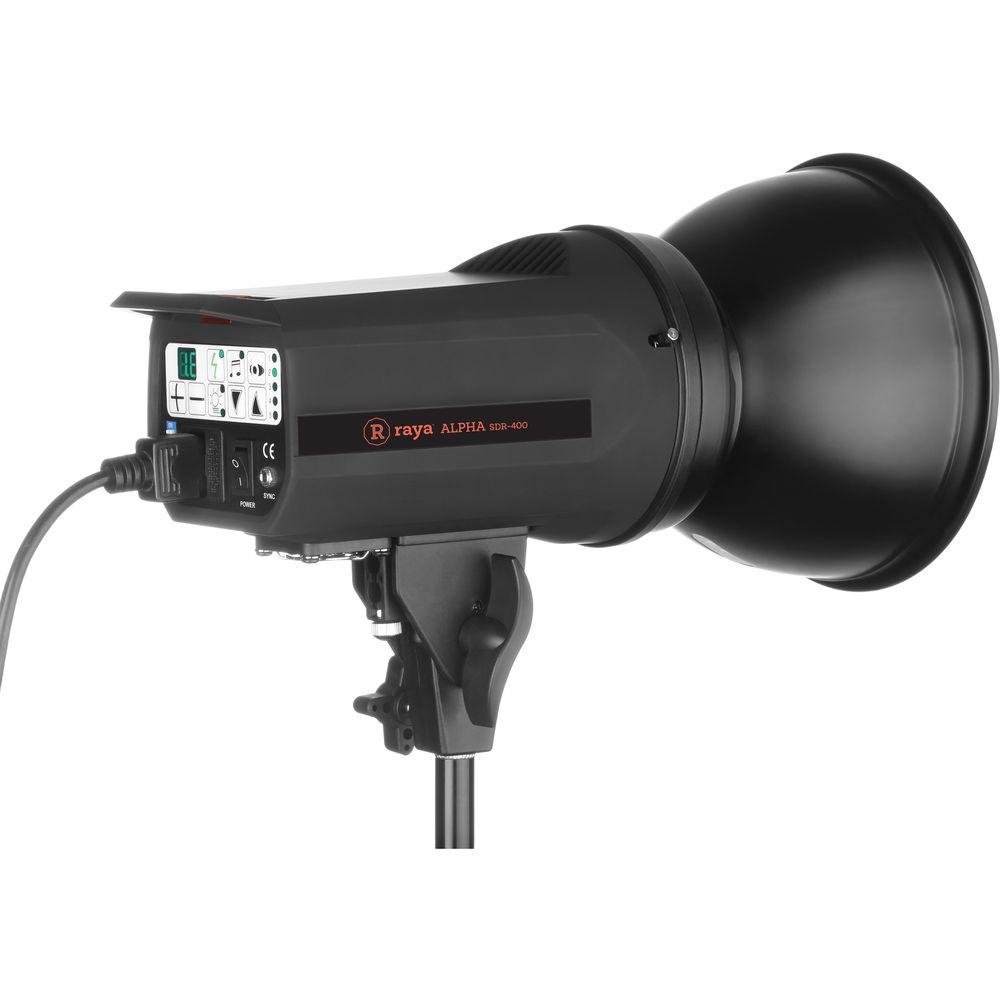

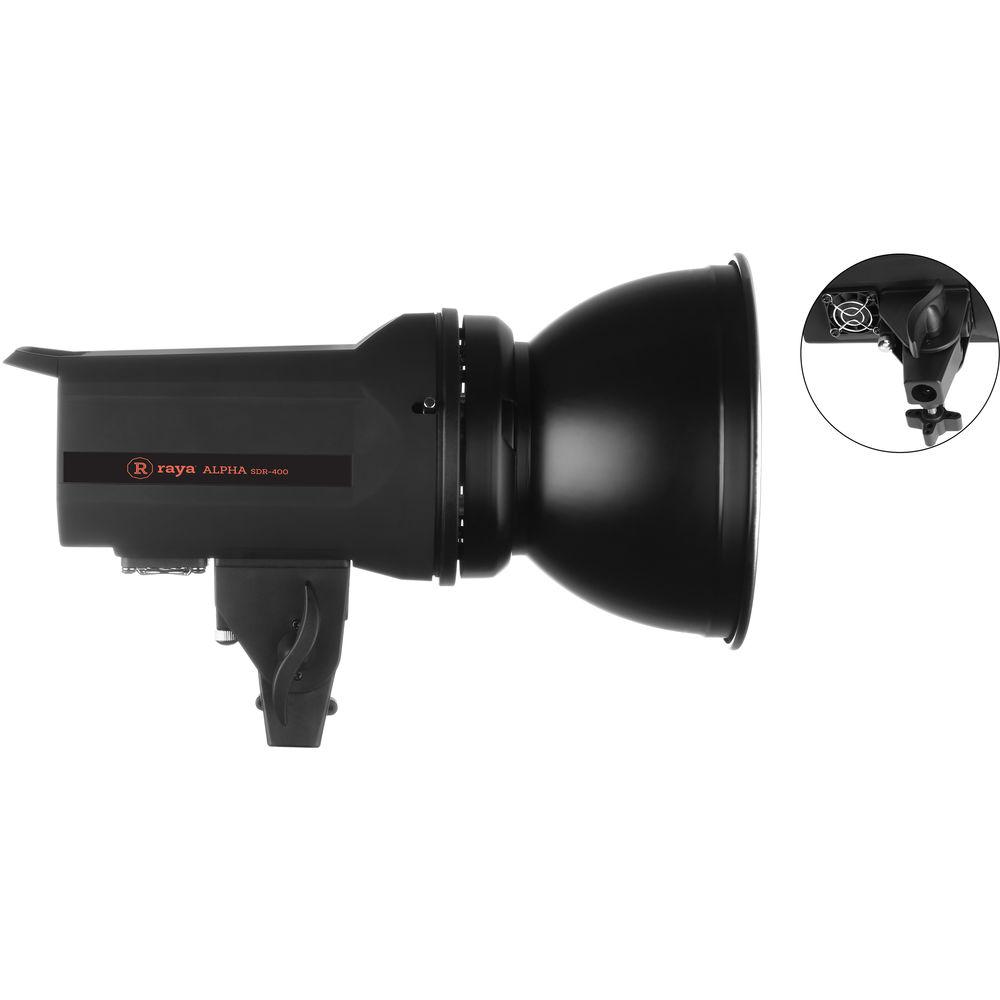

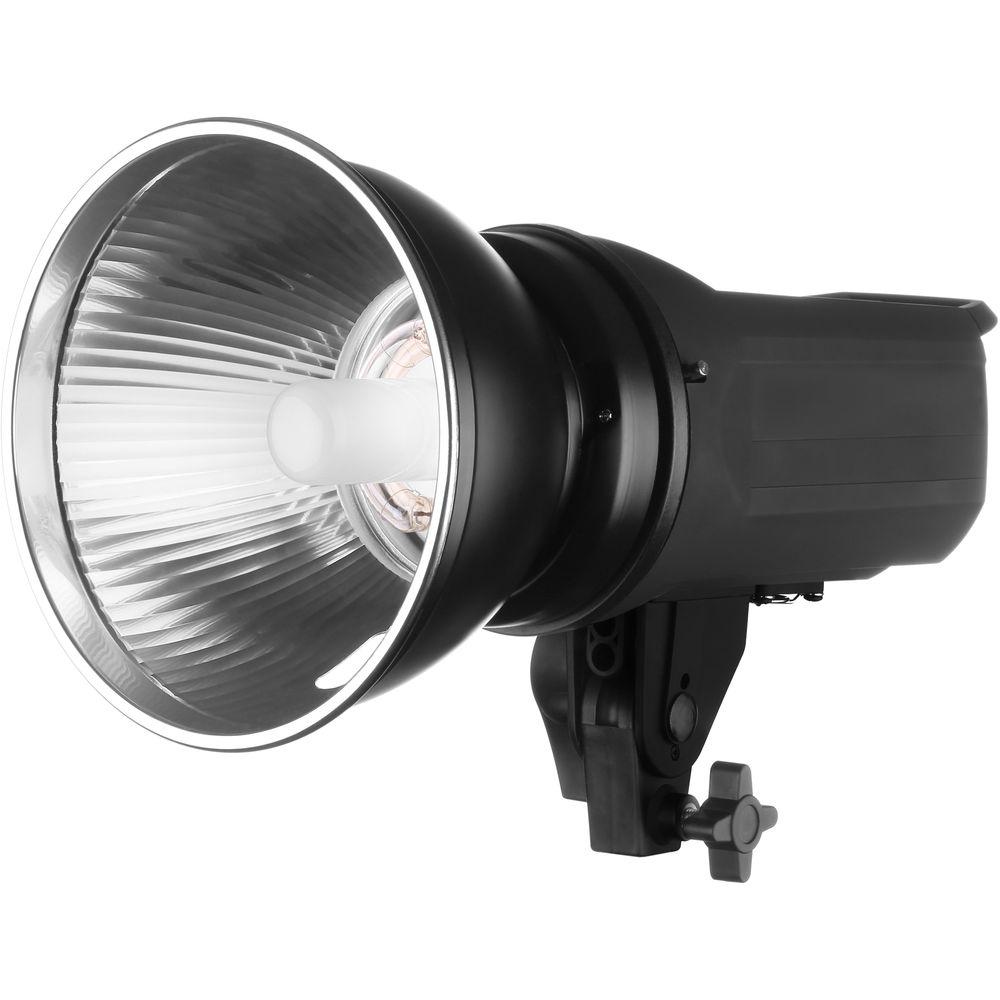

Product description With 400Ws of power backed with solid control and convenience features such as wireless triggering, the SDR-400 Alpha Monolight from Raya is a wise choice for studio and location photographers alike.The SDR-400's power is variable from 1/32 to full in 1/10 stop increments over a 6-stop range. The 150W modeling light can be set to proportional to visually match the selected power level for easy pre-visualization of your photo. The modeling light can be turned off completely or set to Independent to input any user-selected light level. The lamp can also be set to dim upon triggering and power up when the flash head is fully recycled.Recycling time is a fast 0.2 - 2.2 sec @ 120 VAC and faster at 220-240 VAC with an action-stopping flash duration of 1/1000 sec and a color temperature of 5,600K that varies only +/- 100K regardless of power settings. The SDR-400 has multiple triggering options including a traditional sync cord and an optical slave but it also has a built-in radio receiver that can be triggered at distances up to 82' by the included 4-Channel transmitter. Settings include sync delay, red-eye reduction and synchronous triggering.Other features include fan-cooling using auto temperature control to lengthen the life of the flash tube and modeling lamp and protect the unit's electronics, as well as fused circuit protection. The rubberized high strength polymer housing has a S-type mount to take advantage of the wide range if accessories made available by Raya, Impact and other brands that use this mount. The SDR-400 comes with a 7" umbrella/grid reflector, power cord, sync cord, protective cap, 115V modeling lamp and user-replaceable flash tube. Swap the modeling lamp out for a 220V type when used overseas. - Precision Light Adjustments
- The SDR-400 monolight's flashtube has a 6-stop power range, represented by a 10-60 numbered scale on the LED screen. You can subtly increase the power of the light in 0.1 increments with a push of a button
- Wireless Triggering

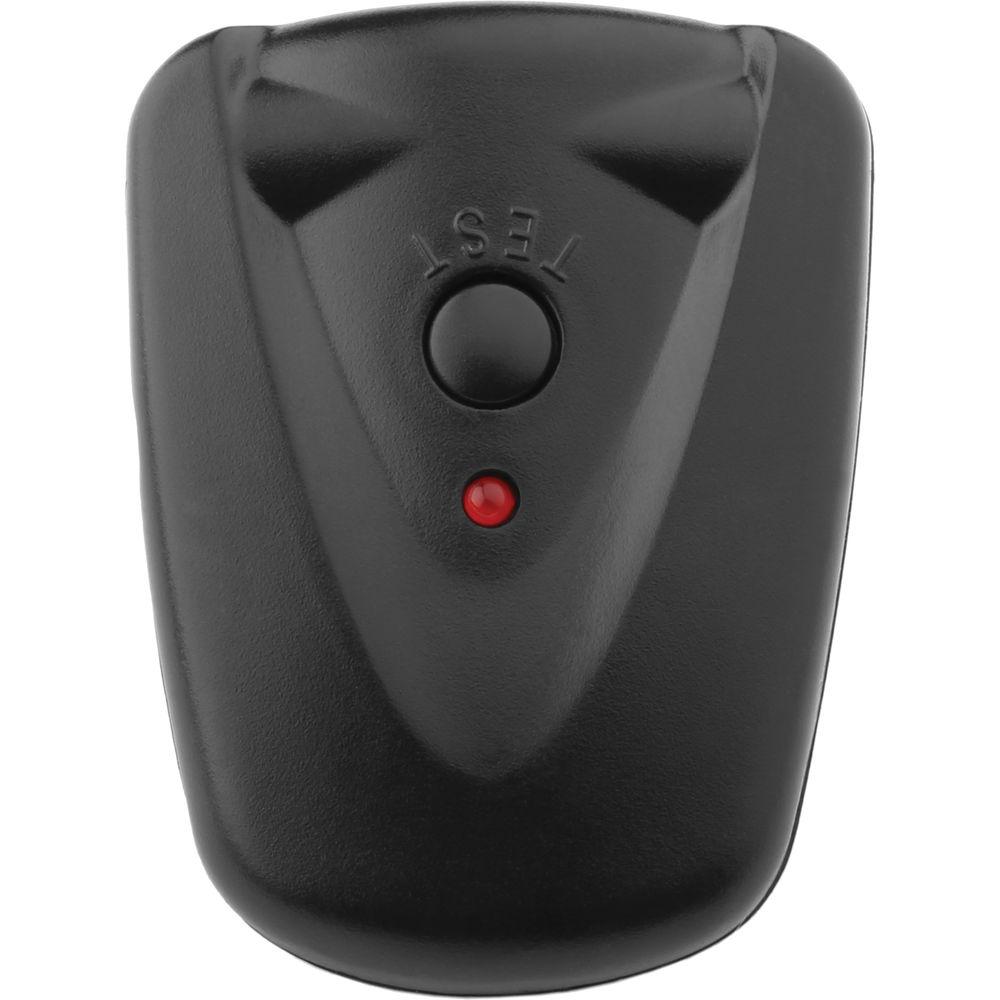

- The SDR-400 has an integrated 4-channel wireless receiver. Using the included transmitter, you can wirelessly trigger your flash unit from up to 82' away. Line-of-sight positioning is not required for your monolight to communicate with the transmitter
- Proportional and Independent Modeling Lamp Control
- This flash unit has a 150W, 2-mode, user-replaceable modeling light. Proportional mode keeps the bulb's power output proportional to the flashtube's power level. Independent mode allows you to set your own custom modeling light output level
- Built-In IR Slave and Pre-Flash Modes

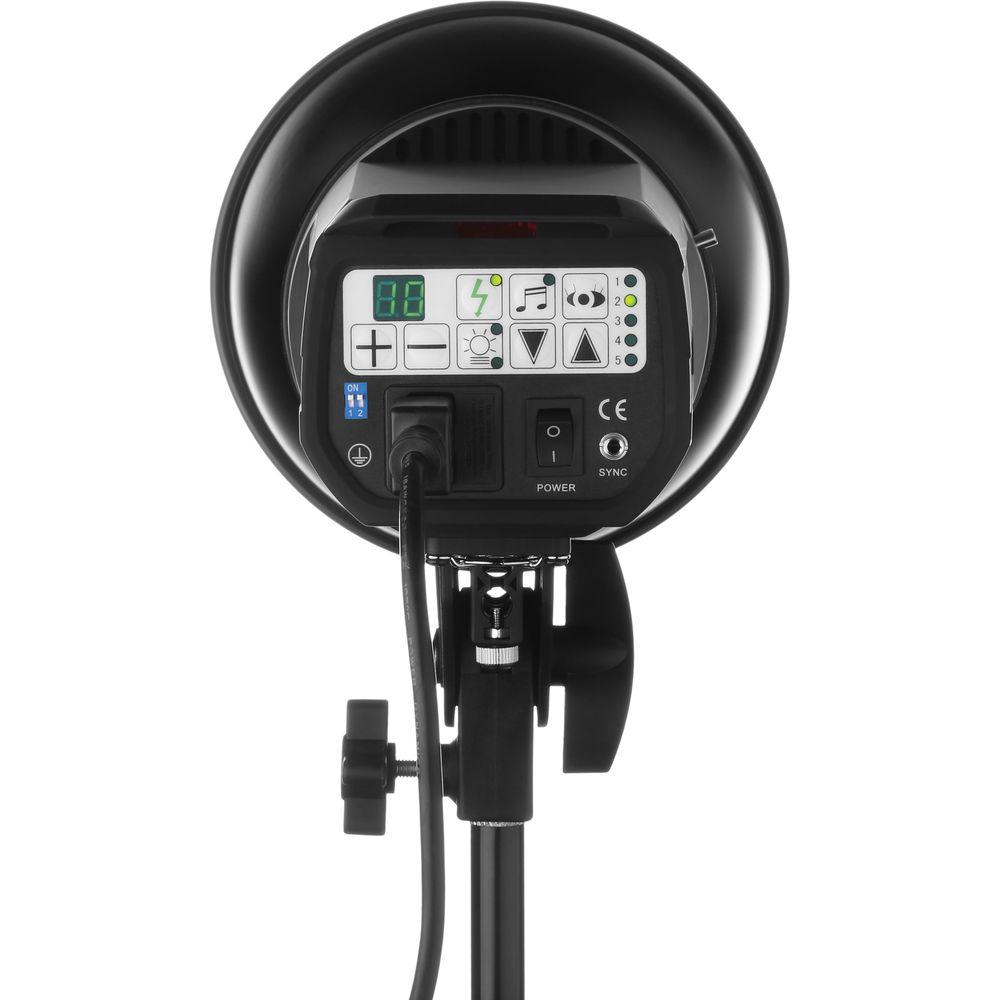

- The Raya SDR-400 Alpha Monolight has five slave settings, ranging from an optical slave mode to modes that will trigger the unit with external flashes with up to three pre-flashes. Select your desired mode with the clearly marked digital control panel
- Soft Start Circuitry (SSC)
- The built-in Soft Start Circuitry (SSC) ensures longer modeling lamp life. When the modeling lamp is turned on, it will light up at the minimum brightness and gradually climb to the full power output
- User-Replaceable Bulbs and Fuses

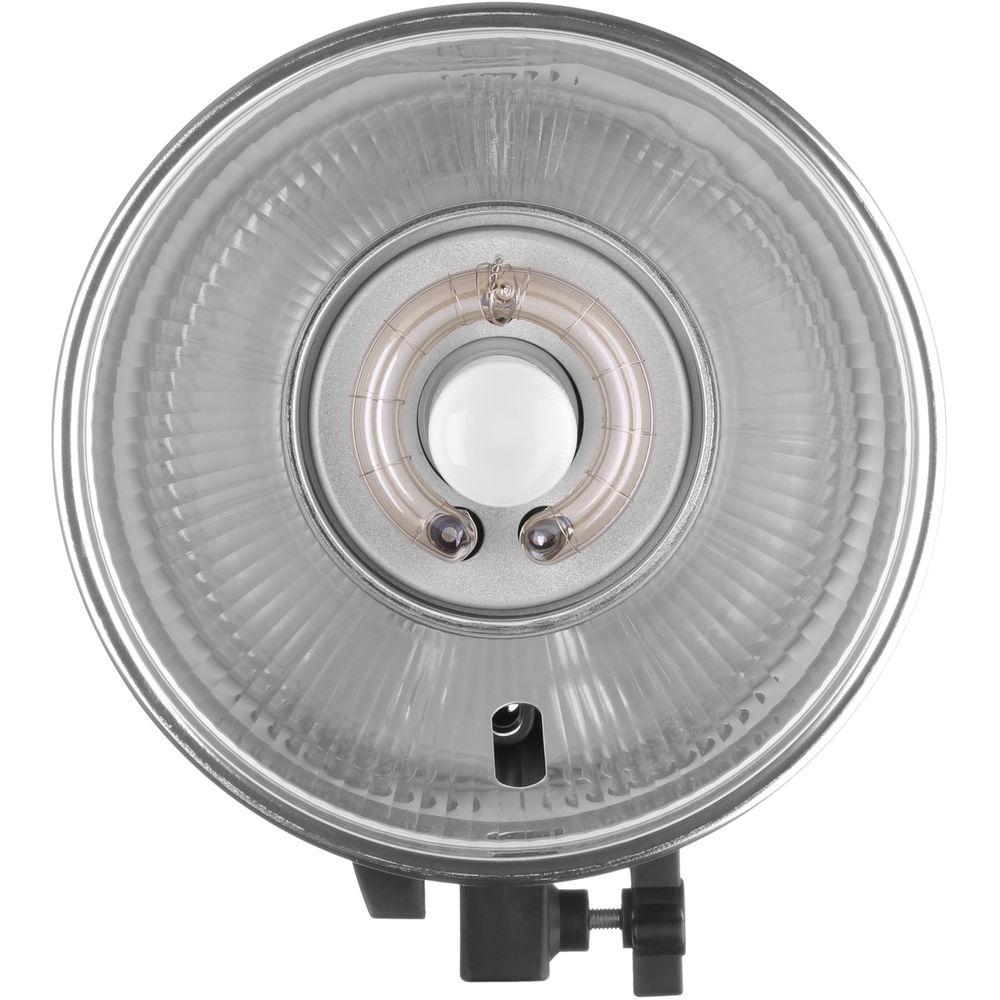

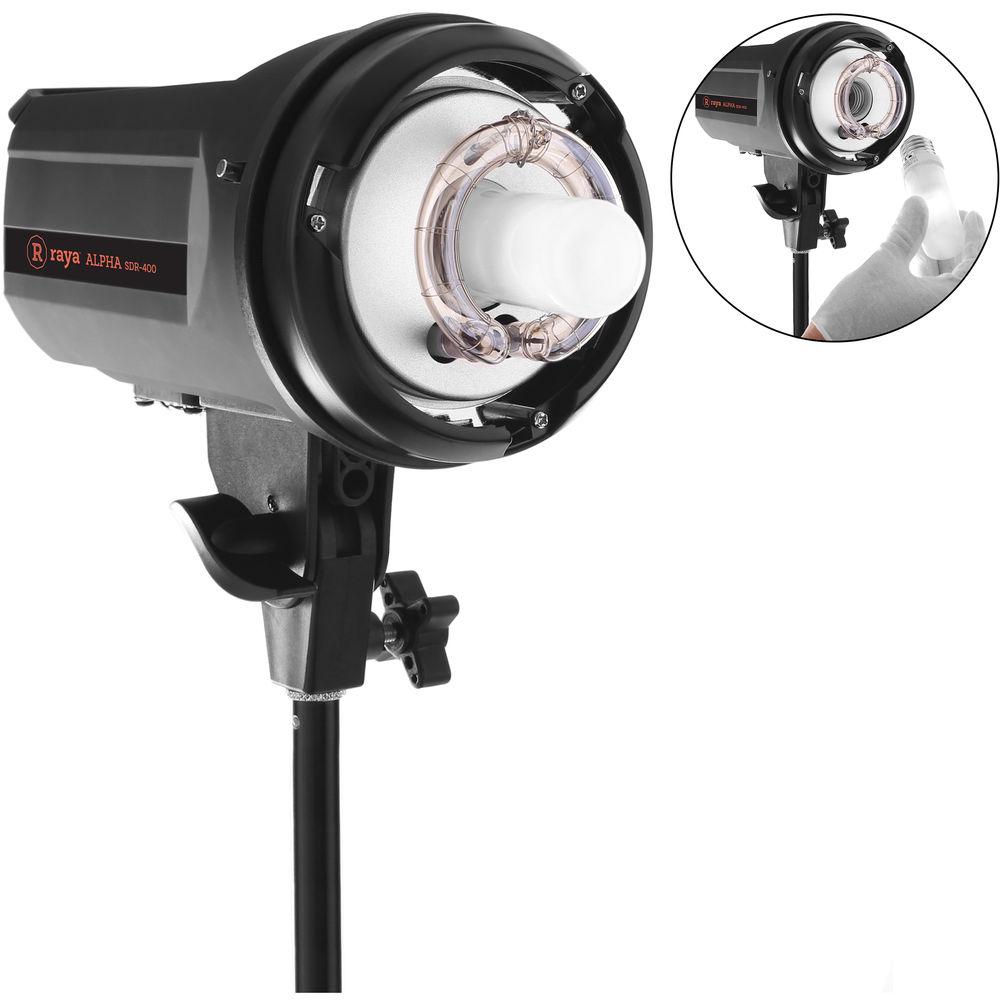

- Both the flashtube and modeling light of the SDR-400 are user-replaceable. Additionally, the fuse compartment is removable for easy fuse replacement
- Sleek, Durable, and Easily Transported

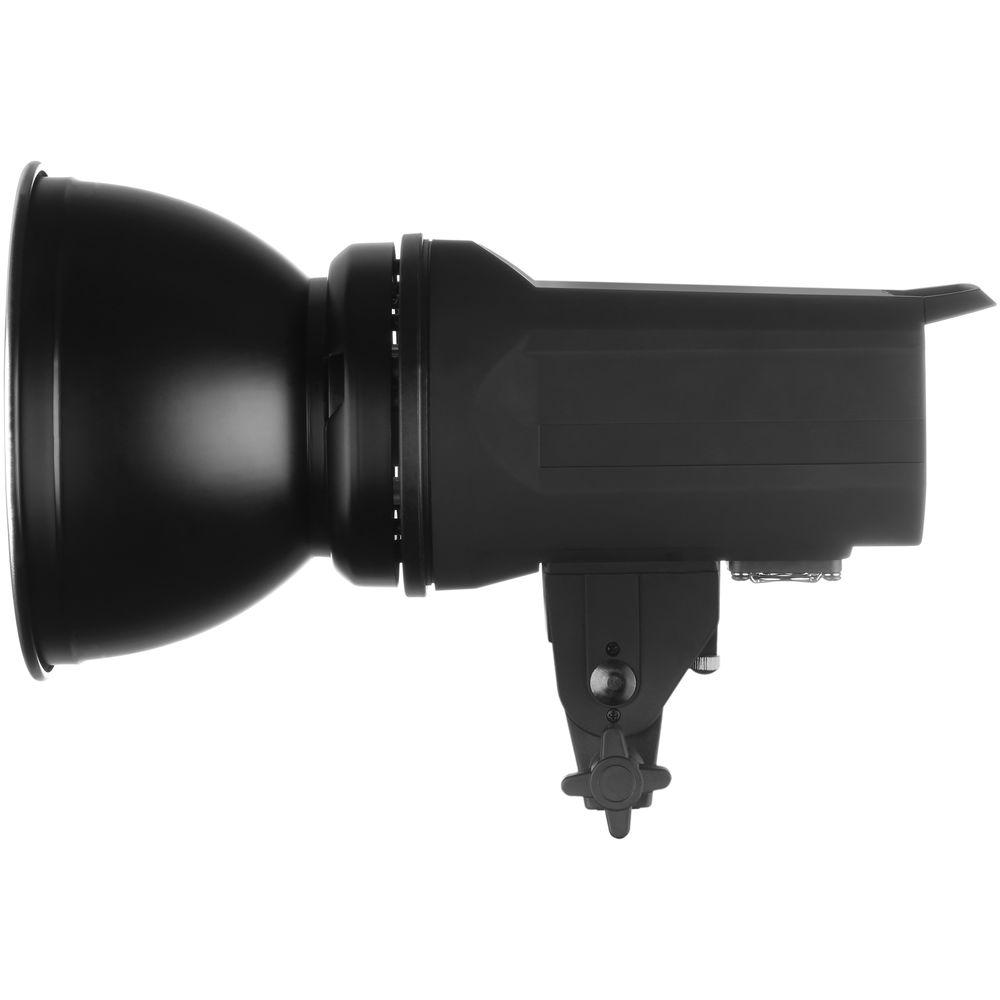

- Built with high-quality rubberized polymer, the durable SDR-400 is lightweight and compact, making it easy to transport. A protective cap is provided for the flash tube and modeling lamp
UPC: 847628581623 In the Box Raya SDR-400 Alpha Monolight Umbrella/Grid Reflector Wireless 4-Channel Transmitter AC Cord (16') Sync Cord (11') Halogen Modeling Lamp (150W, 115V) Protective Cap Limited 1-Year Warranty User Manual PDF 1.5mbebayyxyebffqdbadfffcwrctetuyxazy Table of Contents
|
Upload User Manual
Have you got an user manual for the Raya SDR-400 Alpha Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaya SDR-400 Specs | | | Maximum Power | 400 Ws | | Power Control | 6 Stops in 1/10-Stop Increments | | Guide Number | 165' / 50.3 m at 10' / 3 m, ISO100 | | Flash Duration | 1/1000 Sec (Full Power) | | Recycle Time | 0.2 to 2.2 Sec () | | Color Temperature | 5600K ± 100K | | Flash Ready Indicator | Audio, Visual | | Reflector | 7" / Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Base Type | E26/E27 | | Wattage | 150 W | | Control Modes | Independent, Off, Proportional | | | | Sync Type | Optical, Radio | | Wireless Channels / Groups | 4 / X | | Interface | PC Sync (3.5 mm) | | Sync Voltage | 5 V | | | | AC Input Voltage | 100to240 VAC, 50 / 60 Hz | | Circuit Protection | Fuse, Soft Start Circuitry, Thermal Control | | Fuse | 10 A | | | | Display | None | | Mount | 5/8" / 16 mm Receptacle | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 8.0 x W: 5.0 x L: 13.0" / H: 20.3 x W: 12.7 x L: 33.0 cm | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 6.7 lb | | Box Dimensions (LxWxH) | 15.8 x 10.0 x 8.6" |
