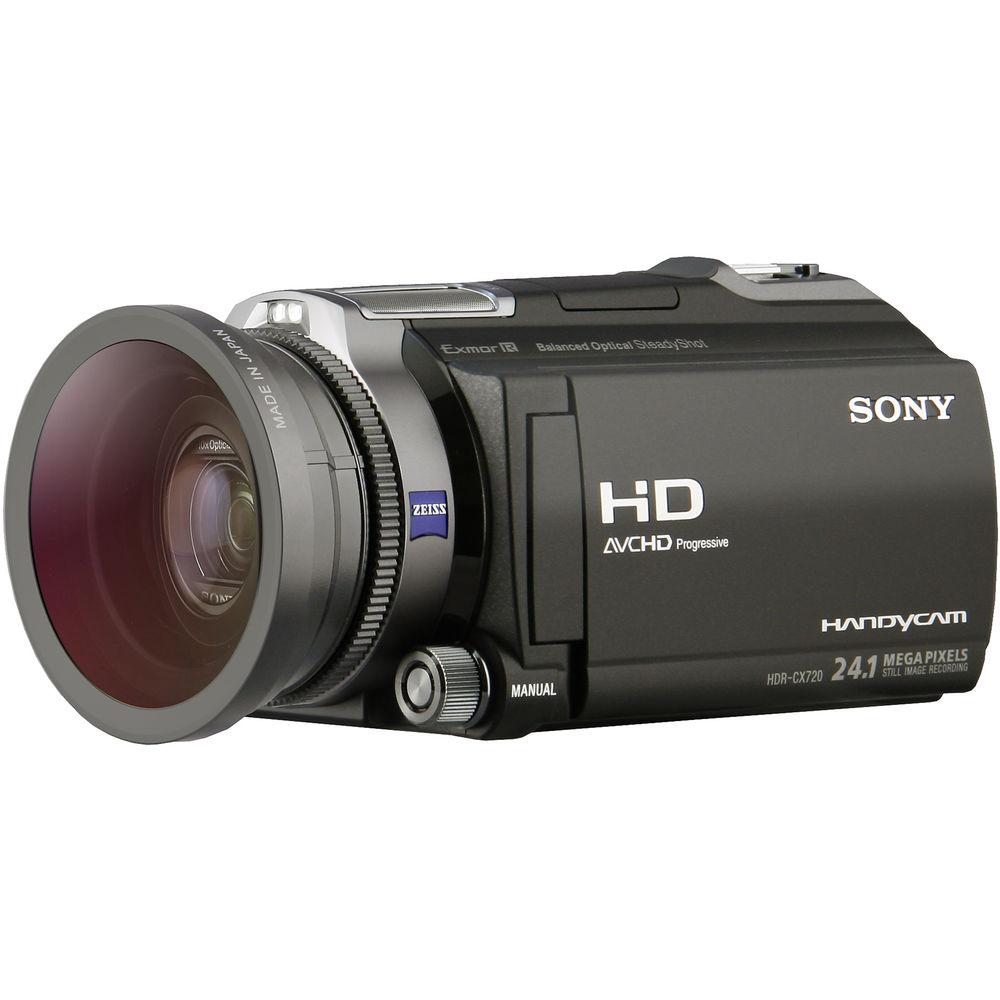

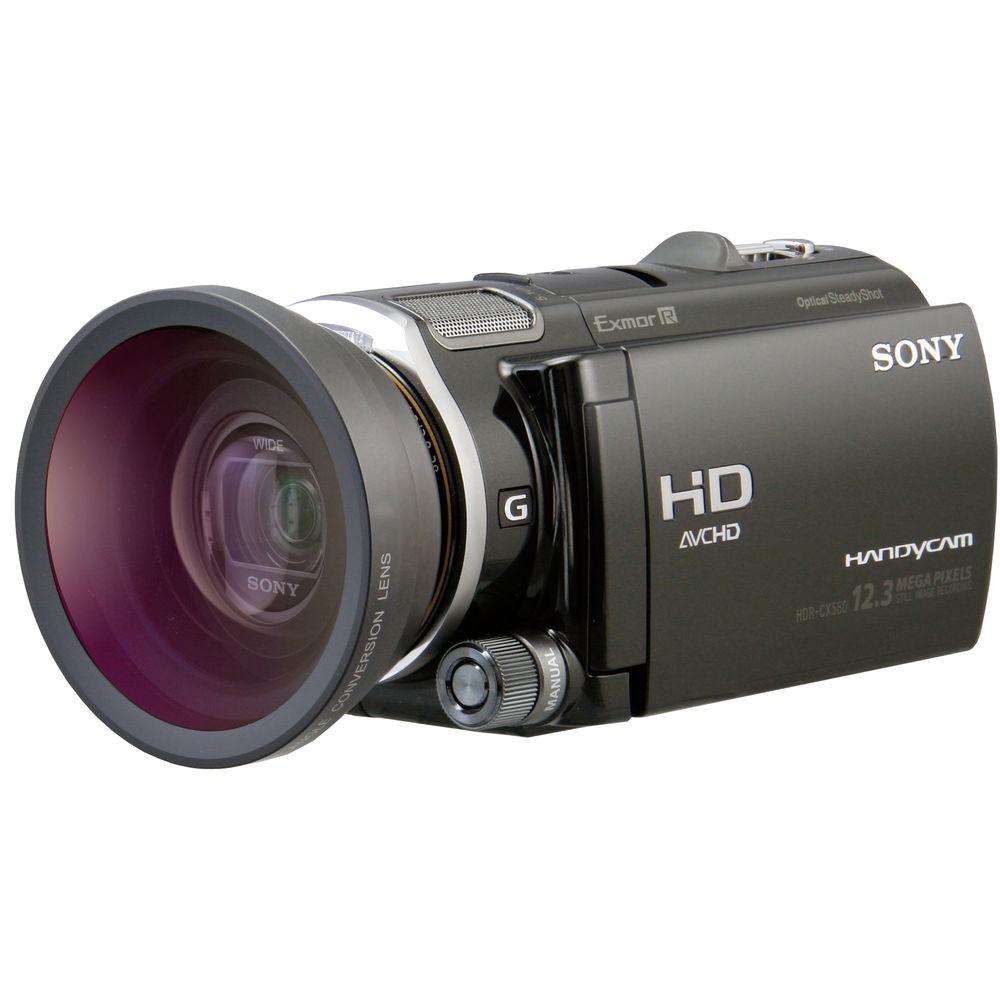

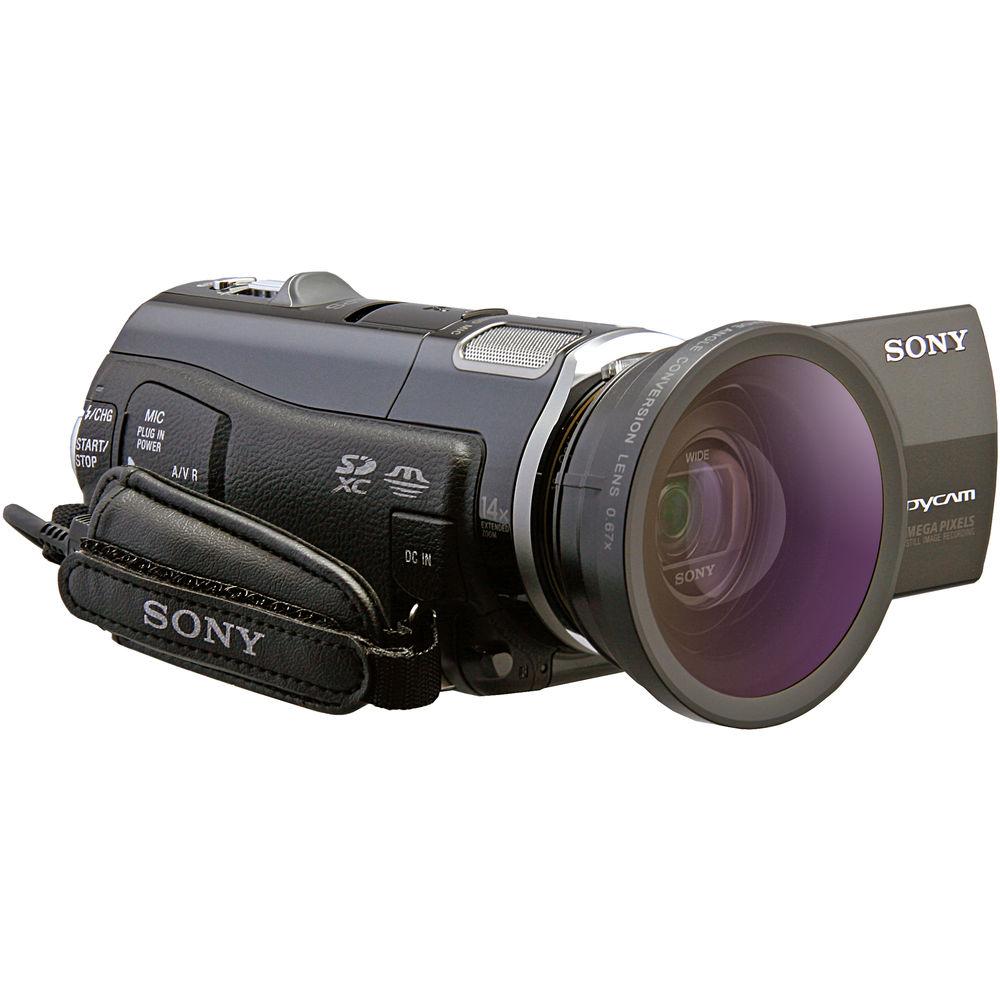

Product description The Raynox HDS-680K Wide Angle Conversion Lens is compatible with select JVC and Sony 4K/HDV cameras that have an integrated super wide zoom lens. Please see specific camera models listed below.
Two adapter rings (37mm and 43mm) are included for compatibility with most of these cameras. An optional step-down ring is required for the rest. The step-down ring may already come included with the camera.
The lens features a 0.67x nominal magnification, and is designed to keep focus through up to a 10x zoom range. It has a 2-group/2-element design, and features high-index optical glass. - Compatible Cameras
-
- JVC GZ-RX600
- JVC GZ-A400
- JVC GZ-F200
- Sony HDR-CX160, CX180, CX370V, CX485, CX550V, CX560V, CX580V, CX580VE, CX700V
- Sony CX430V (46mm) and CX760V (52mm) require a 37mm step-down ring
- Sony HDR-PJ20, PJ30V, PJ30VE, PJ40V,PJ580V, PJ580VE
- Sony PJ430V (46mm), PJ650V (46mm), PJ650VE (46mm), PJ710V (52mm), PJ760V (52mm), PJ790V (52mm), and PJ800 (46mm) require a 37mm step-down ring
- Sony HDR-XR350V, XR550V
- Sony HXR-MC50J
- Sony HXR-NX70U, NX70E, NX70P
- Sony NX30 (52mm) and NX30U (52mm) require a 37mm step-down ring
- Note
-
- When used with a camera other than those listed, magnification may be reduced
- Do not use the camera's built-in flash when the HDS-680K lens is attached (the shadow of the lens may display on the image)
- There is a chance the camera's remote control may malfunction while the HDS-680K lens is attached; it's recommended to run a rehearsal shot first
- You may at times detect a white dot in the HDS-680K lens when looking into it from the front; this is normal and would not affect image quality
- Made in Japan
UPC: 024616120488 In the Box Raynox 0.67x Wide Angle Conversion Lens for Wide Zoom Cameras 30mm Adapter Ring, 0.75 Pitch 43mm Adapter Ring, 0.75 Pitch Lens Protection Case Front Lens Cap Rear Lens Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raynox 0.67x Wide Angle Conversion Lens for Wide Zoom Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaynox HDS-680K Specs | Material of Construction | Solid metal and ABS/PC hybrid body | | Magnification | Nominal 0.67x, actual 0.53x diagonal, 0.67x horizontal | | Lens Elements/Groups | 2/2 (coated optical glass elements) | | MTF Performance | 30% (355 lines/mm resolution at center) | | Distortion | -18.5% (max wide angle) | | Front Filter Threads | None | | Threaded Mount | 0.75 pitch for 37mm | | Dimensions | H x Diameter: 1.2 x 2.6" (3 x 6.6 cm) | | Weight | 4.4 oz (125 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 3.7 x 3.6 x 2.7" |
