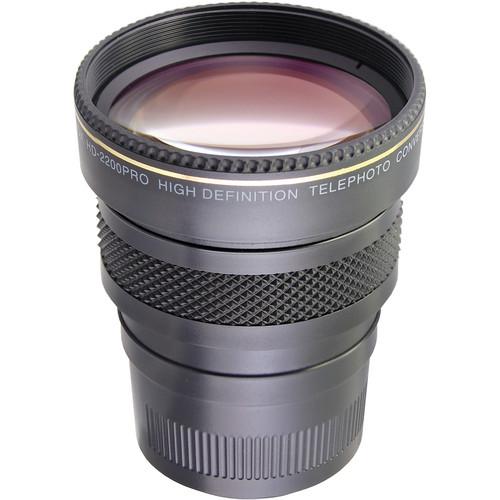

User Manual for Raynox HD-2200PRO-LE 2.2x High-Definition Super Telephoto Conversion Lens Click to enlarge the picture
Contents of the user manual for the Raynox HD-2200PRO-LE 2.2x High-Definition Super Telephoto
- Product category: Lenses Raynox
- Brand: Raynox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raynox Lenses
|
User manual for the Raynox HD-2200PRO-LE 2.2x High-Definition Super Telephoto contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raynox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raynox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raynox product will considerably shorten its lifespan!
|
Product description The HD-2200PRO-LE+ 2.2x High-Definition Telephoto Conversion Lens from Raynox is made of high index coated optical glass elements using the 2-group/4-element lens formula. This high-definition telephoto lens boasts 200 lines/mm resolution power at center (MTF30%). This telephoto lens is recommended to be used with HDV, AVCHD compact high-definition camcorders and is designed for use at maximum telephoto position of the camera's zoom lens. The Raynox conversion lens is made in Japan, wherein it is tested so that the lens elements compensate effectively for astigmatism, distortion, and spherical aberration to render good image quality. The lens shade, included with this telephoto lens cuts unwanted light beams, and helps prevent flare and ghost image effect considerably. Use the LCD monitor screen for getting a precise picture framing, not through the optical view finder. Note: • Zooming towards the wide angle side while the lens is attached may result in some degree of darkening at the corners of the frame(vignetting).
• Be careful while handling the camera with the lens attached.
• The specifications and cosmetic designs may change without a notice. Do not use the built-in flash while the HD-2200PRO-LE+ is attached.
• Screw-thread pitch size is 0.75mm unless specified.
• The lens is not compatible with Sony DCR-DVD301/201/101.
• The lens is neither dust-free nor moisture-/water-proof. UPC: 024616120440 In the Box Raynox HD-2200PRO-LE+ 2.2x High-Definition Super Telephoto Conversion Lens 5 x Adapter Ring for 27mm / 30mm/ 30.5mm / 34mm/ 37mm/ 43mm Filter Sizes Lens Shade Lens Cap Lens Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raynox HD-2200PRO-LE 2.2x High-Definition Super Telephoto Conversion Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaynox HD-2200-LE+ Specs | Magnification | 2.2x | | Rear Thread | 37 mm | | Front Thread | 55 mm | | Optical Design | 4 Elements in 2 Groups | | Coated | Single-Coated | | Dimensions |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
