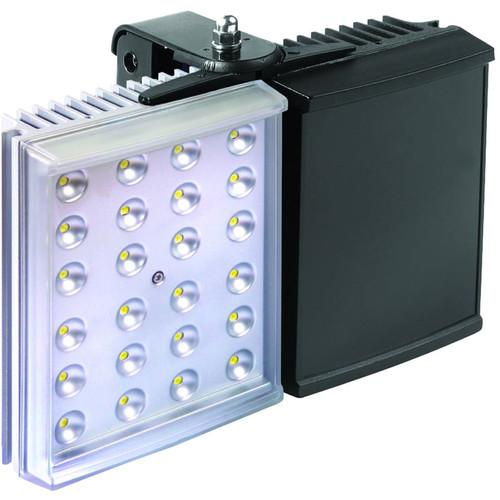

Product description The black/silver HYBRID 200 White Light & IR Illuminator from Raytec provides a beam angle of 240° for IR and 120° for white light. It integrates RAYMAX IR and RAYLUX white light LEDs into a single, flexible lighting unit. The unit incorporates surface mount LEDs to deliver improved night-time pictures with enhanced optical output. The illuminator is fitted with Active LED Life Control to control output, delivering consistent illumination white light LEDs for a projected working life of 10 years. The illuminator is supplied with a bracket and power supply. Control features on the power supply include an adjustable power output, independent control of IR and white light, and photocell and telemetry control. The illuminator is suitable for installations that require a mixture of IR and white light. -
- IR and white light in a single unit
- Platinum LED technology and light intensification miniature optics
- Includes a power supply with adjustable power output, photocell, telemetry control, and independent control
- Cool Running system draws heat away from the LEDs to improve the performance and ensure consistency of illumination throughout the operational life of the illuminator
- IP66-rated weather-resistant and vandal-resistant polycarbonate lens design protects against severe blows from crowbars, baseball bats, and can even withstand successive shots from air pistols and rifles (range-dependent)
- Even output illumination
- Active LED Life control
- IR for constant covert surveillance
- White light for deterrent purposes and color images
- HD ready
- Applications
-
- Prisons
- Industrial parks
- Airports
- Dumping grounds
- Military base stations
In the Box Raytec HYBRID 200 White Light & IR Illuminator with Standard Power Supply (120°, Black/Silver) Bracket Standard Power Supply Unit Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec HYBRID 200 White Light & IR Illuminator with Standard Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec HYBRID 200 Specs | | | White Light Lamp | Distance: | | Angle | IR: 2 x 30°
White Light: 30° | | Optics | SMT LEDs | | Consumption | 80 W max | | Voltage | 13.5 and 14 V current controlled | | IP Rating | IP66 | | Storage Temperature | -58 to 122°F / -50 to 50°C | | Cable Length | 8.2' / 2.5 m | | Wavelength | 850 nm and white light | | Dimensions | 11 x 8 x 3" / 280 x 195 x 66 mm approximately | | Weight | 8.8 lb / 4 kg | | | | Input | Universal 100 to 230 VAC auto-sensing | | Output | 80 W maximum | | Temperature | -58 to 122°F / -50 to 50°C | | Dimensions | 9 x 6 x 3" / 240 x 160 x 81 mm approximately | | Weight | 5.3 lb / 2.4 kg |
