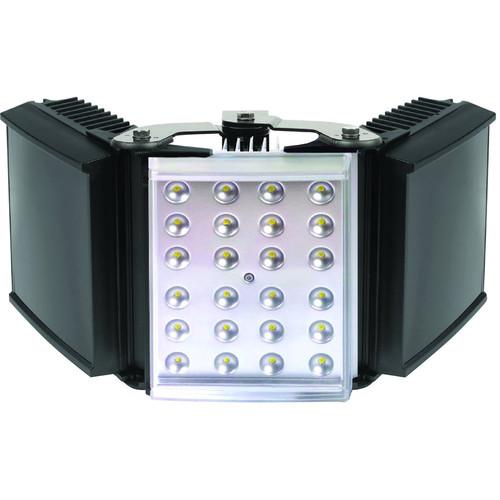

User Manual for Raytec HYBRID 300 White Light & IR Illuminator with Standard Power Supply Click to enlarge the picture
Contents of the user manual for the Raytec HYBRID 300 White Light &
- Product category: Illuminators Raytec
- Brand: Raytec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raytec Illuminators
User manual for the Raytec HYBRID 300 White Light & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raytec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raytec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raytec product will considerably shorten its lifespan!
Product description The black/silver HYBRID 300 White Light & IR Illuminator from Raytec provides a beam angle of 20° for IR and 10° for white light. It integrates RAYMAX IR and RAYLUX white light LEDs for into a single, flexible lighting unit. The unit incorporates surface mount LEDs to deliver improved night-time pictures with enhanced optical output. The illuminator is fitted with Active LED Life Control to control output, delivering consistent illumination for a projected working life of 10 years. The illuminator is supplied with a bracket and power supply. Control features on the power supply include an adjustable power output, independent control of IR and white light, and photocell and telemetry control. The illuminator is suitable for installations that require a mixture of IR and white light.
- IR and white light in a single unit
- Platinum LED technology and light intensification miniature optics
- Includes a power supply with adjustable power output, photocell, telemetry control, and independent control
- Cool Running system draws heat away from the LEDs to improve the performance and ensure consistency of illumination throughout the operational life of the illuminator
- IP66-rated weather-resistant and vandal-resistant polycarbonate lens design protects against severe blows from crowbars, baseball bats, and can even withstand successive shots from air pistols and rifles (range-dependent)
- Even output illumination
- Active LED Life control
- IR for constant covert surveillance
- White light for deterrent purposes and color images
- HD ready
In the Box Raytec HYBRID 300 White Light & IR Illuminator with Standard Power Supply (10°, Black/Silver) Bracket Standard Power Supply Unit Limited 5-Year Warranty Table of Contents
- Industrial parks
- Dumping grounds
- Military base stations
Upload User Manual
Have you got an user manual for the Raytec HYBRID 300 White Light & IR Illuminator with Standard Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Raytec HYBRID 300 Specs
| Angle || IR: 2 x 30° |
White Light: 30°
| Optics || SMT LEDs |
| Consumption || 120 W max |
| Voltage || 13.5 and 14 V current controlled |
| IP Rating || IP66 |
| Storage Temperature || -58 to 122°F / -50 to 50°C |
| Cable Length || 8.2' / 2.5 m |
| Wavelength || 850 nm and white light |
| Dimensions || 16 x 8 x 3" / 210 x 150 x 65 mm approximately |
| Weight || 13.2 lb / 6 kg |
| Input || Universal 100 to 230 VAC auto-sensing |
| Output || 120 W maximum |
| Temperature || -58 to 122°F / -50 to 50°C |
| Dimensions || Approximately 9 x 6 x 3" / 240 x 160 x 81 mm |
| Weight || 5.3 lb / 2.4 kg |
