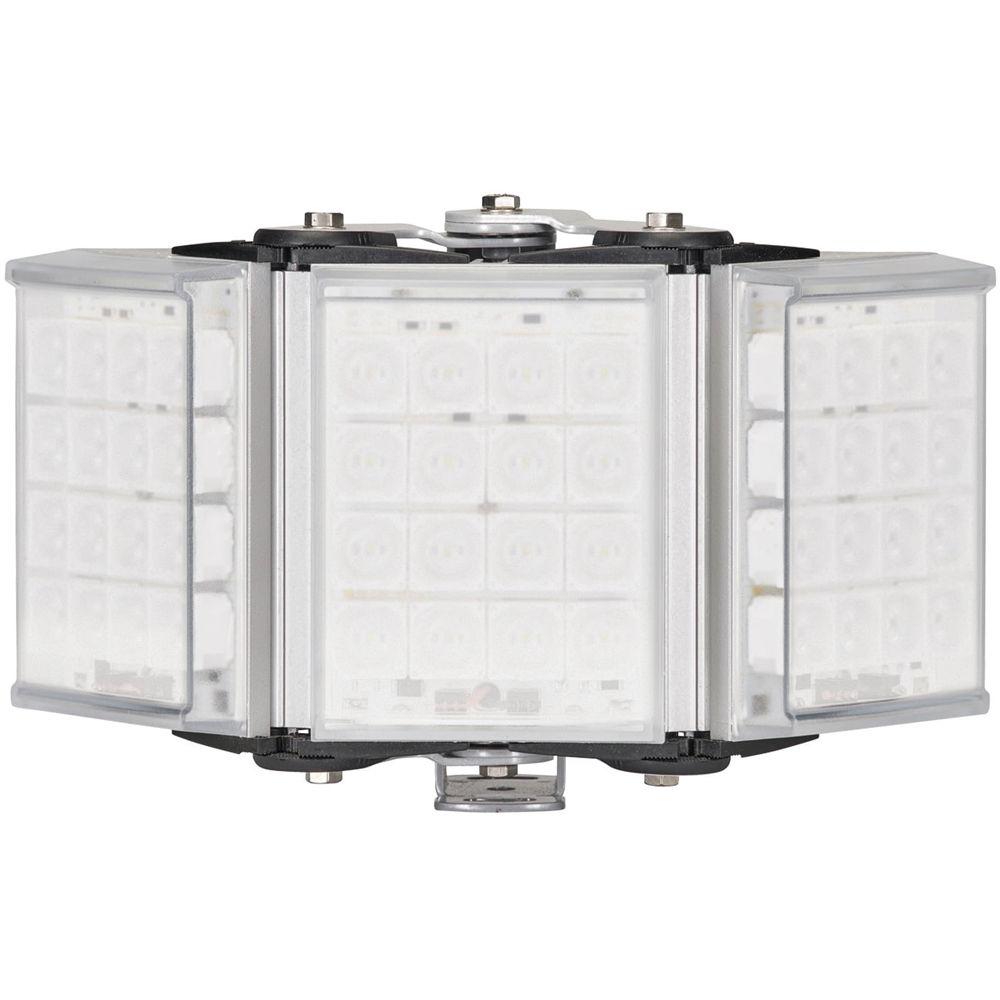

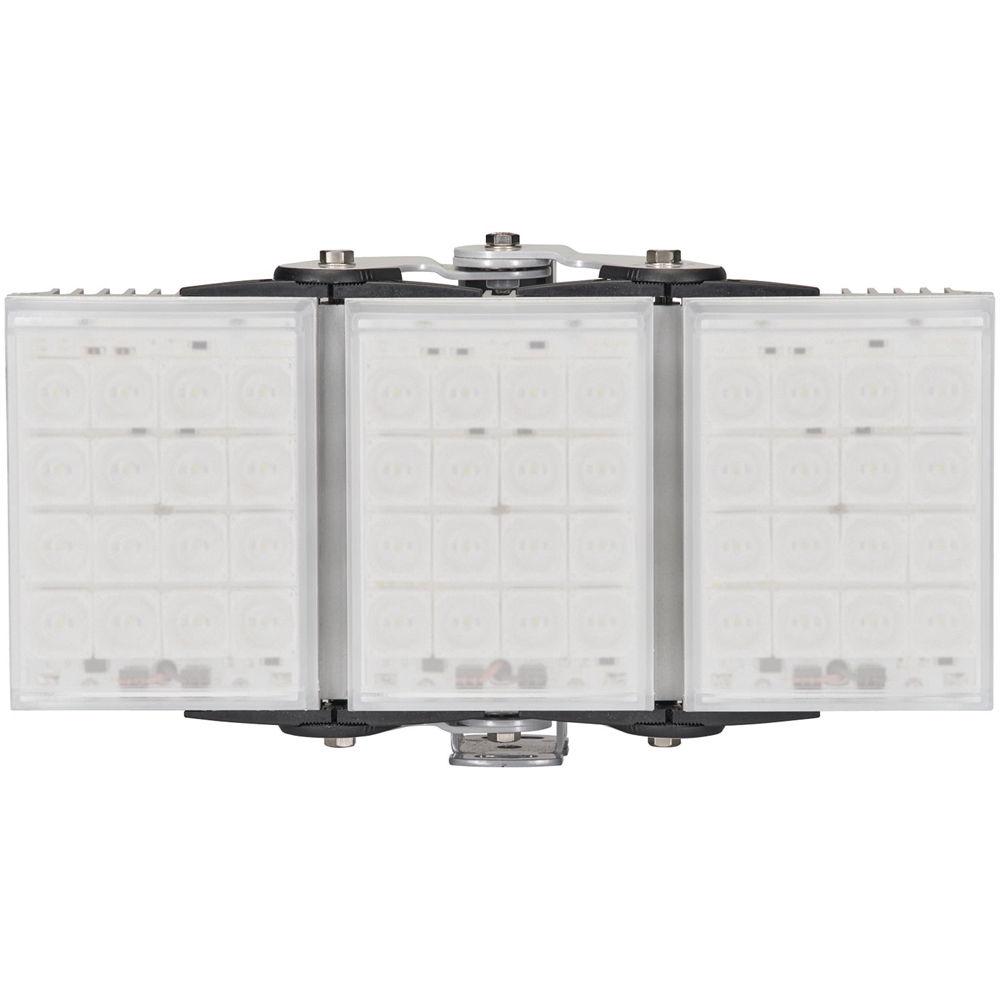

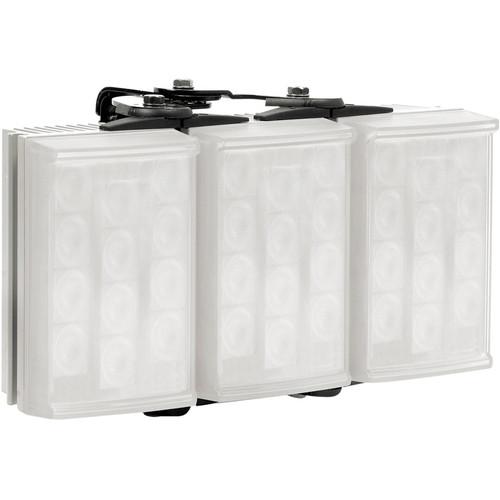

Product description The silver RAYLUX 150 White-Light LED Illuminator from Raytec provides a beam angle of 50 to 180°. It is equipped with surface mount LEDs to provide even illumination and clear night-time images for surveillance cameras and general area lighting. The illuminator uses the Adaptive Illumination concept to alter the angle of illumination onsite to suit required lighting specifications. The RAYLUX 150 illuminator provides a white-light output of 110 lumens/W at the LED source and an independently tested luminaire output of 4600 lumens. The unit is fitted with Active LED Life Control to control LED output, delivering consistent illumination power and a projected working life of 10 years. The RAYLUX 150 illuminator comes with a bracket and power supply. Control features on the power supply include adjustable power output, photocell, and telemetry control. The illuminator is designed for low-light installations up to 180'. - 360° coverage with only 2 units
- IP66-rated weather-resistant and vandal-resistant enclosure
- Includes a power supply with adjustable power output for IR, adjustable photocell, and telemetry control
- Used at prisons, water reservoirs, industrial parks, dome systems, and power plants
In the Box Raytec RAYLUX 150 White-Light LED Illuminator with Adaptive Illumination (50 to 180°, Silver) U Bracket Adaptive Illumination Bracket Standard Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec RAYLUX 150 White-Light LED Illuminator with Adaptive Illumination in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec RAYLUX 150 Specs | | | Lumens | Source: 110 lumens/W
Luminaire: 75 lumens/W
Total Lumens: 4600 per luminaire | | Maximum Distance | Narrow Angle: Up to 180' / 55 m
Wide Angle: Up to 105' / 32 m | | Angle | 50 to 180° | | Optics | SMT LEDs | | Consumption | 75 W (maximum) | | Voltage | 14 V current controlled | | Color Temperature | 6500K | | CRI | 74 to 80+ | | IP Rating | IP66 | | Temperature Range | -58 to 122°F / -50 to 50˚C | | Cable Length | 8.2' / 2.5 m | | Wavelength | White light | | Dimensions | 12 x 5 x 2" / 315 x 135 x 55 mm | | Weight | 8.3 lb / 3.75 kg | | | | Input | Universal 100 to 230 VAC auto-sensing | | Output | 120 W (maximum) | | Temperature | -58 to 122°F / -50 to +50°C | | Dimensions | 9 x 6 x 3" / 240 x 160 x 81 mm | | Weight | 5.3 lb / 2.4 kg |
