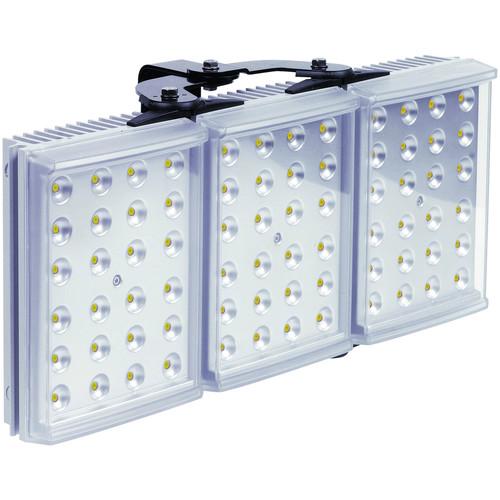

User Manual for Raytec RAYLUX 300 Long-Range White-Light Panoramic LED Illuminator with Adaptive Illumination Click to enlarge the picture
Contents of the user manual for the Raytec RAYLUX 300 Long-Range White-Light Panoramic
- Product category: Illuminators Raytec
- Brand: Raytec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raytec Illuminators
|
User manual for the Raytec RAYLUX 300 Long-Range White-Light Panoramic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raytec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raytec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raytec product will considerably shorten its lifespan!
|
Product description The silver RAYLUX 300 Long-Range White-Light Panoramic LED Illuminator from Raytec provides 180° illumination for clear images at night. The RAYLUX 300 illuminator uses holographic lens technology to spread and control light, creating a soft and even distribution. It features HRT (Hot-Spot Reduction Technology) to direct the light to the desired location and help deliver longer illumination distances and minimize light waste. This RAYLUX 300 illuminator is equipped with surface mount LEDs quick start lighting, enhanced life, and energy efficiency. The illuminator uses the Adaptive Illumination system to alter the angle of illumination on site anywhere from 60 to 180° to match a specific camera's field of view. This unit is fitted with Active LED Life Control to control LED output, delivering consistent illumination power and a projected working life of 10 years. The RAYLUX 300 illuminator comes with a bracket and power supply. Control features on the power supply include adjustable power output, photocell, and telemetry control. - 60 to 180° x 25° coverage
- Fully controllable power supply
- IP66-rated weather-resistant and vandal-resistant enclosure
- Hot-spot Reduction Technology
- Includes a power supply with an adjustable photocell, adjustable power output for IR, and telemetry control
In the Box Raytec RAYLUX 300 Long-Range White-Light Panoramic LED Illuminator with Adaptive Illumination Large AI Circular Bracket Standard Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec RAYLUX 300 Long-Range White-Light Panoramic LED Illuminator with Adaptive Illumination in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec RAYLUX 300 Specs | | | Lumens | Source: 92 lumens/W
Luminaire: 54 lumens/W
Total lumens: 7770 per luminaire | | Maximum Distance | Narrow Angle: Up to 272' (83 m)
Wide Angle: Up to 167' (51 m) | | Angle | 60 to 180° x 25° | | Optics | SMT LEDs | | Consumption | 165 W maximum | | Voltage | 14 V current controlled | | Color Temperature | 5700K | | CRI | 68 | | Environmental | IP66 | | Temperature Range | -58 to 122°F (-50 to +50˚C) | | Cable Length | 8.2' (2.5 m) | | Wavelength | White-light | | Dimensions | 16 x 8 x 3" (420 x 195 x 66 mm) | | Weight | 13.2 lb (6 kg) | | | | Input | Universal 100 to 230 VAC auto-sensing | | Output | Maximum 165 W | | Temperature | -58 to 122°F (-50 to +50°C) | | Dimensions | 9 x 6 x 3" (240 x 160 x 81 mm) | | Weight | 5.3 lb (2.4 kg) |
