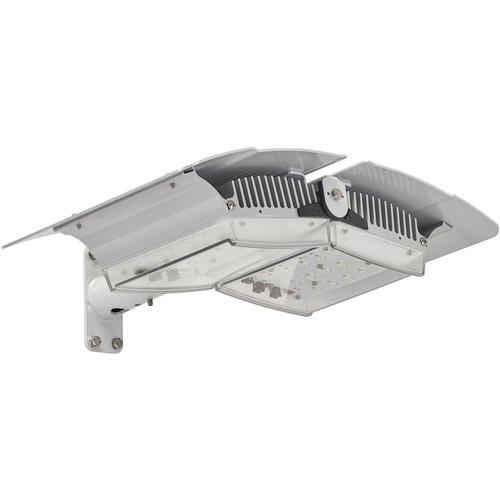

User Manual for Raytec RAYLUX Urban UBA-32 Multi-Purpose White-Light Dual-Panel LED Illuminator with Power Supply Click to enlarge the picture
Contents of the user manual for the Raytec RAYLUX Urban UBA-32 Multi-Purpose White-Light
- Product category: Illuminators Raytec
- Brand: Raytec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raytec Illuminators
|
User manual for the Raytec RAYLUX Urban UBA-32 Multi-Purpose White-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raytec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raytec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raytec product will considerably shorten its lifespan!
|
Product description The silver RAYLUX Urban UBA-32 Multi-Purpose White-Light Dual-Panel LED Illuminator from Raytec is designed to deliver lighting for multiple environments such as footpaths, car parks, and campus lighting, as well as lighting for surveillance cameras. It uses surface mounted LEDs to deliver white light output. The illuminator is fitted with Active LED Life Control to control LED output, delivering consistent illumination power and a projected working life of 10 years. It delivers quick-start illumination with no warmup period required. The Adaptive Illumination concept provides the flexibility to alter the angle of illumination on site to meet required specifications. -
- Includes a power supply with adjustable power output, photocell, and telemetry control
- Enhanced color rendition
- Even output illumination
- Integrated light spill shield
- Active LED life control
- IP66-rated weather-resistant enclosure
- Quick start
- Adaptive illumination
- Platinum LED technology
- Suitable for perimeter monitoring, car parks, and pathways in urban and architectural applications
In the Box Raytec RAYLUX Urban UBA-32 Multi-Purpose White-Light Dual-Panel LED Illuminator with Power Supply (120 to 180°, Silver) Standard Power Supply Unit Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec RAYLUX Urban UBA-32 Multi-Purpose White-Light Dual-Panel LED Illuminator with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec UBA-32-AI-120 Specs | | | Lumens | Source 110 lumens per watt, luminaire 60+ lumens per watt | | Lumens Brightness | 3,100 | | Angle | 120 to 180° | | Optics | SMT LEDs | | Consumption | 50 W maximum | | Voltage | 14 V current controlled | | Color Temperature | 6500K | | Reproduction Ratio | 74 to 80+ | | IP Rating | IP66 | | Temperature Range | -58 to 122°F (-50 to 50˚C) | | Photocell | Integrated into luminaire | | Cable Length | 1.6' (0.5 m)
Optional 16.4' (5 m) cable/photocell extension kit | | Dimensions | With Light Spill Shield: Approximately 14 x 8 x 3" (345 x 215 x 74 mm) | | Weight | 8.8 lb (4 kg) excluding brackets | | | | Input | Universal 100 to 230 VAC auto-sensing | | Output | 50 W maximum | | Temperature | -58 to 122°F (-50 to 50°C) | | Dimensions | 12 x 3 x 2" (300 x 80 x 55 mm) approximately | | Weight | 2.4 lb (1.1 kg) |
