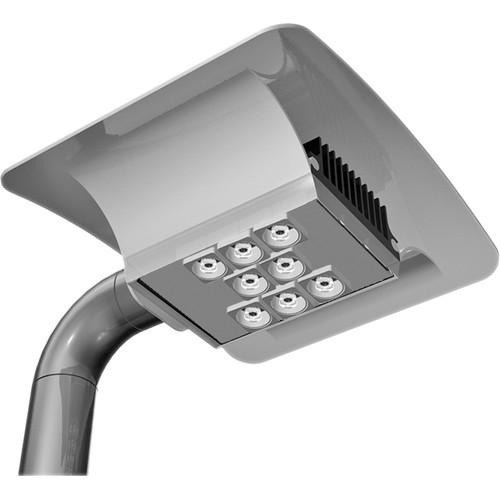

User Manual for Raytec RAYLUX Urban UBF-8 Multi-Purpose White-Light LED Illuminator Click to enlarge the picture
Contents of the user manual for the Raytec RAYLUX Urban UBF-8 Multi-Purpose White-Light
- Product category: Illuminators Raytec
- Brand: Raytec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raytec Illuminators
|
User manual for the Raytec RAYLUX Urban UBF-8 Multi-Purpose White-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raytec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raytec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raytec product will considerably shorten its lifespan!
|
Product description The silver RAYLUX Urban UBF8 Multi-Purpose White-Light LED Illuminator from Raytec is designed to deliver lighting for outdoor environments such as footpaths, car parks, and on-campus lighting, as well as lighting for surveillance cameras. It uses surface mounted LEDs to deliver white light. The illuminator is designed to provide fixed angle illumination for down lighting. It is fitted with Active LED Life Control to control LED output, delivering consistent illumination and a projected working life of 10 years. The illuminator delivers quick-start illumination with no warmup period required. -
- Includes a power supply with adjustable power output, photocell, and telemetry control
- Enhanced color rendition
- Even output Illumination
- Integrated light spill shield
- Active LED Life Control
- IP66-rated weather-resistant enclosure
- Quick start
- Platinum LED technology
- Suitable for perimeter monitoring, car parks, security, and pathways in urban environments and in architectural applications
In the Box Raytec RAYLUX Urban UBF-8 Multi-Purpose White-Light LED Illuminator (120 x 80°) Standard Power Supply Unit Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec RAYLUX Urban UBF-8 Multi-Purpose White-Light LED Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec UBF-8-120H-80V Specs | | | Lumens | Source 110 lumens per watt, luminaire 60+ lumens per watt | | Lumens Brightness | 800 | | Viewing Angle (H x V) | 120 x 80° | | Optics | SMT LEDs | | Consumption | 15 W maximum | | Voltage | 14 V current controlled | | Color Temperature | 6500K | | Reproduction Ratio | 74 to 80+ | | IP Rating | IP66 | | Temperature Range | -58 to 122°F (-50 to 50˚C) | | Photocell | Integrated into luminaire | | Cable Length | 1.6' (0.5 m) (plus optional 16.4' cable/photocell extension kit) | | Wavelength | White light | | Dimensions | With Light Spill Shield: Approximately 7 x 7 x 3" (182 x 170 x 68 mm) | | Weight | 3.3 lb (1.5 kg) excluding brackets | | | | Input | Universal 100 to 240 VAC auto-sensing | | Output | 15 W maximum | | Temperature | -58 to 122°F (-50 to 50°C) | | Dimensions | 12 x 3 x 2"(300 x 80 x 55 mm) approximately | | Weight | 2.4 lb (1.1 kg) |
