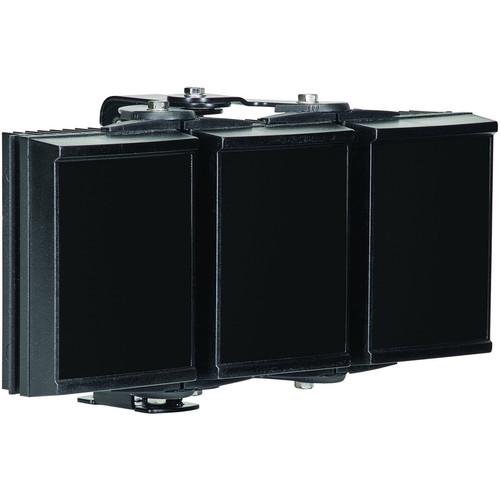

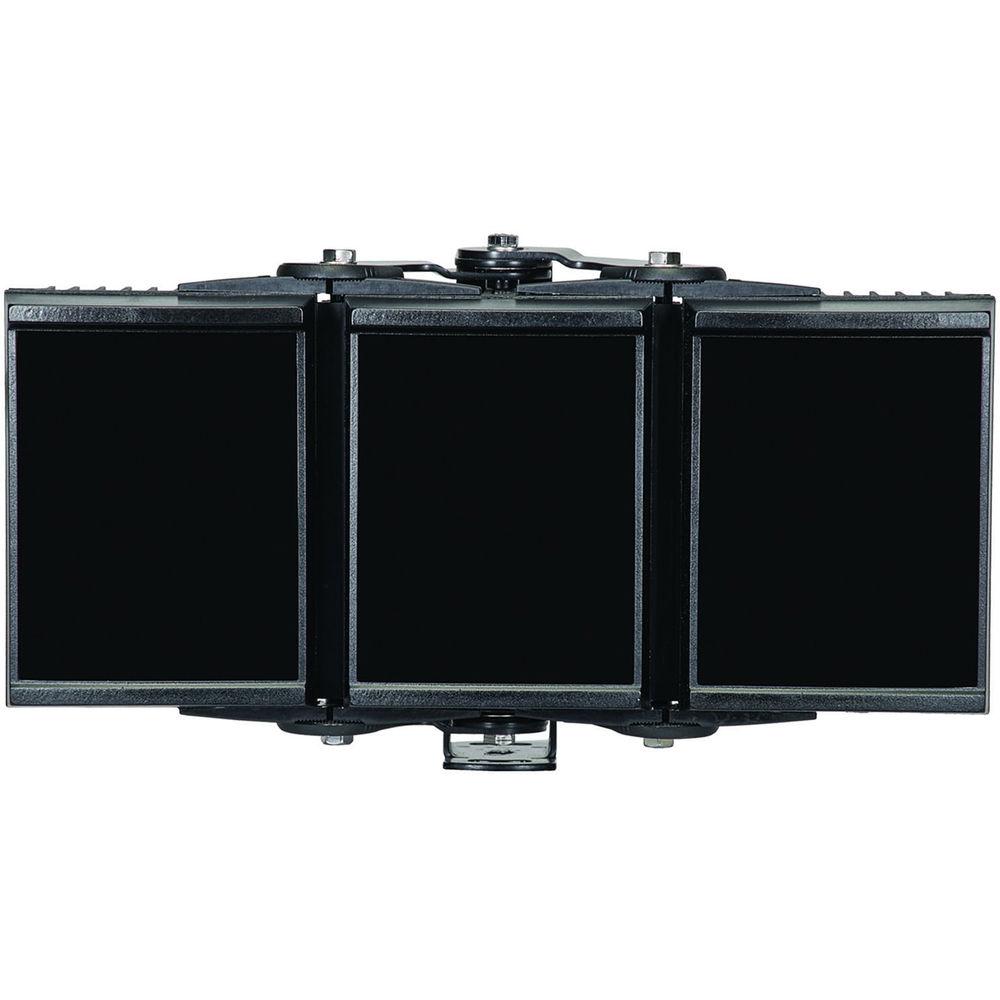

Product description The black RAYMAX 150 Series Panoramic Ultra Illuminator from Raytec features a wide spread of light and an illumination distance up to 558'. It utilizes holographic lens technology to spread and control the light, creating a softer and more even distribution. It also features Hot-Spot Reduction Technology (HRT), directing the light where it is most needed to not only deliver longer illumination distances and minimize light waste, but also to provide full scene coverage without hot spots caused by overexposure.The illuminator is designed to offer a long life of 10 years and zero maintenance. The adaptive Illumination allows installers to adjust the 60 to 180° angle of light projection according to specific security needs and a camera's field of view. It includes Active LED Life Control that controls LED output during the illuminator's life cycle. It also incorporates the surface mount LED technology to deliver remarkable performance. The illuminator includes a power supply with an adjustable power output, an adjustable photocell, and telemetry control. - Holographic Lens Technology
- The illuminator uses holographic lens technology to evenly spread and control the light output across the full width and depth of the scene, producing full scene CCTV images at night. A single illuminator delivers 180° coverage at distances up to 328', and 360° coverage when using two units; making it suitable for wide angle, PTZ, multi-sensor, or 360° dome cameras covering large areas.
- Platinum Elite SMT LEDs
- The Platinum Elite SMT LEDs, when used together with Raytec optics and an enhanced Cool Running thermal management system, deliver a single high-performance LED illuminator.
- Hot-Spot Reduction Technology
- The HRT (Hot-Spot Reduction Technology) delivers a highly diffused, elliptical beam shape to deliver more light where it is needed, generating both longer distances and minimizing light wastage. The HRT system also minimizes overexposure of foreground objects
- Ultimate Adaptive Illumination

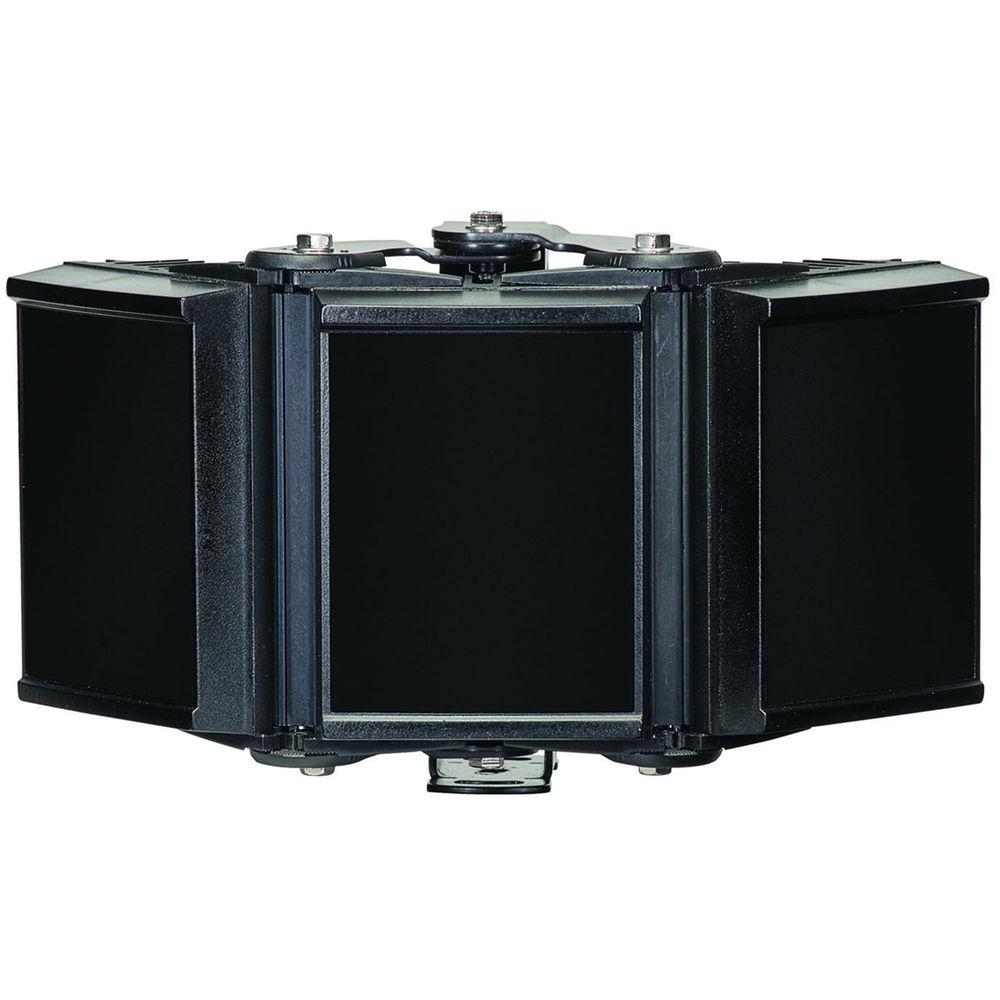

- Ultimate Adaptive Illumination allows the installer to adjust the angle of the light projection from a single unit to fit the specific demands of any installation. Adjustment is quick and convenient and any angle from 60 to 180° is easily selectable.
- Active LED Life Control
- The Advanced Cool Running system draws heat away from the LEDs and allows the LED products to deliver better performance and consistency of illumination throughout the operational life of the illuminator.
In the Box Raytec RAYMAX 150 Series Panoramic Ultra Illuminator (60 to 180° x 5°, Black) Standard Power Supply Adaptive Illumination Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec RAYMAX 150 Series Panoramic Ultra Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec RAYMAX 150 Specs | | | Max Distance | 558' / 170 m | | Angle | Beam: 60 to 180 x 5°
Narrow: 558' / 170 m at 60°
Wide: 328' / 100 m at 180° | | Wavelength | 850 nm | | Optics | Platinum Elite SMT LEDs | | Voltage | 15 V current controlled | | IP Rating | IP66 | | Temperature Range | -58 to 122°F / -50 to 50°C | | Power Consumption | 105 W | | Cable Length | 8.2' / 2.5 m | | Dimensions | 12 x 5 x 2" / 30 x 13 x 5 cm | | Weight | 8.3 lb / 3.7 kg | | | | Input | Universal 100 to 230 VAC auto-sensing | | Output | 105 W maximum | | Temperature | -58 to 122°F / -50 to 50°C | | IP Rating | IP66 | | Dimensions | 9 x 6 x 3" / 23 x 15 x 8 cm | | Weight | 5.3 lb / 2.4 kg |
