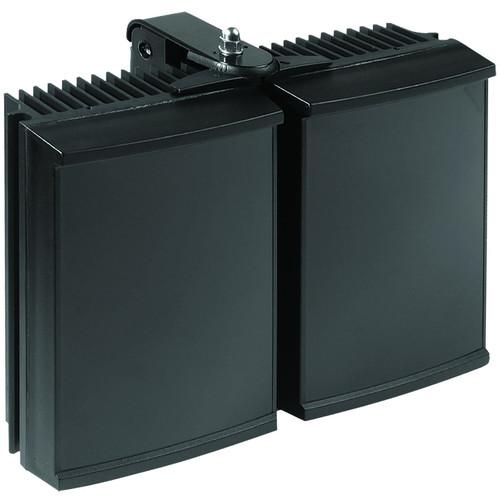

User Manual for Raytec RAYMAX 200 Series Platinum Long-Range Semi-Covert IR Illuminator Click to enlarge the picture
Contents of the user manual for the Raytec RAYMAX 200 Series Platinum Long-Range
- Product category: Illuminators Raytec
- Brand: Raytec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raytec Illuminators
|
User manual for the Raytec RAYMAX 200 Series Platinum Long-Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raytec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raytec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raytec product will considerably shorten its lifespan!
|
Product description The black RAYMAX 200 Series Platinum Long-Range Semi-Covert IR Illuminator from Raytec is a high-performance IR lighting solution used in night surveillance operations. It is designed to offer a long life (10 years) with zero maintenance. The adaptive illumination allows installers to adjust the angle (30 to 60°) of light projection according to specific security needs and a camera's field-of-view. It includes Active LED Life Control that controls LED output during the illuminator's life cycle.
The illuminator, with a wavelength of 850nm, is suitable for low-light installations to a range of up to 722'. It has a polycarbonate lens design to protect the illuminator against blows from crowbars, baseball bats, and successive shots from air pistols and rifles. The illuminator includes a power supply with features such as adjustable power output, photocell, and telemetry control. - Adaptive Illumination
- Adaptive illumination allows the installer to adjust the angle of light projection from a single unit to fit the specific demands of an installation. Any angle up to 180° can be selected.
- Platinum Advanced LED Technology
- This Platinum illuminator use SMT LED technology together with LIMO (Light Intensification Miniature Optics) and an enhanced Cool Running thermal management system in a single high-performance LED system.
- Active LED Life Control
- The Advanced Cool Running system draws heat away from LEDs, shielding them from abnormal stress, and allows the LED products to deliver better performance and consistency of illumination throughout the operational life of the illuminator.
- Energy Saving
- It uses high efficiency LEDs and advanced control methods to deliver extremely low electrical consumption. The illuminator saves energy compared to traditional bulb illuminators.
- High Definition Lighting
- High-Definition Lighting allows cameras to provide high signal images during the hours of darkness. HD lighting is made possible with Raytec's high power LED technology.
In the Box Raytec RAYMAX 200 Series Platinum Long-Range Semi-Covert IR Illuminator (30 to 60°, Black) Standard Power Supply U Bracket Adaptive Illumination Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec RAYMAX 200 Series Platinum Long-Range Semi-Covert IR Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec RAYMAX 200 Specs | | | Beam Angle | 30 to 60° | | Range | Narrow Beam: 722' (220 m)
Wide Beam: 459' (140 m) | | Optics | SMT LEDs | | Consumption | 80 dW maximum | | Voltage | 13.5 V current controlled | | IP Rating | IP66 | | Temperature Range | -58 to 122°F (-50 to 50°C) | | Cable Length | 8.2' (2.5 m) | | Wavelength | 850 nm | | Dimensions | 11 x 8 x 3" (28 x 20 x 7 cm) approximately | | Weight | 8.8 lb (3.9 kg) | | | | Input | Universal 100 to 230 VAC auto-sensing | | Output | 80 W maximum | | Temperature | -58 to 122°F (-50 to 50°C) | | Dimensions | 6 x 6 x 4" (16 x 16 x 1 cm) approximately | | Weight | 4 lb (1.8 kg) |
