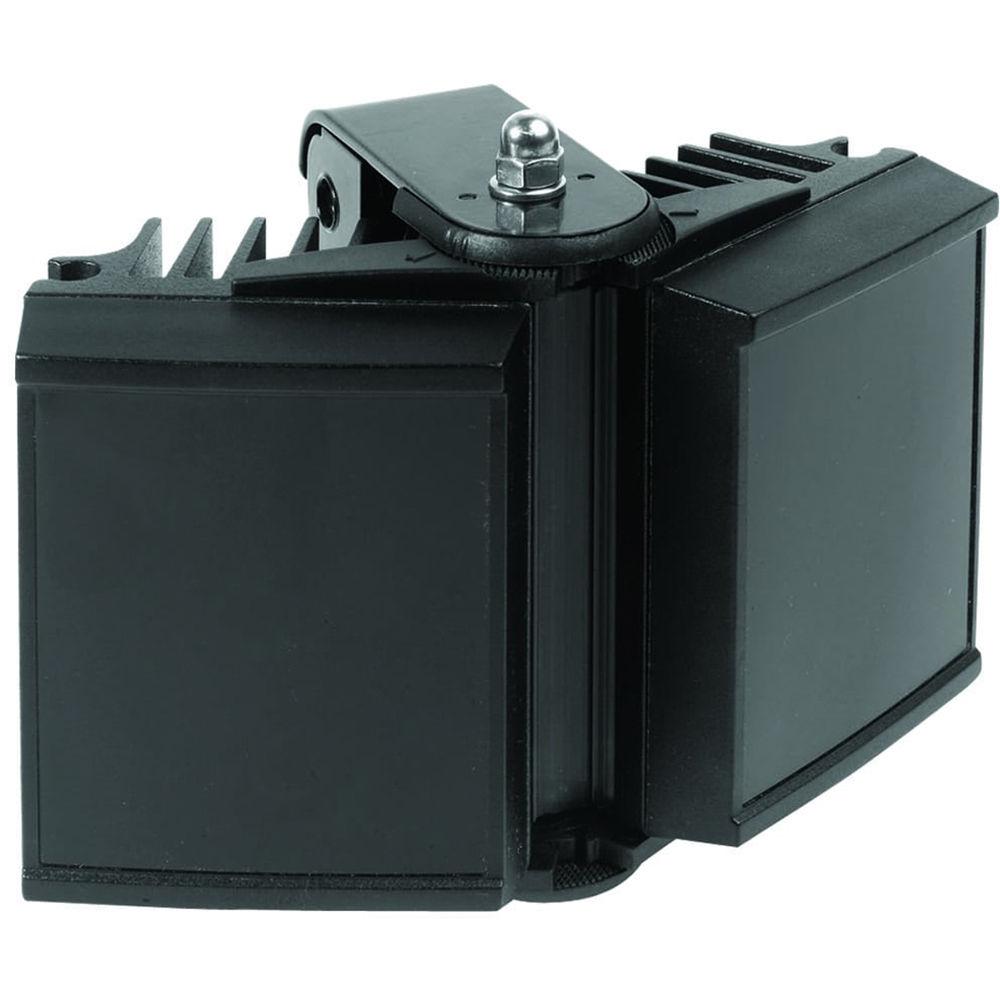

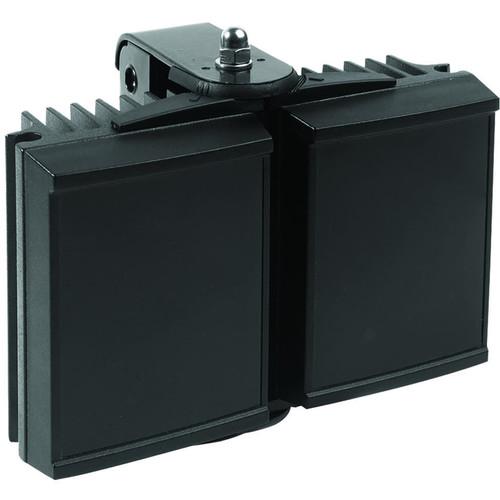

User Manual for Raytec RAYMAX 50 Series Semi-Covert Illuminator Click to enlarge the picture
Contents of the user manual for the Raytec RAYMAX 50 Series Semi-Covert Illuminator
- Product category: Illuminators Raytec
- Brand: Raytec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raytec Illuminators
 |
User manual for the Raytec RAYMAX 50 Series Semi-Covert Illuminator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raytec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raytec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raytec product will considerably shorten its lifespan!
|
Product description The black RAYMAX 50 Series Semi-Covert Illuminator from Raytec is a high-performance IR lighting solution used in night surveillance operations. It is designed to offer a working life of 10 years and zero maintenance. The adaptive Illumination allows installers to adjust the angle from 10 to 30° of light projection according to specific security needs and a camera's field of view. It includes Active LED Life Control that controls LED output during the illuminator's life cycle.
The illuminator, which has a wavelength of 850nm, is suitable for low-light installations to a range of up to 92'. It has a polycarbonate lens design that protects the illuminator against blows from crowbars, baseball bats, and successive shots from air pistols and rifles. The lighting enables the camera to capture images in darkness. The illuminator includes a power supply with an adjustable power output for IR, an adjustable photocell, and telemetry control. - Adaptive Illumination
- Adaptive Illumination allows the installer to adjust the angle of the light projection from a single unit to fit the specific demands of any installation. Adjustment is quick and convenient and any angle up to 180° is easily selectable.
- Active LED Life Control
- The Advanced Cool Running system draws heat away from the LEDs, shielding the LED from abnormal stress, and allows the LED products to deliver better performance and consistency of illumination throughout the operational life of the illuminator.
- SMT (Surface Mount Technology)
- Compared to standard through hole LEDs, surface mount LEDs are a more robust solution increasing reliability and improving product life. They are also far more efficient at the dissipation of heat, allowing the LEDs to run at higher power and achieve significantly improved performance.
- Vandal Resistant
- The polycarbonate lens design protects against severe blows from crowbars, baseball bats, and can even withstand successive shots from air pistols and rifles (range dependent).
- Energy Saving
- It uses high-efficiency LEDs and advanced control methods to deliver extremely low electrical consumption. The illuminator saves energy and delivers huge savings in running costs compared to traditional bulb illuminators.
- High-Definition Lighting
- High-Definition Lighting allows cameras to provide clear, high-signal images during the hours of darkness. The HD lighting is made possible with Raytec's high-power LED technology, which delivers increased power on scene. High-definition cameras require high-definition lighting.
In the Box Raytec RAYMAX 50 Series Semi-Covert Illuminator (50 to 100°, Black) Standard Power Supply U Bracket Adaptive Illumination Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec RAYMAX 50 Series Semi-Covert Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec RAYMAX 50 Specs | | | Max Distance | Up to 246' / 75 m | | Angle | Beam: 50 to 100°
Narrow: 92' / 28 m
Wide: 61' / 18 m | | Optics | SMT LEDs | | Consumption | 20 W maximum | | Voltage | 13.5 V current controlled | | IP Rating | IP66 | | Temperature Range | -58 to 122°F / -50 to 50°C | | Cable Length | 8.2' / 2.5 m | | Wavelength | 850 nm | | Dimensions | 6 x 4 x 2" / 15 x 10 x 5 cm | | Weight | 3.7 lb / 1.7 kg | | | | Input | Universal 100 to 230 VAC auto-sensing | | Output | 20 W maximum | | Temperature | -58 to 122°F / -50 to 50°C | | Dimensions | 5.1 x 5.1 x 2.4" / 13 x 13 x 6.1 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 5.41 lb | | Box Dimensions (LxWxH) | 9.4 x 8.9 x 8.1" |
