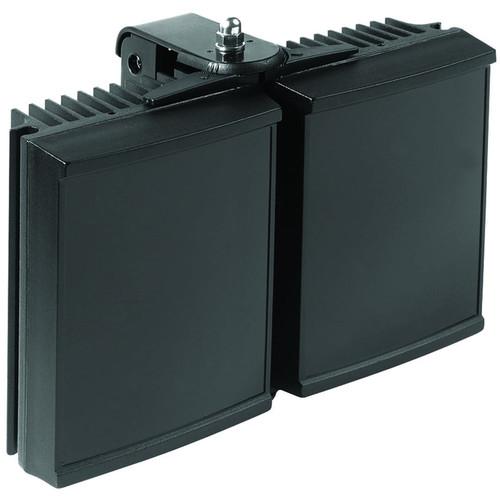

User Manual for Raytec RM100-AI-120 Covert IR Illuminator with Power Supply Click to enlarge the picture
Contents of the user manual for the Raytec RM100-AI-120 Covert IR Illuminator with
- Product category: Illuminators Raytec
- Brand: Raytec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raytec Illuminators
|
User manual for the Raytec RM100-AI-120 Covert IR Illuminator with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raytec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raytec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raytec product will considerably shorten its lifespan!
|
Product description The RM100-AI-120 Covert IR Illuminator from Raytec is a high-performance IR lighting solution used in night surveillance operations. It is designed to offer a long life (10 years) and zero maintenance. With surface mount IR LEDs, it dissipates heat to run at high power, and provides high-quality images in complete darkness with enhanced optical output. Adaptive Illumination allows installers to adjust the angle (120 to 180°) of light projection according to specific security needs and a camera's field-of-view. The IR Illuminator includes the Advanced Cool Running system that drives away heat from the LEDs and protects it from abnormal stress for a constant level of light throughout the life of the illuminator. Even illumination reduces bit rates and lowers storage requirements, useful for digital recording systems. It also includes Active LED Life Control that controls LED output during the illuminator's life cycle. The RM100-AI-120 IR Illuminator, with a wavelength of 940nm, is suitable for low-light installations. It has a polycarbonate lens design that protects the illuminator against blows from crowbars, baseball bats, and successive shots from air pistols and rifles. The lighting enables the camera to capture images in darkness. The illuminator includes a power supply with features such as adjustable power output, photocell, and telemetry control. - High-performance IR lighting solution used in night surveillance operations
- Adaptive Illumination technology provides a way for installers to adjust the angle (120 to 180°) of light projection to specific security needs and a camera's field-of-view
- Advanced Cool Running system that drives away heat from the LEDs
- Even illumination reduces bit rate and lowers storage requirements for encoding and digital recording systems
- Active LED Life Control controls LED output during the illuminator's life cycle
- Suitable for low light installations up to .
- Polycarbonate lens design protects the illuminator against blows from crowbars, baseball bats, and successive shots from air pistols and rifles
- Includes a power supply with adjustable power output, photocell, and telemetry control
In the Box Raytec RM100-AI-120 Covert IR Illuminator with Power Supply (120 to 180°, Black) Power Supply Unit Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec RM100-AI-120 Covert IR Illuminator with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec RAYMAX 100 Specs | | | Angle | 120 to 180° | | Optics | SMT LEDs | | Wavelength | 940 nm | | Cable Length | 8.2' (2.5 m) | | Voltage | 13.5 V current controlled | | Maximum Power Consumption | 50 W | | Environmental | IP66 | | Temperature Range | -58 to 122°F (-50 to 50˚C) | | Dimensions | 8 x 6 x 3" (210 x 150 x 65 mm) | | Weight | 5.5 lb (2.5 kg) | | | | Input | Universal 100 to 230 VAC auto-sensing | | Maximum Output | 50 W | | Temperature | -58 to 122°F (-50 to 50˚C) | | Dimensions | 6 x 6 x 4" (160 x 160 x 90 mm) | | Weight | 3.3 lb (1.5 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
